VIRNIG

V40 Snow / Light Material Bucket

For Skid Steers & Track Loaders

60-96″ Widths

Virnig

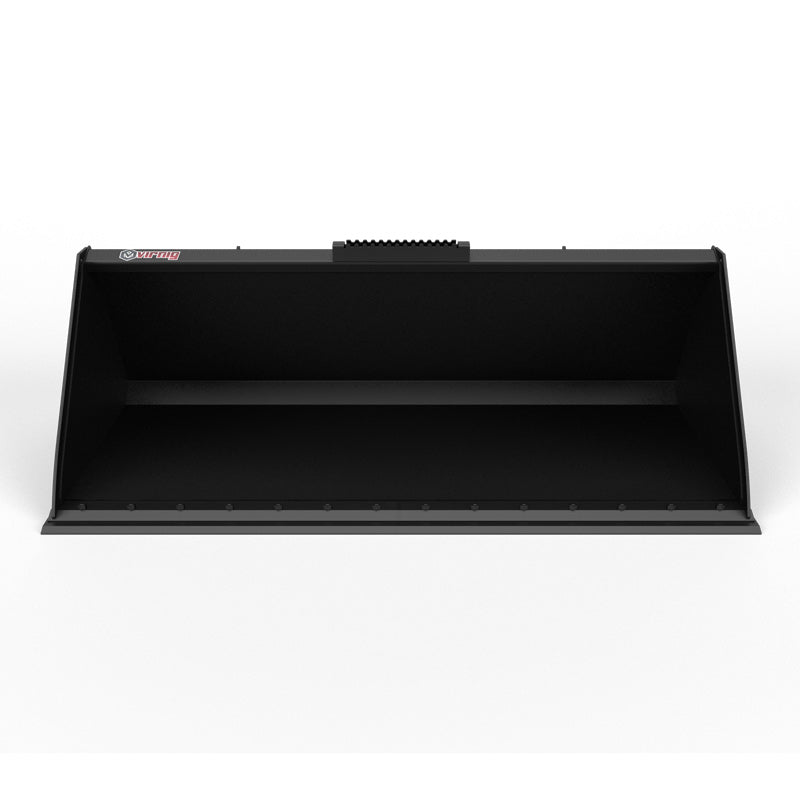

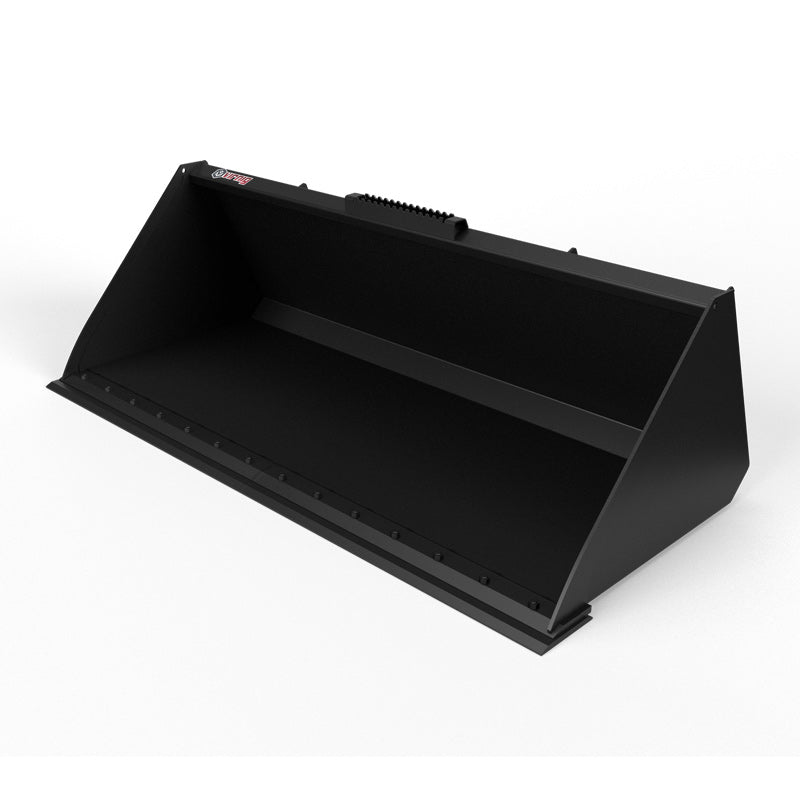

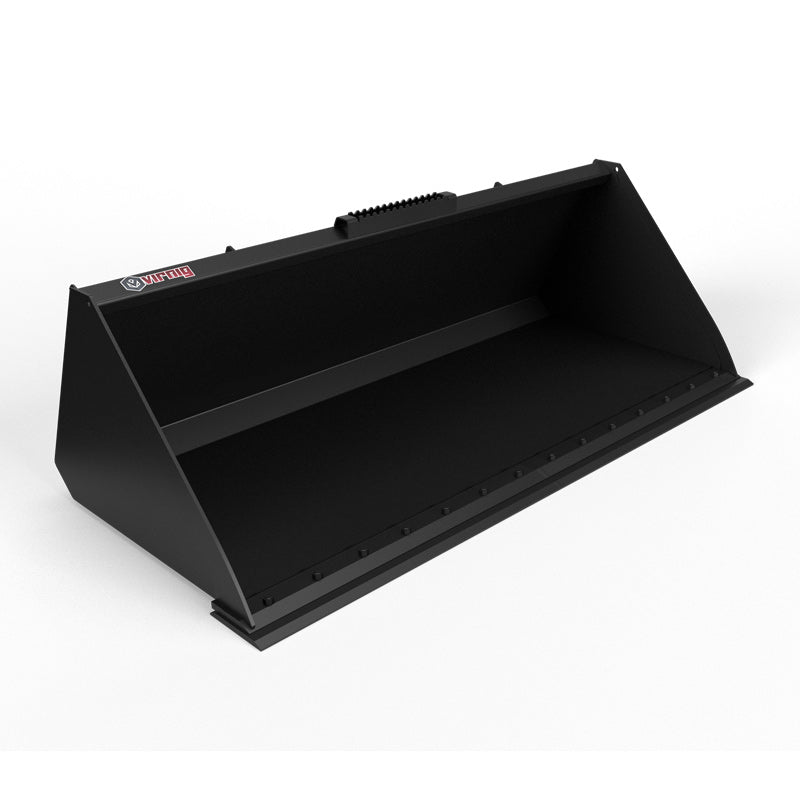

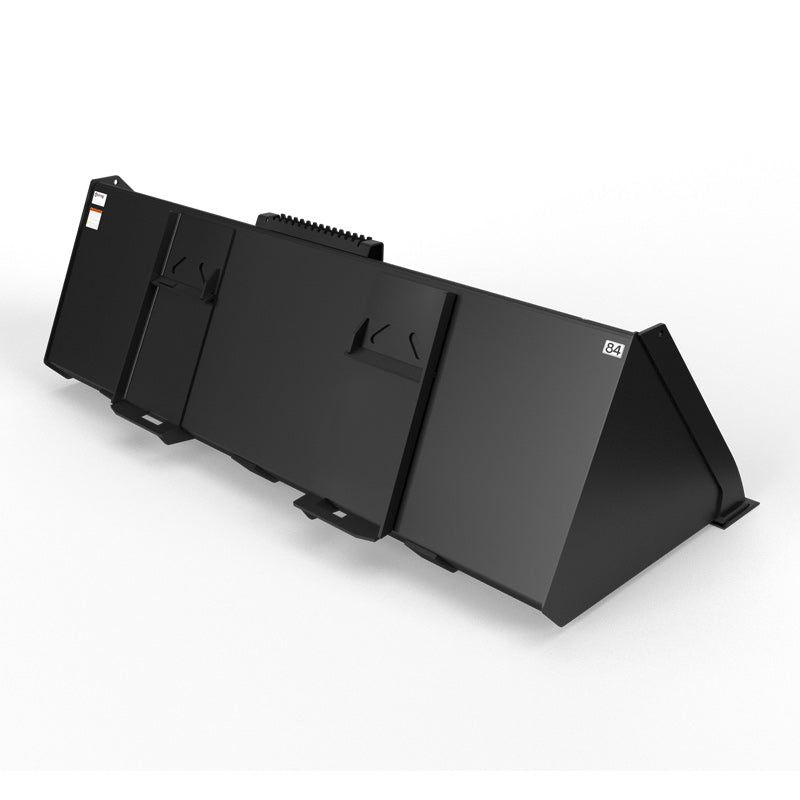

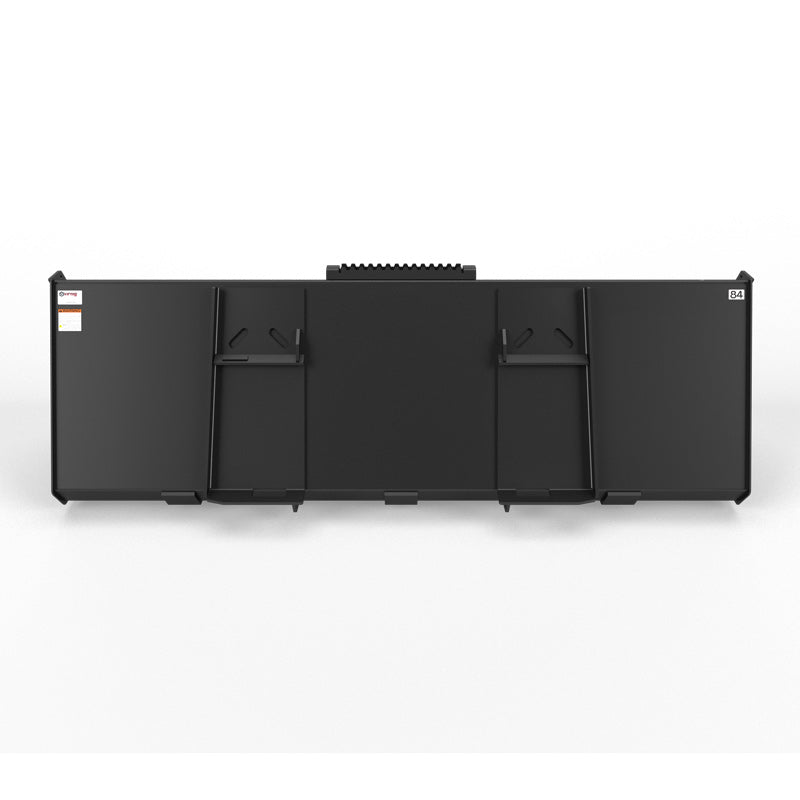

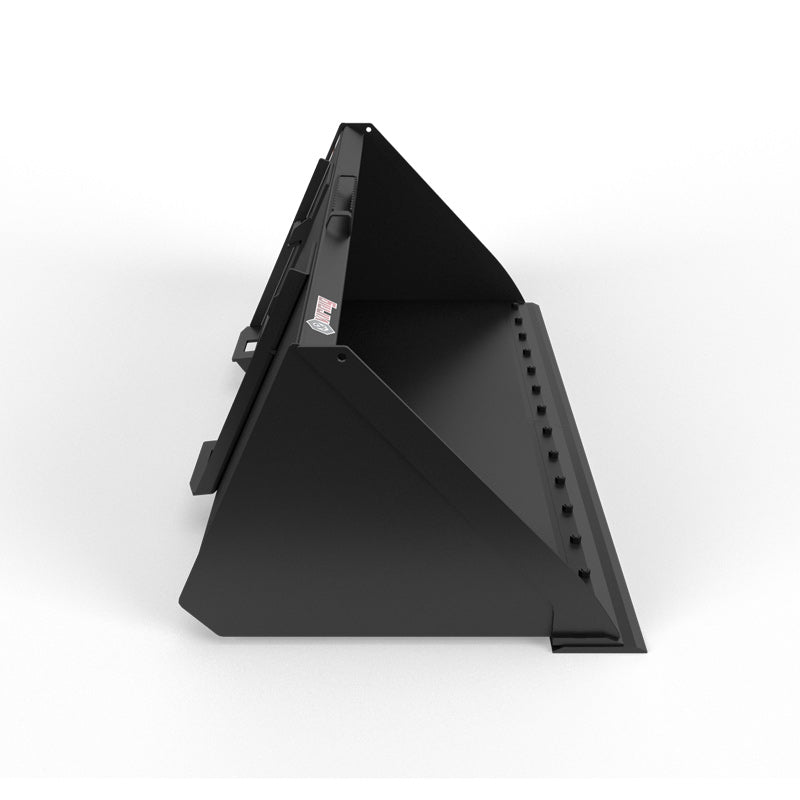

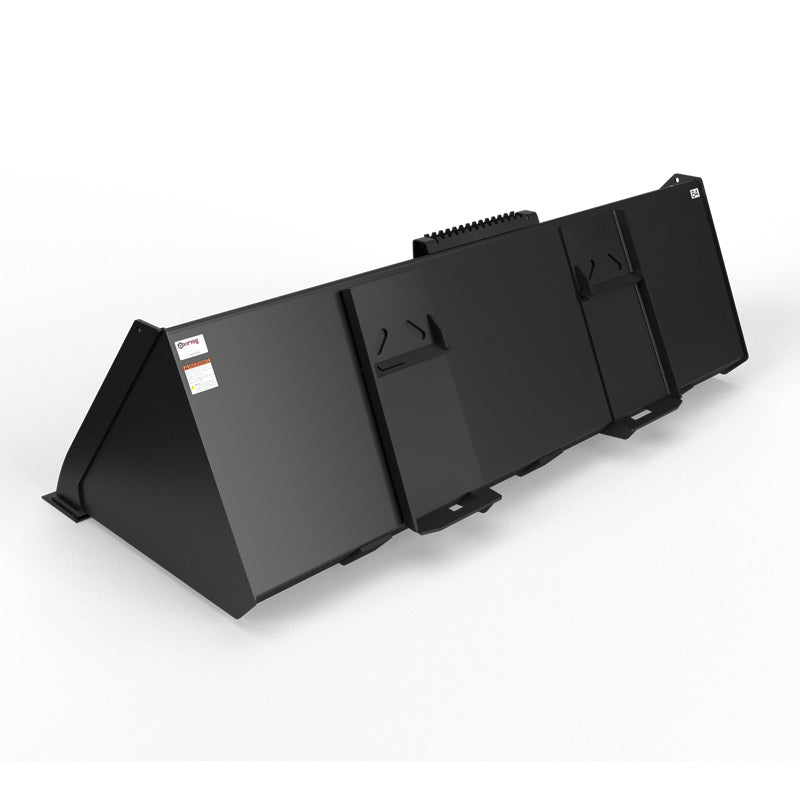

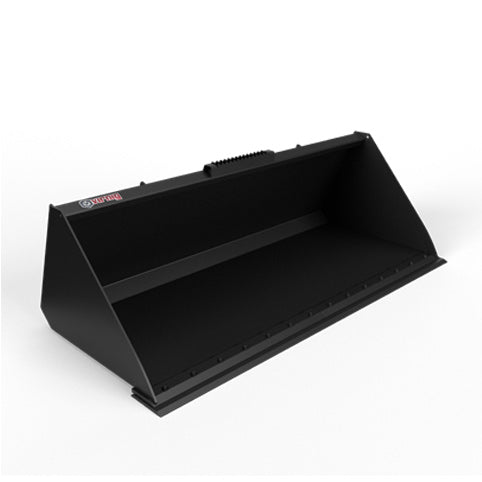

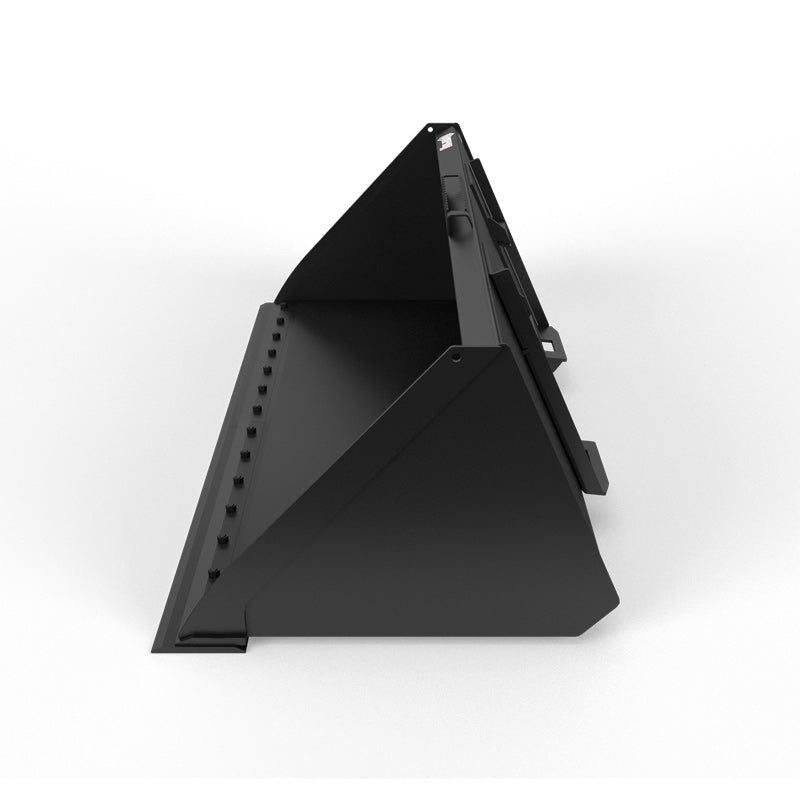

Virnig V40 Snow / Light Material Bucket

SKU: SLHV60 Currently In Stock

Sale price$2,190.00 USD

MOST IMPORTANT FEATURES

MATERIAL CONTAINMENT

A 3/16″ STEEL SHELL AND SIDE PLATES CONTAIN SNOW AND OTHER LIGHT BULK MATERIAL.

GUSSETED CONSTRUCTION

⅜″ SIDE EDGES AND GUSSETS REINFORCE THE BUCKET'S OUTER WORKING CORNERS.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

REINFORCED BUCKET

THE SLHV96 MODEL ADDS ⅜″ INTERNAL VERTICAL BRACES TO SUPPORT ITS WIDER BUCKET.

MATERIAL HANDLING

VIRNIG V40 SNOW / LIGHT MATERIAL BUCKET CARRIES HIGH VOLUMES OF SNOW, MULCH, AND OTHER LOW-DENSITY MATERIALS.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V40 Snow / Light Material Bucket carries bulky, low-density material such as snow and mulch. Its higher-volume shape lets the loader gather more light material in each load than a compact dirt bucket, making it useful for clearing piles and moving loose material around a property or yard.

The bucket uses a 3⁄16″ shell and side plates, with ⅜″ side edges and gussets. A ¾″ × 6″ weld-on edge forms the leading working surface. The SLHV96 model also includes internal vertical braces, so construction details should be checked for the selected width rather than assumed identical throughout the family.

Select the size around the loader, the travel space, and the material being moved. Light-material capacity is a volume advantage, not a higher lifting rating, and wet or compacted snow can be much heavier than loose powder. Check the complete bucket and contents against the carrier's capacity before filling and carrying a load.

KEY BENEFITS

  • 3/16” shell and side plates.
  • 3/8” side edges and gussets.
  • 3/4″ x 6″ weld-on edge.
  • Slhv96 has 3/8″ vertical braces inside bucket; similar to the v50 snow bucket.
  • Virnig v40 snow / light material bucket carries high volumes of snow, mulch, and other low-density materials.

TECHNICAL SPECIFICATIONS

  • Models: SLHV60 SLHV66 SLHV72 SLHV78 SLHV84 SLHV96
  • Width: Overall / Inside (in.): SLHV60: 61.5 / 59.3; SLHV66: 67.5 / 65.3; SLHV72: 73.5 / 71.3; SLHV78: 79.5 / 77.3; SLHV84: 85.5 / 83.3; SLHV96: 97.5 / 95.3
  • Overall Height (in.): 26.6
  • Depth: Overall / Inside (in.): 40.0 / 36.8
  • Capacity: Struck / Heaped (cu. ft.): 18.6 / 22.3 | 20.4 / 24.5 | 22.2 / 26.6 | 24.0 / 28.8 | 25.8 / 31.0 29.4 / 35.3
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.19
  • Structural Wear Bars Under Bucket (1/2″x4″): SLHV60: 2; SLHV66: 2; SLHV72: 2; SLHV78: 3; SLHV84: 3; SLHV96: 4
  • Approximate Weight (lbs): SLHV60: 495; SLHV66: 525; SLHV72: 555; SLHV78: 605; SLHV84: 635; SLHV96: 745
  • Recommended Loader Capacity: Less than 2400 lbs

APPLICATIONS

  • Snow loading
  • Mulch handling
  • Light material transport

VIRNIG V40 SNOW / LIGHT MATERIAL BUCKET

WORKING DESIGN

  • 3/16” shell and side plates.
  • 3/8” side edges and gussets.
  • 3/4″ x 6″ weld-on edge.
  • Slhv96 has 3/8″ vertical braces inside bucket; similar to the v50 snow bucket.

CONFIGURATION AND SPECIFICATIONS

  • Models: SLHV60 SLHV66 SLHV72 SLHV78 SLHV84 SLHV96
  • Width: Overall / Inside (in.): SLHV60: 61.5 / 59.3; SLHV66: 67.5 / 65.3; SLHV72: 73.5 / 71.3; SLHV78: 79.5 / 77.3; SLHV84: 85.5 / 83.3; SLHV96: 97.5 / 95.3
  • Overall Height (in.): 26.6
  • Depth: Overall / Inside (in.): 40.0 / 36.8
  • Capacity: Struck / Heaped (cu. ft.): 18.6 / 22.3 | 20.4 / 24.5 | 22.2 / 26.6 | 24.0 / 28.8 | 25.8 / 31.0 29.4 / 35.3
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.19
  • Structural Wear Bars Under Bucket (1/2″x4″): SLHV60: 2; SLHV66: 2; SLHV72: 2; SLHV78: 3; SLHV84: 3; SLHV96: 4

READY FOR THE FIELD

  • 3/16” shell and side plates.
  • 3/8” side edges and gussets.
  • 3/4″ x 6″ weld-on edge.
  • Slhv96 has 3/8″ vertical braces inside bucket; similar to the v50 snow bucket.
  • Virnig v40 snow / light material bucket carries high volumes of snow, mulch, and other low-density materials.
