VIRNIG

V40 Utility Fork

For Skid Steers & Track Loaders

60-78″ Widths

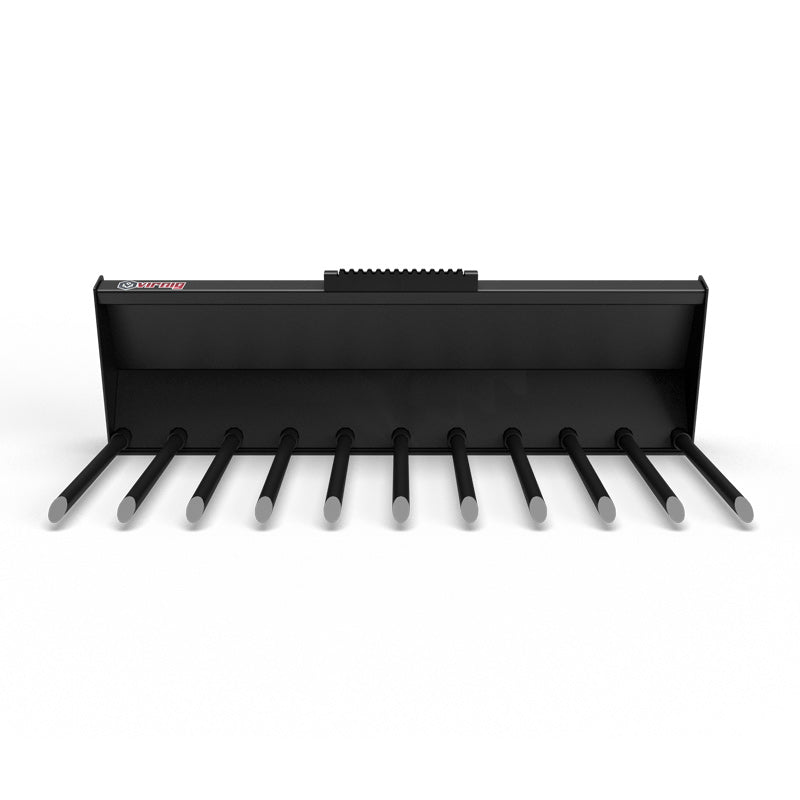

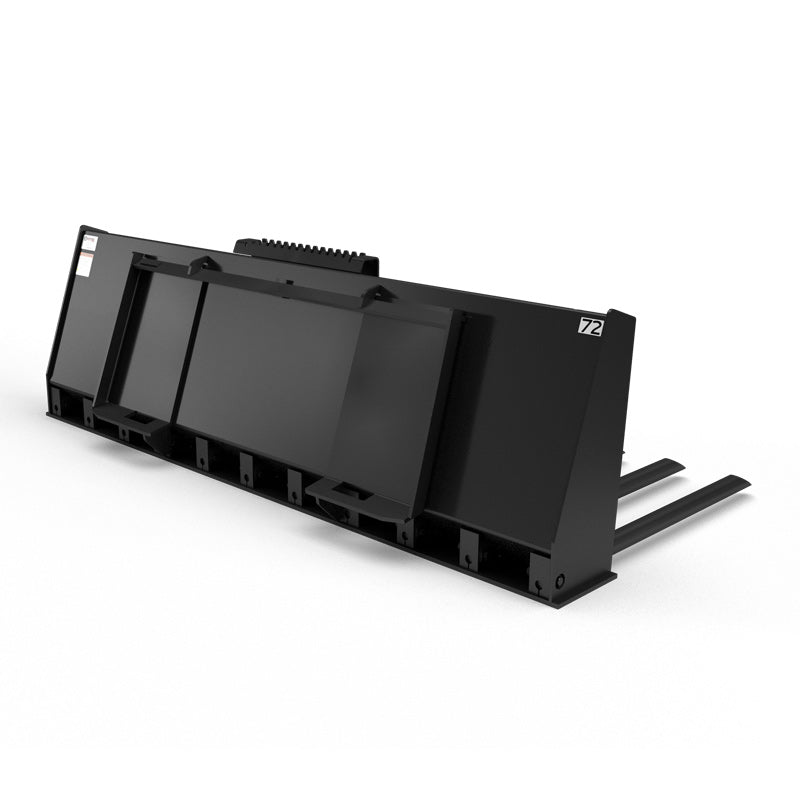

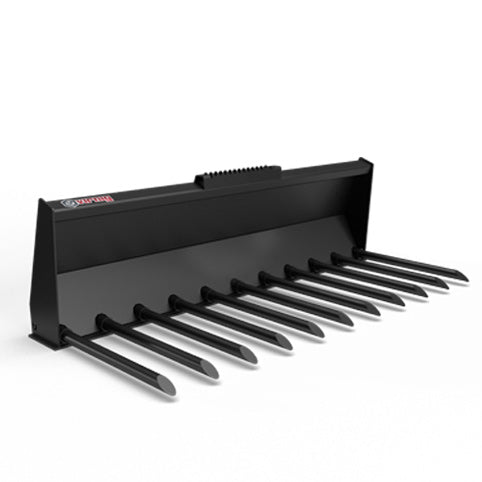

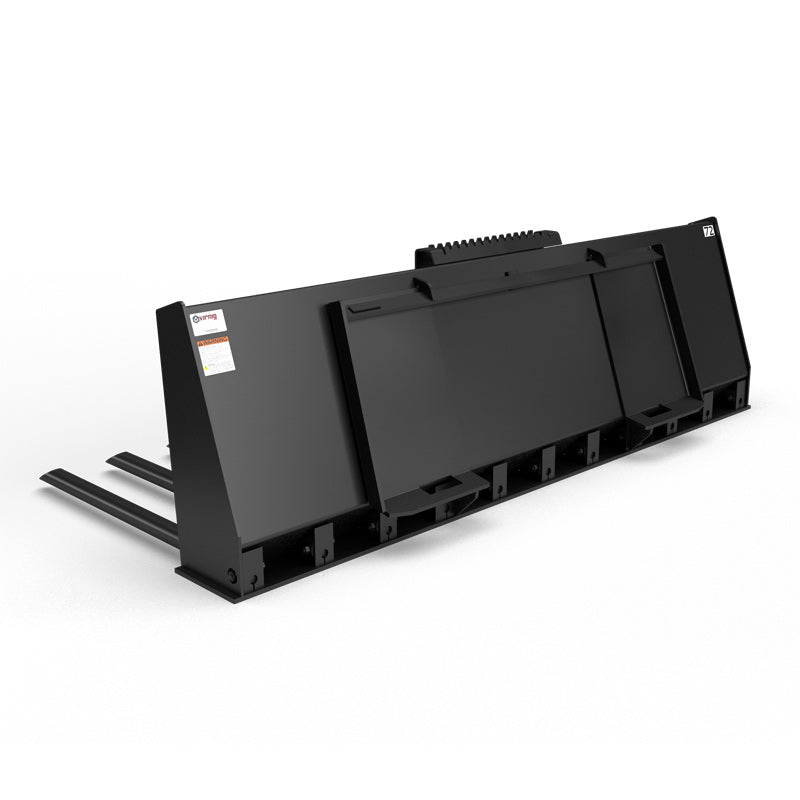

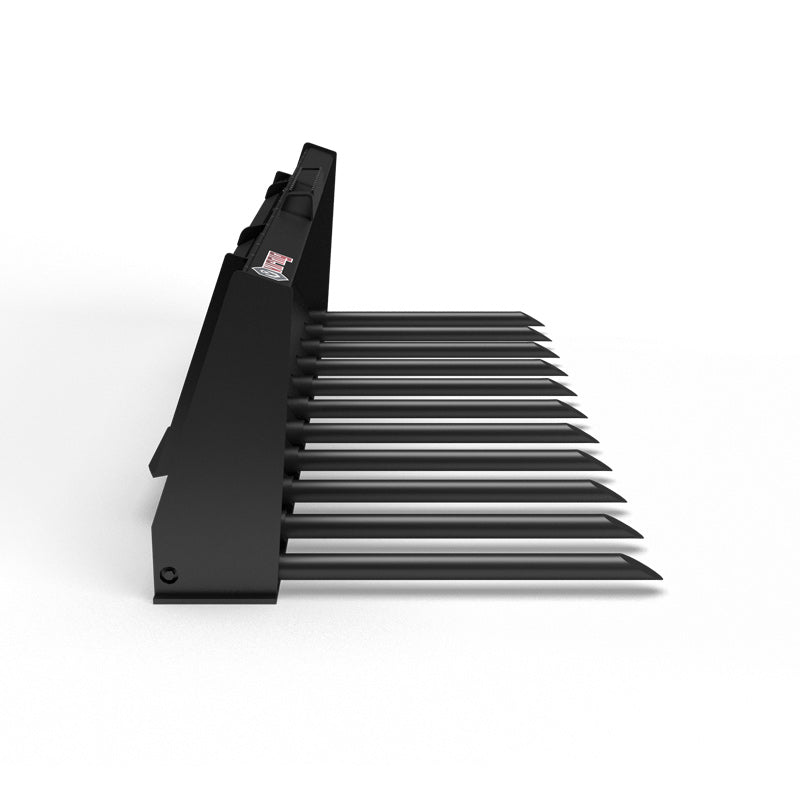

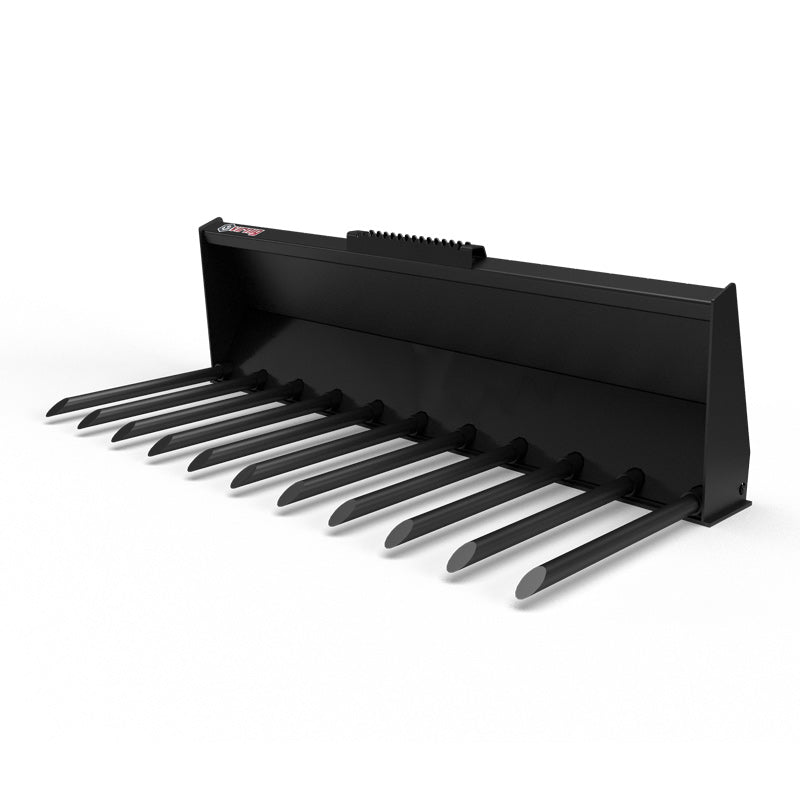

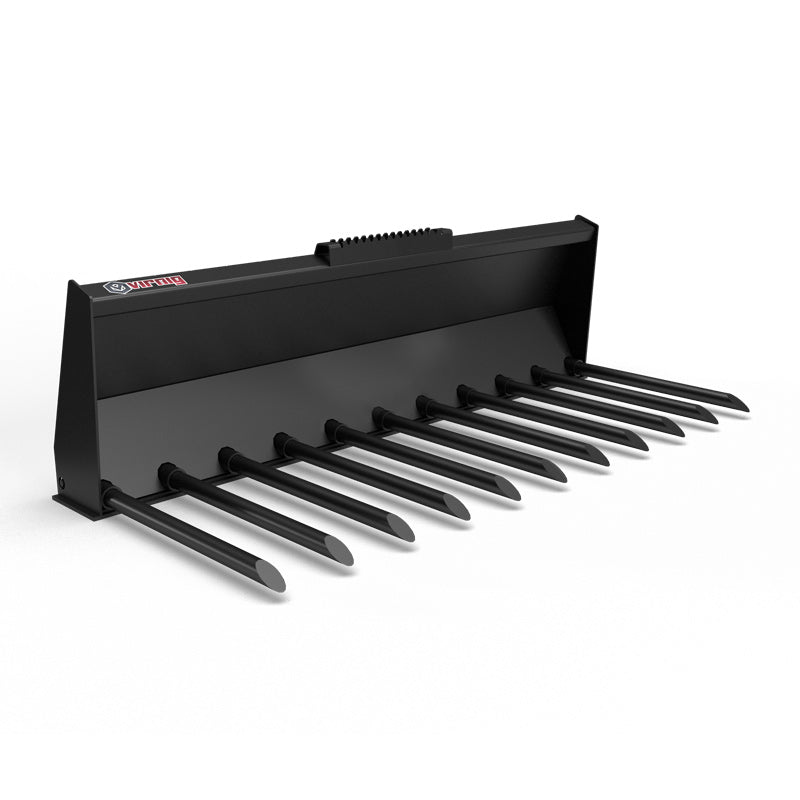

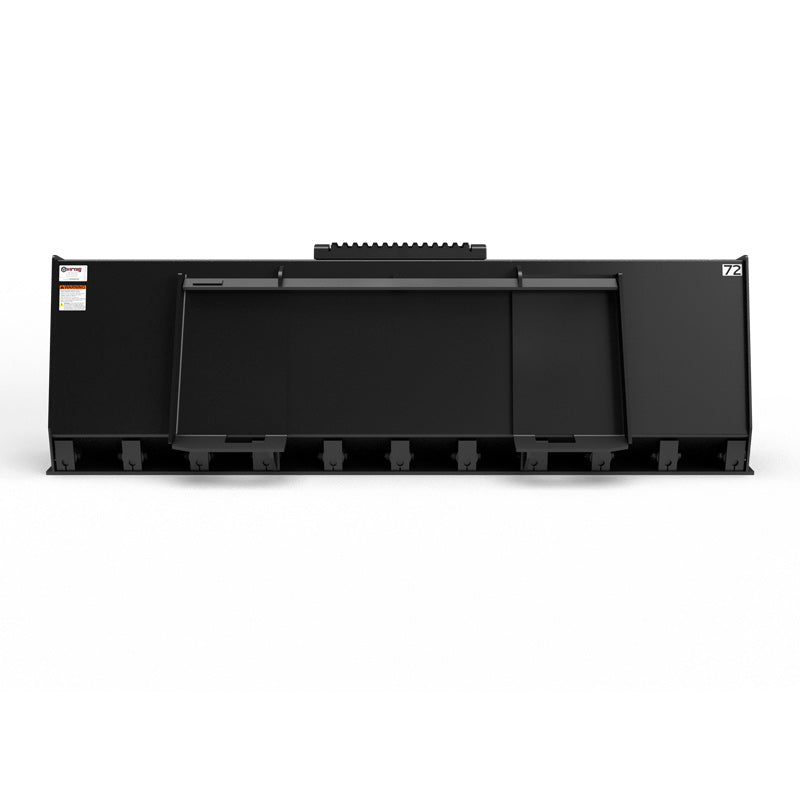

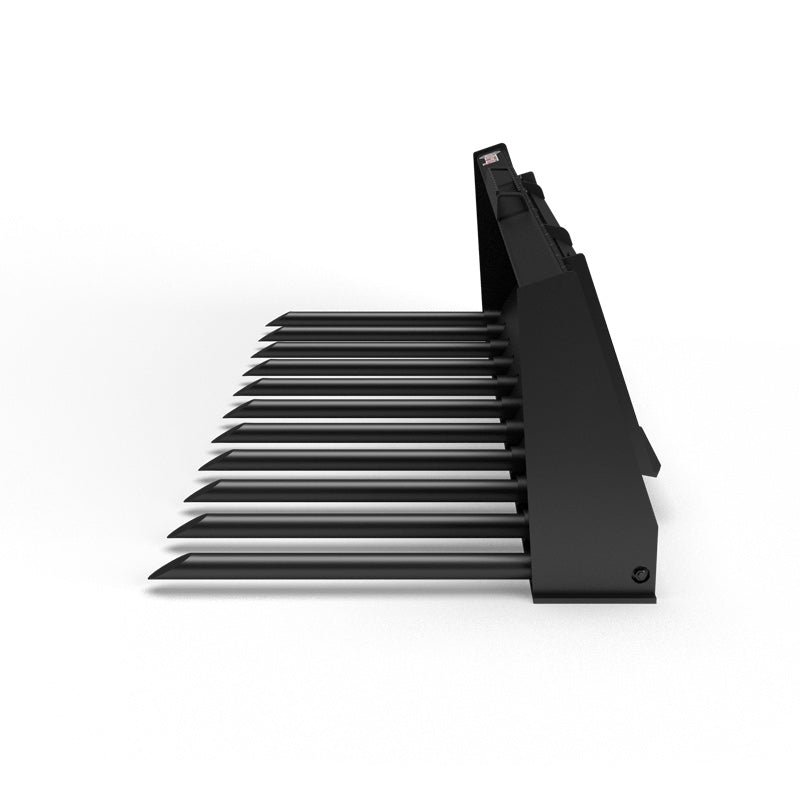

Virnig V40 Utility Fork

Virnig

Virnig V40 Utility Fork

SKU: MV60 Currently In Stock

Sale price$2,410.00 USD

MOST IMPORTANT FEATURES

OPEN TINE ENTRY

AN UNOBSTRUCTED TINE ENTRY SLIDES INTO MATERIAL WITHOUT A FRONT CROSS MEMBER IN THE WAY.

REPLACEABLE TINES

HIGH-STRENGTH TINES CAN BE REPLACED INDIVIDUALLY TO KEEP THE FORK IN SERVICE.

MANURE HANDLING

VIRNIG V40 UTILITY FORK SLIDES INTO SEMI-LOOSE MATERIAL WITH REPLACEABLE TINES AND AN OPEN FRONT.

CARRIER MATCHING

MODEL WEIGHTS VARY BY WIDTH, SO YOU CAN MATCH THE FORK TO THE LOADER'S LIFT CAPACITY.

WIDTH OPTIONS

MULTIPLE FORK WIDTHS LET YOU MATCH THE WORKING COVERAGE TO YOUR LOADER AND AISLES.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V40 Utility Fork slides into manure, brush, and other semi-loose material with an open tine arrangement. Without a front cross member blocking the entry, the fork can work beneath a pile instead of simply pushing the entire pile ahead of the attachment during loading.

High-strength replaceable tines provide the working support for the load. Individual replacement allows a worn or damaged tine to be serviced separately, while the open floor lets finer loose material fall through. This arrangement is useful where penetration and material separation matter more than retaining every small piece in a solid bucket.

Choose the fork width and attachment weight to suit the carrier, access requirements, and typical load. This is the plain utility fork without a hydraulic grapple, so material must remain supported on the tines during movement. Select a utility fork grapple instead when the job requires a jaw to hold irregular or loose loads in place.

KEY BENEFITS

  • No cross member for better penetration.
  • High strength replaceable tines.
  • Virnig v40 utility fork slides into semi-loose material with replaceable tines and an open front.
  • Approximate weight (lbs): 545 | 570 | 655 | 695
  • Overall width (in.): 61.3 | 67.3 | 73.3 | 79.3

TECHNICAL SPECIFICATIONS

  • Models: MV60 MV66 MV72 MV78
  • Overall Width (in.): MV60: 61.3; MV66: 67.3; MV72: 73.3; MV78: 79.3
  • Overall Height (in.): 21.5
  • Overall Depth (in.): 33.5
  • Number of Tines (w/ sides): MV60: 9; MV66: 10; MV72: 11; MV78: 12
  • Space Between Tines (in.): MV60: 5.4; MV66: 5.3; MV72: 5.2; MV78: 5.1
  • Tine Diameter (in.): 1.75¹
  • Approximate Weight (lbs): MV60: 545; MV66: 570; MV72: 655; MV78: 695
  • Recommended Loader Capacity: Less than 2400 lbs
  • ¹Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Manure handling
  • Brush loading
  • Farm cleanup

VIRNIG V40 UTILITY FORK

WORKING DESIGN

  • No cross member for better penetration.
  • High strength replaceable tines.

CONFIGURATION AND SPECIFICATIONS

  • Models: MV60 MV66 MV72 MV78
  • Overall Width (in.): MV60: 61.3; MV66: 67.3; MV72: 73.3; MV78: 79.3
  • Overall Height (in.): 21.5
  • Overall Depth (in.): 33.5
  • Number of Tines (w/ sides): MV60: 9; MV66: 10; MV72: 11; MV78: 12
  • Space Between Tines (in.): MV60: 5.4; MV66: 5.3; MV72: 5.2; MV78: 5.1
  • Tine Diameter (in.): 1.75¹
  • Approximate Weight (lbs): MV60: 545; MV66: 570; MV72: 655; MV78: 695
  • Recommended Loader Capacity: Less than 2400 lbs

READY FOR THE FIELD

  • No cross member for better penetration.
  • High strength replaceable tines.
  • Virnig v40 utility fork slides into semi-loose material with replaceable tines and an open front.
  • Approximate weight (lbs): 545 | 570 | 655 | 695
  • Overall width (in.): 61.3 | 67.3 | 73.3 | 79.3
