VIRNIG

V40 Utility Fork Grapple

For Skid Steers & Track Loaders

60-78″ Widths

Virnig

Virnig V40 Utility Fork Grapple

SKU: MGV160 Currently In Stock

Sale price$5,125.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

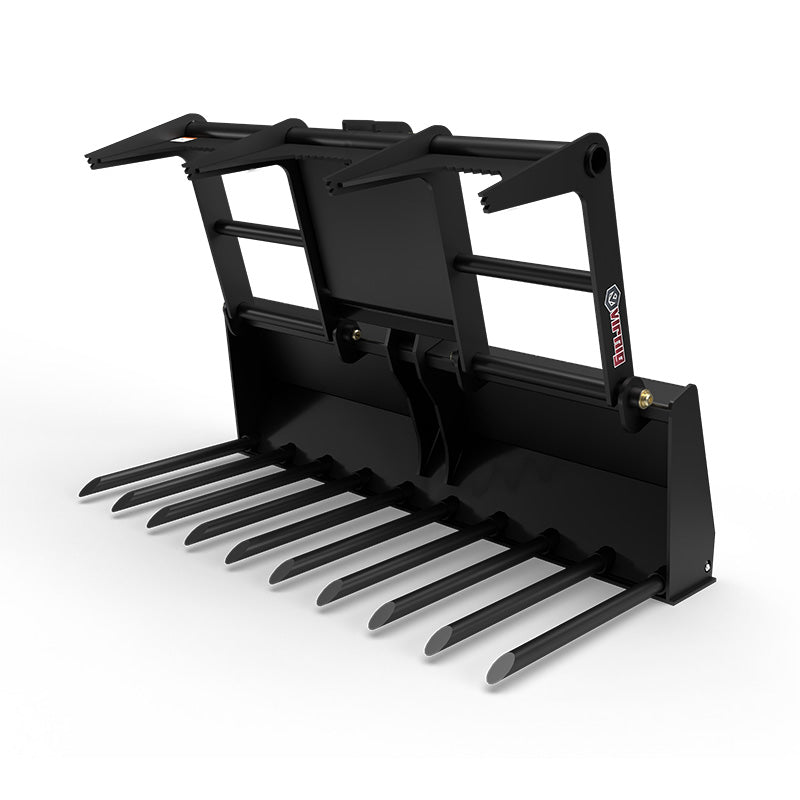

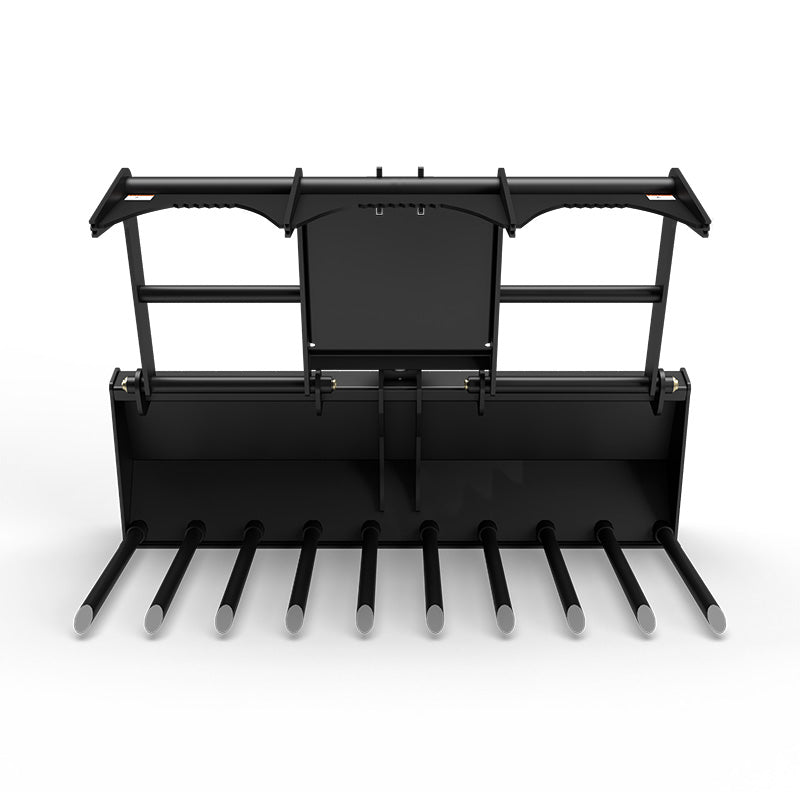

OPEN TINE ENTRY

AN UNOBSTRUCTED TINE ENTRY SLIDES INTO MATERIAL WITHOUT A FRONT CROSS MEMBER IN THE WAY.

REPLACEABLE TINES

HIGH-STRENGTH TINES CAN BE REPLACED INDIVIDUALLY TO KEEP THE FORK IN SERVICE.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED HINGE BUSHINGS SUPPORT SMOOTH JAW MOVEMENT.

MANURE HANDLING

VIRNIG V40 UTILITY FORK GRAPPLE COMBINES PENETRATING FORK TINES WITH A HYDRAULIC JAW FOR MANURE, BRUSH, AND DEBRIS.

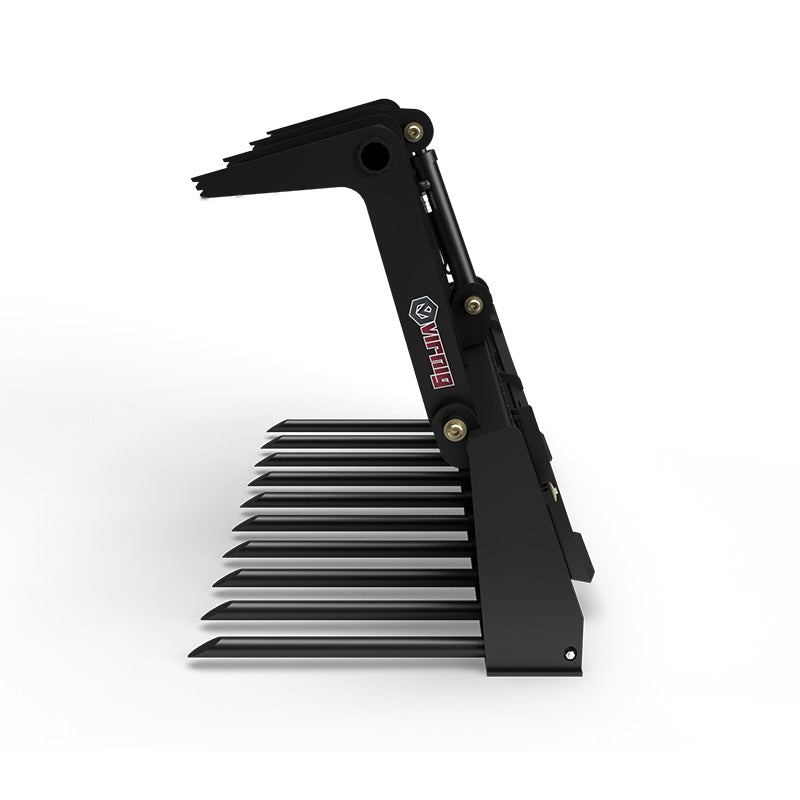

GRAPPLE JAW OPENING

A 38″ JAW OPENING ALLOWS THE FORK TO GATHER MATERIAL BEFORE THE GRAPPLE CLOSES.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

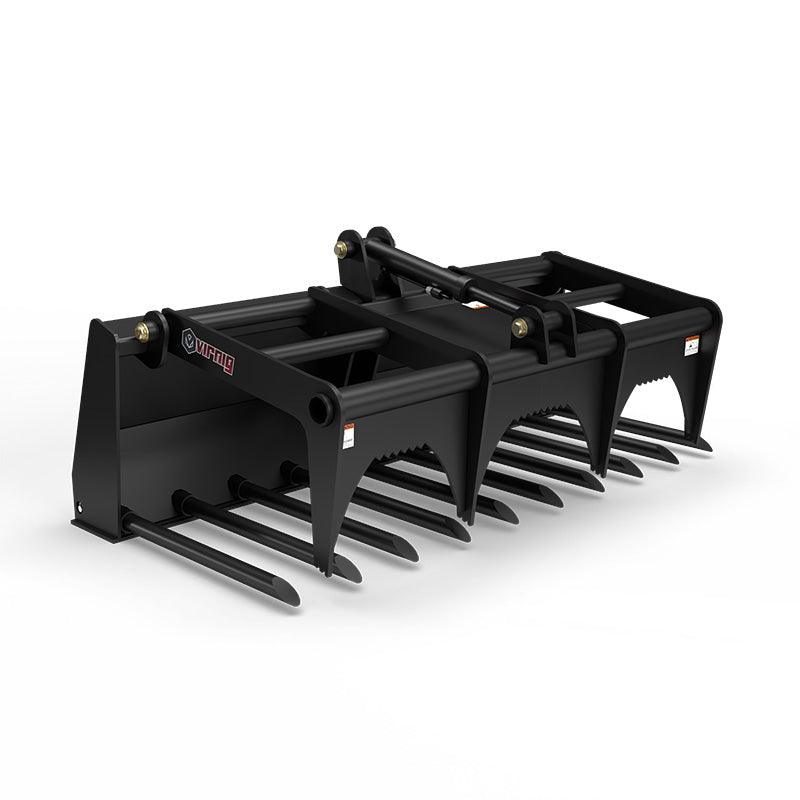

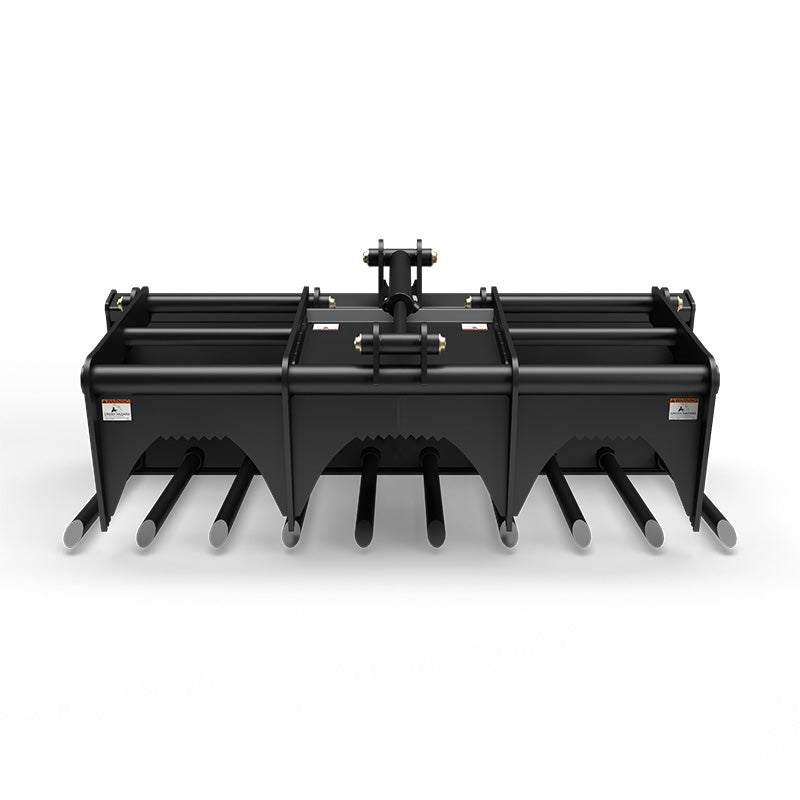

The Virnig V40 Utility Fork Grapple combines penetrating fork tines with a hydraulic jaw for handling manure, brush, and loose debris. The front has no cross member in the way of the tine entry, allowing the fork to slide into a pile rather than pushing it ahead of the attachment.

High-strength replaceable tines support the load beneath the grapple. Individual tine replacement provides a service option for worn or damaged working components. The hydraulic jaw holds material against the fork, while NitroSteel® cylinder rods and Teflon®-coated hinge bushings equip the moving connections for repeated loading and unloading.

The V40 MGV1 family is useful for cleanup and agricultural handling where an open fork can enter material more readily than a bucket floor. Select the width and attachment weight around the carrier. There is a known clearance concern on John Deere® 330G, 331G, 332G, and 333G loaders, which should be checked before ordering.

KEY BENEFITS

  • No cross member for better penetration.
  • High strength replaceable tines.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinge.
  • Virnig v40 utility fork grapple combines penetrating fork tines with a hydraulic jaw for manure, brush, and debris.
  • Grapple jaw opening (in.): 38.0

TECHNICAL SPECIFICATIONS

  • Models: MGV160 MGV166 MGV172 MGV178
  • Overall Width (in.): MGV160: 61.3; MGV166: 67.3; MGV172: 73.3; MGV178: 79.3
  • Height: Overall / Bucket (in.): 27.6 / 21.5
  • Overall Depth (in.): 33.5
  • Number of Tines (w/ sides): MGV160: 9; MGV166: 10; MGV172: 11; MGV178: 12
  • Space Between Tines (in.): MGV160: 5.4; MGV166: 5.3; MGV172: 5.2; MGV178: 5.1
  • Tine Diameter (in.): 1.75¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.25
  • Grapple Jaw Opening (in.): 38.0
  • Approximate Weight (lbs): MGV160: 835; MGV166: 860; MGV172: 950; MGV178: 990
  • Recommended Loader Capacity: Less than 2400 lbs
  • ¹Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Manure handling
  • Brush cleanup
  • Farm material handling

VIRNIG V40 UTILITY FORK GRAPPLE

WORKING DESIGN

  • No cross member for better penetration.
  • High strength replaceable tines.
  • NitroSteel® cylinder rods and Teflon® coated bushings on hinge.

CONFIGURATION AND SPECIFICATIONS

  • Models: MGV160 MGV166 MGV172 MGV178
  • Overall Width (in.): MGV160: 61.3; MGV166: 67.3; MGV172: 73.3; MGV178: 79.3
  • Height: Overall / Bucket (in.): 27.6 / 21.5
  • Overall Depth (in.): 33.5
  • Number of Tines (w/ sides): MGV160: 9; MGV166: 10; MGV172: 11; MGV178: 12
  • Space Between Tines (in.): MGV160: 5.4; MGV166: 5.3; MGV172: 5.2; MGV178: 5.1
  • Tine Diameter (in.): 1.75¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.25

READY FOR THE FIELD

  • No cross member for better penetration.
  • High strength replaceable tines.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on hinge.
  • Virnig v40 utility fork grapple combines penetrating fork tines with a hydraulic jaw for manure, brush, and debris.
  • Grapple jaw opening (in.): 38.0
