VIRNIG

V50 Angle Snow Blade

For Skid Steers & Track Loaders

60-96″ Widths

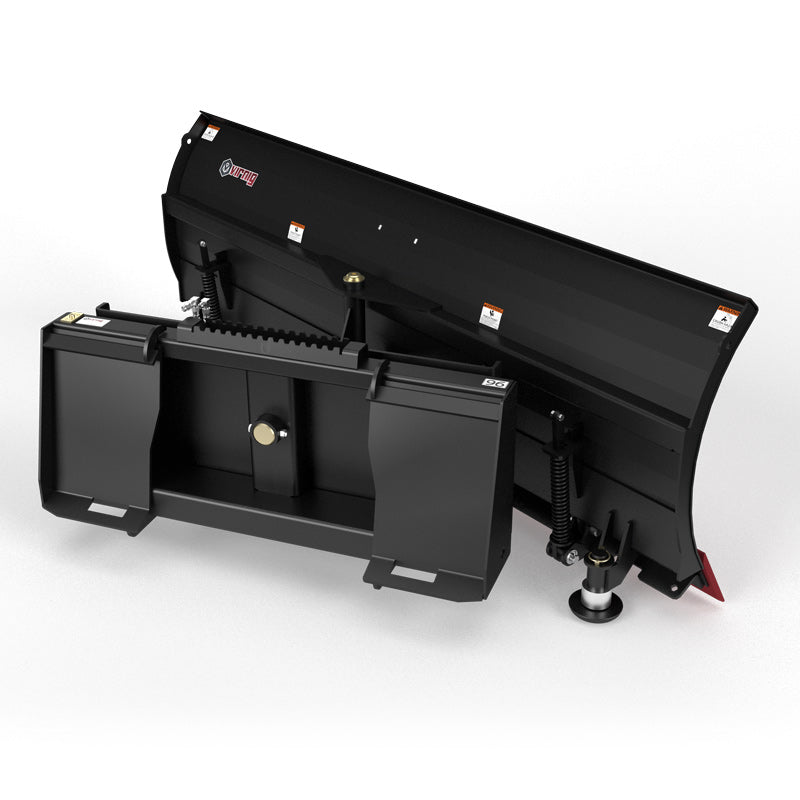

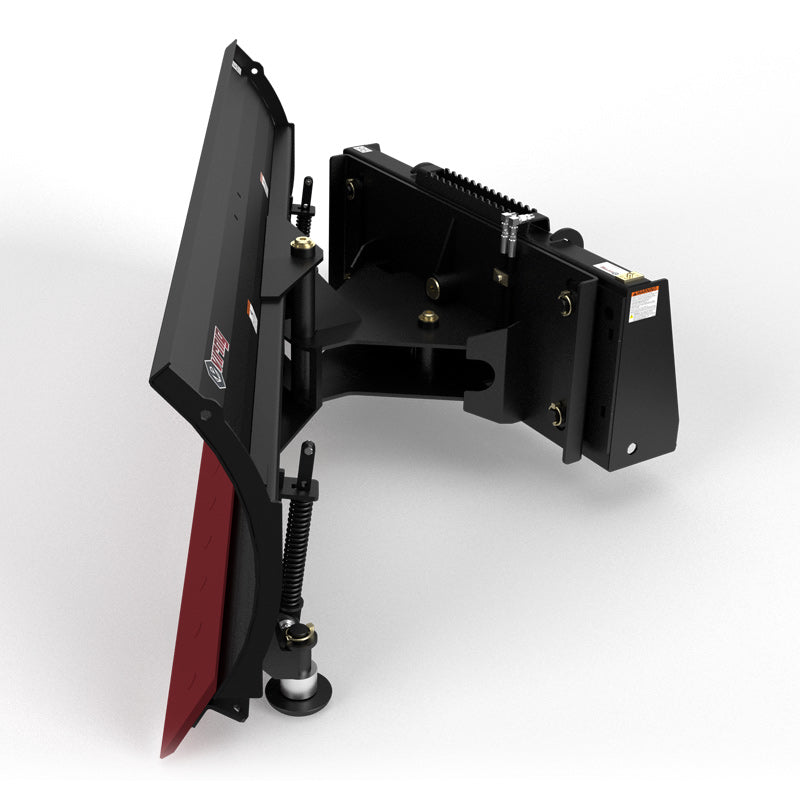

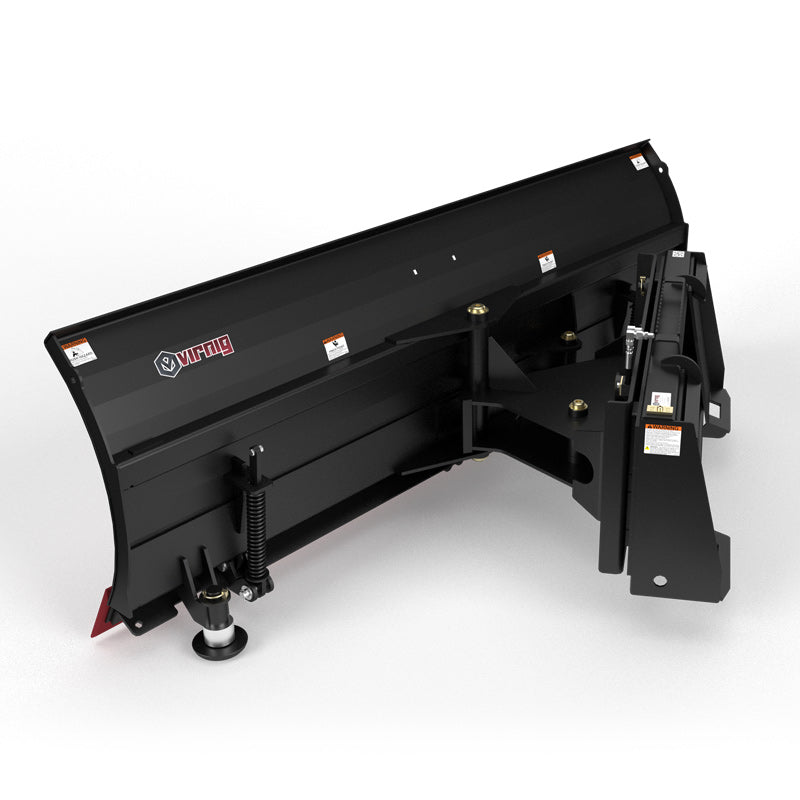

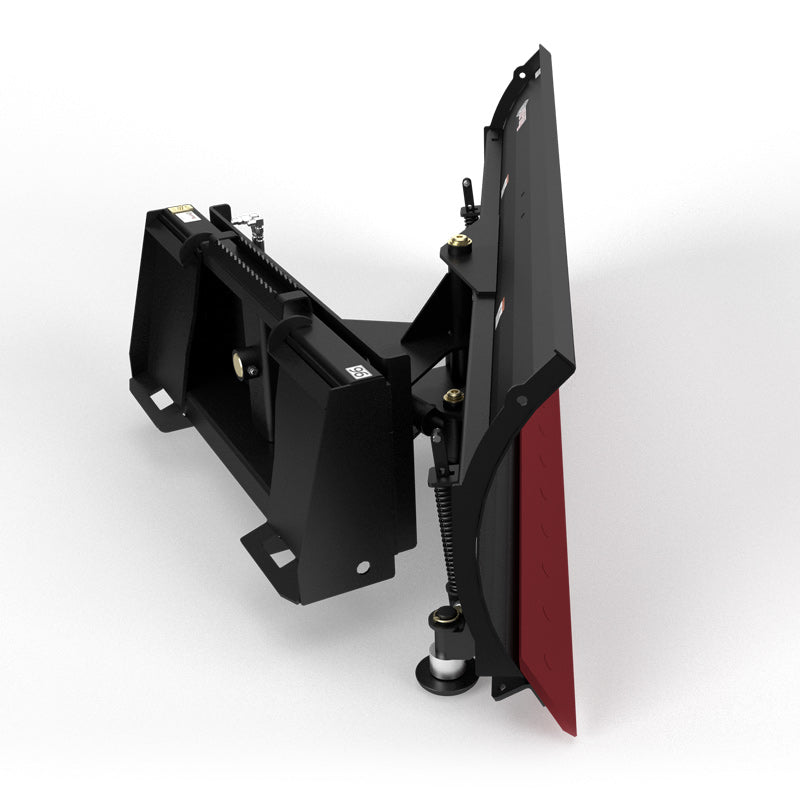

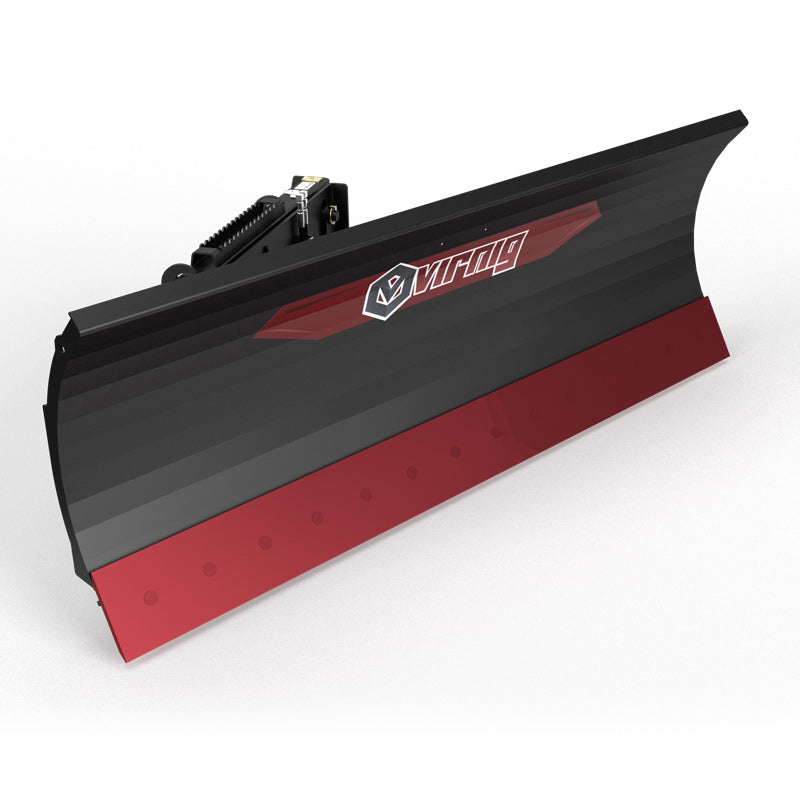

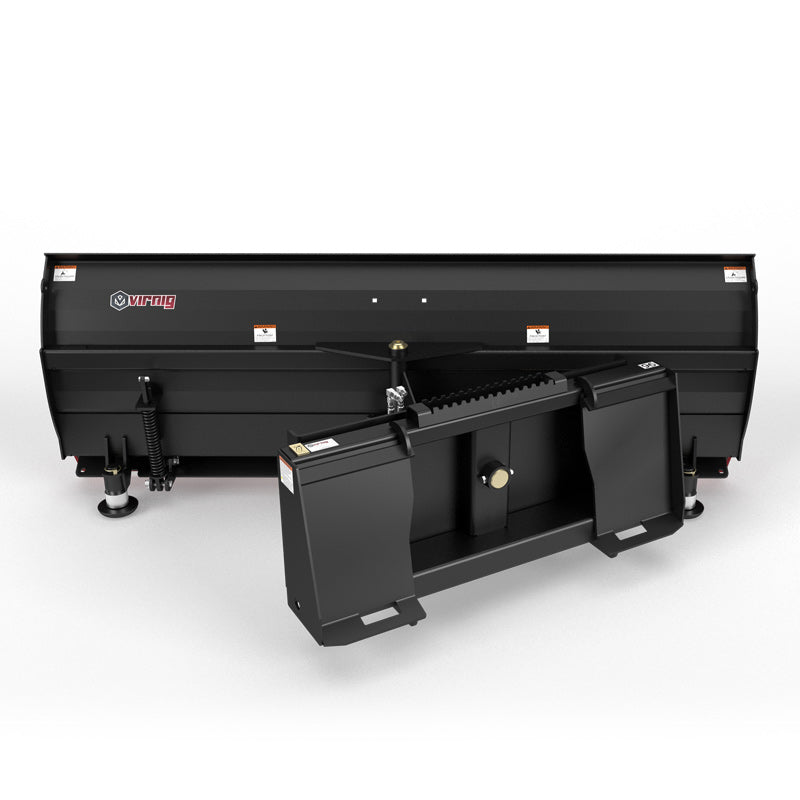

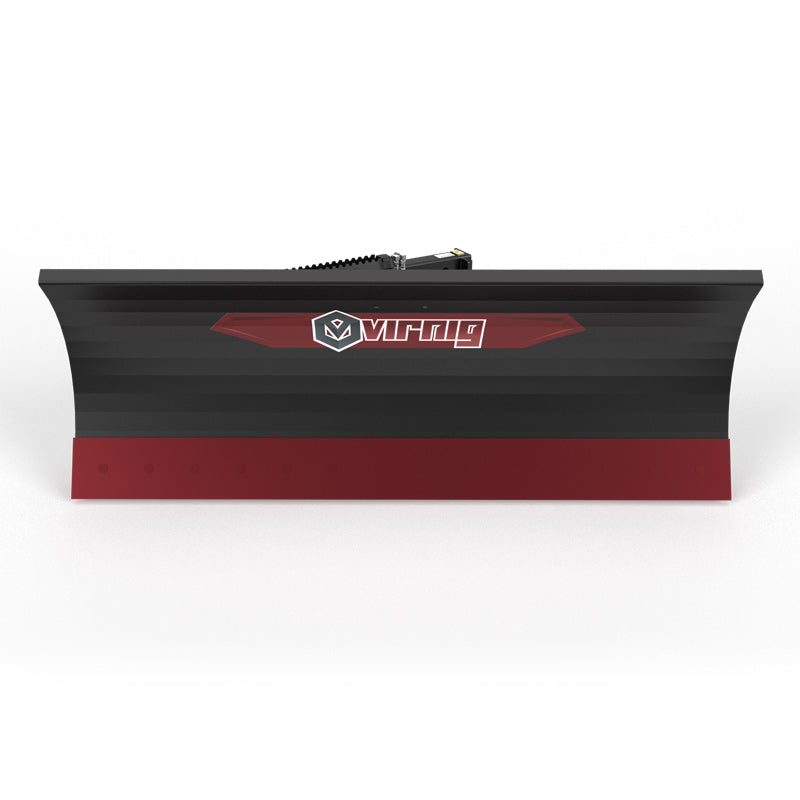

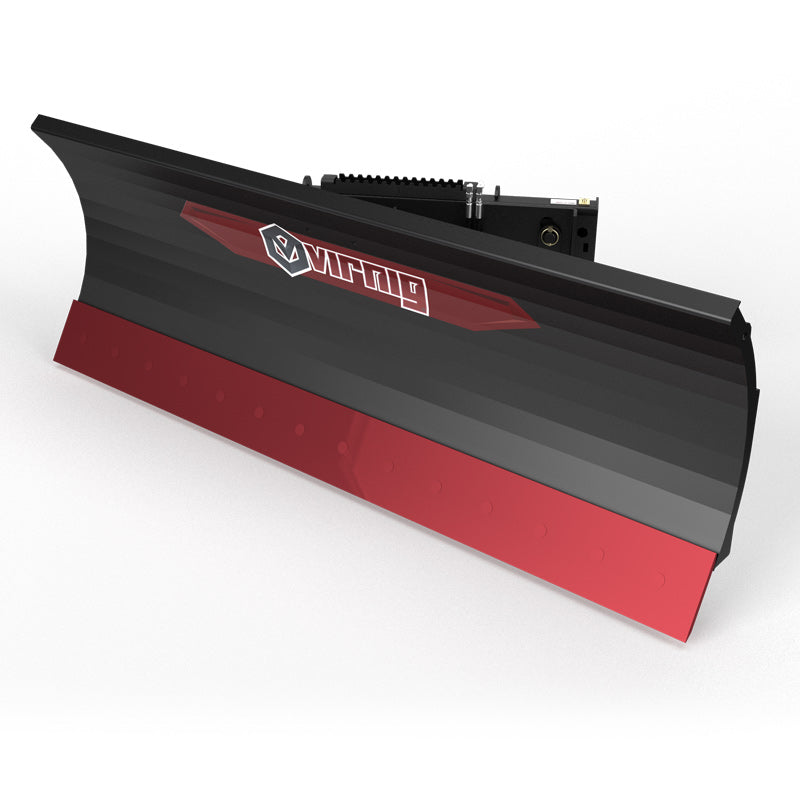

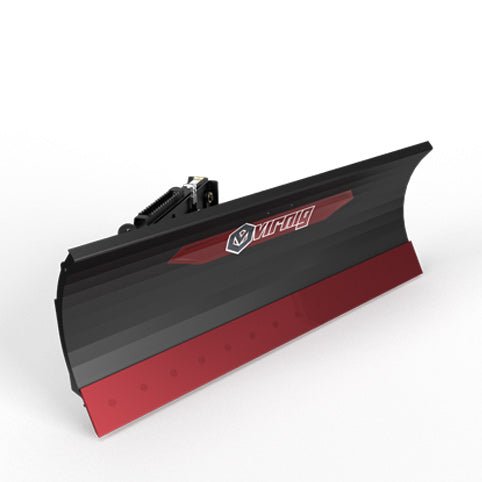

Virnig V50 Angle Snow Blade

Virnig

Virnig V50 Angle Snow Blade

SKU: SBS60-LD Currently In Stock

Sale price$5,425.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

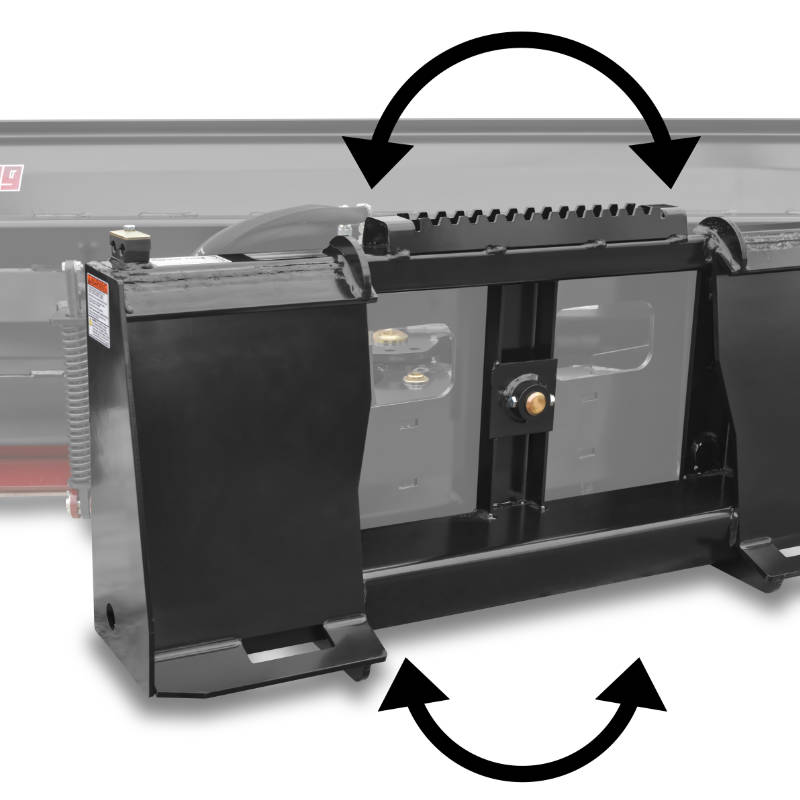

SIDE-TO-SIDE OSCILLATION

4° SIDE-TO-SIDE OSCILLATION HELPS THE WORKING EDGE FOLLOW UNEVEN SURFACES.

ADJUSTABLE WORKING ANGLE

HYDRAULIC ANGLING MOVES THE BLADE 30° LEFT OR RIGHT WITHOUT LEAVING THE CAB.

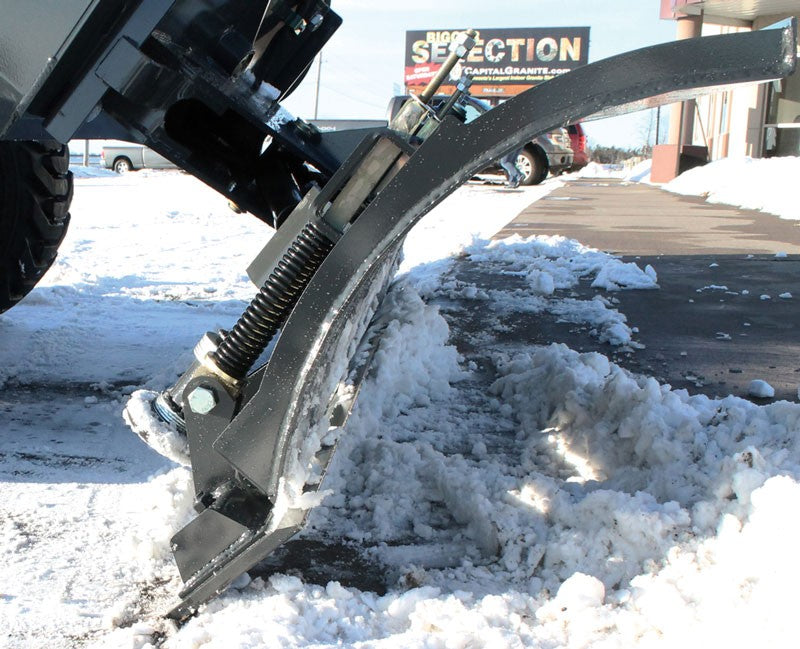

TRIP-EDGE PROTECTION

THE TRIP EDGE YIELDS WHEN IT MEETS AN OBSTRUCTION TO HELP LIMIT IMPACT LOADS.

REPLACEABLE CUTTING EDGE

5/8″ X 8″ REVERSIBLE STEEL BOLT-ON EDGE ALLOWS 5 1/2″ OF WEAR.

DRIVEWAY PLOWING

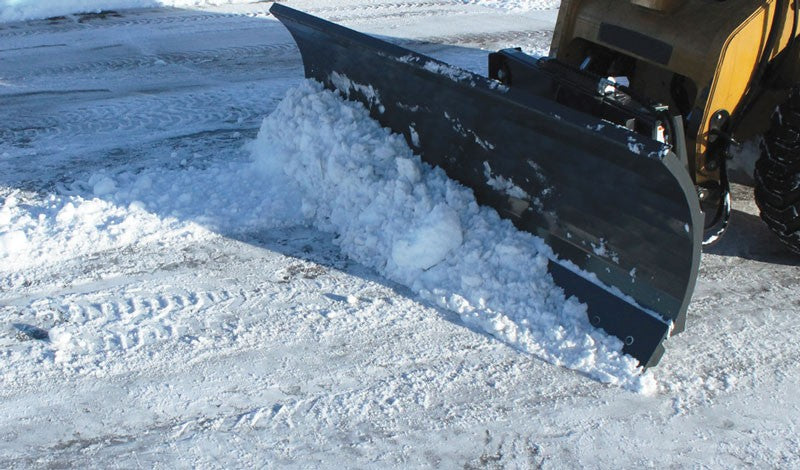

VIRNIG V50 ANGLE SNOW BLADE ANGLES THE PLOW TO CLEAR AND WINDROW SNOW.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Angle Snow Blade windrows snow with hydraulic angle control from inside the cab. The blade turns up to 30° left or right, allowing the operator to change the direction of the pass as the clearing route moves around a property or across a parking area.

Four degrees of side-to-side oscillation allow the blade to follow uneven surfaces, helping maintain contact across the clearing path. A trip edge provides a yielding working edge when an obstruction is encountered. The ⅝″ × 8″ reversible steel bolt-on edge allows up to 5½″ of wear before replacement.

Select a blade width that suits the loader, the access available, and the desired clearing path at full angle. Confirm the hydraulic connections for the in-cab angle function and account for the attachment weight. This V50 configuration provides powered directional plowing; it is separate from the V40's manual-angle standard arrangement and the V60's crossover-relief configuration.

KEY BENEFITS

  • 4° side-to-side oscillation follows uneven surfaces.
  • Angle the blade 30° left or right from inside the cab.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.
  • Virnig v50 angle snow blade angles the plow to clear and windrow snow.

TECHNICAL SPECIFICATIONS

  • Models: SBS60-LD SBS72-LD SBS84-LD SBS96-LD
  • Width: Overall, Straight / Full Angle (in.): SBS60-LD: 62.0 / 54.0; SBS72-LD: 74.0 / 64.0; SBS84-LD: 86.0 / 74.0; SBS96-LD: 98.0 / 84.0
  • Overall Height (in.): 31.0
  • Overall Depth, Straight (in.): 37.1
  • Blade Angle (degrees): (+/-) 30
  • Moldboard Thickness (in.): 0.19
  • Cutting Edge (in.): 5/8 x 8 Bolt-on
  • Blade Oscillation (degrees): (+/-) 4
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Diameter (in.): 1.25 / 1.563
  • Approximate Weight (lbs): SBS60-LD: 815¹; SBS72-LD: 870¹; SBS84-LD: 920¹; SBS96-LD: 975¹
  • Recommended Loader Capacity: Less than 1800 lbs
  • ¹Weight with steel edge installed.

APPLICATIONS

  • Driveway plowing
  • Parking lot clearing
  • Winter site maintenance

VIRNIG V50 ANGLE SNOW BLADE

WORKING DESIGN

  • 4° side-to-side oscillation follows uneven surfaces.
  • Angle the blade 30° left or right from inside the cab.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.

CONFIGURATION AND SPECIFICATIONS

  • Models: SBS60-LD SBS72-LD SBS84-LD SBS96-LD
  • Width: Overall, Straight / Full Angle (in.): SBS60-LD: 62.0 / 54.0; SBS72-LD: 74.0 / 64.0; SBS84-LD: 86.0 / 74.0; SBS96-LD: 98.0 / 84.0
  • Overall Height (in.): 31.0
  • Overall Depth, Straight (in.): 37.1
  • Blade Angle (degrees): (+/-) 30
  • Moldboard Thickness (in.): 0.19
  • Cutting Edge (in.): 5/8 x 8 Bolt-on
  • Blade Oscillation (degrees): (+/-) 4
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375

READY FOR THE FIELD

  • 4° side-to-side oscillation follows uneven surfaces.
  • Angle the blade 30° left or right from inside the cab.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.
  • Virnig v50 angle snow blade angles the plow to clear and windrow snow.
