VIRNIG

V50 Low Profile Dirt Bucket

For Skid Steers & Track Loaders

60-84″ Widths

Virnig

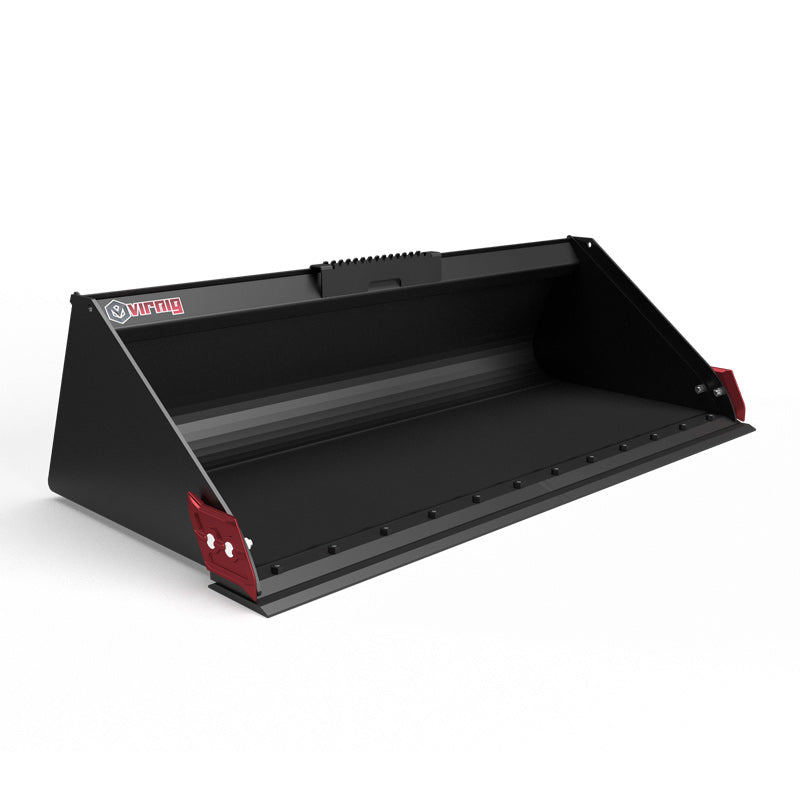

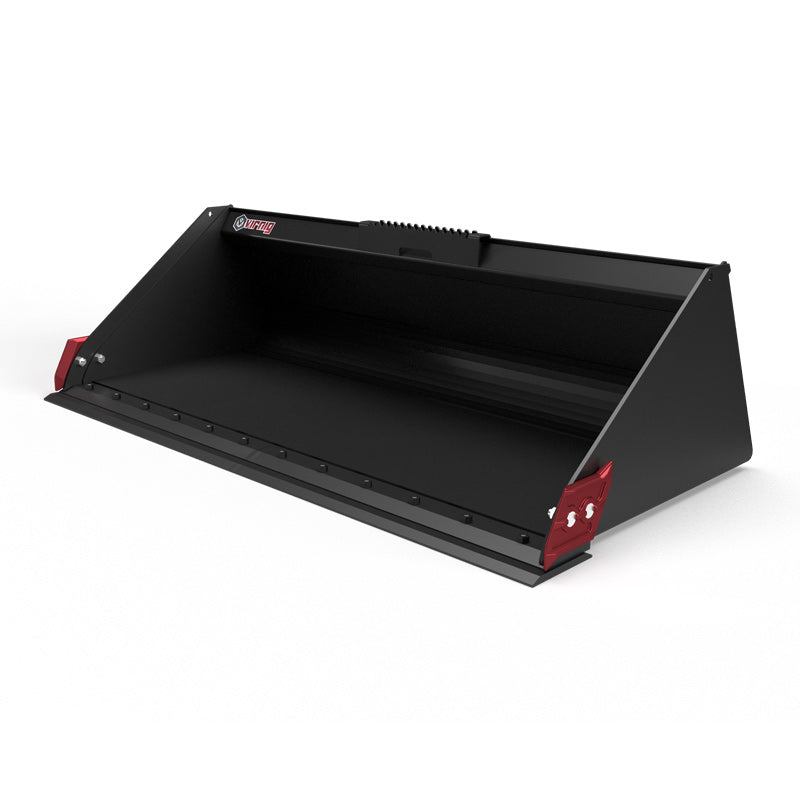

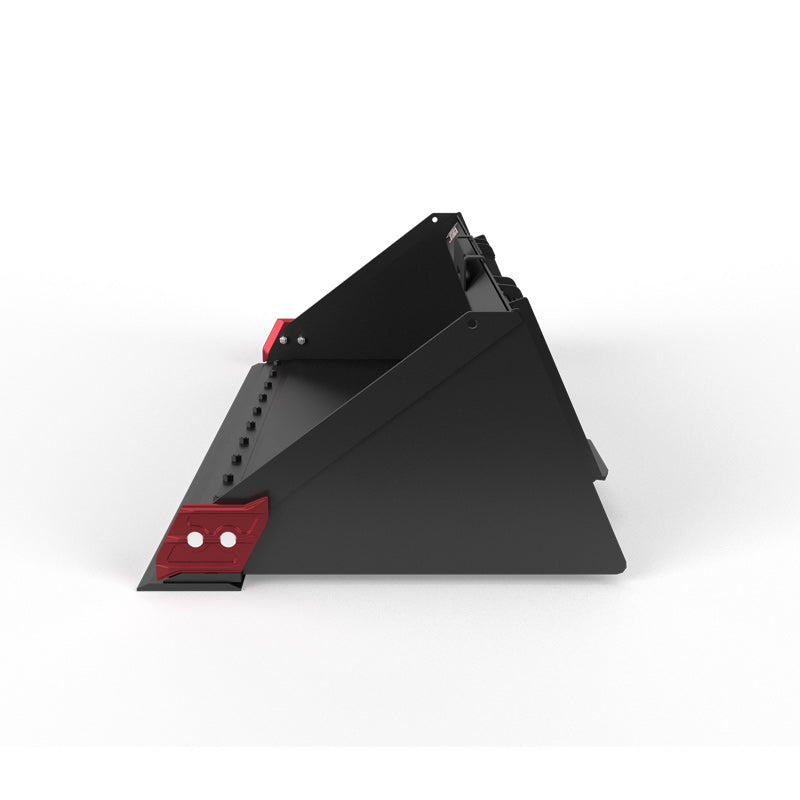

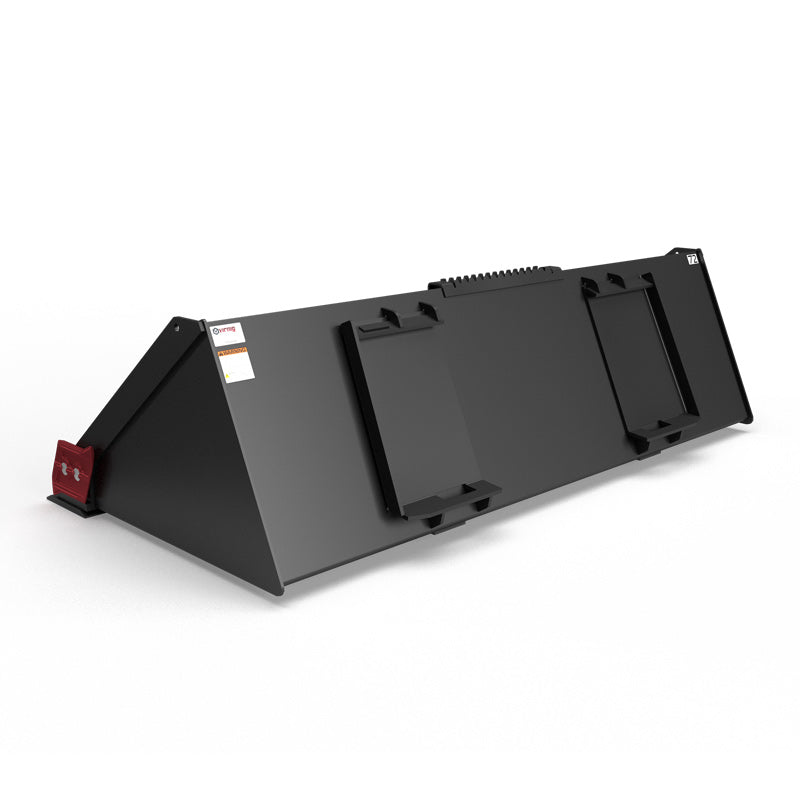

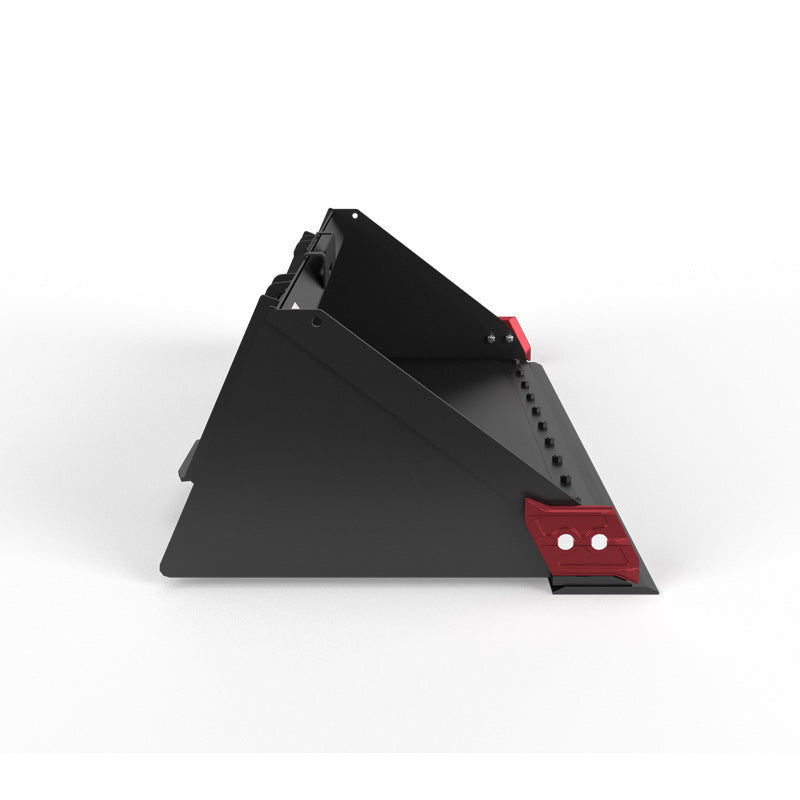

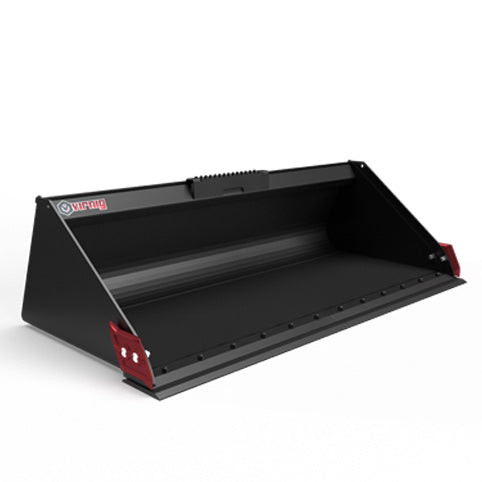

Virnig V50 Low Profile Dirt Bucket

SKU: DHV60EX-GB Currently In Stock

Sale price$1,880.00 USD

MOST IMPORTANT FEATURES

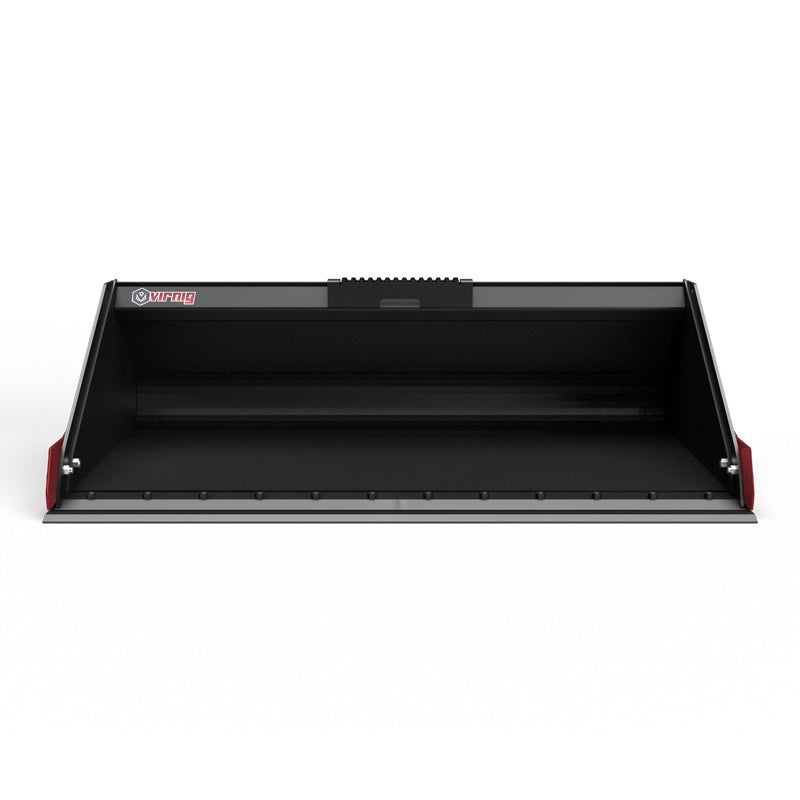

VISIBLE CUTTING EDGE

A VISIBLE CUTTING EDGE HELPS THE OPERATOR PLACE THE BUCKET FOR DIGGING AND GRADING.

EASIER MATERIAL CLEANOUT

GRADING BEND FOR OPTIMAL REVERSE GRADING AND CURVED INSIDE FOR EASIER MATERIAL CLEANOUT.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

GUSSETED CONSTRUCTION

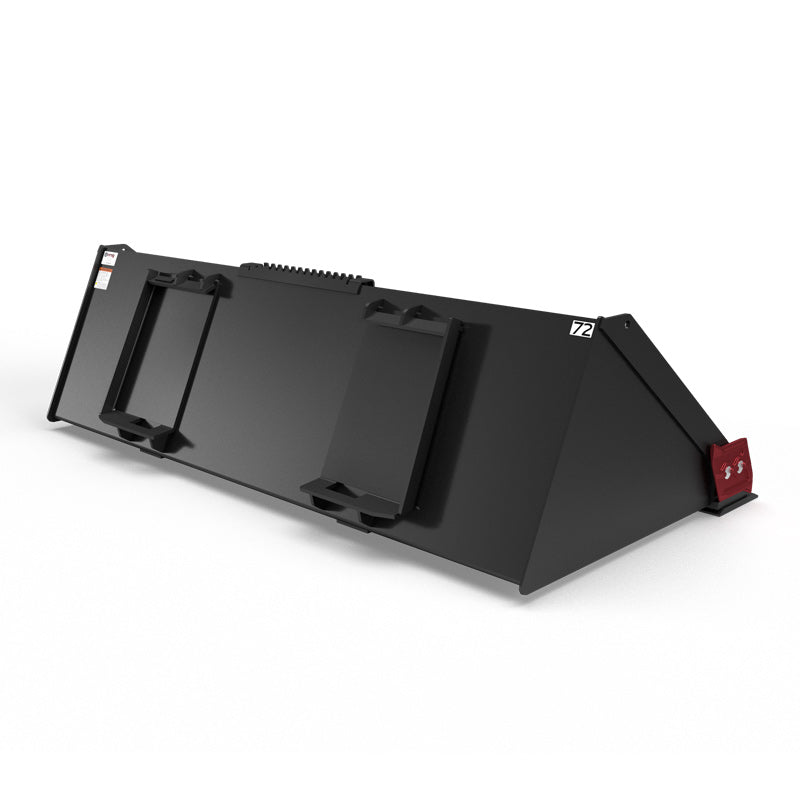

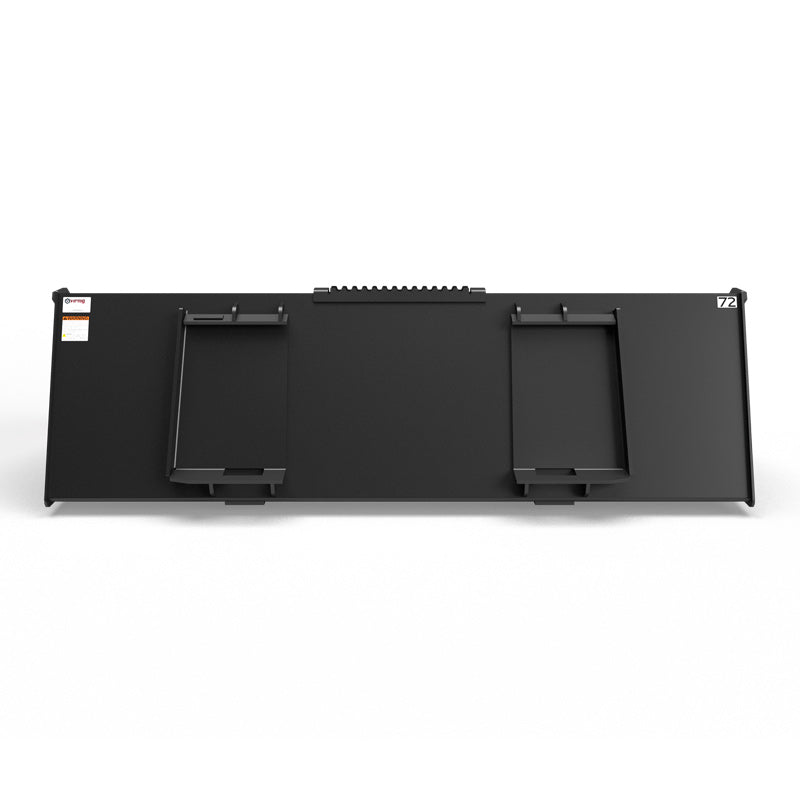

ADDITIONAL REAR GUSSETS REINFORCE THE BUCKET NEAR ITS MOUNTING AREA.

BOTTOM WEAR PROTECTION

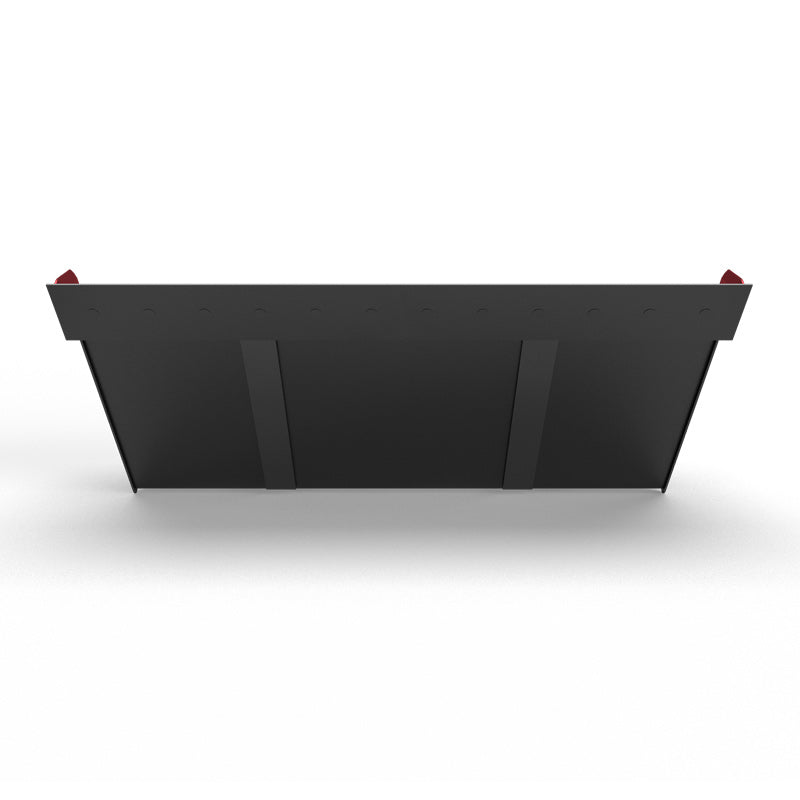

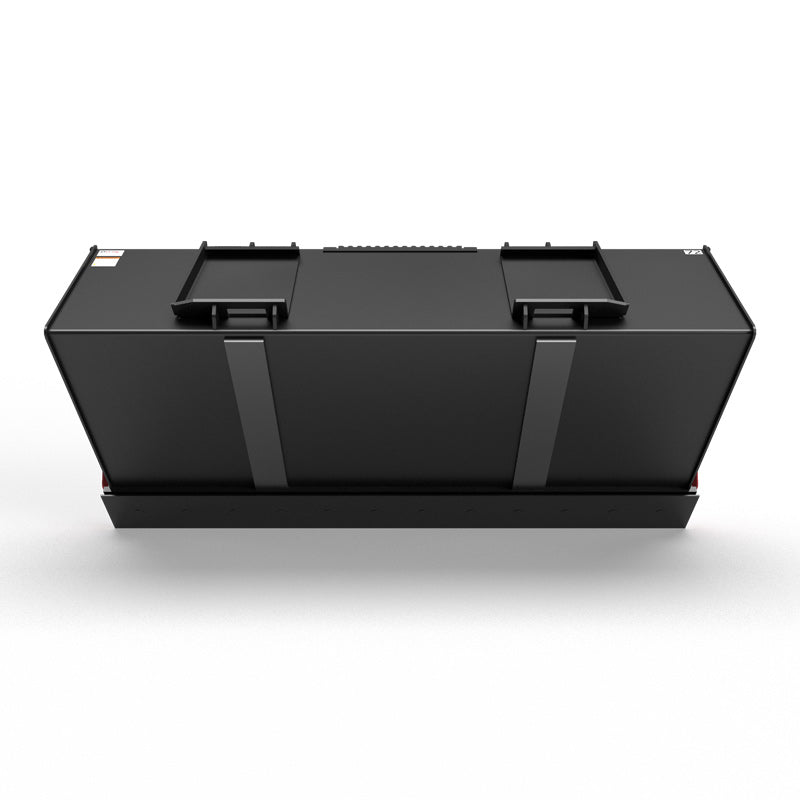

½″ X 4″ WEAR BARS SHIELD THE BUCKET BOTTOM FROM REPEATED GROUND CONTACT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Low Profile Dirt Bucket combines visible cutting-edge control with a shape suited to digging, grading, and cleanup. The edge can be seen from inside the cab, helping the operator position the bucket as material is cut, spread, or picked up along the surface.

A grading bend supports reverse grading, while the curved interior helps material leave the bucket during cleanout. The ¾″ × 6″ weld-on edge forms the leading working surface. Additional rear gusseting reinforces the structure, and ½″ × 4″ wear bars protect the bucket bottom through repeated contact with the ground.

Select the width and volume around the carrier and the material being handled. The V50's low profile emphasizes edge visibility rather than the taller carrying shape of a high-capacity bucket. Consider how much of your work involves accurate grading versus carrying larger volumes, then check the complete load against the loader's rated capacity.

KEY BENEFITS

  • Cutting edge visible from inside cab.
  • Grading bend for optimal reverse grading and curved inside for easier material cleanout.
  • 3/4″ x 6″ weld-on edge.
  • Additional gusseting on back of bucket.
  • 1/2″ x 4″ wear bars protect the bucket bottom.

TECHNICAL SPECIFICATIONS

  • Models: DHV60EX-GB DHV66EX-GB DHV72EX-GB DHV78EX-GB DHV84EX-GB
  • Width: Overall / Inside (in.): DHV60EX-GB: 61.5 / 59.3; DHV66EX-GB: 67.5 / 65.3; DHV72EX-GB: 73.5 / 71.3; DHV78EX-GB: 79.5 / 77.3; DHV84EX-GB: 85.5 / 83.3
  • Overall Height (in.): 20.5
  • Depth: Overall / Inside (in.): 37.0 / 32.5
  • Capacity: Struck / Heaped (cu. ft.): DHV60EX-GB: 11.9 / 14.3; DHV66EX-GB: 13.1 / 15.7; DHV72EX-GB: 14.4 / 17.3; DHV78EX-GB: 15.7 / 18.8; DHV84EX-GB: 17.0 / 20.4
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″x4″): DHV60EX-GB: 2; DHV66EX-GB: 2; DHV72EX-GB: 2; DHV78EX-GB: 3; DHV84EX-GB: 3
  • Approximate Weight (lbs): DHV60EX-GB: 475; DHV66EX-GB: 505; DHV72EX-GB: 535; DHV78EX-GB: 585; DHV84EX-GB: 615
  • Recommended Loader Capacity: Less than 2400 lbs

APPLICATIONS

  • Digging
  • Grading
  • Dirt loading

VIRNIG V50 LOW PROFILE DIRT BUCKET

WORKING DESIGN

  • Cutting edge visible from inside cab.
  • Grading bend for optimal reverse grading and curved inside for easier material cleanout.
  • 3/4″ x 6″ weld-on edge.
  • Additional gusseting on back of bucket.
  • 1/2″ x 4″ wear bars protect the bucket bottom.

CONFIGURATION AND SPECIFICATIONS

  • Models: DHV60EX-GB DHV66EX-GB DHV72EX-GB DHV78EX-GB DHV84EX-GB
  • Width: Overall / Inside (in.): DHV60EX-GB: 61.5 / 59.3; DHV66EX-GB: 67.5 / 65.3; DHV72EX-GB: 73.5 / 71.3; DHV78EX-GB: 79.5 / 77.3; DHV84EX-GB: 85.5 / 83.3
  • Overall Height (in.): 20.5
  • Depth: Overall / Inside (in.): 37.0 / 32.5
  • Capacity: Struck / Heaped (cu. ft.): DHV60EX-GB: 11.9 / 14.3; DHV66EX-GB: 13.1 / 15.7; DHV72EX-GB: 14.4 / 17.3; DHV78EX-GB: 15.7 / 18.8; DHV84EX-GB: 17.0 / 20.4
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″x4″): DHV60EX-GB: 2; DHV66EX-GB: 2; DHV72EX-GB: 2; DHV78EX-GB: 3; DHV84EX-GB: 3

READY FOR THE FIELD

  • Cutting edge visible from inside cab.
  • Grading bend for optimal reverse grading and curved inside for easier material cleanout.
  • 3/4″ x 6″ weld-on edge.
  • Additional gusseting on back of bucket.
  • 1/2″ x 4″ wear bars protect the bucket bottom.
