VIRNIG

V50 Low Profile Snow Pusher

For Skid Steers & Track Loaders

84-120″ Widths

Virnig

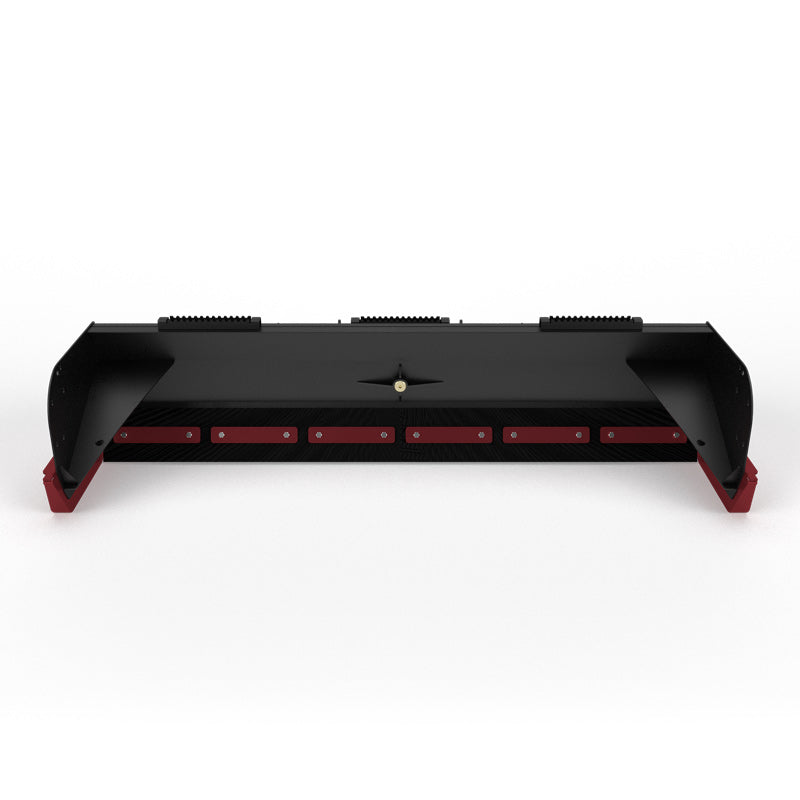

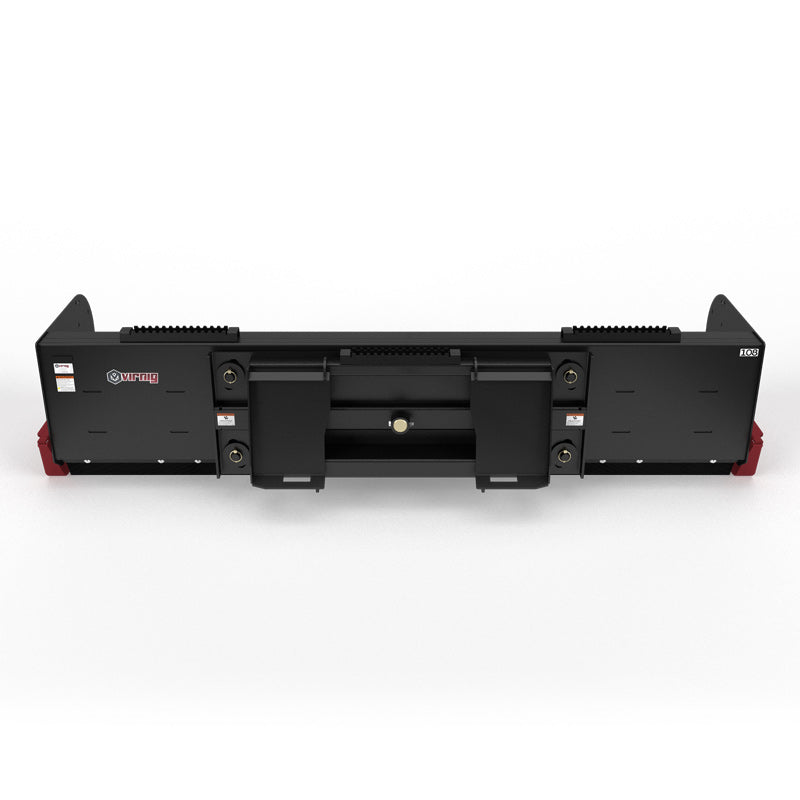

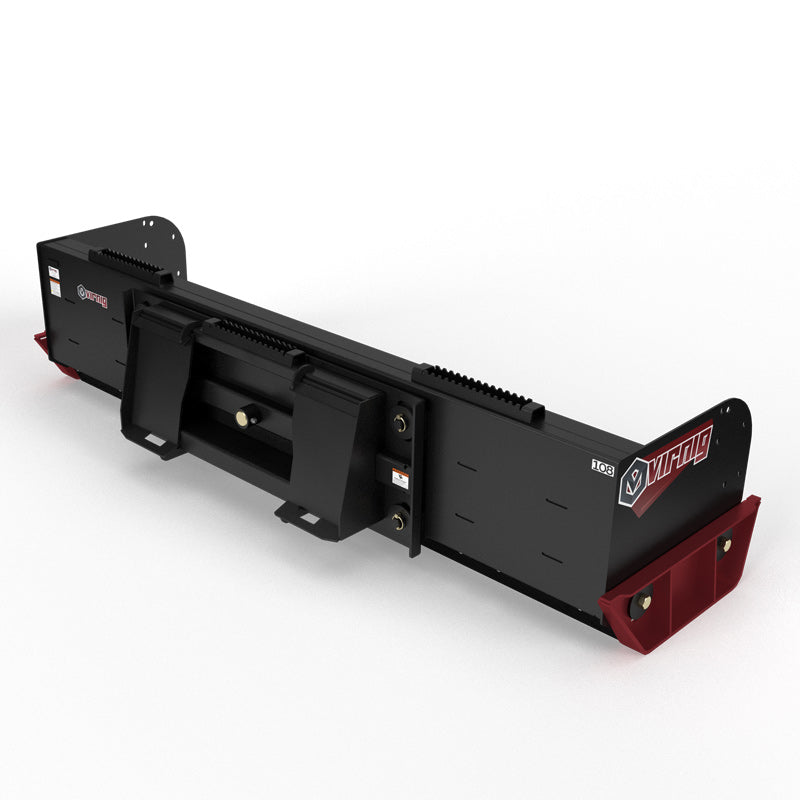

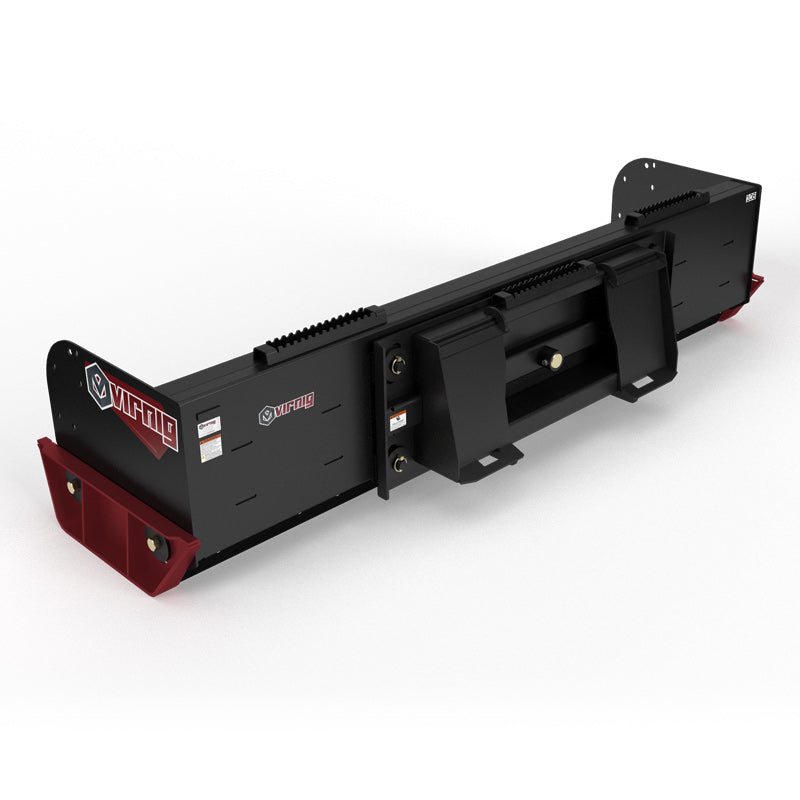

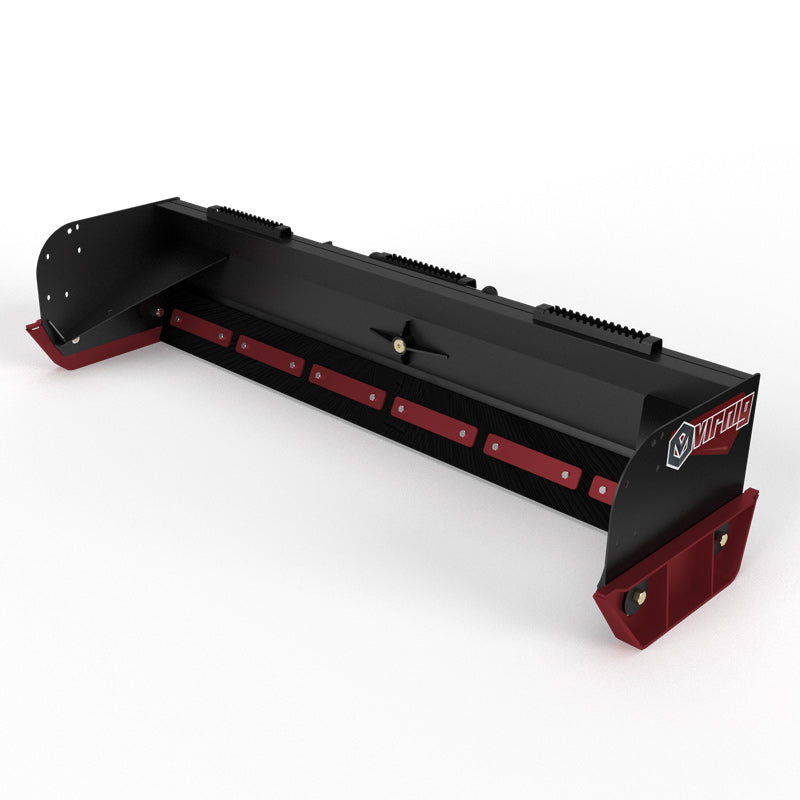

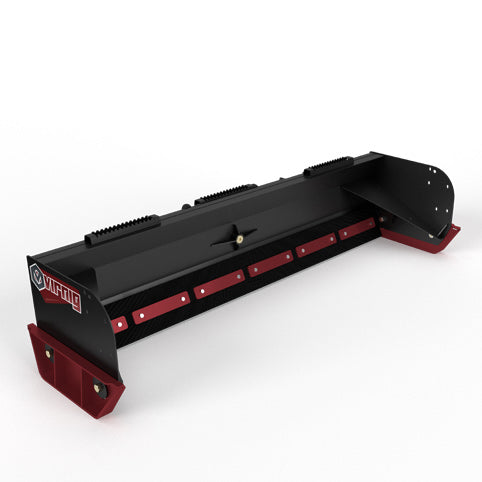

Virnig V50 Low Profile Snow Pusher

SKU: LSWP84 Currently In Stock

Sale price$4,410.00 USD

MOST IMPORTANT FEATURES

LOW-PROFILE VISIBILITY

THE SHORTER PUSHER PROFILE HELPS THE OPERATOR SEE THE WORKING AREA AHEAD.

CONSISTENT EDGE CONTACT

DESIGNED TO AUTOMATICALLY KEEP PUSHER WEIGHT ON EDGE FOR CONSISTENT CLEAN-UP AND LESS MAINTENANCE.

SERVICEABLE SKID SHOES

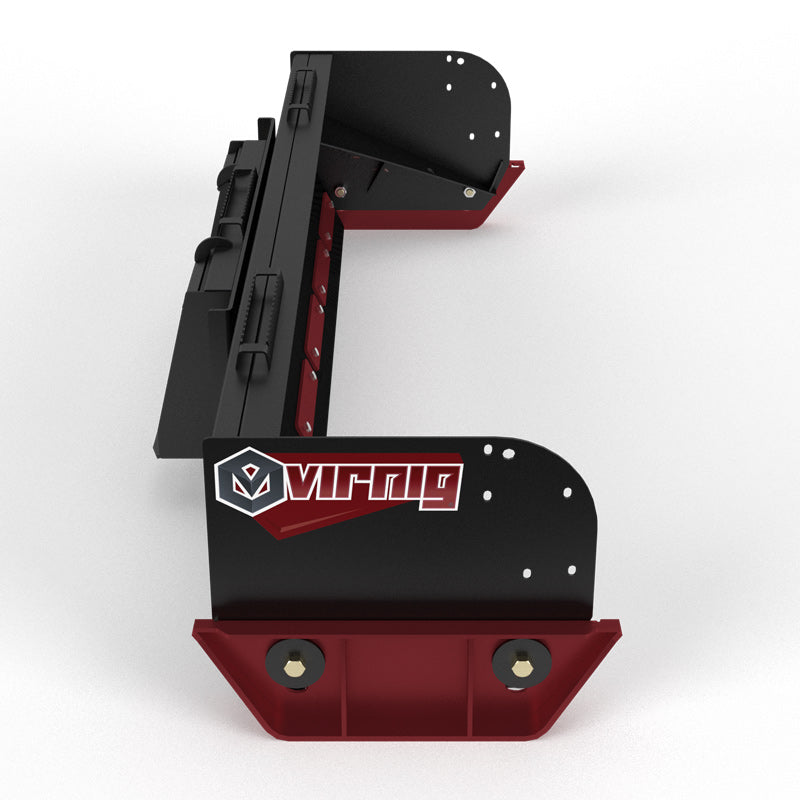

REVERSIBLE, SELF-LEVELING AR400 SKID SHOES WITH TAPERED OUTSIDE EDGE TO PROTECT FROM SIDE IMPACTS.

SIDE-TO-SIDE OSCILLATION

4° SIDE-TO-SIDE OSCILLATION HELPS THE WORKING EDGE FOLLOW UNEVEN SURFACES.

FRESH SNOW CLEARING

VIRNIG V50 LOW PROFILE SNOW PUSHER PUSHES AND PILES FRESH SNOW AND SLUSH WITH A RUBBER WORKING EDGE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

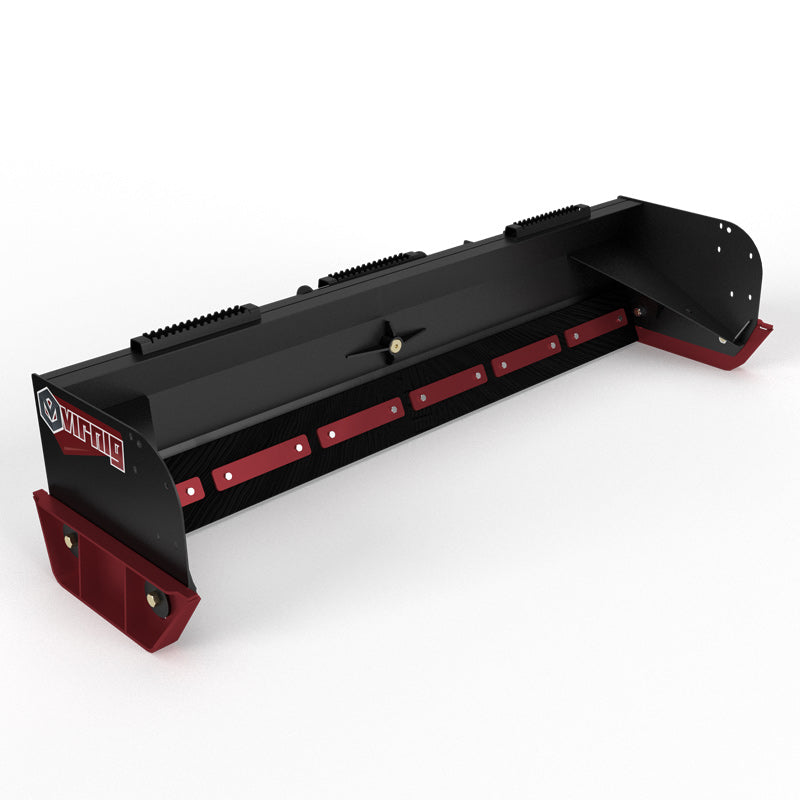

The Virnig V50 Low Profile Snow Pusher moves fresh snow and slush with a rubber working edge and a shorter frame for improved visibility. The low-profile arrangement helps the operator monitor the area ahead of the attachment while pushing material toward a collection point or snow storage area.

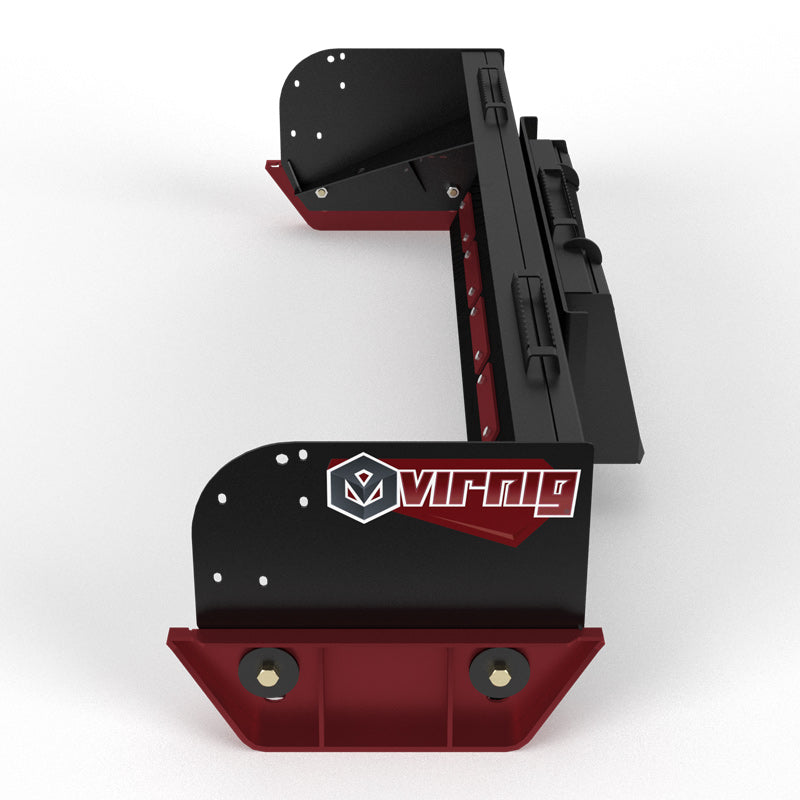

The design keeps the pusher's weight on the edge for consistent cleanup, while four degrees of side-to-side oscillation allow it to follow uneven surfaces. Reversible, self-leveling AR400 skid shoes support the attachment at the sides. Their tapered outside edges help protect them from side impacts during maneuvering.

Choose the width around the loader and the space available for turning, piling, and passing between obstacles. The rubber-edge configuration is intended for fresh snow and slush rather than the scraping action of a steel trip edge. Account for both the attachment and accumulated snow load as the push progresses, particularly when snow becomes wet or compacted.

KEY BENEFITS

  • Shorter design for better visibility.
  • Designed to automatically keep pusher weight on edge for consistent clean-up and less maintenance.
  • Reversible, self-leveling AR400 skid shoes with tapered outside edge to protect from side impacts.
  • 4° side-to-side oscillation follows uneven surfaces.
  • Virnig v50 low profile snow pusher pushes and piles fresh snow and slush with a rubber working edge.

TECHNICAL SPECIFICATIONS

  • Models: LSWP84 LSWP96 LSWP108 LSWP120
  • Width: Overall / Inside (in.): LSWP84: 92.3 / 86.0; LSWP96: 104.3 / 98.0; LSWP108: 116.3 / 110.0; LSWP120: 124.5 / 119.0
  • Overall Height (in.): 27.5
  • Depth: Overall / Inside (in.): 39.5 / 30.0
  • Pusher Oscillation (degrees): (+/-) 4
  • Cutting Edge (in.): 1 1/2” x 10” Rubber
  • Approximate Weight (lbs): LSWP84: 915; LSWP96: 960; LSWP108: 1005; LSWP120: 1035
  • Recommended Loader Capacity: Greater than 1500 lbs

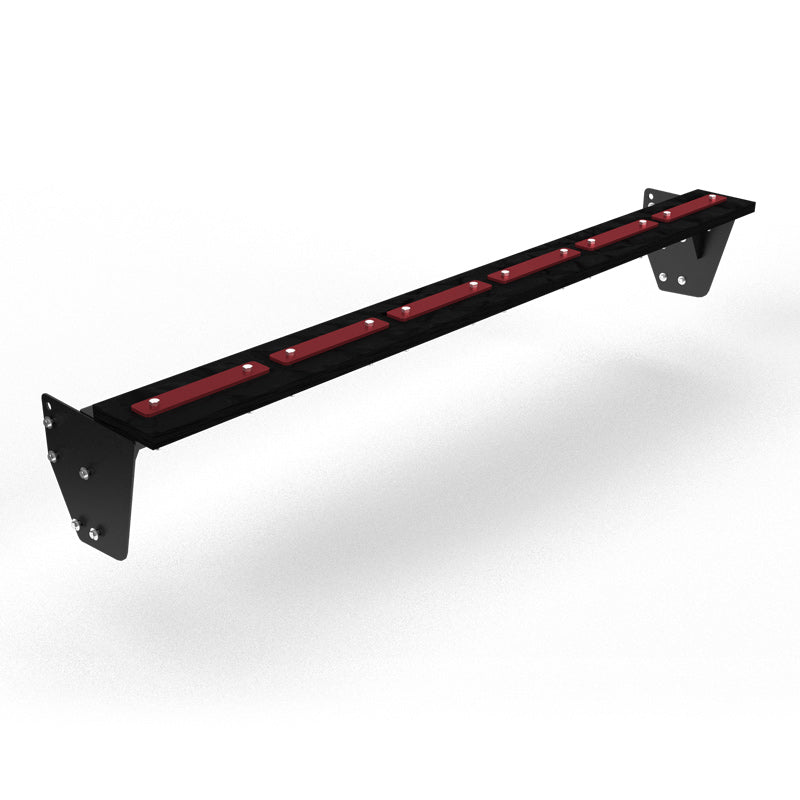

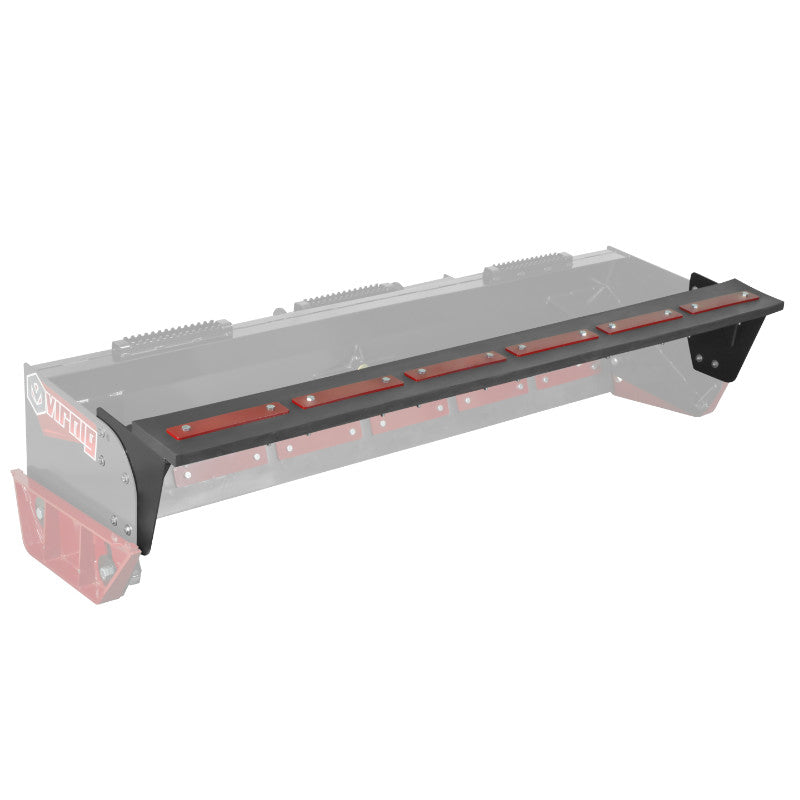

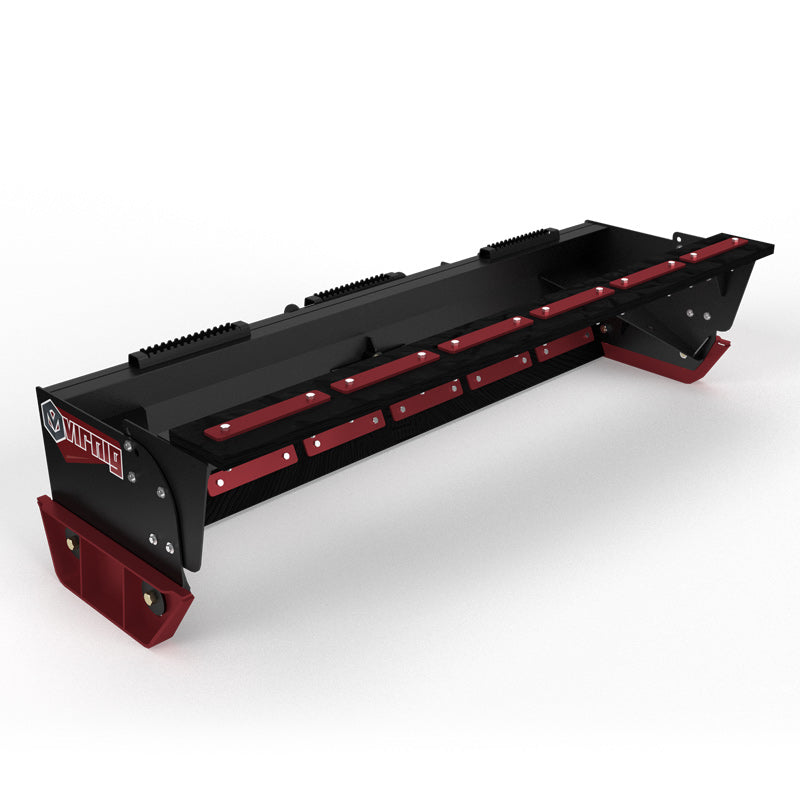

  • MODEL RUBBER EDGE PULL BACK SPECS:: : | SPP84 | SPP96 | SPP108 | SPP120
  • Overall Pull Back Width (in.): LSWP84: 88.0; LSWP96: 100.0; LSWP108: 112.0; LSWP120: 119.0
  • Inside Pull Back Width (in.): LSWP84: 86.0; LSWP96: 98.0; LSWP108: 110.0; LSWP120: 117.0
  • Cutting Edge (in.): 1 1/2 x 10 Rubber
  • Approximate Weight (lbs): LSWP84: 210; LSWP96: 235; LSWP108: 255; LSWP120: 275

APPLICATIONS

  • Fresh snow clearing
  • Parking lot cleanup
  • Snow piling

VIRNIG V50 LOW PROFILE SNOW PUSHER

WORKING DESIGN

  • Shorter design for better visibility.
  • Designed to automatically keep pusher weight on edge for consistent clean-up and less maintenance.
  • Reversible, self-leveling AR400 skid shoes with tapered outside edge to protect from side impacts.
  • 4° side-to-side oscillation follows uneven surfaces.

CONFIGURATION AND SPECIFICATIONS

  • Models: LSWP84 LSWP96 LSWP108 LSWP120
  • Width: Overall / Inside (in.): LSWP84: 92.3 / 86.0; LSWP96: 104.3 / 98.0; LSWP108: 116.3 / 110.0; LSWP120: 124.5 / 119.0
  • Overall Height (in.): 27.5
  • Depth: Overall / Inside (in.): 39.5 / 30.0
  • Pusher Oscillation (degrees): (+/-) 4
  • Cutting Edge (in.): 1 1/2” x 10” Rubber
  • Approximate Weight (lbs): LSWP84: 915; LSWP96: 960; LSWP108: 1005; LSWP120: 1035
  • Recommended Loader Capacity: Greater than 1500 lbs
  • MODEL RUBBER EDGE PULL BACK SPECS:: : | SPP84 | SPP96 | SPP108 | SPP120

READY FOR THE FIELD

  • Shorter design for better visibility.
  • Designed to automatically keep pusher weight on edge for consistent clean-up and less maintenance.
  • Reversible, self-leveling AR400 skid shoes with tapered outside edge to protect from side impacts.
  • 4° side-to-side oscillation follows uneven surfaces.
  • Virnig v50 low profile snow pusher pushes and piles fresh snow and slush with a rubber working edge.
