VIRNIG

V50 Multi-Purpose Bucket (4-In-1)

For Skid Steers & Track Loaders

60-72″ Widths

Request QuoteAdd To Cart

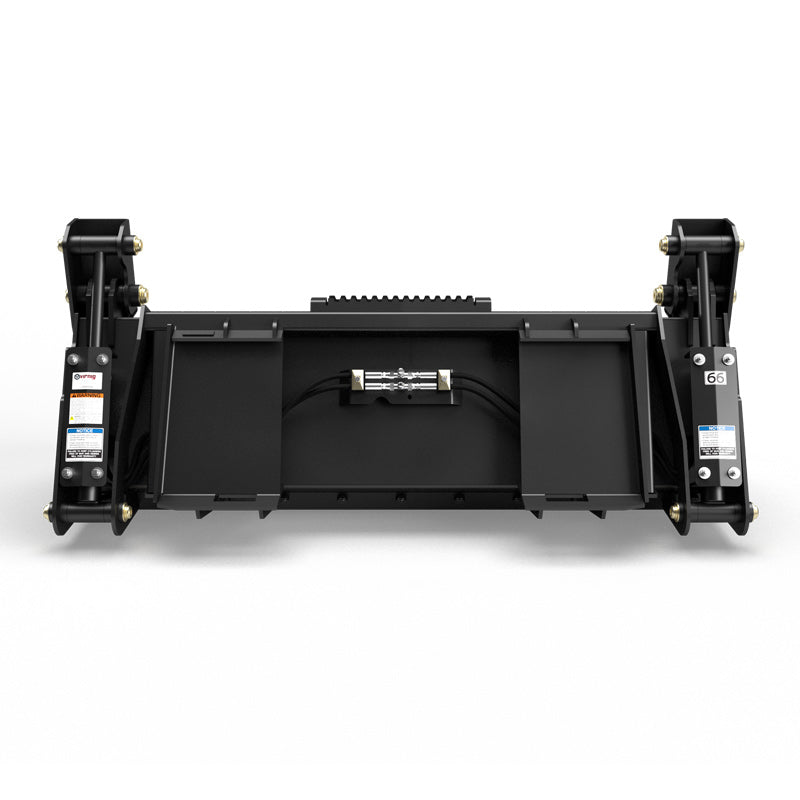

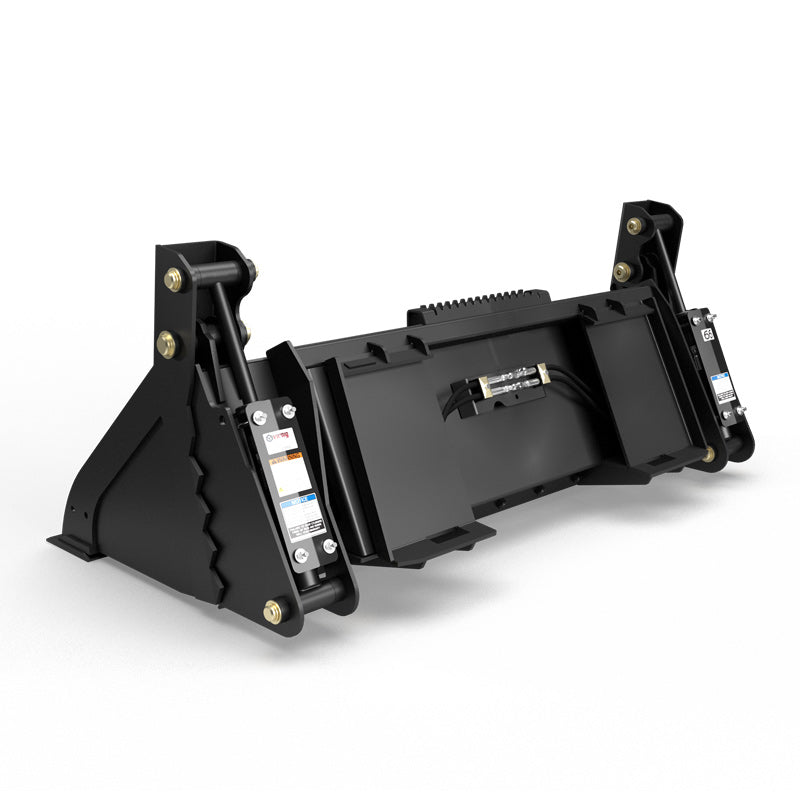

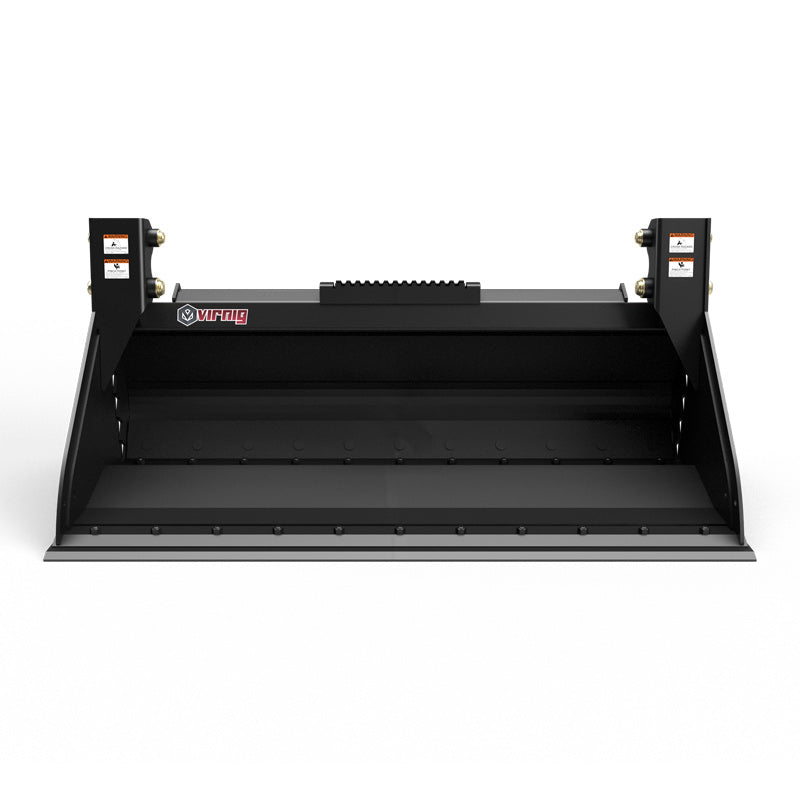

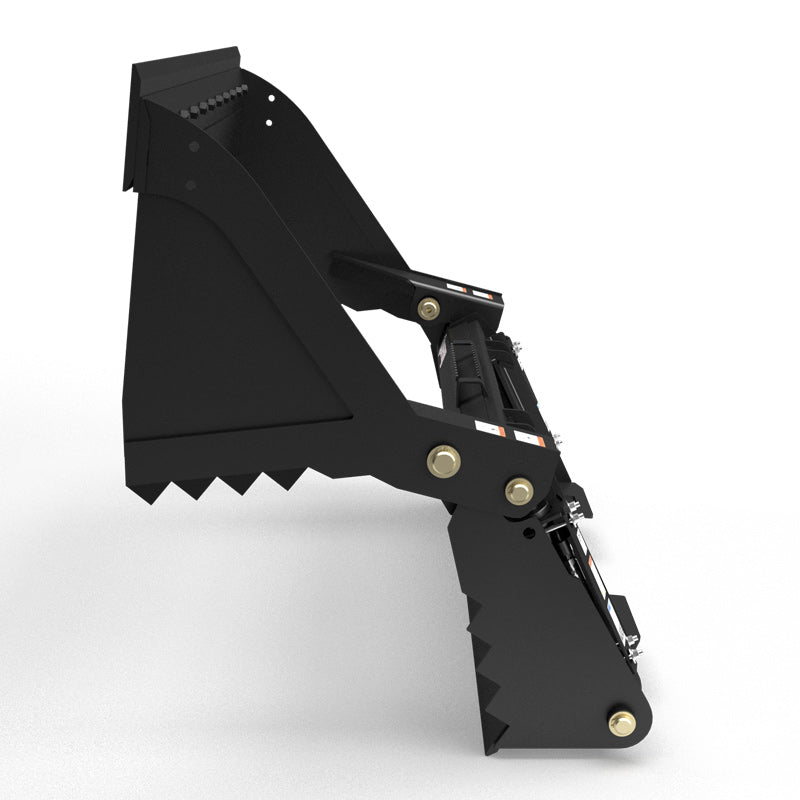

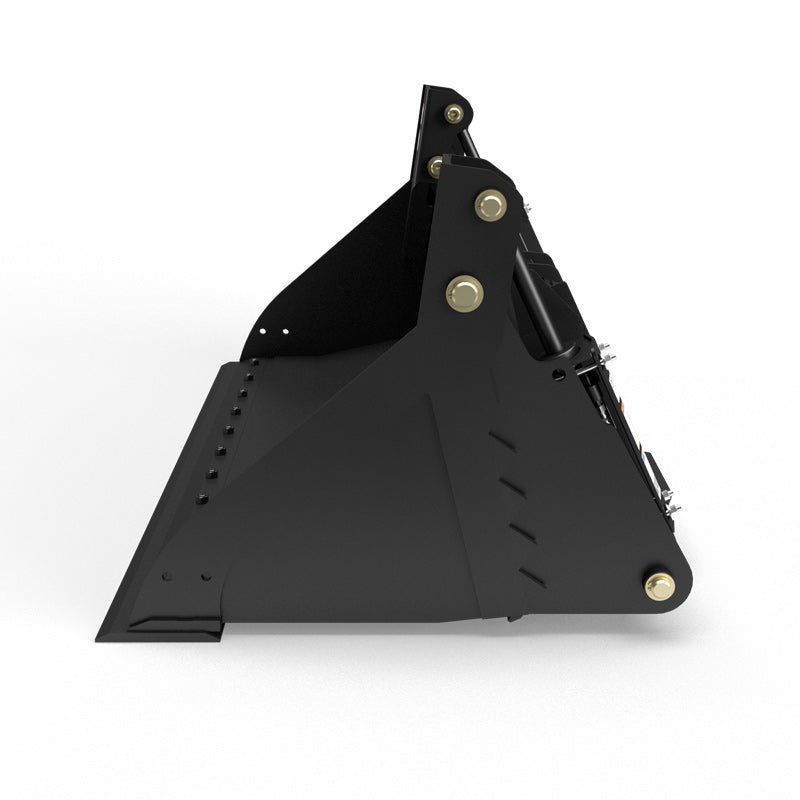

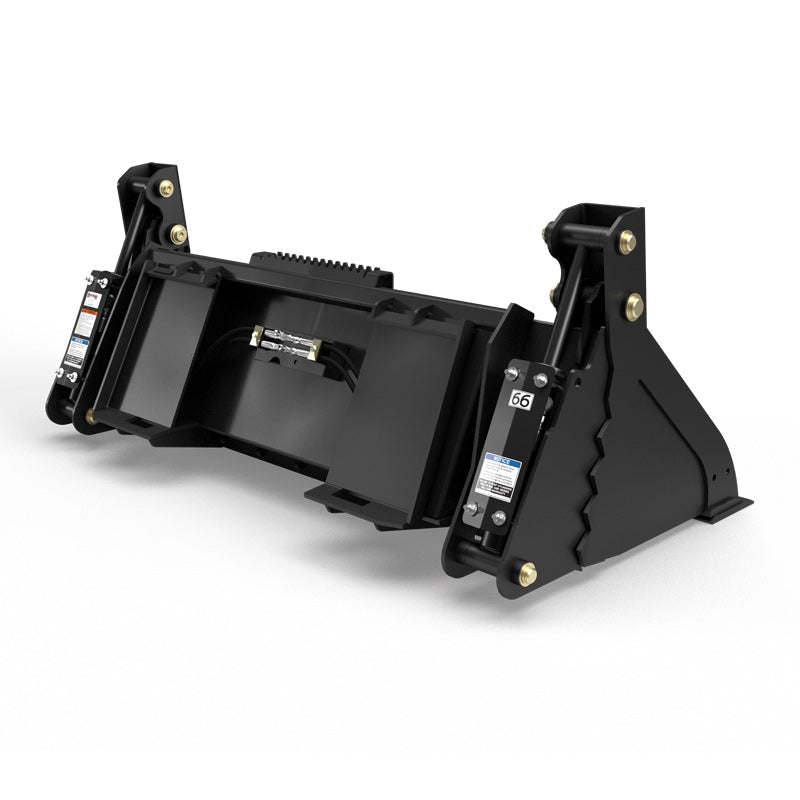

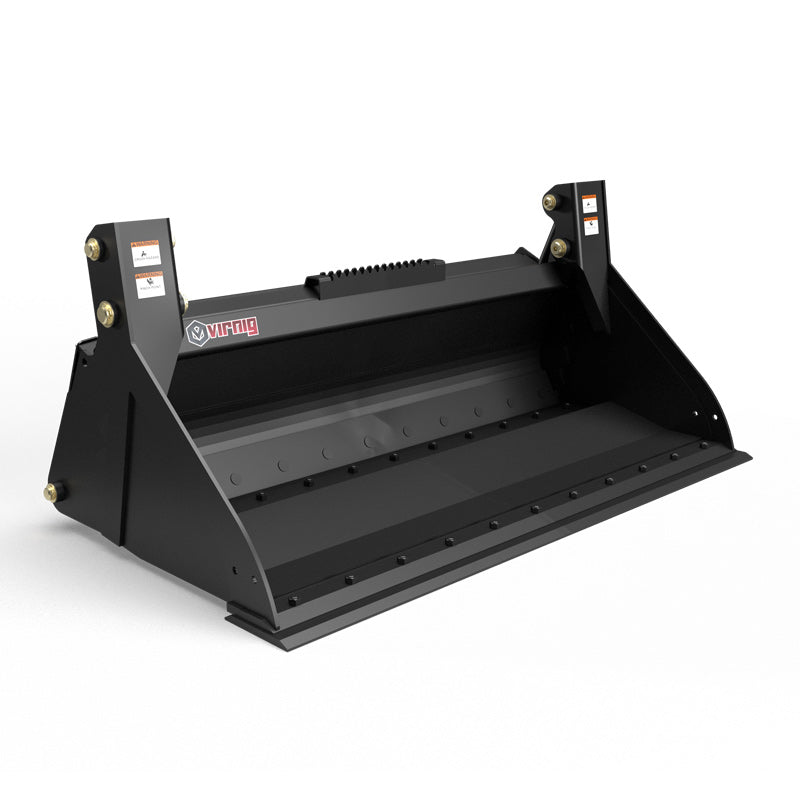

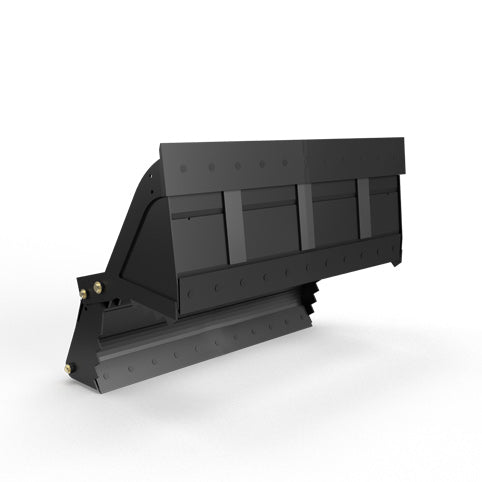

Virnig V50 Multi-Purpose Bucket (4-in-1)

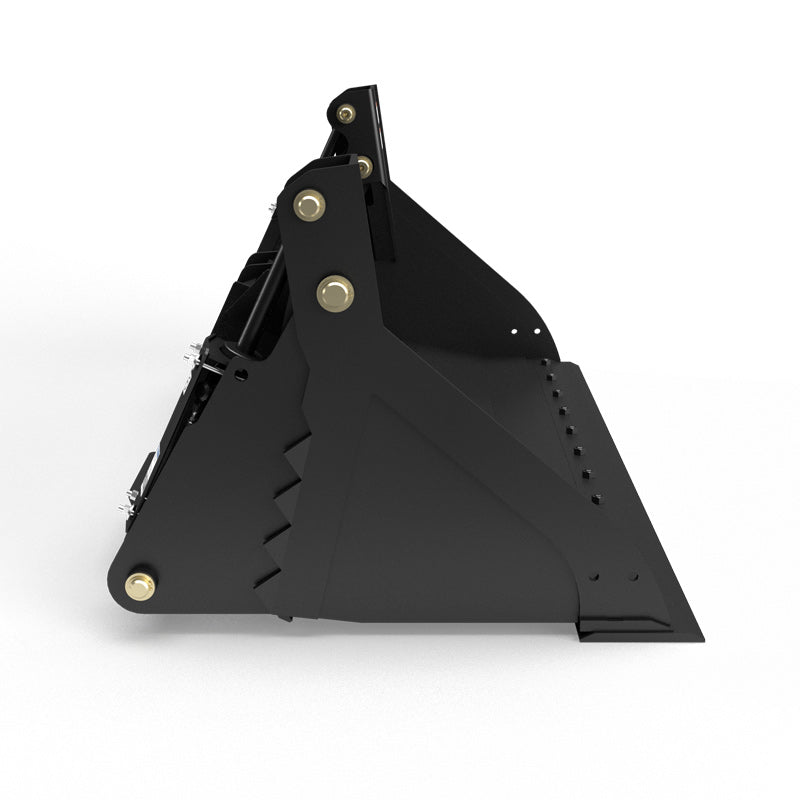

Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ

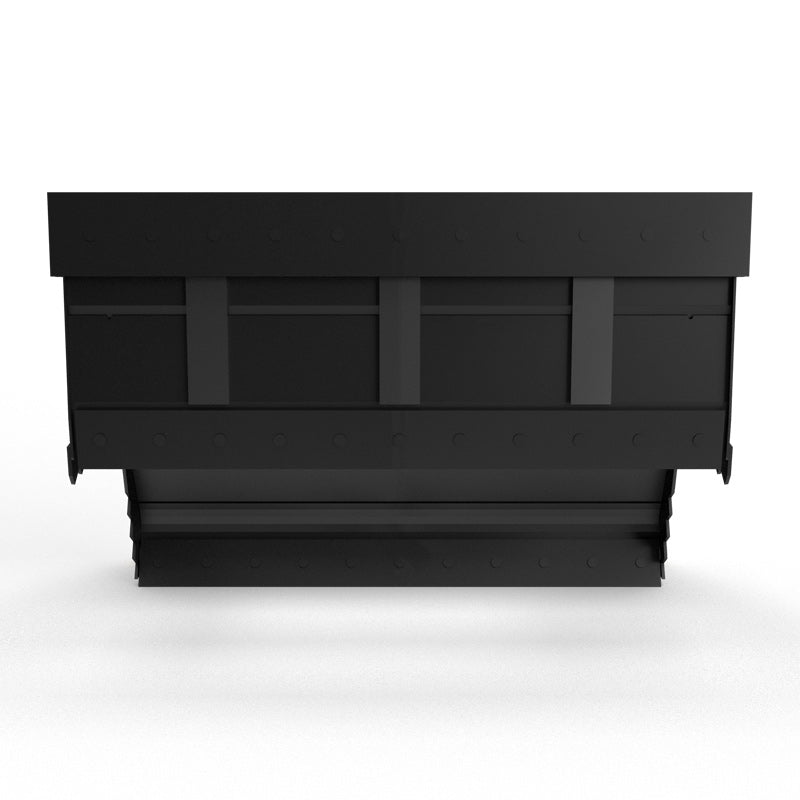

Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ

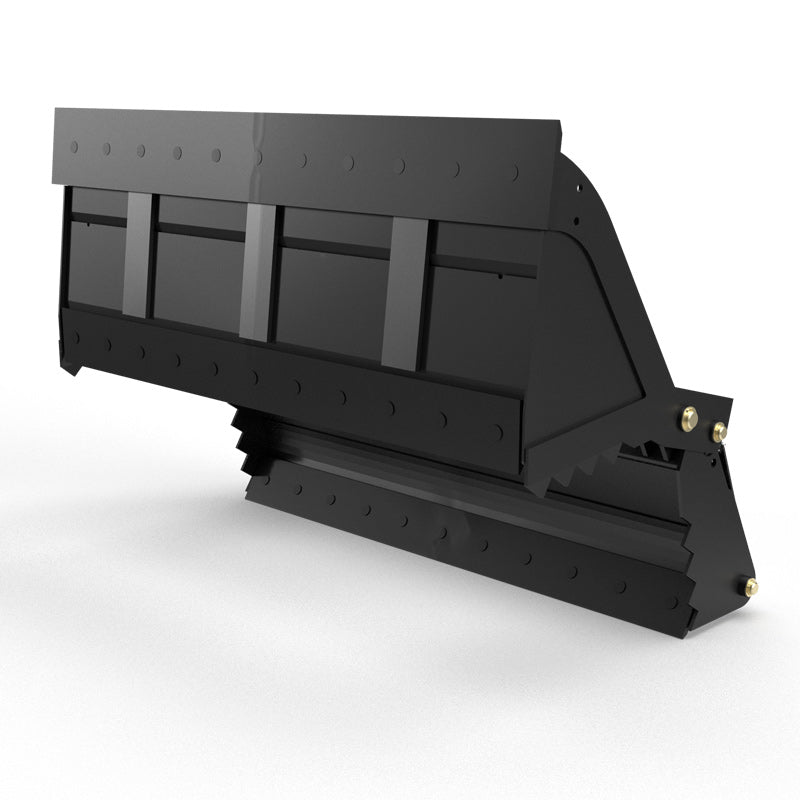

Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ

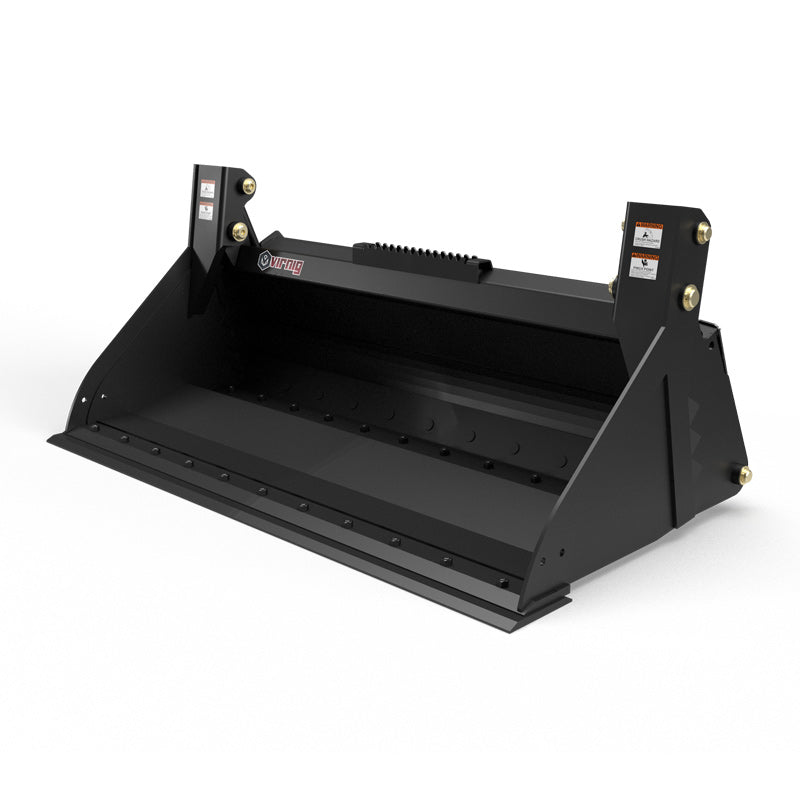

Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V50 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig

Virnig V50 Multi-Purpose Bucket (4-in-1)

SKU: MPV60 Currently In Stock

$6,045.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

REPLACEABLE CUTTING EDGE

REVERSIBLE ⅝″ X 6″ BOLT-ON EDGES CAN BE TURNED OR REPLACED AS THE WORKING FACE WEARS.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

MATERIAL HANDLING

VIRNIG V50 MULTI-PURPOSE BUCKET (4-IN-1) COMBINES DOZING, CLAMMING, LEVELING, AND BOTTOM DUMPING IN ONE BUCKET.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Multi-Purpose Bucket combines dozing, clamming, leveling, and bottom dumping in one 4-in-1 attachment. Its opening bucket arrangement lets the operator change how material is gathered and released, making it useful for site work that would otherwise require moving between a plain bucket and a grading tool.

Reversible ⅝″ × 6″ steel bolt-on edges provide serviceable working surfaces, while the bucket front uses a ¾″ × 6″ weld-on edge. The hydraulic clam action allows the bucket to grip material or release it through the opening, giving the operator another approach to placement and cleanup.

NitroSteel® cylinder rods and Teflon®-coated pivot bushings equip the moving connections, and cylinder guards are standard. Choose the bucket width and complete operating weight around the carrier and material being handled. This is the V50 construction; the separate V60 4-in-1 bucket uses a different weld-on edge specification.

KEY BENEFITS

  • Standard with cylinder guards.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 5/8″ x 6″ reversible steel bolt-on edges.
  • 3/4″ x 6″ weld-on edge.
  • Virnig v50 multi-purpose bucket (4-in-1) combines dozing, clamming, leveling, and bottom dumping in one bucket.

TECHNICAL SPECIFICATIONS

  • Models: MPV60 MPV66 MPV72
  • Width: Overall, Straight / Inside (in.): MPV60: 61.5 / 59.5; MPV66: 67.5 / 65.5; MPV72: 73.5 / 71.5
  • Height: Overall / Bucket / Open (in.): 29.8 / 21.3 / 46.0
  • Depth: Overall / Inside (in.): 37.0 / 28.6
  • Working Width (in.): MPV60: 59.9; MPV66: 65.9; MPV72: 71.9
  • Clam Opening (in.): 33.0
  • Thickness: Shell / Hinge Structure (in.): 0.25 / 0.375
  • Structural Wear Bars Under Bucket (1/2” x 4”): 3
  • Cylinder Bore / Stroke (in.): 2.5 / 8.375
  • Cylinder Pins / Hinge Pins Diameter (in.): 1.25 / 1.563
  • Approximate Weight (lbs): MPV60: 840; MPV66: 915; MPV72: 960
  • Recommended Loader Capacity: Less than 2400 lbs

APPLICATIONS

  • Grading
  • Clamping and carrying material
  • Controlled bottom dumping

VIRNIG V50 MULTI-PURPOSE BUCKET (4-IN-1)

WORKING DESIGN

  • Standard with cylinder guards.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 5/8″ x 6″ reversible steel bolt-on edges.
  • 3/4″ x 6″ weld-on edge.

CONFIGURATION AND SPECIFICATIONS

  • Models: MPV60 MPV66 MPV72
  • Width: Overall, Straight / Inside (in.): MPV60: 61.5 / 59.5; MPV66: 67.5 / 65.5; MPV72: 73.5 / 71.5
  • Height: Overall / Bucket / Open (in.): 29.8 / 21.3 / 46.0
  • Depth: Overall / Inside (in.): 37.0 / 28.6
  • Working Width (in.): MPV60: 59.9; MPV66: 65.9; MPV72: 71.9
  • Clam Opening (in.): 33.0
  • Thickness: Shell / Hinge Structure (in.): 0.25 / 0.375
  • Structural Wear Bars Under Bucket (1/2” x 4”): 3
  • Cylinder Bore / Stroke (in.): 2.5 / 8.375

READY FOR THE FIELD

  • Standard with cylinder guards.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 5/8″ x 6″ reversible steel bolt-on edges.
  • 3/4″ x 6″ weld-on edge.
  • Virnig v50 multi-purpose bucket (4-in-1) combines dozing, clamming, leveling, and bottom dumping in one bucket.
