VIRNIG

V50 Root Rake Grapple

For Skid Steers & Track Loaders

66-78″ Widths

Request QuoteAdd To Cart

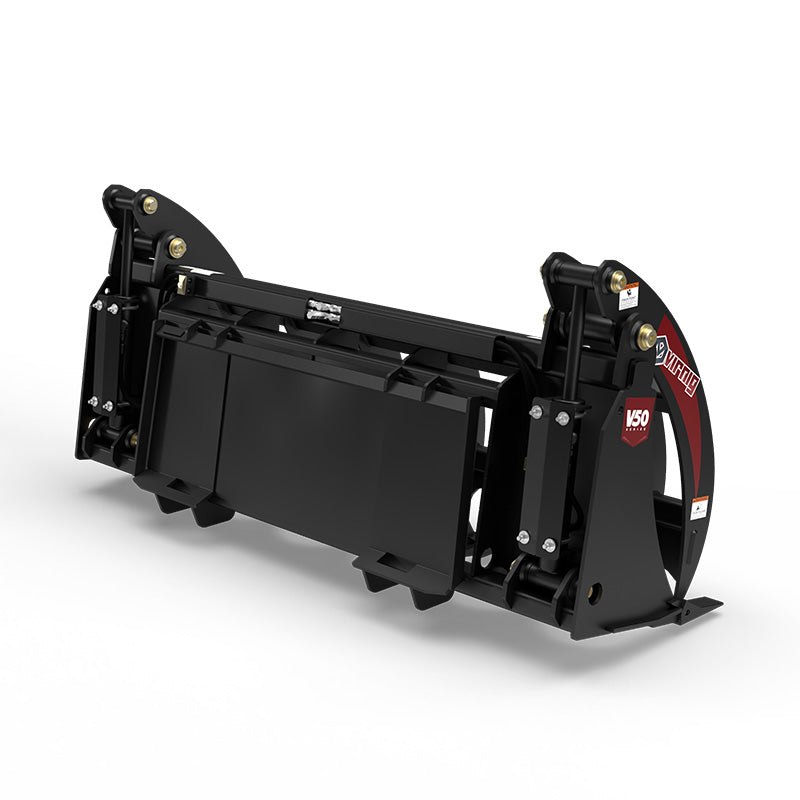

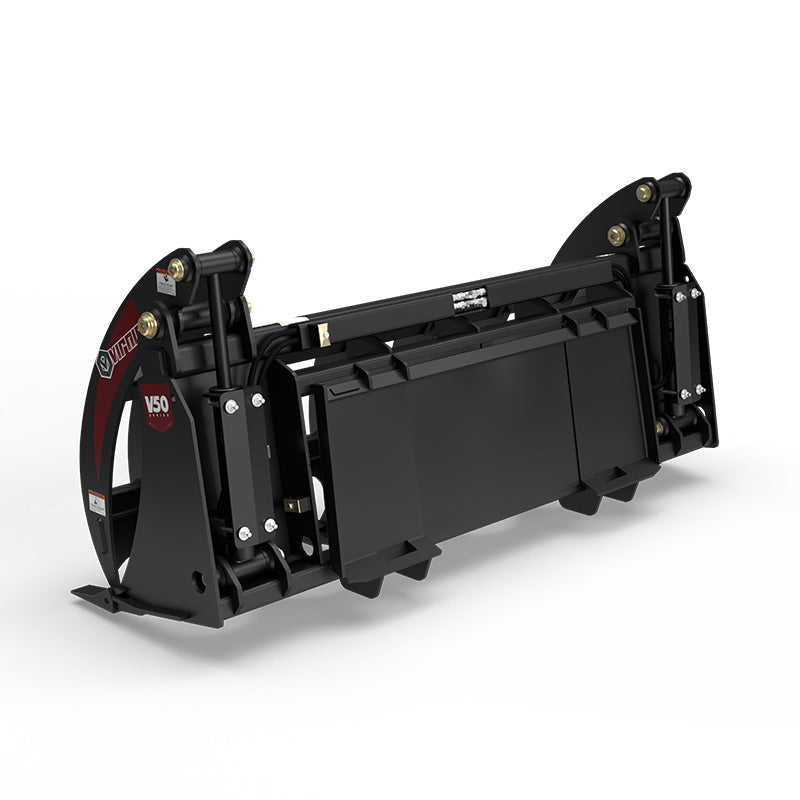

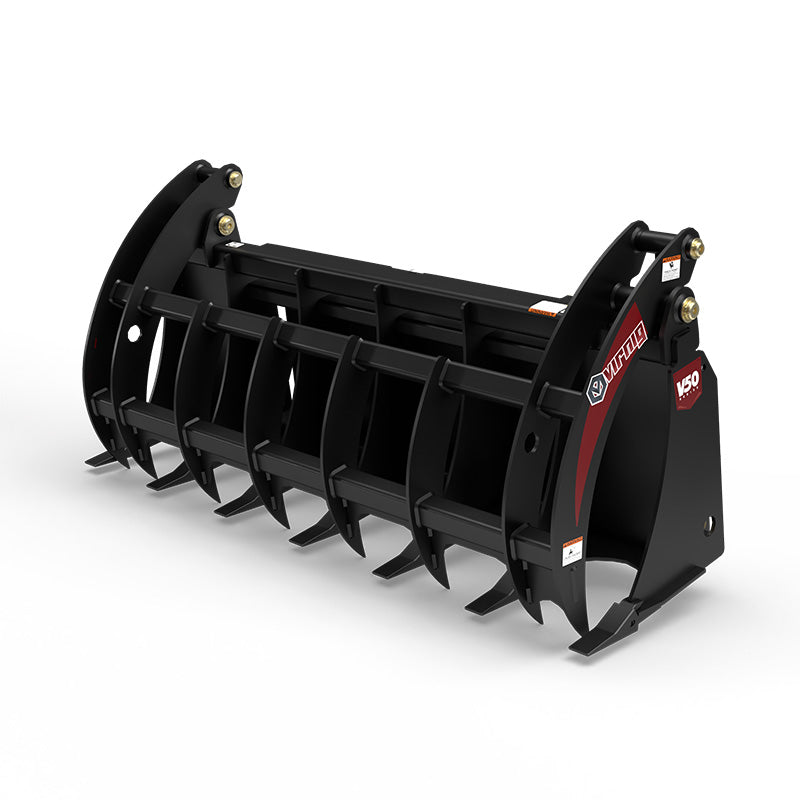

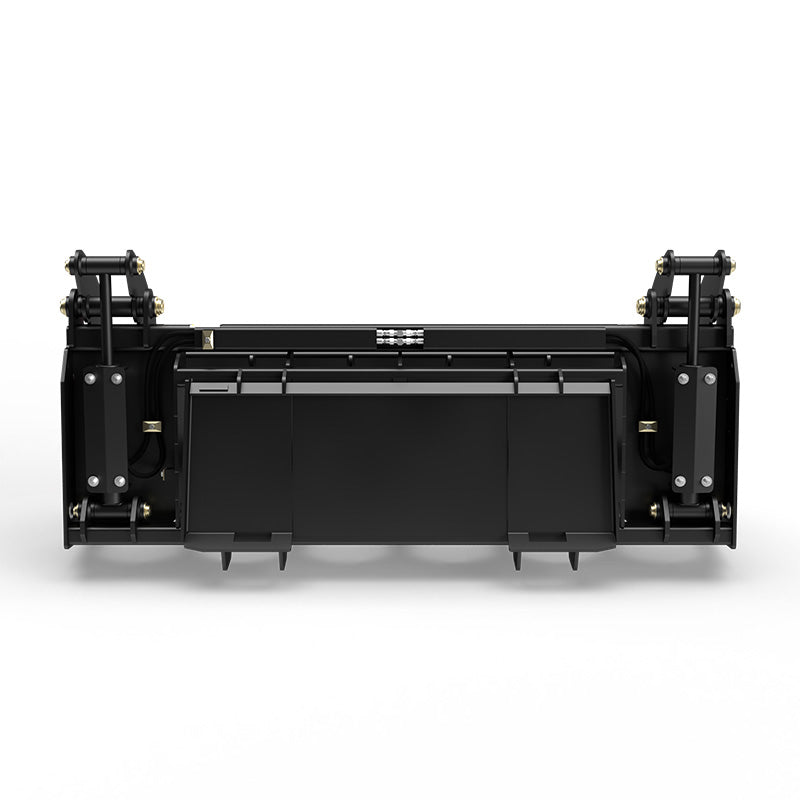

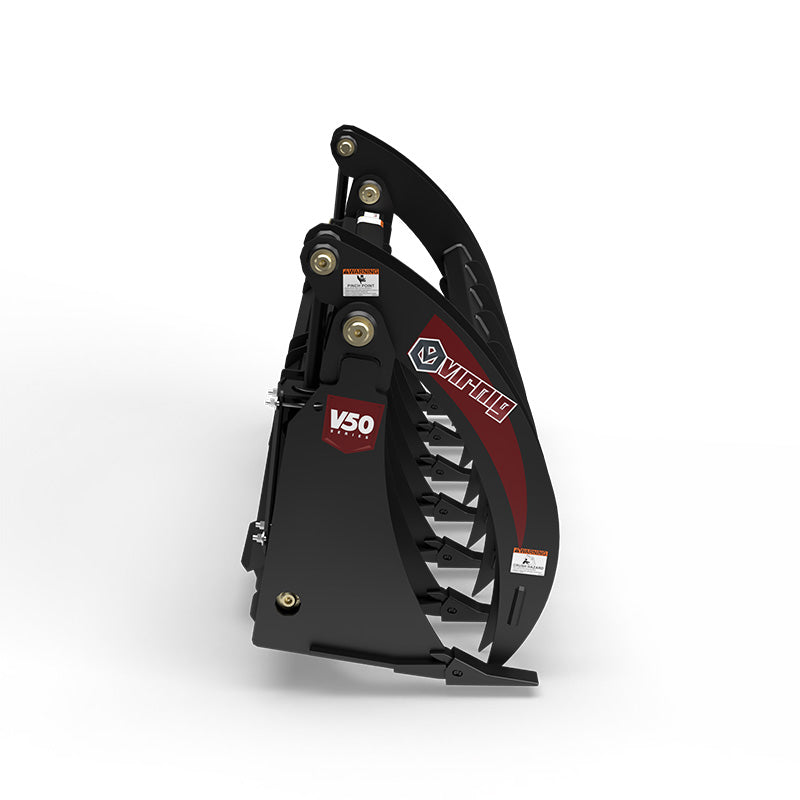

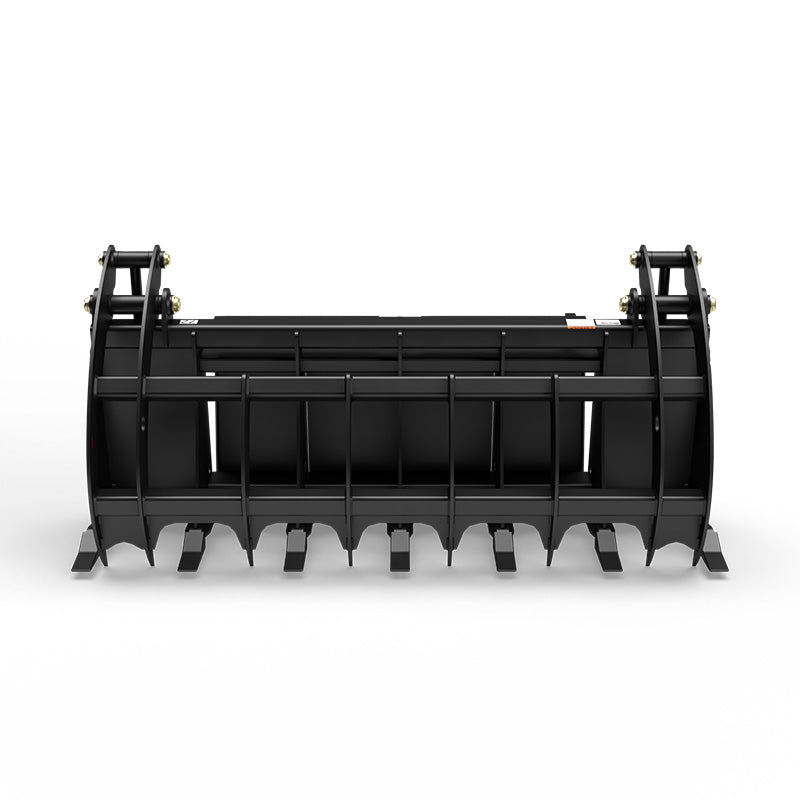

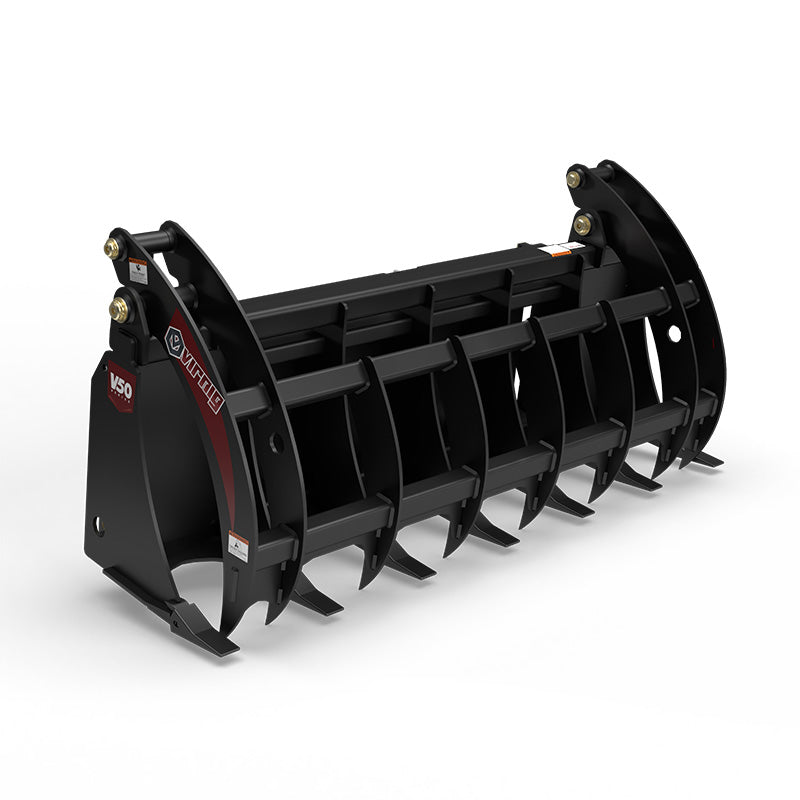

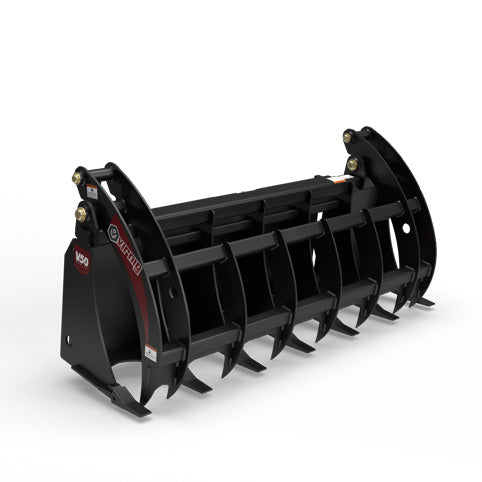

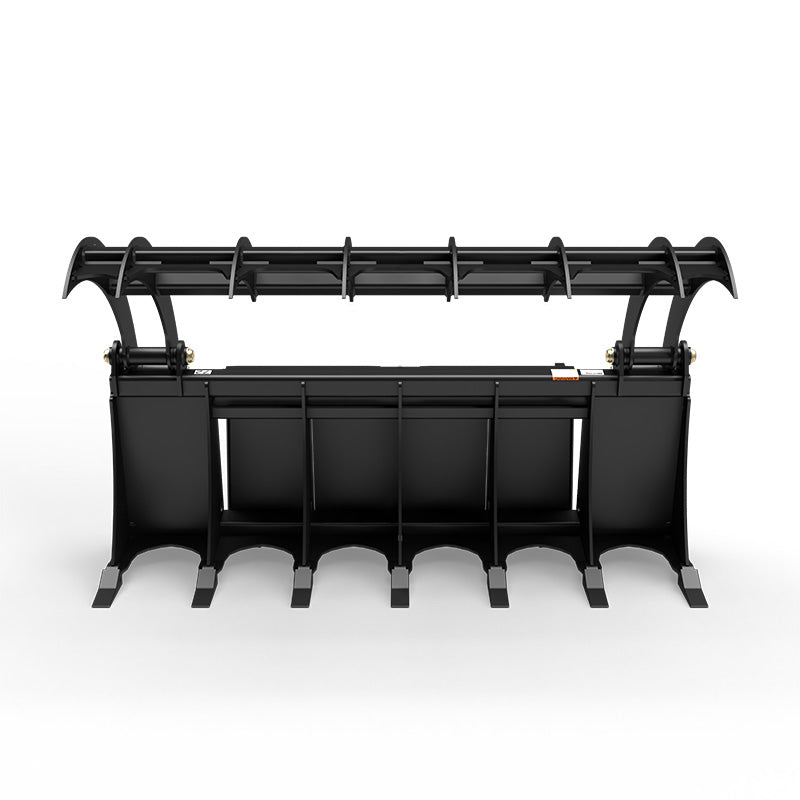

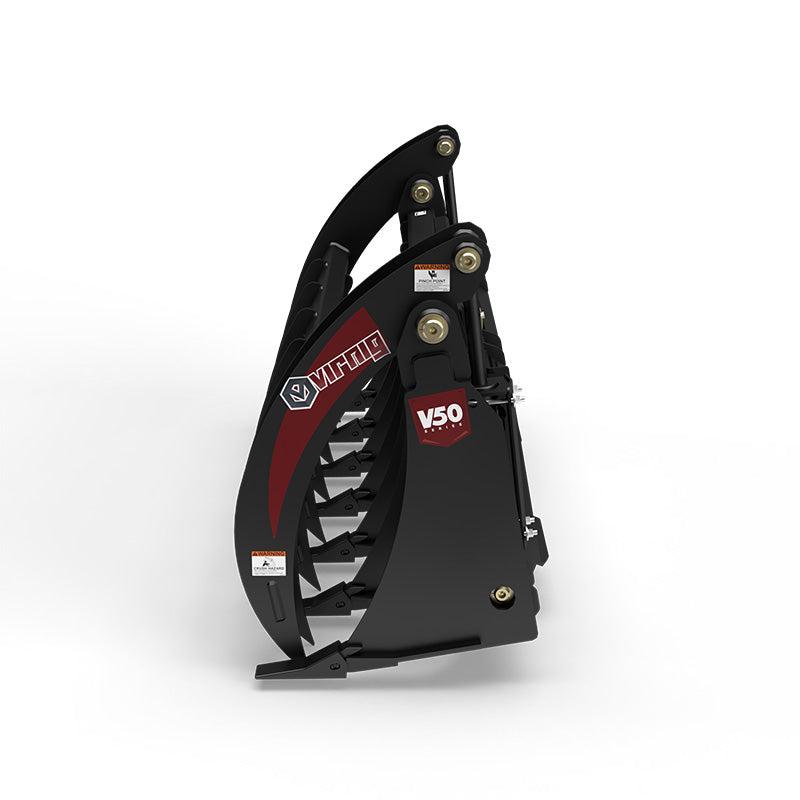

Virnig V50 Root Rake Grapple

Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differVirnig V50 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig

Virnig V50 Root Rake Grapple

SKU: URG66 Currently In Stock

$6,045.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

REPLACEABLE DIGGING TEETH

REPLACEABLE SERIES 23 TEETH DIG INTO SOIL TO LOOSEN ROOTS AND ROCKS.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

OPEN MATERIAL HANDLING

VIRNIG V50 ROOT RAKE GRAPPLE DIGS, RAKES, PILES, AND LOADS BRUSH WITH A TOOTHED LOWER FRAME AND HYDRAULIC GRAPPLE.

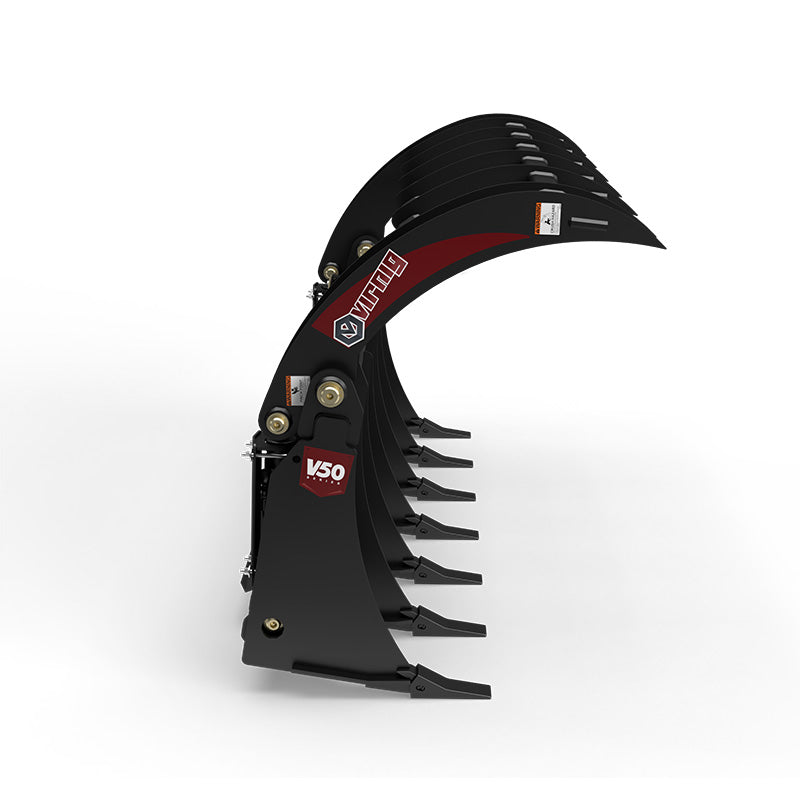

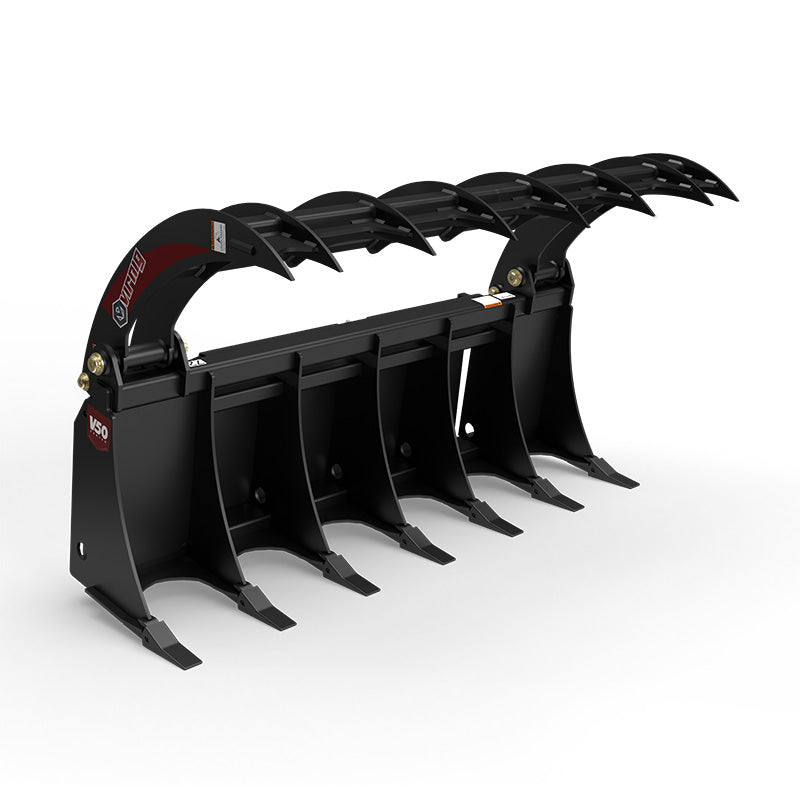

GRAPPLE JAW OPENING

A 44″ JAW OPENING PROVIDES ROOM TO GATHER BRUSH BEFORE CLAMPING IT FOR TRANSPORT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Root Rake Grapple digs into roots and brush, rakes material into a pile, and holds the loosened debris for transport. Its toothed lower frame and hydraulic grapple let the operator move from ground engagement to loading without changing attachments, while the open frame lets loose soil fall away.

Series 23 pin-on teeth provide replaceable digging points for working around roots and rocks. NitroSteel® cylinder rods and Teflon®-coated pivot bushings equip the moving hydraulic connections. Cylinder guards are standard, shielding the cylinders from the vegetation and debris gathered during cleanup.

The V50 URG family offers different widths to suit the carrier and work area. Check known interference on the 66″ URG with Takeuchi® TL12 loaders and the 66″ and 72″ URG with John Deere® 330G, 331G, 332G, and 333G loaders. Confirm loader capacity and the exact width's clearance before choosing a configuration.

KEY BENEFITS

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Series 23 pin-on teeth cut into soil, dig out rocks and roots.
  • Standard with cylinder guards.
  • Virnig v50 root rake grapple digs, rakes, piles, and loads brush with a toothed lower frame and hydraulic grapple.
  • Grapple jaw opening (in.): 44.0

TECHNICAL SPECIFICATIONS

  • Models: URG66 URG72 URG78
  • Overall Width (in.): URG66: 67.9; URG72: 73.9; URG78: 79.9
  • Height: Overall / Bucket (in.): 34.0 / 25.0
  • Overall Depth (in.): 22.1
  • Number of Teeth: URG66: 6; URG72: 7; URG78: 8
  • Space Between Teeth (in.): URG66: 10.9; URG72: 9.8; URG78: 8.9
  • Space Between Tines, Grapple Jaws (in.): URG66: 8.8; URG72: 11.1; URG78: 10.1
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 44.0
  • Approximate Weight (lbs): URG66: 790; URG72: 845; URG78: 905
  • Recommended Loader Capacity: Less than 2400 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Brush removal
  • Root cleanup
  • Land clearing

VIRNIG V50 ROOT RAKE GRAPPLE

WORKING DESIGN

  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Series 23 pin-on teeth cut into soil, dig out rocks and roots.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: URG66 URG72 URG78
  • Overall Width (in.): URG66: 67.9; URG72: 73.9; URG78: 79.9
  • Height: Overall / Bucket (in.): 34.0 / 25.0
  • Overall Depth (in.): 22.1
  • Number of Teeth: URG66: 6; URG72: 7; URG78: 8
  • Space Between Teeth (in.): URG66: 10.9; URG72: 9.8; URG78: 8.9
  • Space Between Tines, Grapple Jaws (in.): URG66: 8.8; URG72: 11.1; URG78: 10.1
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375

READY FOR THE FIELD

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Series 23 pin-on teeth cut into soil, dig out rocks and roots.
  • Standard with cylinder guards.
  • Virnig v50 root rake grapple digs, rakes, piles, and loads brush with a toothed lower frame and hydraulic grapple.
  • Grapple jaw opening (in.): 44.0
