VIRNIG

V50 Scrap Grapple

For Skid Steers & Track Loaders

60-78″ Widths

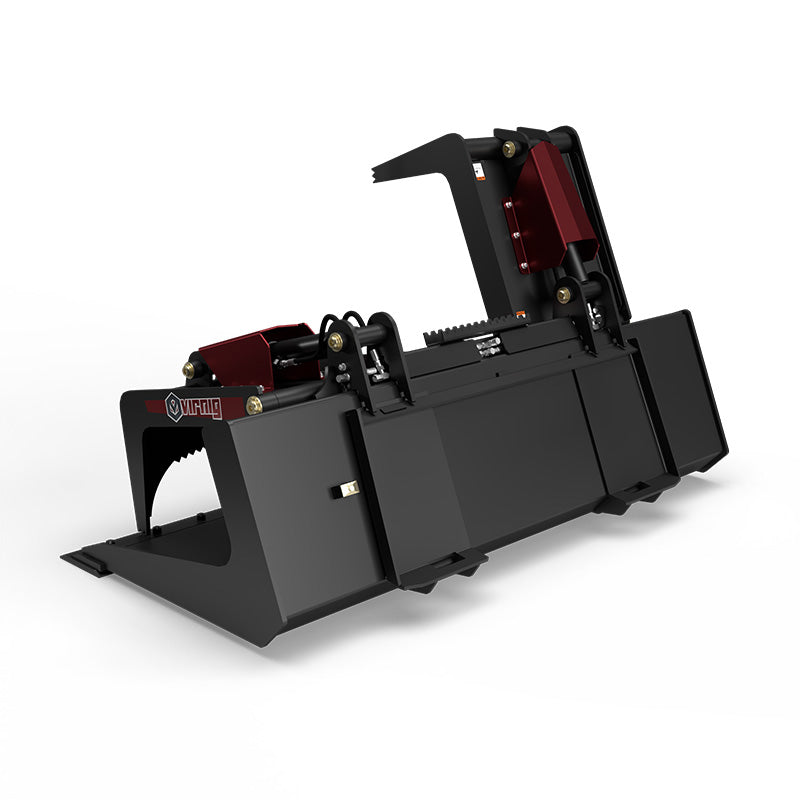

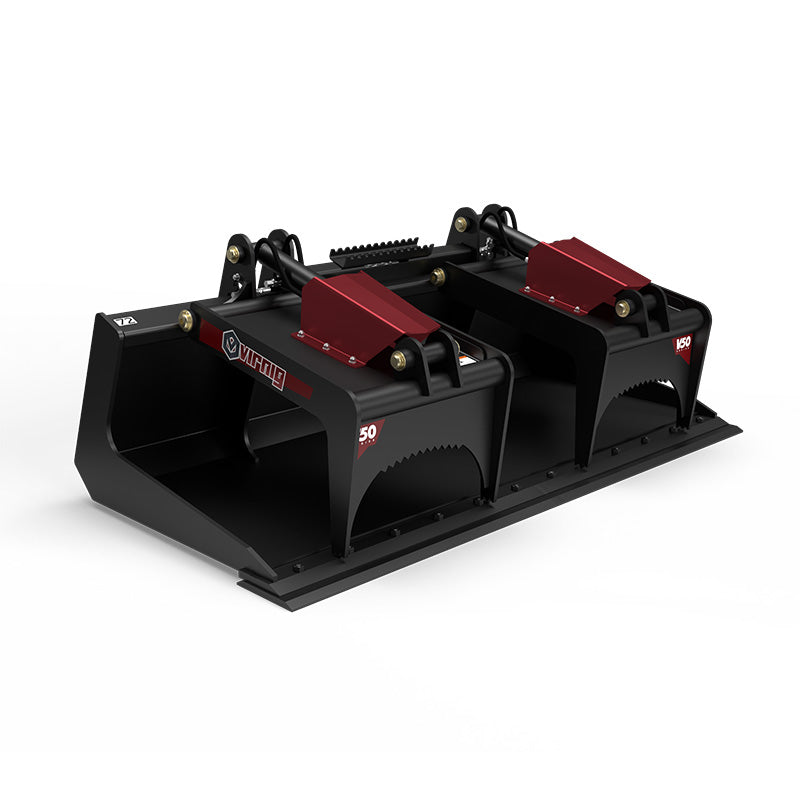

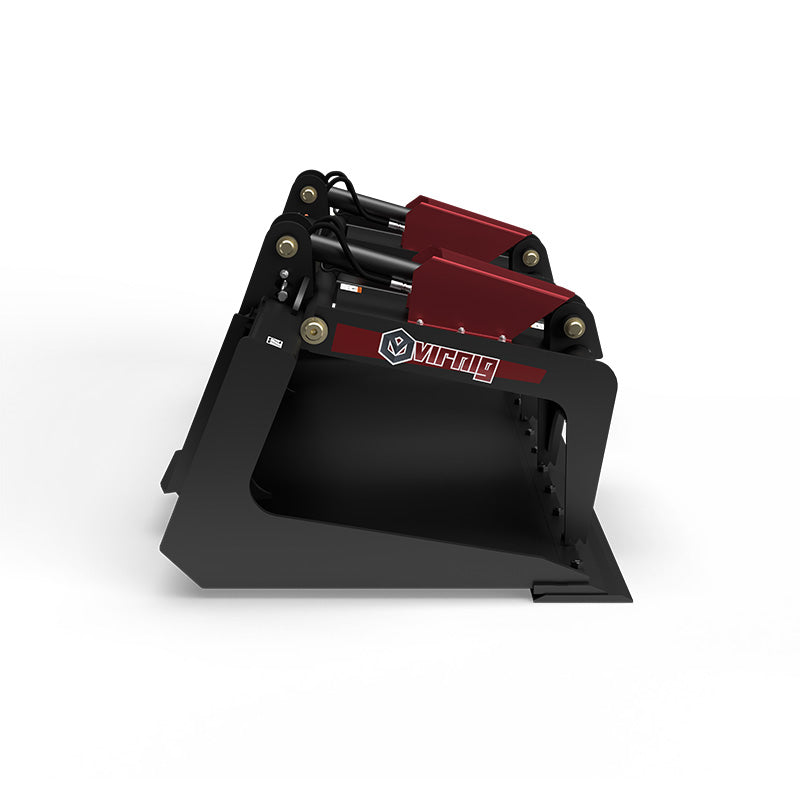

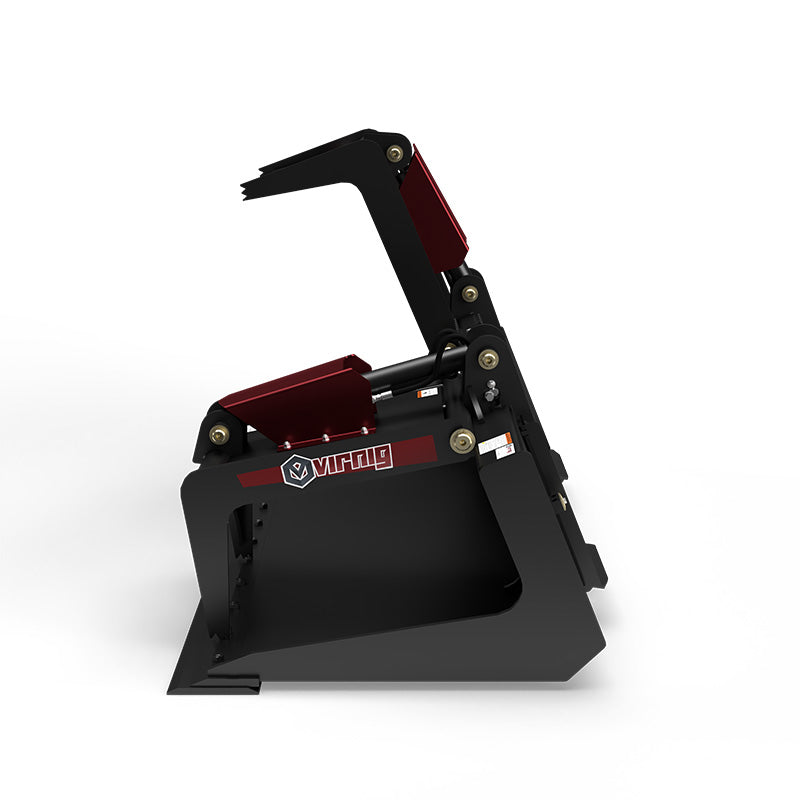

Virnig V50 Scrap Grapple

Virnig

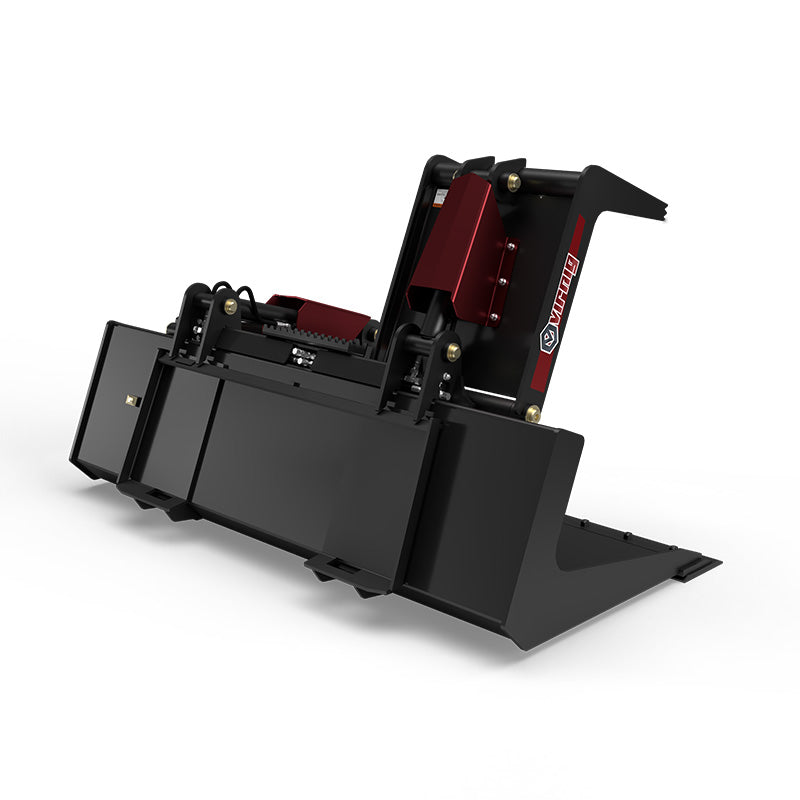

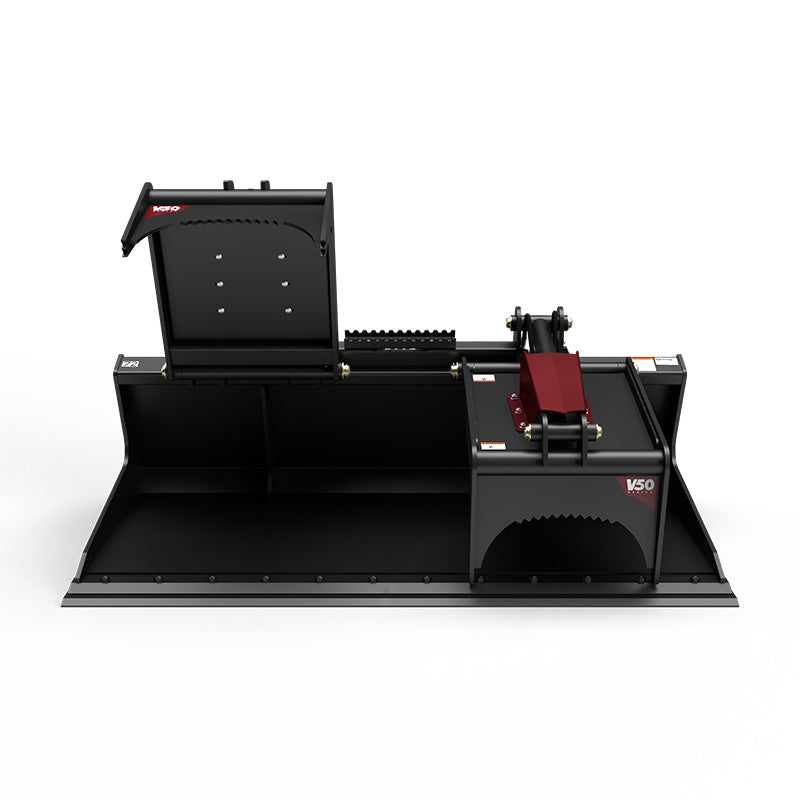

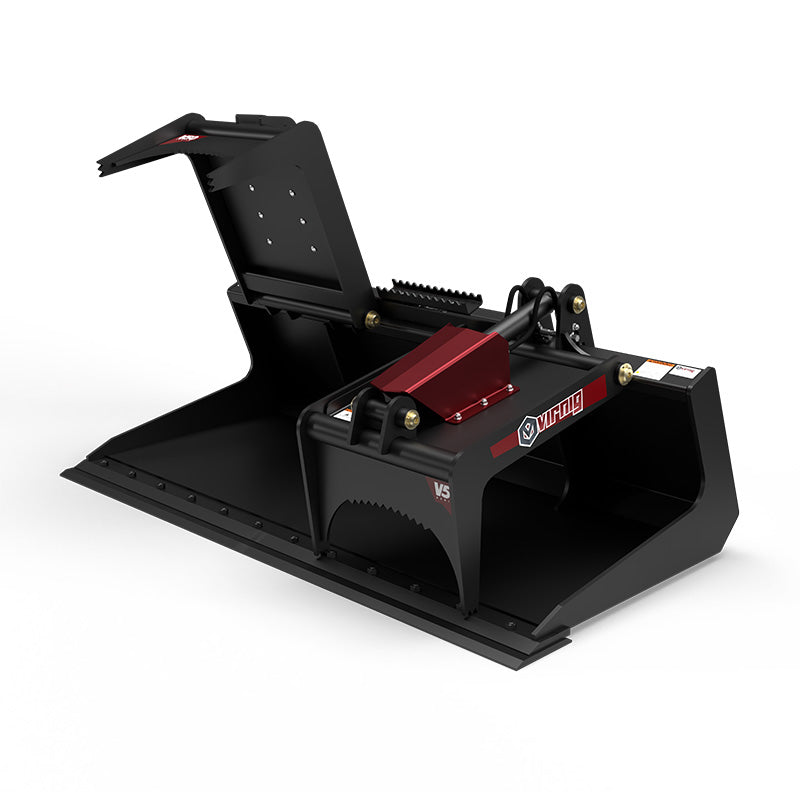

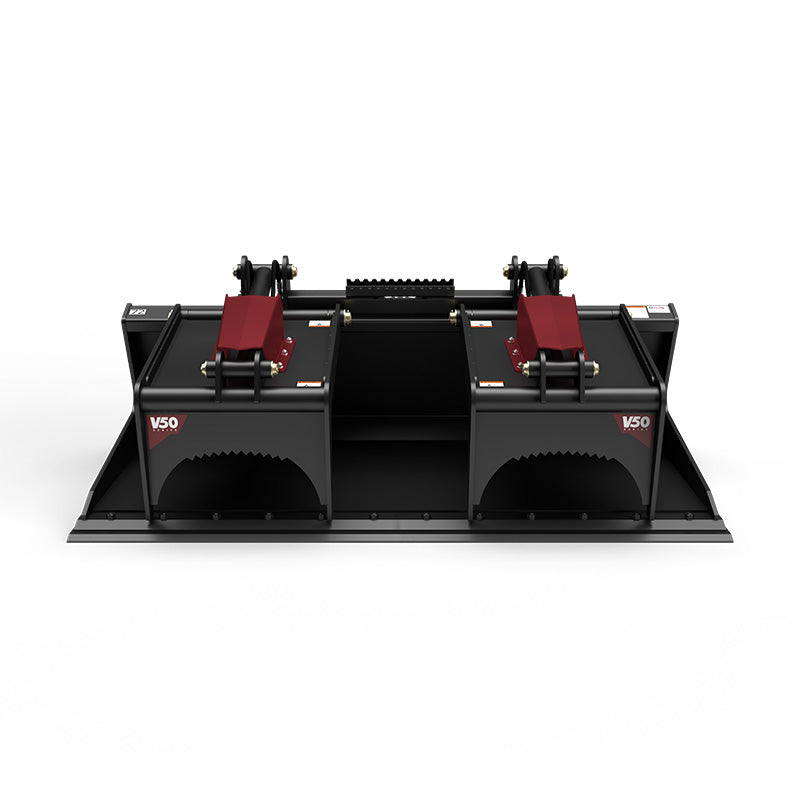

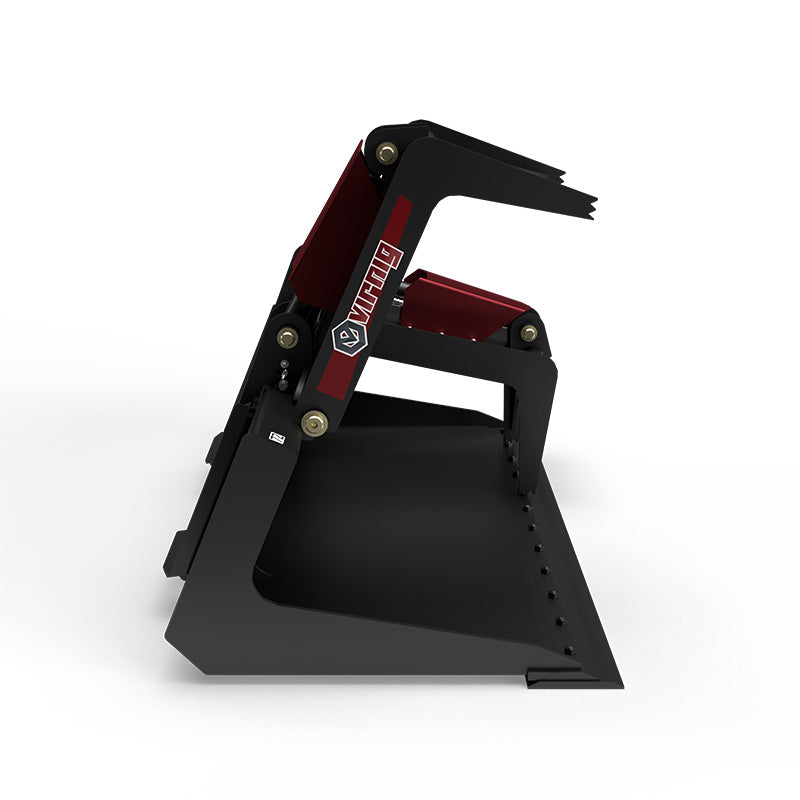

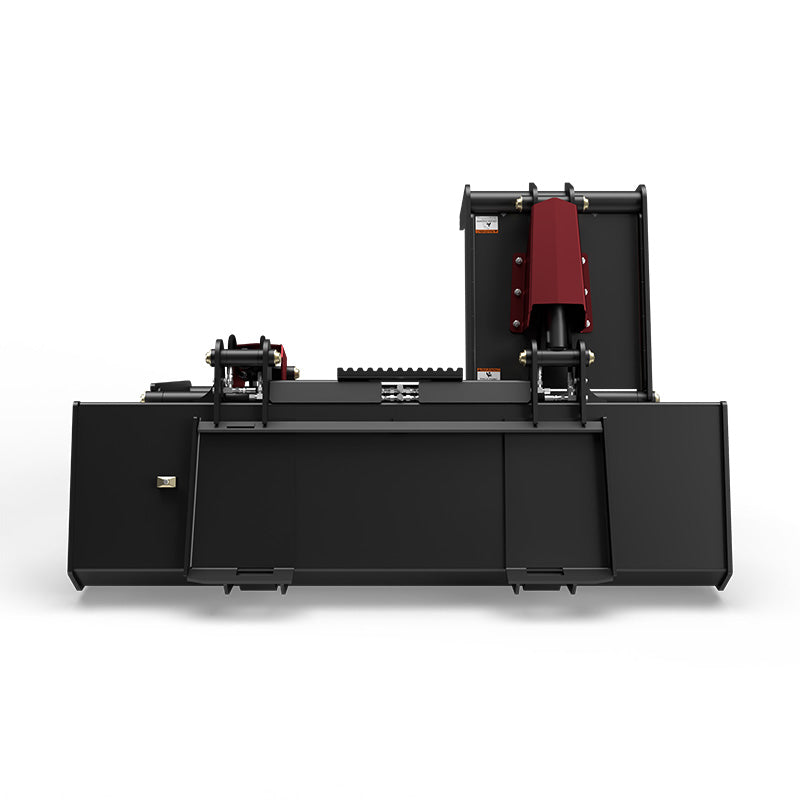

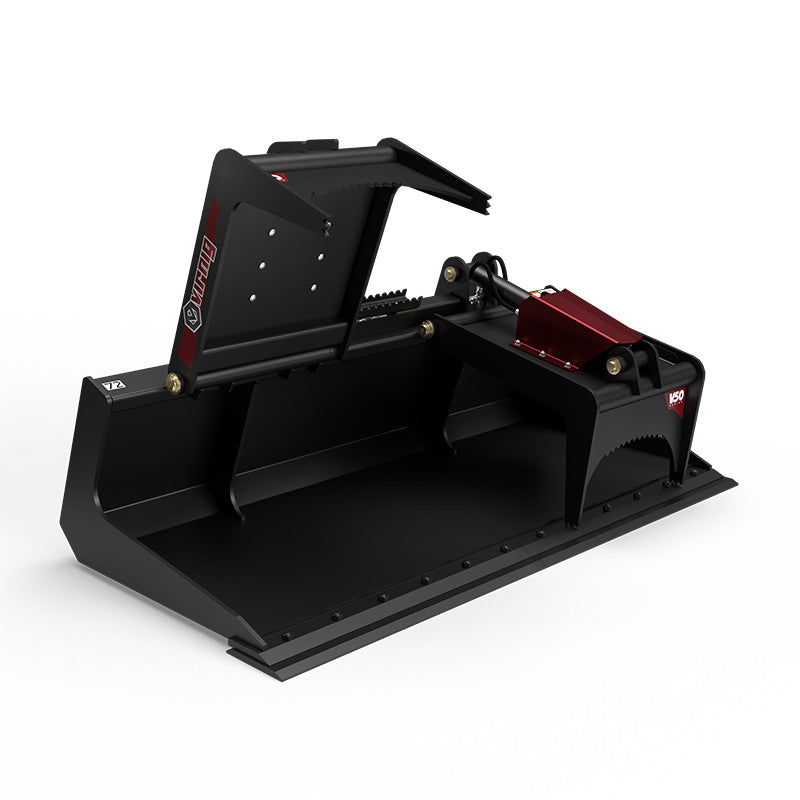

Virnig V50 Scrap Grapple

SKU: SBG60 Currently In Stock

Sale price$6,015.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

REINFORCED BUCKET

½″ VERTICAL BRACES REINFORCE THE BUCKET INTERIOR FOR REPEATED LOADING WORK.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

DEBRIS CLEANUP

VIRNIG V50 SCRAP GRAPPLE SCOOPS LOOSE DEBRIS AND CLAMPS BULKY LOADS IN A SOLID-BOTTOM BUCKET.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Scrap Grapple combines a solid-bottom bucket with hydraulic jaws for scooping loose debris and securing bulky loads. Unlike a skeleton grapple, the bucket floor retains smaller material, making this a useful attachment when cleanup work involves both loose pieces and larger objects that need to be clamped.

Vertical ½″ braces reinforce the bucket interior, while a ¾″ × 6″ weld-on edge forms the leading working surface. The grapple closes over material gathered in the bucket, helping keep an uneven load together as it is moved. Bottom wear bars provide additional protection at the bucket's ground contact points.

NitroSteel® cylinder rods and Teflon®-coated bushings equip the hydraulic pivots, with cylinder guards supplied as standard. Choose the V50 SBG width and weight around the loader and typical cleanup load. The solid floor is suited to retaining debris rather than sifting soil, so consider which bucket style best matches your work.

KEY BENEFITS

  • 1/2” vertical braces inside bucket.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 3/4″ x 6″ weld-on edge.
  • Standard with cylinder guards.
  • Virnig v50 scrap grapple scoops loose debris and clamps bulky loads in a solid-bottom bucket.

TECHNICAL SPECIFICATIONS

  • Models: SBG60 SBG66 SBG72 SBG78
  • Overall Width (in.): SBG60: 61.5; SBG66: 67.5; SBG72: 73.5; SBG78: 79.5
  • Height: Overall / Bucket (in.): 27.3 / 20.8
  • Overall Depth (in.): 35.5
  • Structural Wear Bars Under Bucket (1/2” x 4”): SBG60: 2; SBG66: 2; SBG72: 2; SBG78: 3
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 36.9
  • Approximate Weight (lbs): SBG60: 895; SBG66: 930; SBG72: 965; SBG78: 1015
  • Recommended Loader Capacity: Less than 2400 lbs

APPLICATIONS

  • Debris cleanup
  • Loose material loading
  • Bulky scrap handling

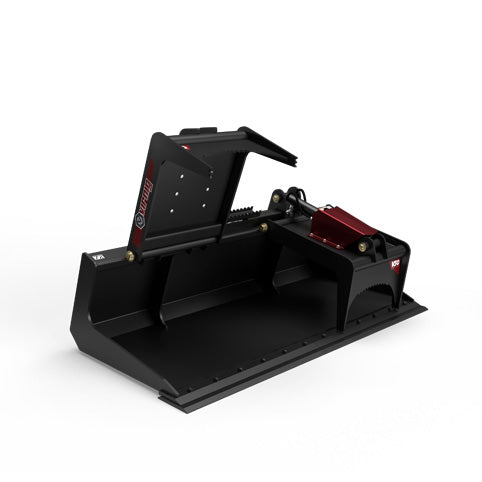

VIRNIG V50 SCRAP GRAPPLE

WORKING DESIGN

  • 1/2” vertical braces inside bucket.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 3/4″ x 6″ weld-on edge.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: SBG60 SBG66 SBG72 SBG78
  • Overall Width (in.): SBG60: 61.5; SBG66: 67.5; SBG72: 73.5; SBG78: 79.5
  • Height: Overall / Bucket (in.): 27.3 / 20.8
  • Overall Depth (in.): 35.5
  • Structural Wear Bars Under Bucket (1/2” x 4”): SBG60: 2; SBG66: 2; SBG72: 2; SBG78: 3
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 36.9
  • Approximate Weight (lbs): SBG60: 895; SBG66: 930; SBG72: 965; SBG78: 1015

READY FOR THE FIELD

  • 1/2” vertical braces inside bucket.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 3/4″ x 6″ weld-on edge.
  • Standard with cylinder guards.
  • Virnig v50 scrap grapple scoops loose debris and clamps bulky loads in a solid-bottom bucket.
