VIRNIG

V50 Skeleton Grapple

For Skid Steers & Track Loaders

60-90″ Widths

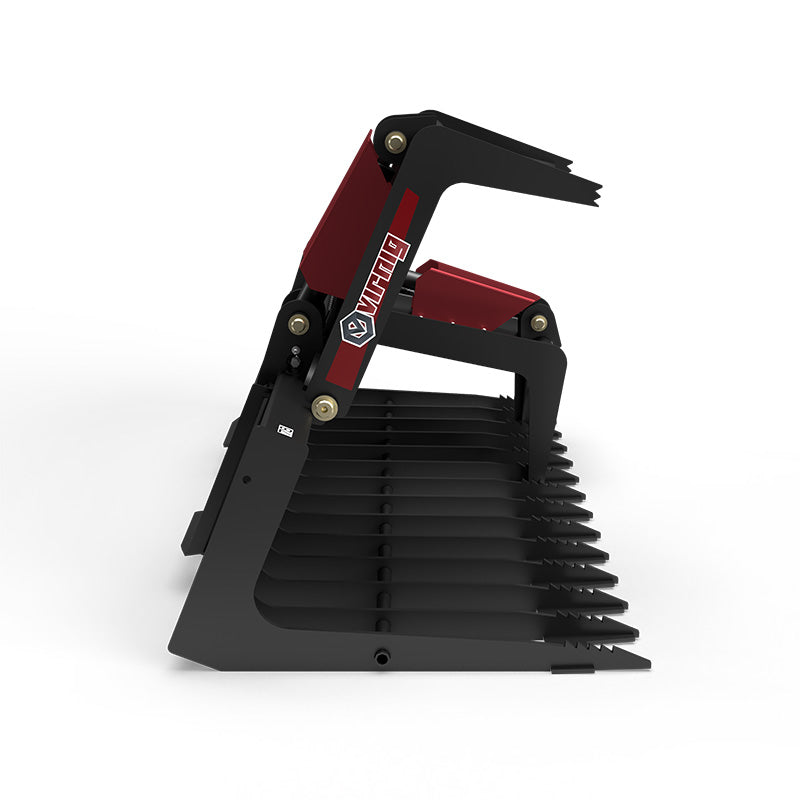

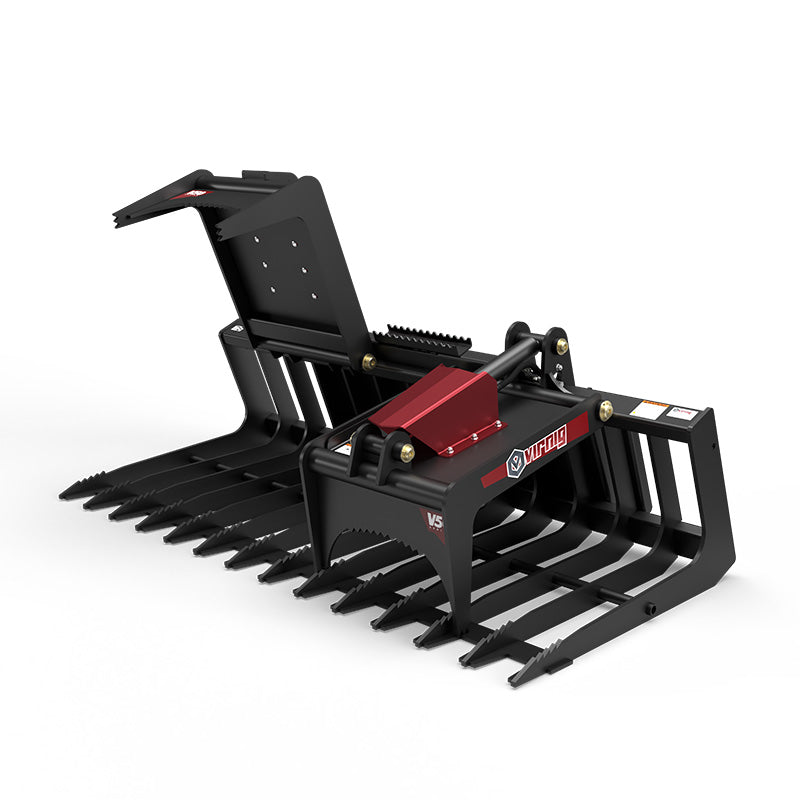

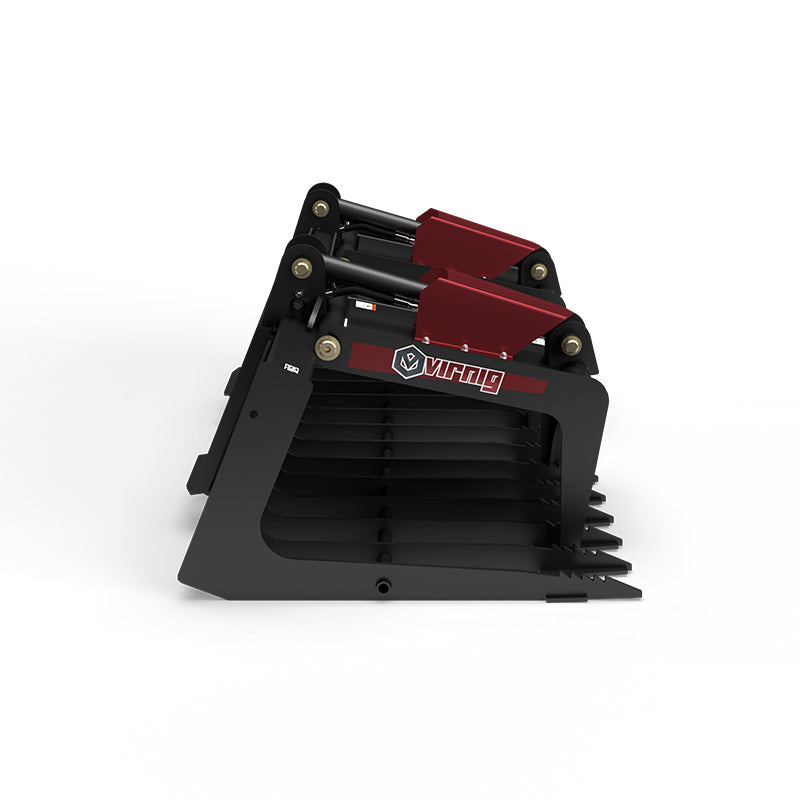

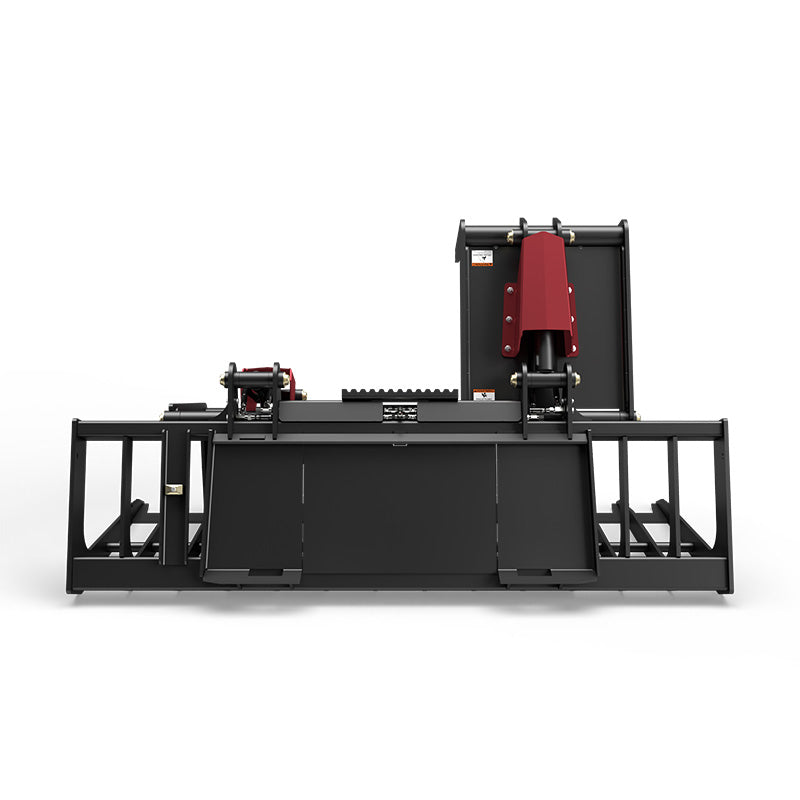

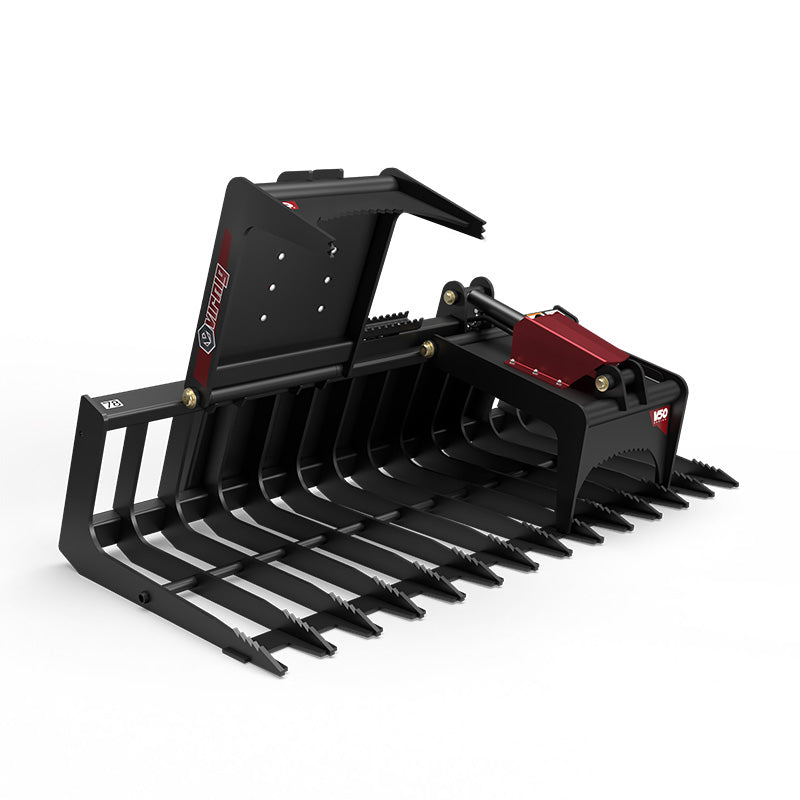

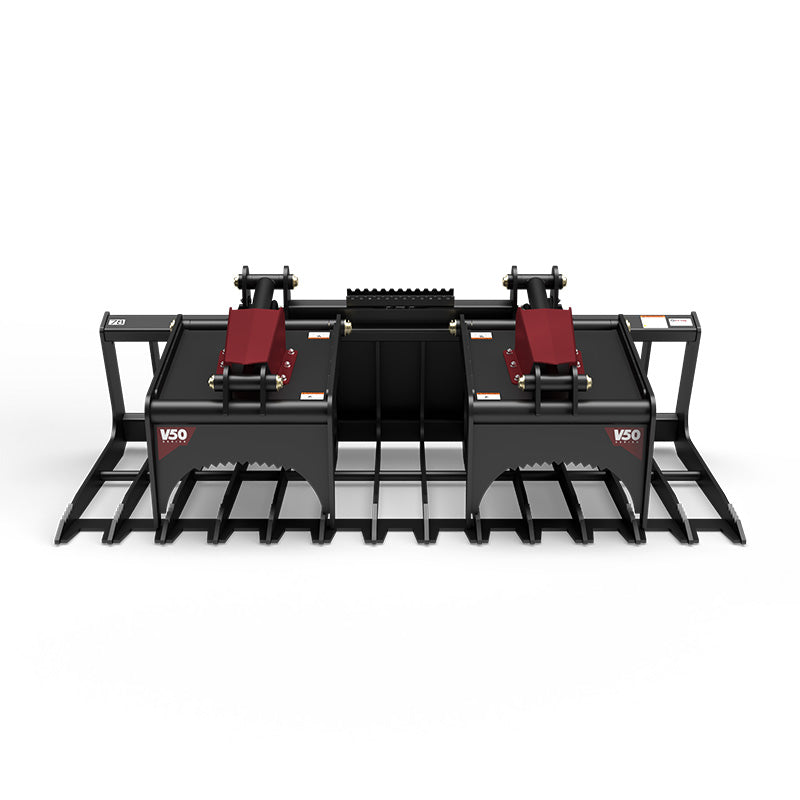

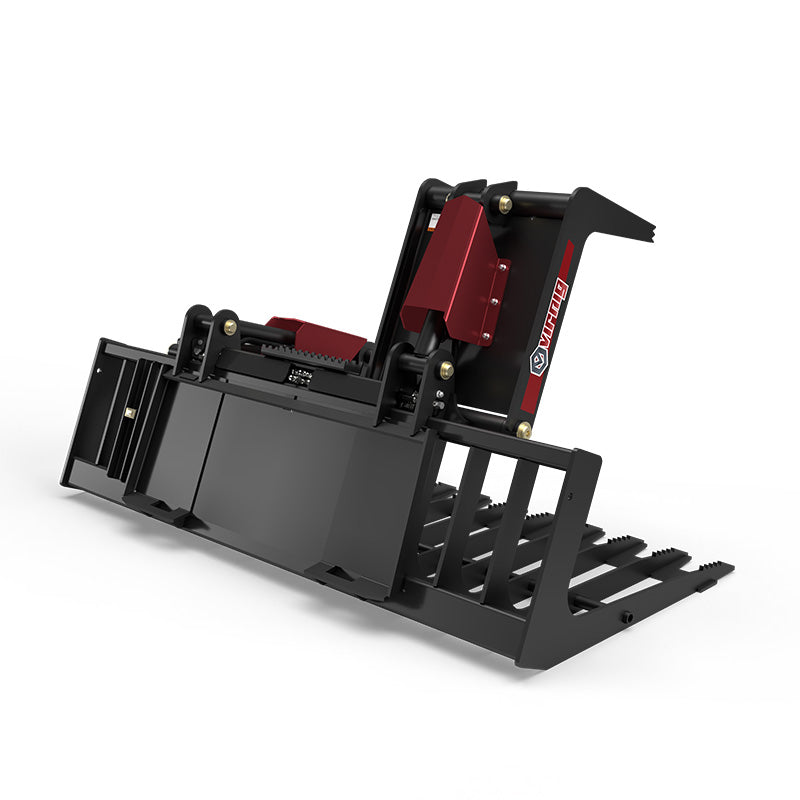

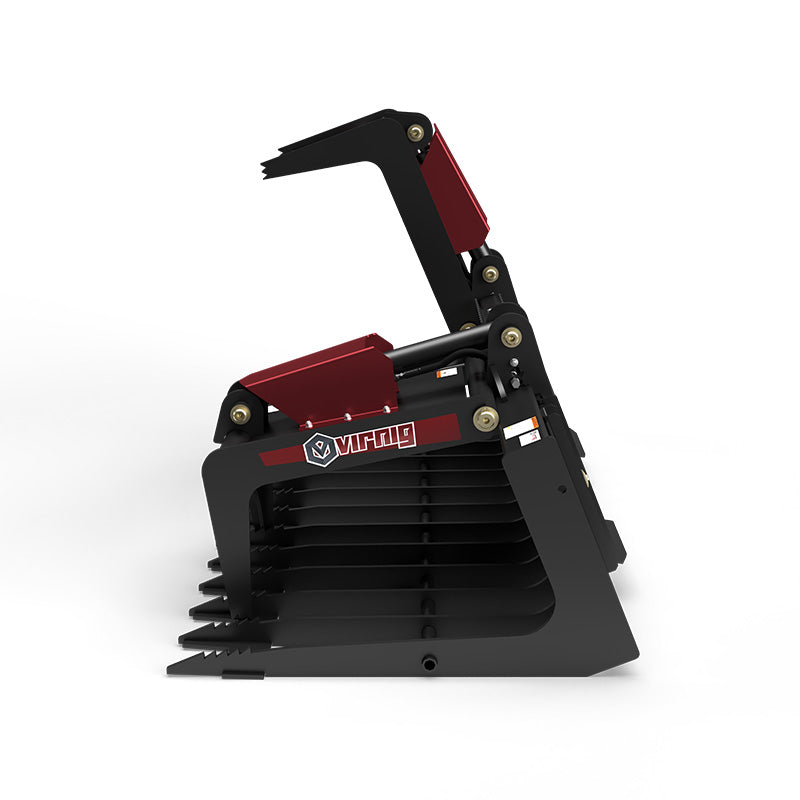

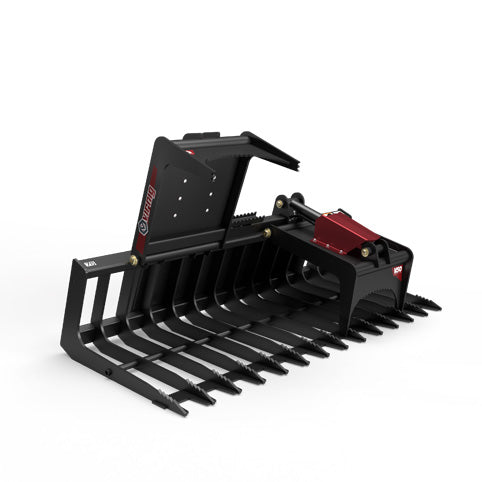

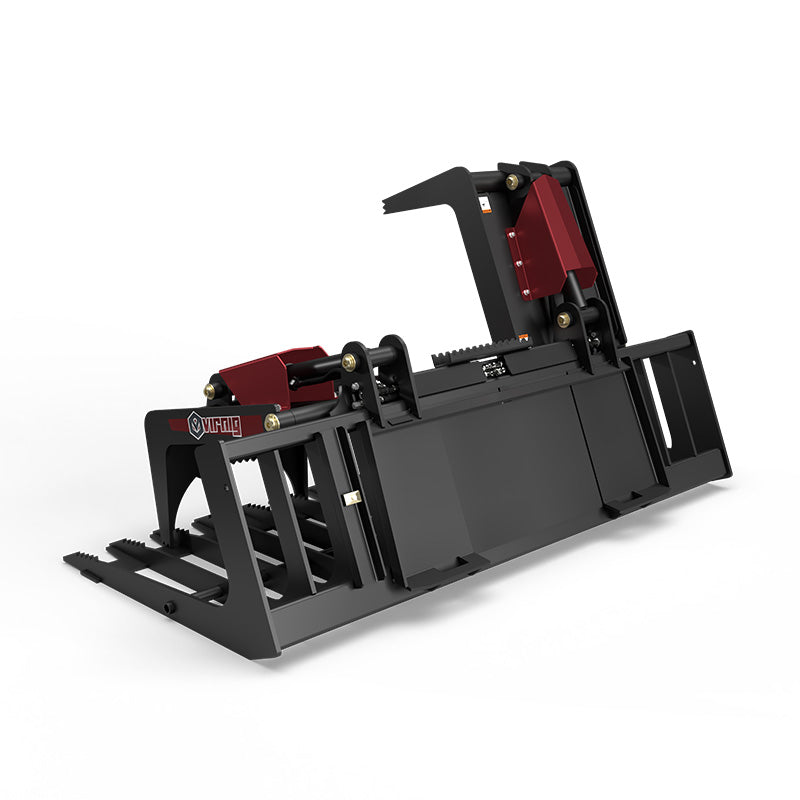

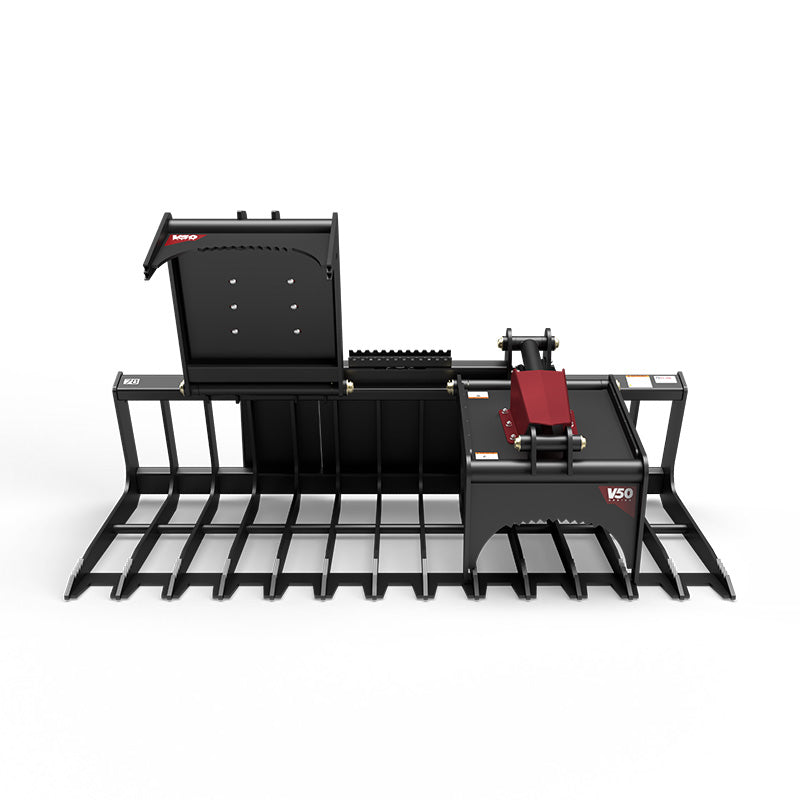

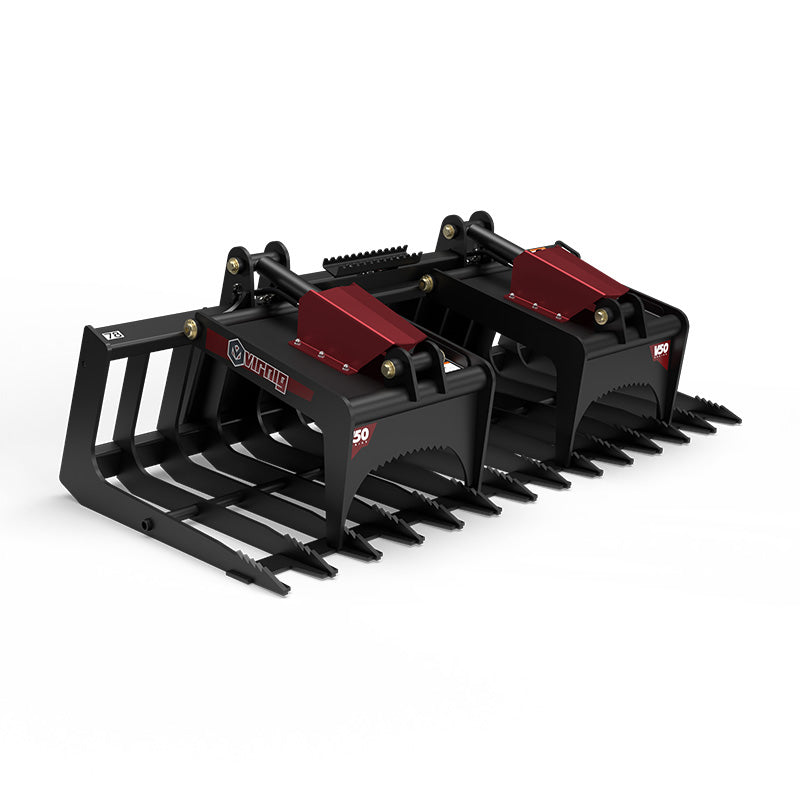

Virnig V50 Skeleton Grapple

Virnig

Virnig V50 Skeleton Grapple

SKU: SGV60 Currently In Stock

Sale price$6,395.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

OPEN MATERIAL HANDLING

VIRNIG V50 SKELETON GRAPPLE GATHERS BRUSH, LOGS, AND UNEVEN DEBRIS WHILE LETTING LOOSE SOIL FALL THROUGH.

GRAPPLE JAW OPENING

THE 36.1″ JAW OPENING PROVIDES ROOM TO GATHER BRUSH, LOGS AND LOOSE DEBRIS.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Skeleton Grapple is built for gathering brush, logs, and uneven cleanup loads while leaving loose soil behind. The open tine floor lets fine material fall through as the grapple supports the debris, making it useful when clearing properties, handling storm debris, or moving mixed piles of woody material.

One-piece steel tines provide rigidity across the lower frame, while the hydraulic jaws hold irregular material against the bucket. NitroSteel® cylinder rods and Teflon®-coated bushings equip the pivot points for repeated grapple movement. Standard cylinder guards shield the hydraulic cylinders from contact with the material being handled.

The SGV family offers multiple widths so the grapple can be sized to the carrier and the loads you handle most often. Consider the complete attachment weight as well as the load position when choosing a model. This is a skeleton debris grapple; its open floor is intended to separate loose material rather than retain it like a solid bucket.

KEY BENEFITS

  • Every tine is made from one piece of steel for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.
  • Virnig v50 skeleton grapple gathers brush, logs, and uneven debris while letting loose soil fall through.
  • Grapple jaw opening (in.): 36.1

TECHNICAL SPECIFICATIONS

  • Models: SGV60 SGV66 SGV72 SGV78 SGV84 SGV90
  • Overall Width (in.): SGV60: 61.5; SGV66: 67.5; SGV72: 73.5; SGV78: 79.5; SGV84: 85.5; SGV90: 91.5
  • Height: Overall/Bucket (in.): 27.8 / 21.3
  • Overall Depth (in.): 39.9
  • Number of Tines (w/ sides): SGV60: 11; SGV66: 12; SGV72: 13; SGV78: 14; SGV84: 15; SGV90: 16
  • Space Between Tines (in.): 5.5
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 36.1
  • Approx.Weight (lbs): SGV60: 815; SGV66: 850; SGV72: 885; SGV78: 920; SGV84: 955; SGV90: 990
  • Recommended Loader Capacity: Greater than 1500 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Brush handling
  • Log loading
  • Property cleanup

VIRNIG V50 SKELETON GRAPPLE

WORKING DESIGN

  • Every tine is made from one piece of steel for maximum rigidity.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: SGV60 SGV66 SGV72 SGV78 SGV84 SGV90
  • Overall Width (in.): SGV60: 61.5; SGV66: 67.5; SGV72: 73.5; SGV78: 79.5; SGV84: 85.5; SGV90: 91.5
  • Height: Overall/Bucket (in.): 27.8 / 21.3
  • Overall Depth (in.): 39.9
  • Number of Tines (w/ sides): SGV60: 11; SGV66: 12; SGV72: 13; SGV78: 14; SGV84: 15; SGV90: 16
  • Space Between Tines (in.): 5.5
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563

READY FOR THE FIELD

  • Every tine is made from one piece of steel for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.
  • Virnig v50 skeleton grapple gathers brush, logs, and uneven debris while letting loose soil fall through.
  • Grapple jaw opening (in.): 36.1
