VIRNIG

V50 Skeleton Rock Bucket

For Skid Steers & Track Loaders

60-84″ Widths

Virnig

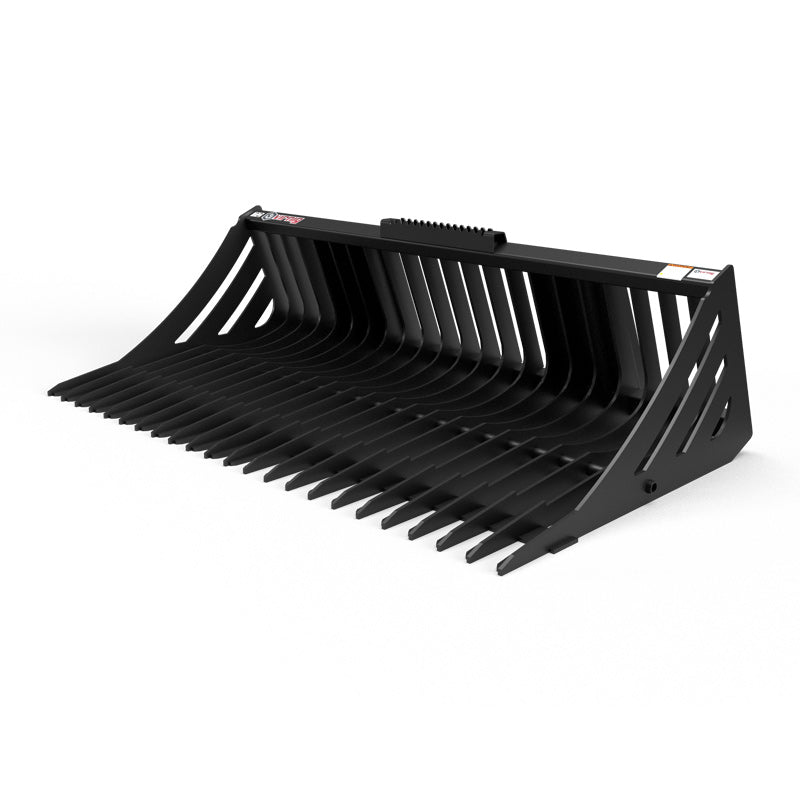

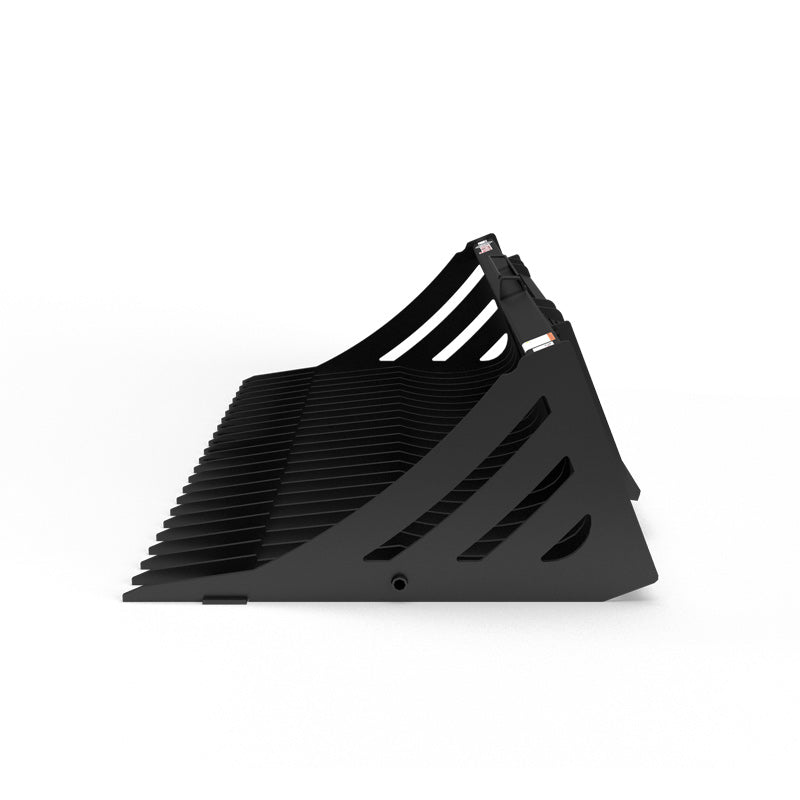

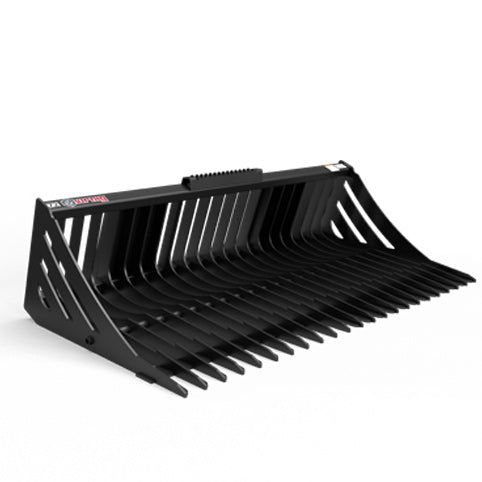

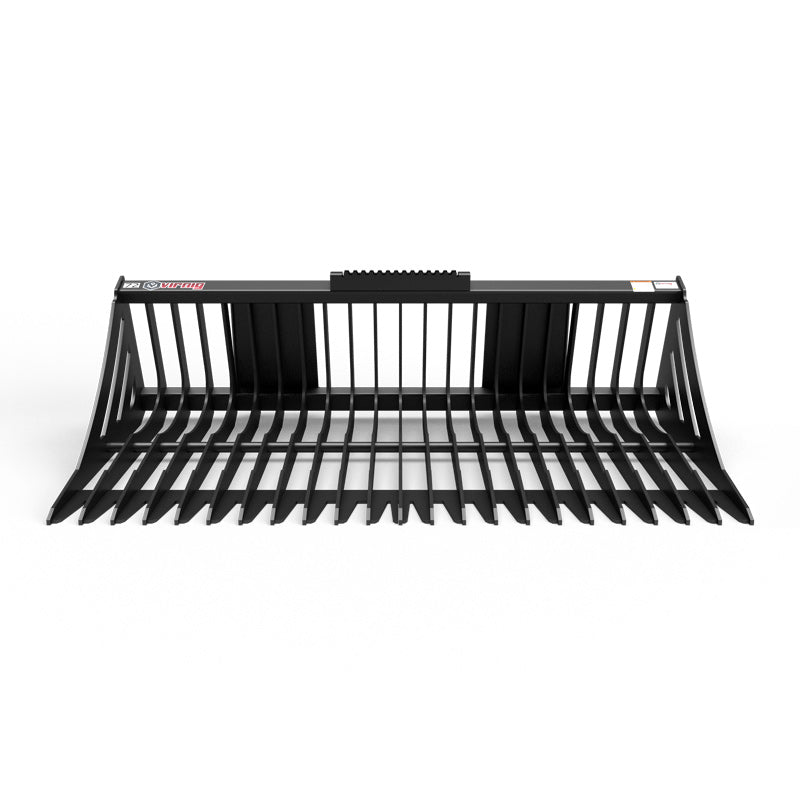

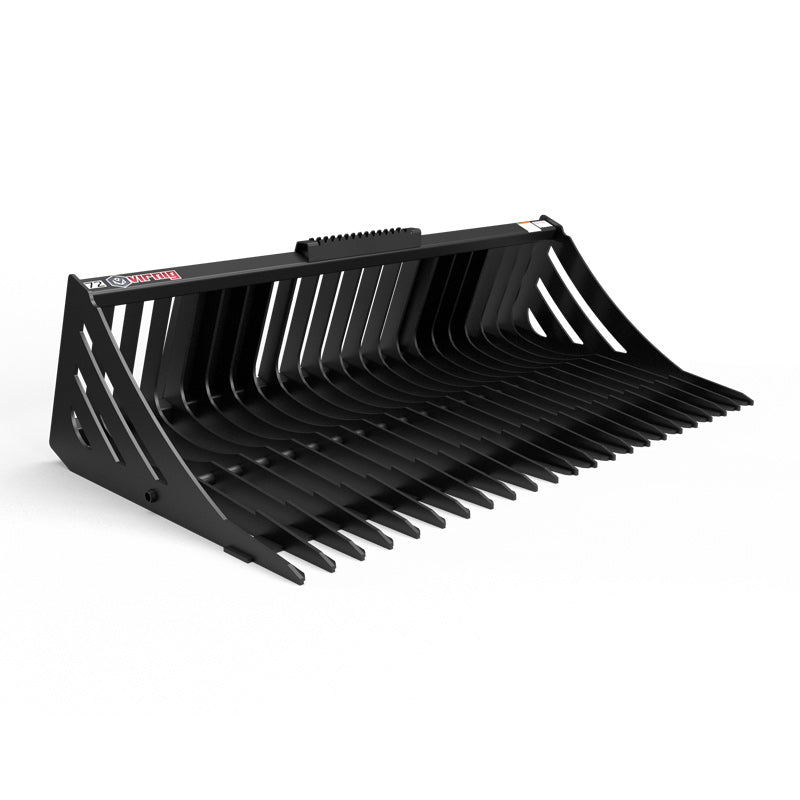

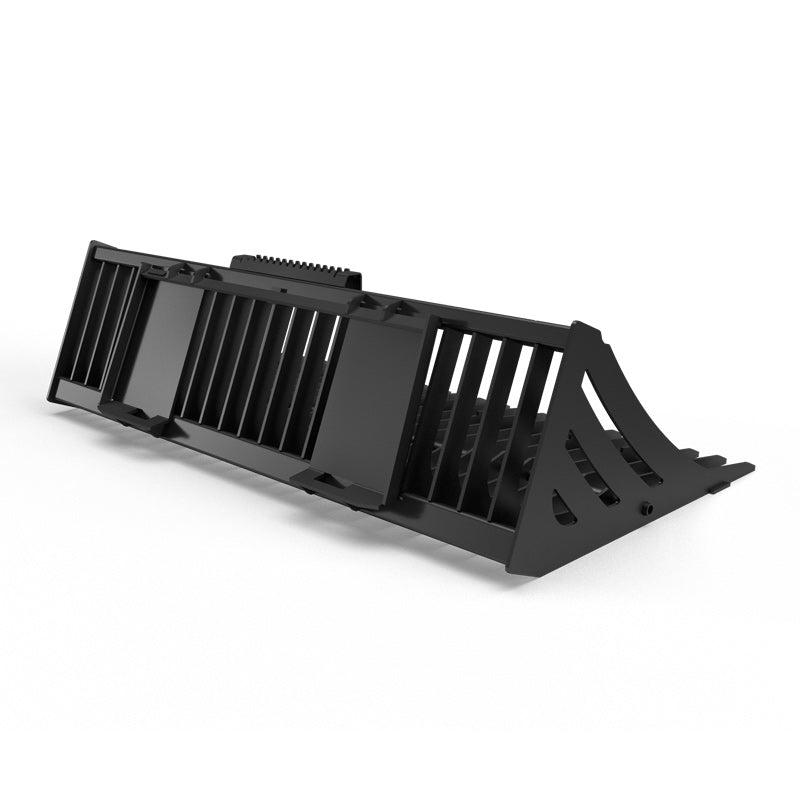

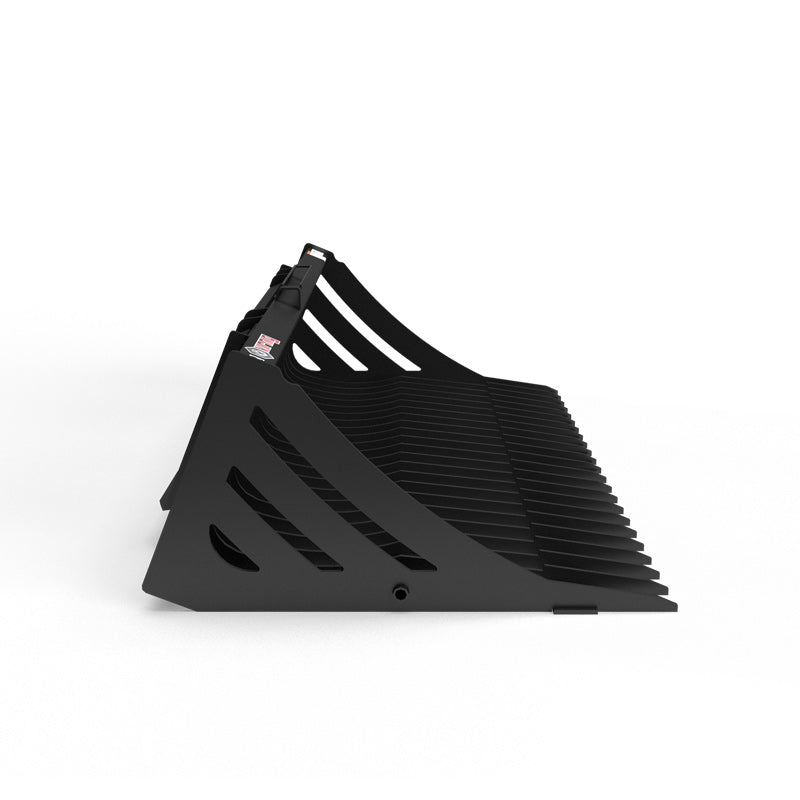

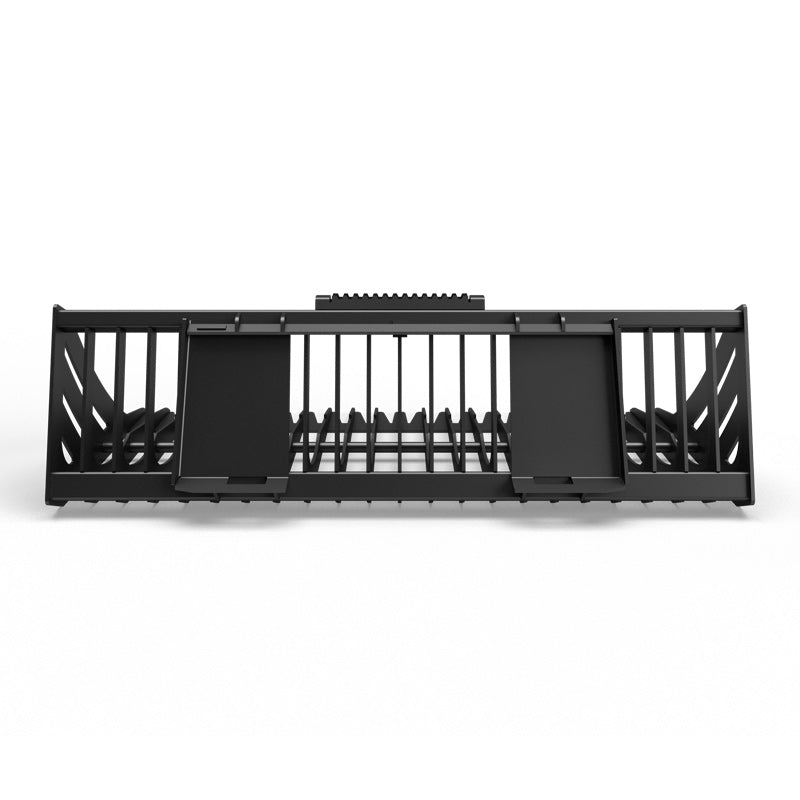

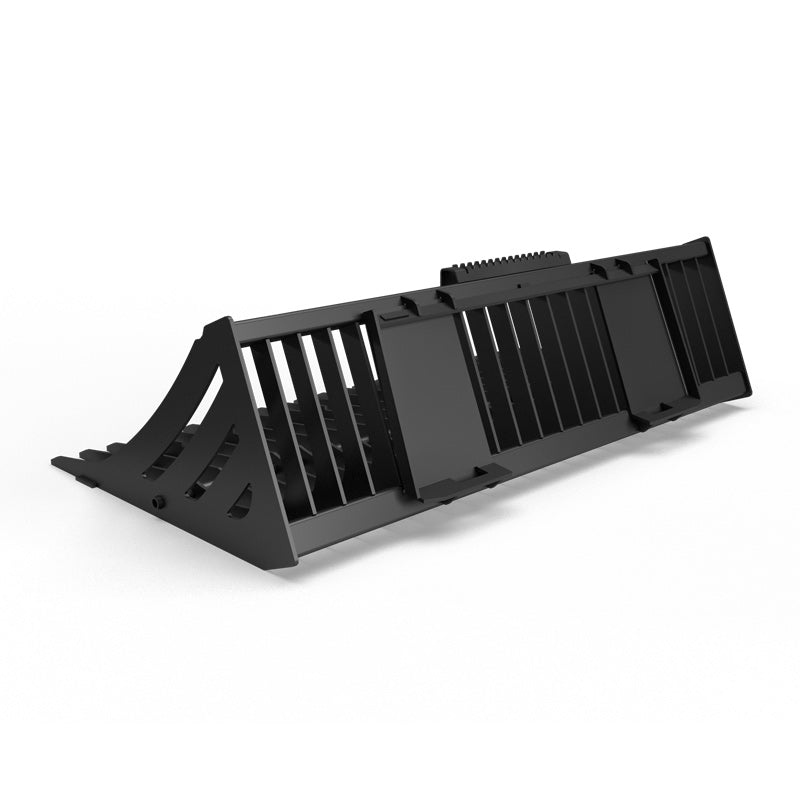

Virnig V50 Skeleton Rock Bucket

SKU: SRV60 Currently In Stock

Sale price$2,685.00 USD

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

ROCK RETENTION

A ROCK DAM AND NOTCHED TINE TIPS HELP RETAIN ROCKS WHILE LOOSE SOIL FALLS THROUGH.

GUSSETED CONSTRUCTION

GUSSETS REINFORCE THE TINE TIPS WHERE THEY CONTACT AND SUPPORT THE LOAD.

ROCK SORTING

THE OPEN BUCKET FLOOR SEPARATES LOOSE SOIL FROM ROCKS AS MATERIAL IS GATHERED.

WIDTH OPTIONS

60-84″ MODEL OPTIONS LET YOU MATCH ROCK-SORTING COVERAGE TO THE LOADER AND SITE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

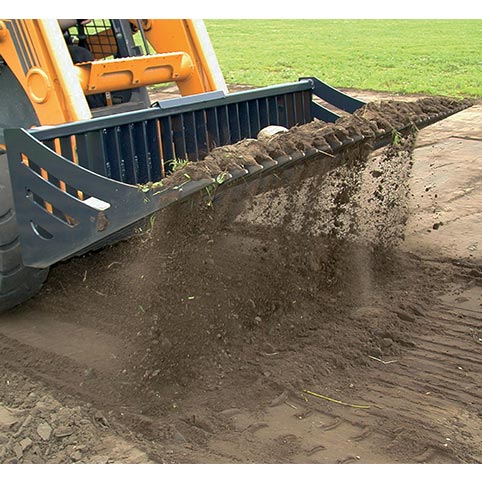

The Virnig V50 Skeleton Rock Bucket gathers rocks while letting loose soil sift through an open lower frame. It is useful for cleanup and ground preparation where the goal is to remove stones while leaving more of the surrounding loose material on the site.

Every tine is made from one piece of steel for continuous support through the bucket. The V50 SRV family uses its own rock-sorting tine layout, with a rock dam and notches near the tips to help retain collected stones. Fully gusseted tine tips reinforce the part of the bucket that first enters the material.

Choose the width and attachment weight around the carrier and the typical rock load. This plain bucket has no hydraulic grapple, so the operator controls load retention through bucket angle and travel position. Its one-piece tine construction distinguishes it from the V40 arrangement, while the V60 family uses a separate heavier tine specification.

KEY BENEFITS

  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY.
  • ROCK DAM AND NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY.
  • TINE TIPS FULLY GUSSETED FOR ADDED STRENGTH.
  • VIRNIG V50 SKELETON ROCK BUCKET SEPARATES ROCKS FROM LOOSE SOIL AS IT GATHERS AND CARRIES MATERIAL.
  • LOOSE SOIL FALLS THROUGH THE OPEN FLOOR WHILE LARGER ROCKS REMAIN SUPPORTED.

TECHNICAL SPECIFICATIONS

  • SRV60: overall width 61.0 inches; weight 540 lb.
  • SRV66: overall width 67.6 inches; weight 585 lb.
  • SRV72: overall width 74.3 inches; weight 630 lb.
  • SRV78: overall width 80.9 inches; weight 675 lb.
  • SRV84: overall width 87.5 inches; weight 720 lb.
  • Tine thickness: 0.375 inch, Grade 80 steel.
  • Tine spacing: 2.9 inches.
  • Overall depth / height: 42.9 / 21.5 inches.
  • Recommended loader capacity: greater than 1,500 lb.

APPLICATIONS

  • Rock cleanup
  • Soil separation
  • Site preparation

VIRNIG V50 SKELETON ROCK BUCKET

WORKING DESIGN

  • Every tine is made from one piece of steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • Tine tips fully gusseted for added strength.

CONFIGURATION AND SPECIFICATIONS

  • SRV60: overall width 61.0 inches; weight 540 lb.
  • SRV66: overall width 67.6 inches; weight 585 lb.
  • SRV72: overall width 74.3 inches; weight 630 lb.
  • SRV78: overall width 80.9 inches; weight 675 lb.
  • SRV84: overall width 87.5 inches; weight 720 lb.
  • Tine thickness: 0.375 inch, Grade 80 steel.
  • Tine spacing: 2.9 inches.
  • Overall depth / height: 42.9 / 21.5 inches.
  • Recommended loader capacity: greater than 1,500 lb.

READY FOR THE FIELD

  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY.
  • ROCK DAM AND NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY.
  • TINE TIPS FULLY GUSSETED FOR ADDED STRENGTH.
  • VIRNIG V50 SKELETON ROCK BUCKET SEPARATES ROCKS FROM LOOSE SOIL AS IT GATHERS AND CARRIES MATERIAL.
  • LOOSE SOIL FALLS THROUGH THE OPEN FLOOR WHILE LARGER ROCKS REMAIN SUPPORTED.
