VIRNIG

V50 Skeleton Rock Grapple

For Skid Steers & Track Loaders

60-84″ Widths

Virnig

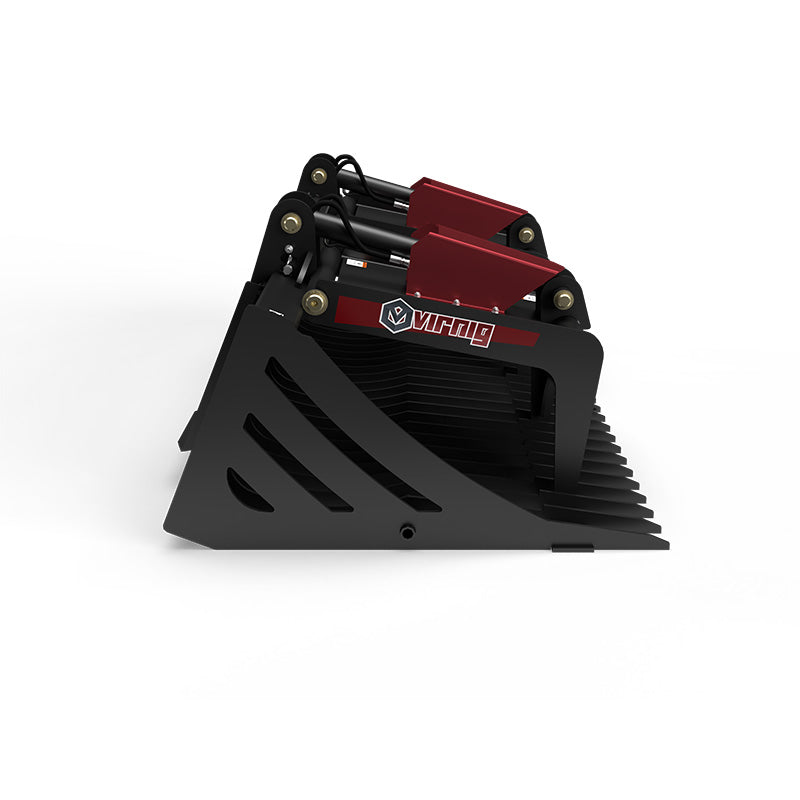

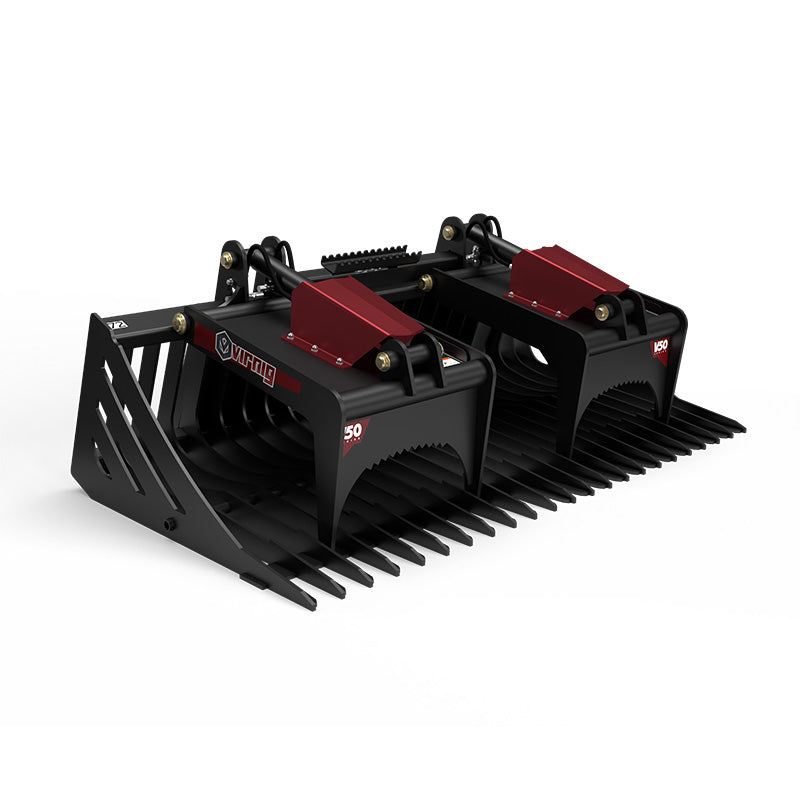

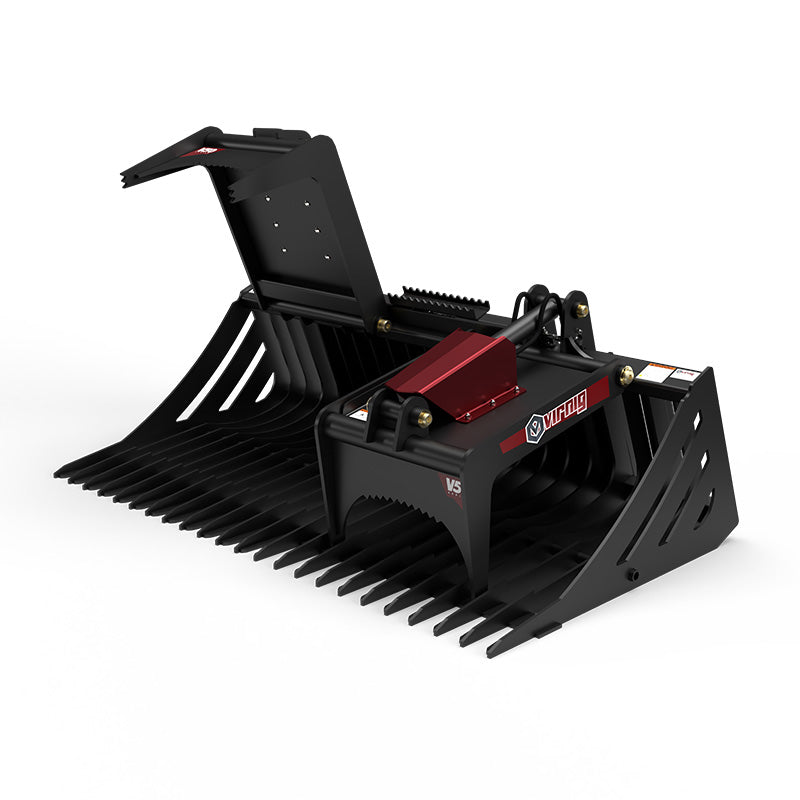

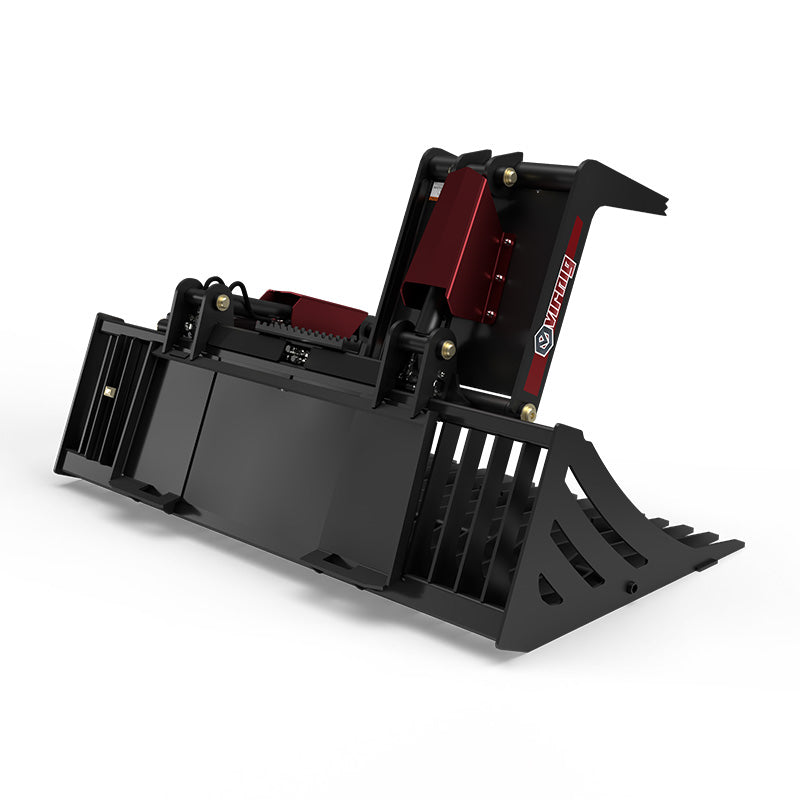

Virnig V50 Skeleton Rock Grapple

SKU: SRGV60 Currently In Stock

Sale price$6,925.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

ROCK RETENTION

A ROCK DAM AND NOTCHED TINE TIPS HELP RETAIN ROCKS WHILE LOOSE SOIL FALLS THROUGH.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED BUSHINGS SUPPORT THE HYDRAULIC GRAPPLE PIVOTS.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

OPEN MATERIAL HANDLING

VIRNIG V50 SKELETON ROCK GRAPPLE SECURES ROCKS AND UNEVEN LOADS WHILE ITS OPEN BOTTOM LETS LOOSE SOIL FALL THROUGH.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Skeleton Rock Grapple combines rock sorting and secure debris handling in one attachment. Its open floor lets loose soil fall through, while a rock dam and notched tine tips help retain stones. The hydraulic jaws hold irregular loads against the bucket for controlled movement around the site.

Each tine is made from one piece of steel, giving the lower frame continuous structural support. This V50 SRGV family uses a closer-spaced rock sorting layout, distinct from the wider-spaced ordinary skeleton grapple. It is useful when collecting rocks and mixed debris while trying to leave more of the loose ground material in place.

NitroSteel® cylinder rods and Teflon®-coated bushings equip the hydraulic pivots, and cylinder guards are standard. Choose the working width and attachment weight to suit your loader and cleanup area. The grapple adds load retention to the open rock bucket design, but the carrier's rated capacity still governs the complete load that can be handled.

KEY BENEFITS

  • Every tine is made from one piece of steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • Nitrosteel® cylinder rods and Teflon® coated bushings.
  • Standard with cylinder guards.
  • Virnig v50 skeleton rock grapple secures rocks and uneven loads while its open bottom lets loose soil fall through.

TECHNICAL SPECIFICATIONS

  • Models: SRGV60 SRGV66 SRGV72 SRGV78 SRGV84
  • Overall Width (in.): SRGV60: 61.0; SRGV66: 67.6; SRGV72: 74.3; SRGV78: 80.9; SRGV84: 87.5
  • Height: Overall / Bucket (in.): 27.8 / 21.5
  • Overall Depth (in.): 42.9
  • Number of Tines (w/ sides): SRGV60: 19; SRGV66: 21; SRGV72: 23; SRGV78: 25; SRGV84: 27
  • Space Between Tines (in.): 2.9
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 36.1
  • Approximate Weight (lbs): SRGV60: 940; SRGV66: 990; SRGV72: 1035; SRGV78: 1080; SRGV84: 1125
  • Recommended Loader Capacity: Greater than 1500 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Rock cleanup
  • Sorting rocky soil
  • Handling uneven debris

VIRNIG V50 SKELETON ROCK GRAPPLE

WORKING DESIGN

  • Every tine is made from one piece of steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • NitroSteel® cylinder rods and Teflon® coated bushings.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: SRGV60 SRGV66 SRGV72 SRGV78 SRGV84
  • Overall Width (in.): SRGV60: 61.0; SRGV66: 67.6; SRGV72: 74.3; SRGV78: 80.9; SRGV84: 87.5
  • Height: Overall / Bucket (in.): 27.8 / 21.5
  • Overall Depth (in.): 42.9
  • Number of Tines (w/ sides): SRGV60: 19; SRGV66: 21; SRGV72: 23; SRGV78: 25; SRGV84: 27
  • Space Between Tines (in.): 2.9
  • Tine Thickness (in.): 0.375¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563

READY FOR THE FIELD

  • Every tine is made from one piece of steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • Nitrosteel® cylinder rods and Teflon® coated bushings.
  • Standard with cylinder guards.
  • Virnig v50 skeleton rock grapple secures rocks and uneven loads while its open bottom lets loose soil fall through.
