VIRNIG

V50 Skeleton Tine Grapple

For Skid Steers & Track Loaders

66-90″ Widths

Virnig

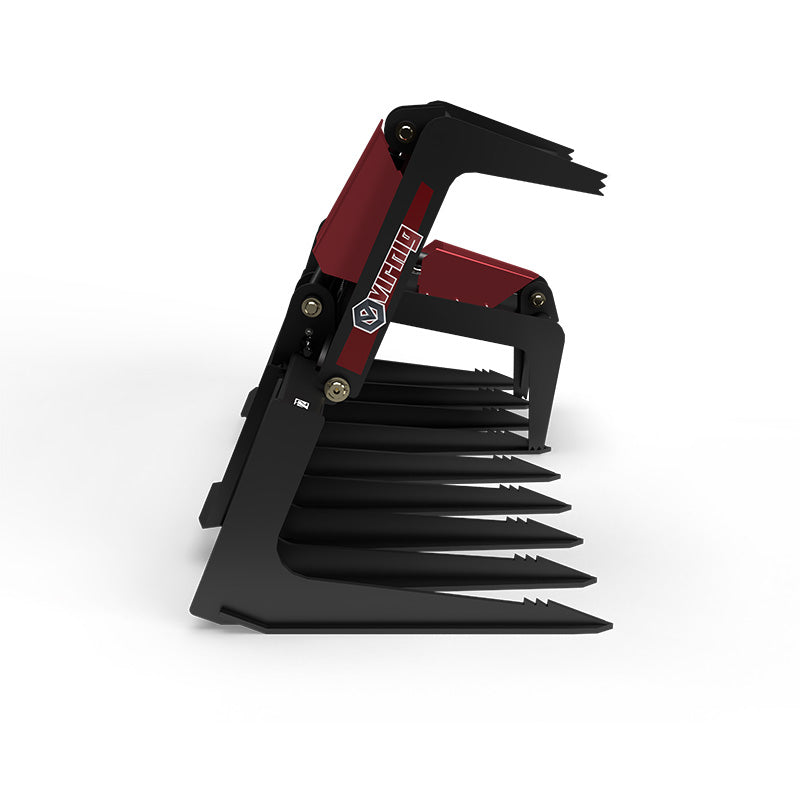

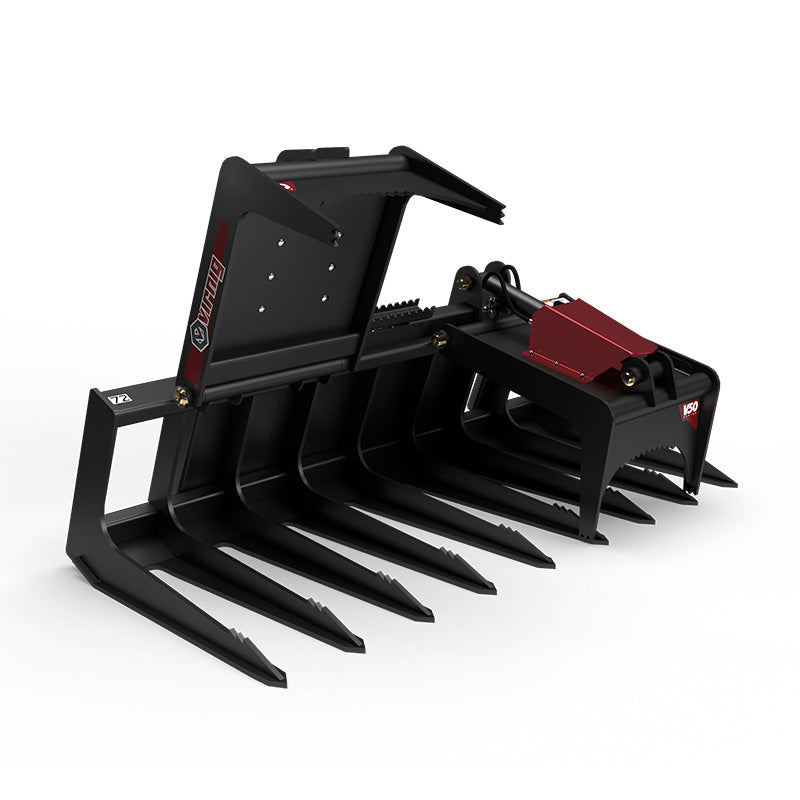

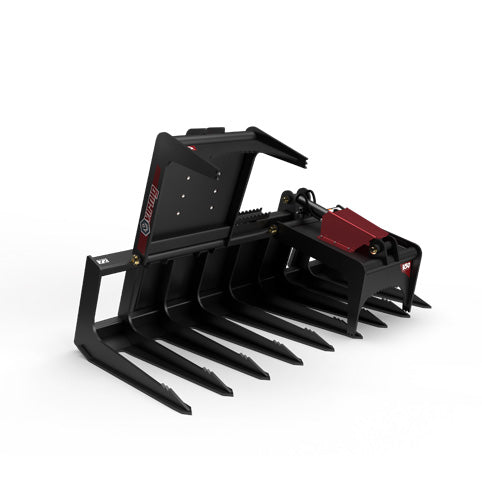

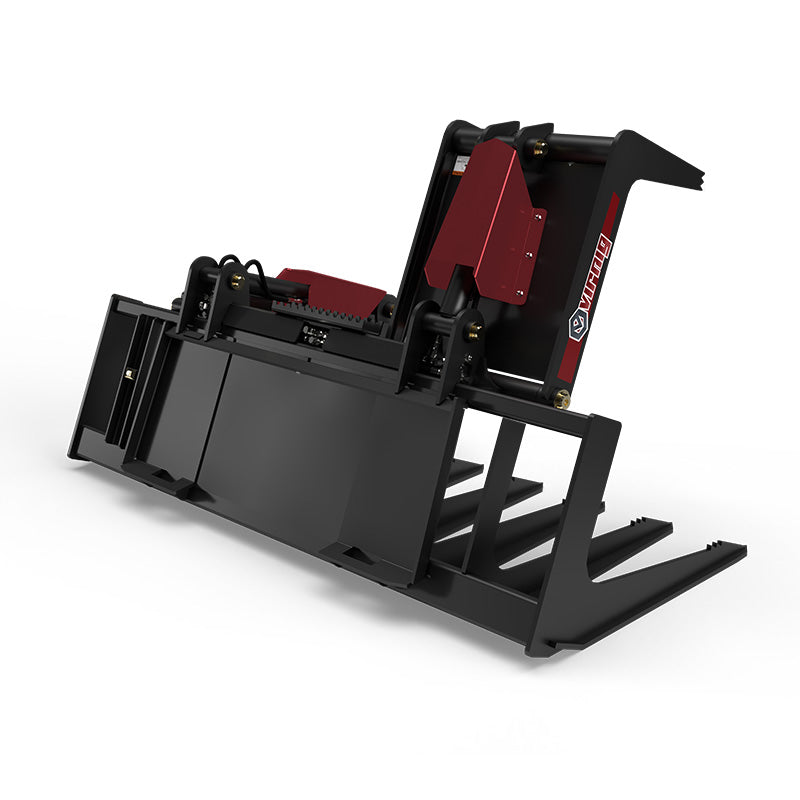

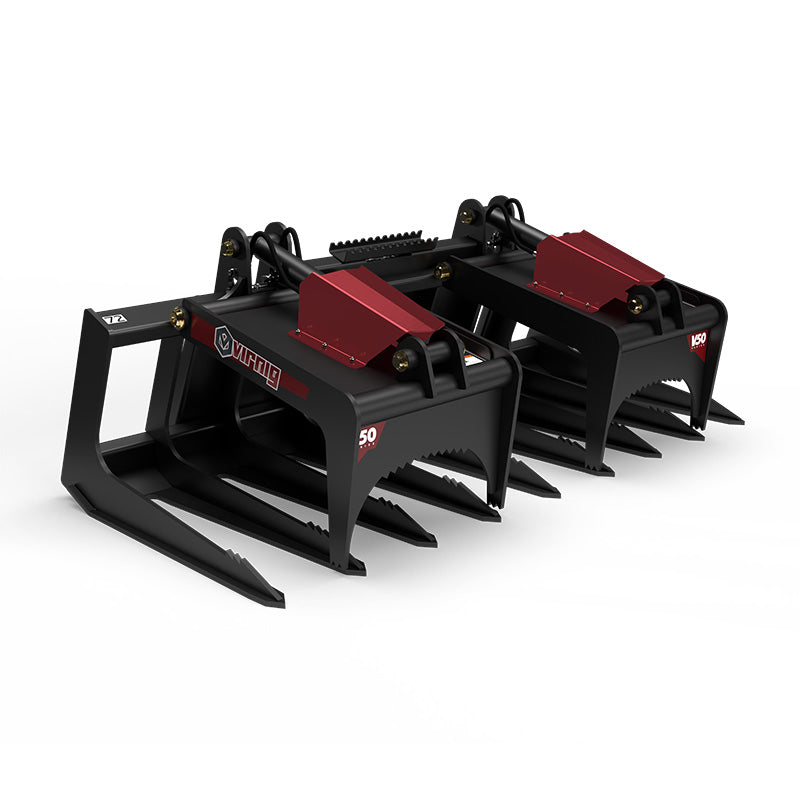

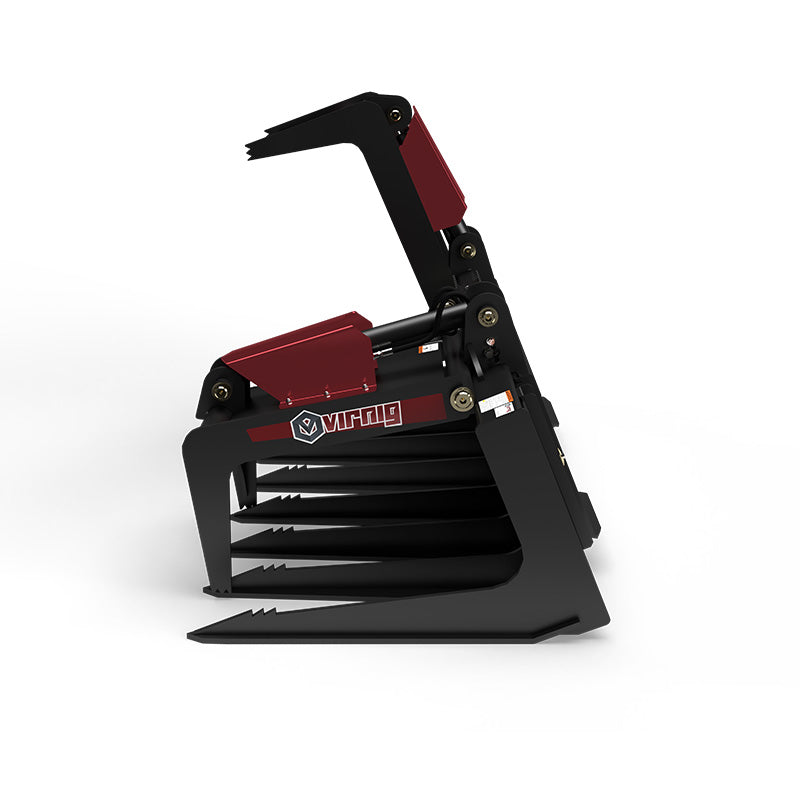

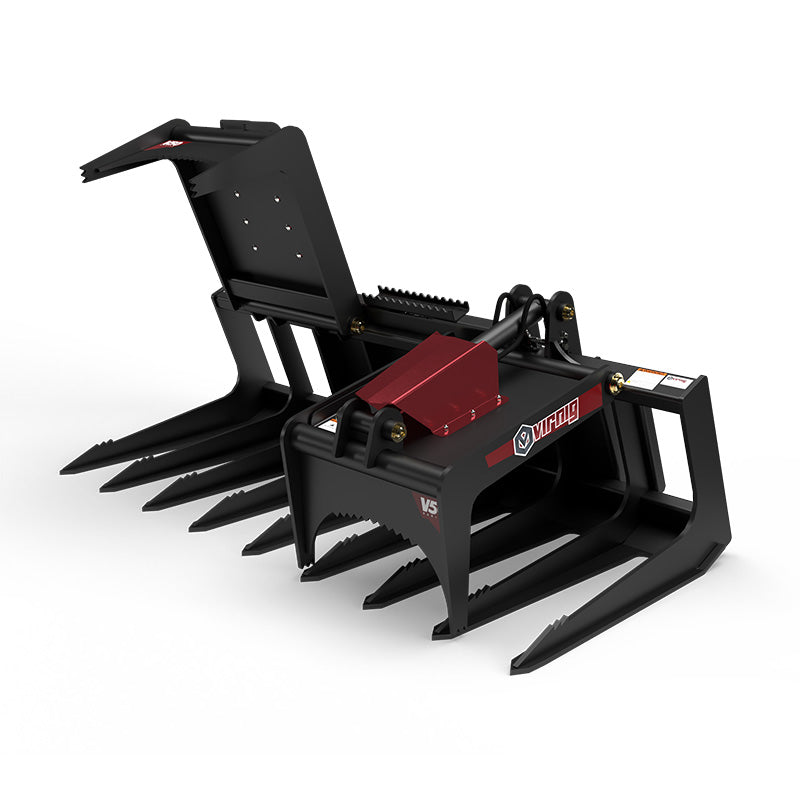

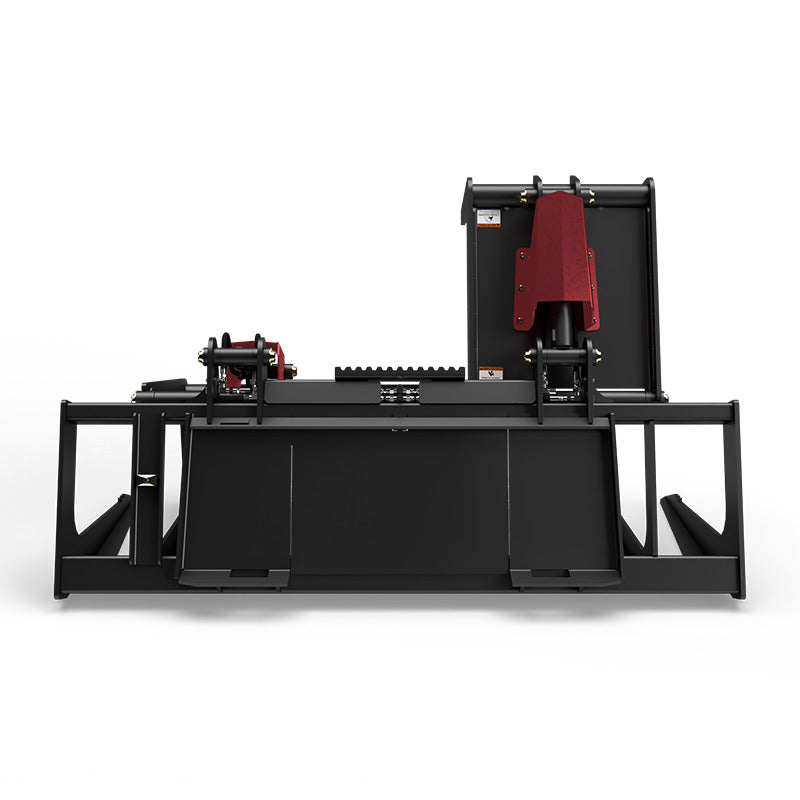

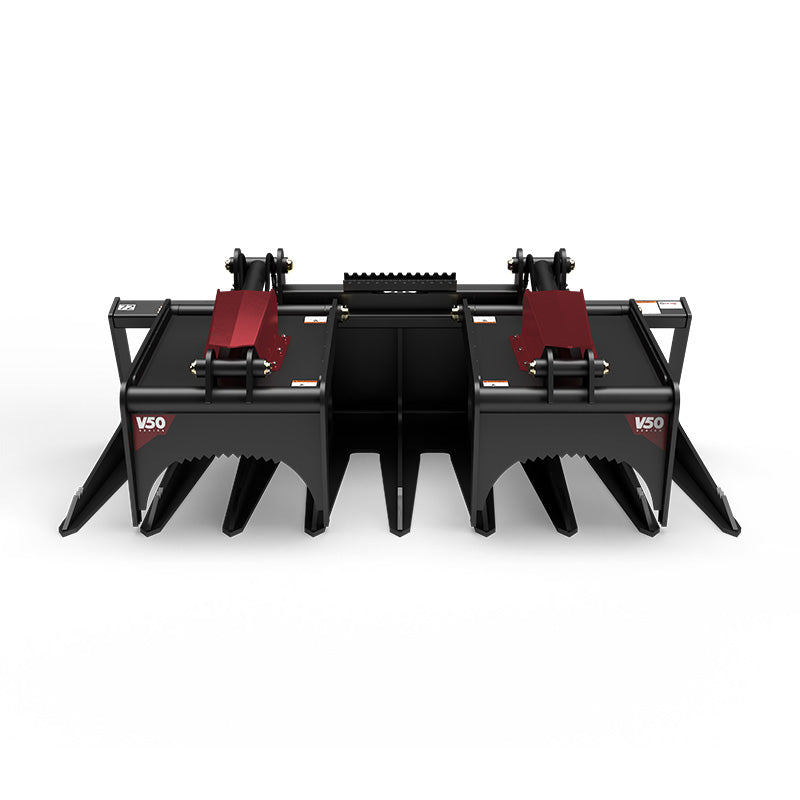

Virnig V50 Skeleton Tine Grapple

SKU: STG66 Currently In Stock

Sale price$6,655.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

GUSSETED CONSTRUCTION

GUSSETS REINFORCE THE TINES TO SUPPORT MATERIAL DURING RAKING AND LOADING.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

OPEN MATERIAL HANDLING

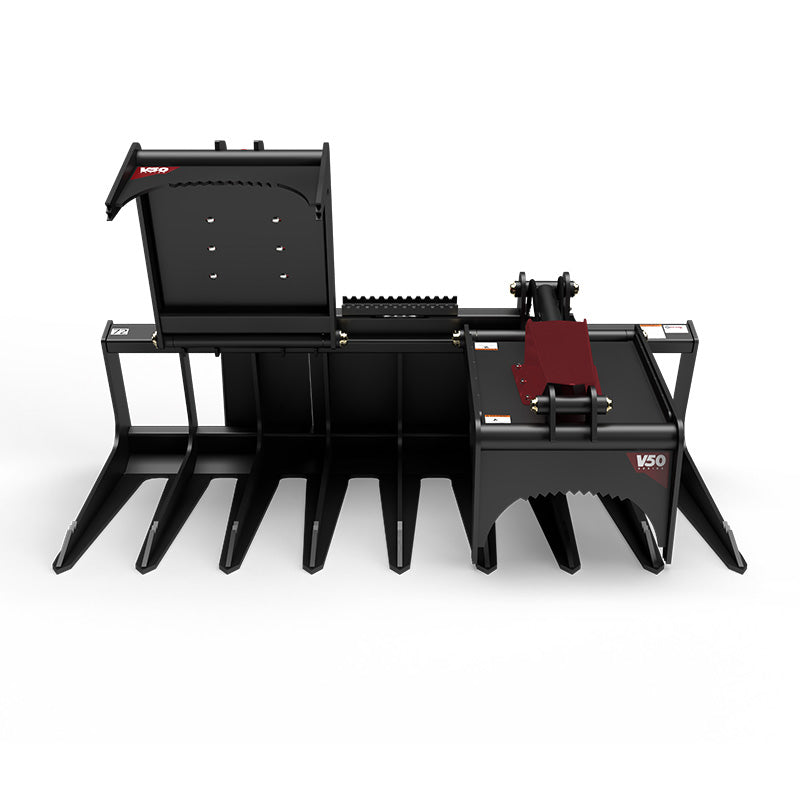

VIRNIG V50 SKELETON TINE GRAPPLE FEEDS UNDER BRUSH AND LOGS WITH AN OPEN FRONT AND OPEN SIDES.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Skeleton Tine Grapple reaches beneath brush and logs with an open front and open sides. This layout is useful for gathering long or irregular material that does not fit neatly inside a conventional bucket, while the open floor allows loose soil to fall away from the load.

Each tine is made from one piece of steel, and full gusseting reinforces the tines for repeated handling work. The upper grapple secures material against the lower frame, allowing the operator to hold a mixed brush pile together while carrying it. The open-sided STG design also gives projecting material room beyond the attachment's nominal width.

NitroSteel® cylinder rods and Teflon®-coated bushings equip the hydraulic pivots, and cylinder guards are standard. Select a model that suits the carrier's capacity and the material you normally handle. Long loads can move the center of gravity outward, so account for load position as well as attachment weight when planning the lift.

KEY BENEFITS

  • Every tine is made from one piece of steel for maximum rigidity.
  • Tines fully gusseted for added strength.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.
  • Virnig v50 skeleton tine grapple feeds under brush and logs with an open front and open sides.

TECHNICAL SPECIFICATIONS

  • Models: STG66 STG72 STG78 STG84 STG90
  • Overall Width (in.): STG66: 68.0; STG72: 74.0; STG78: 80.0; STG84: 86.0; STG90: 92.0
  • Height: Overall / Bucket (in.): 27.5 / 21.1
  • Overall Depth (in.): 36.5
  • Number of Tines (w/ sides): STG66: 8; STG72: 9; STG78: 10; STG84: 10; STG90: 11
  • Space Between Tines (in.): STG66: 9.5; STG72: 8.4; STG78: 8.7; STG84: 9.3; STG90: 8.5
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 36.4
  • Approximate Weight (lbs): STG66: 910; STG72: 950; STG78: 990; STG84: 1010; STG90: 1050
  • Recommended Loader Capacity: Greater than 1500 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Brush gathering
  • Log handling
  • Debris cleanup

VIRNIG V50 SKELETON TINE GRAPPLE

WORKING DESIGN

  • Every tine is made from one piece of steel for maximum rigidity.
  • Tines fully gusseted for added strength.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: STG66 STG72 STG78 STG84 STG90
  • Overall Width (in.): STG66: 68.0; STG72: 74.0; STG78: 80.0; STG84: 86.0; STG90: 92.0
  • Height: Overall / Bucket (in.): 27.5 / 21.1
  • Overall Depth (in.): 36.5
  • Number of Tines (w/ sides): STG66: 8; STG72: 9; STG78: 10; STG84: 10; STG90: 11
  • Space Between Tines (in.): STG66: 9.5; STG72: 8.4; STG78: 8.7; STG84: 9.3; STG90: 8.5
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563

READY FOR THE FIELD

  • Every tine is made from one piece of steel for maximum rigidity.
  • Tines fully gusseted for added strength.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.
  • Virnig v50 skeleton tine grapple feeds under brush and logs with an open front and open sides.
