VIRNIG

V50 Skeleton Tooth Grapple

For Skid Steers & Track Loaders

72-90″ Widths

Request QuoteAdd To Cart

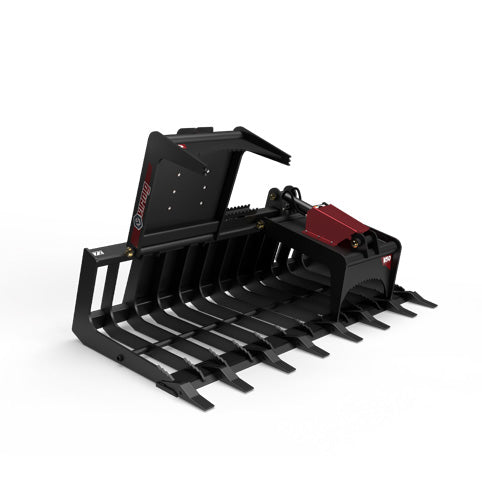

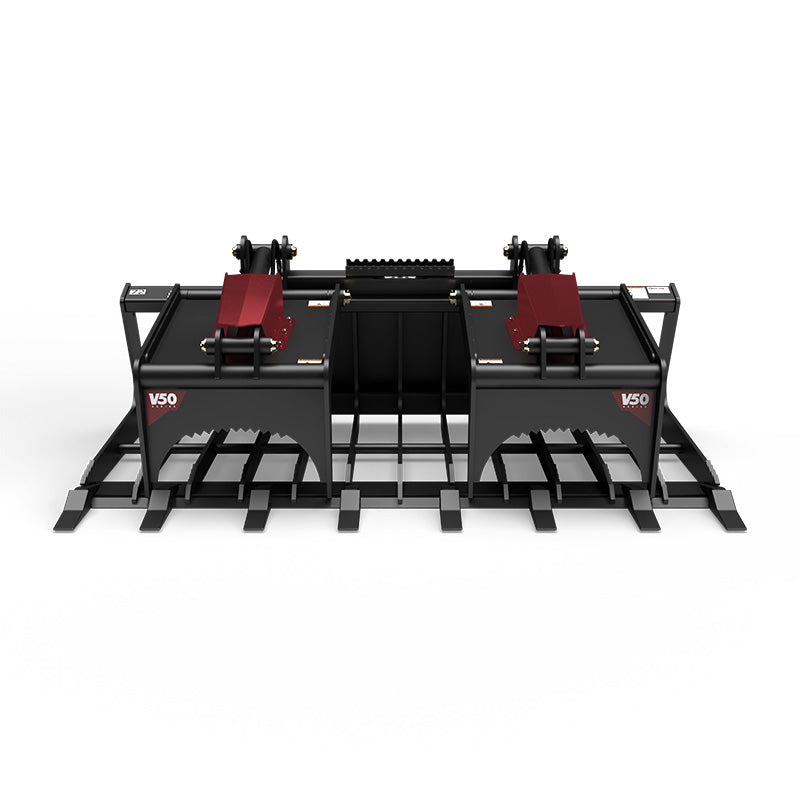

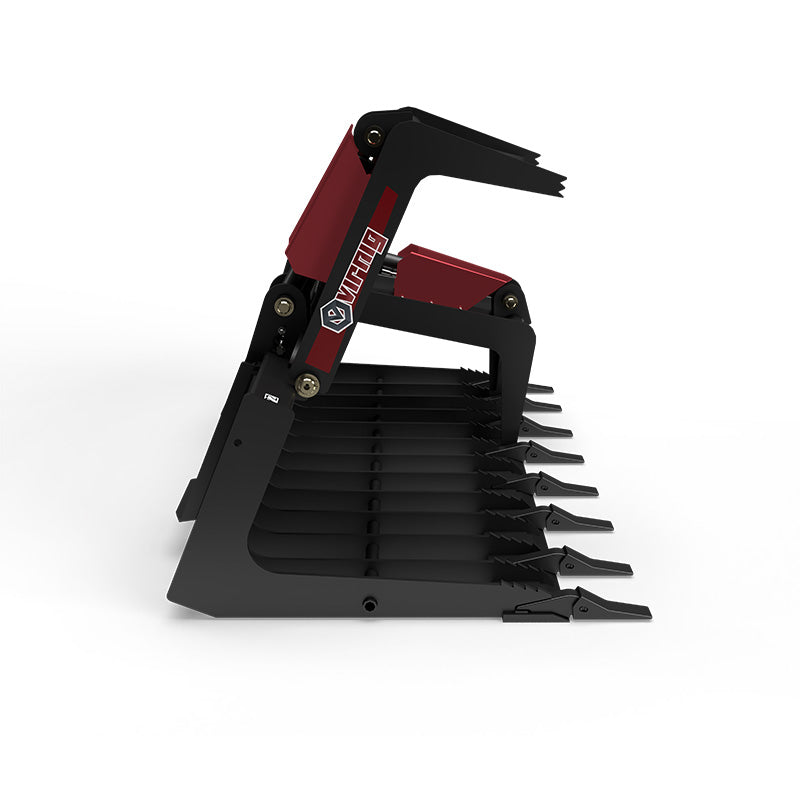

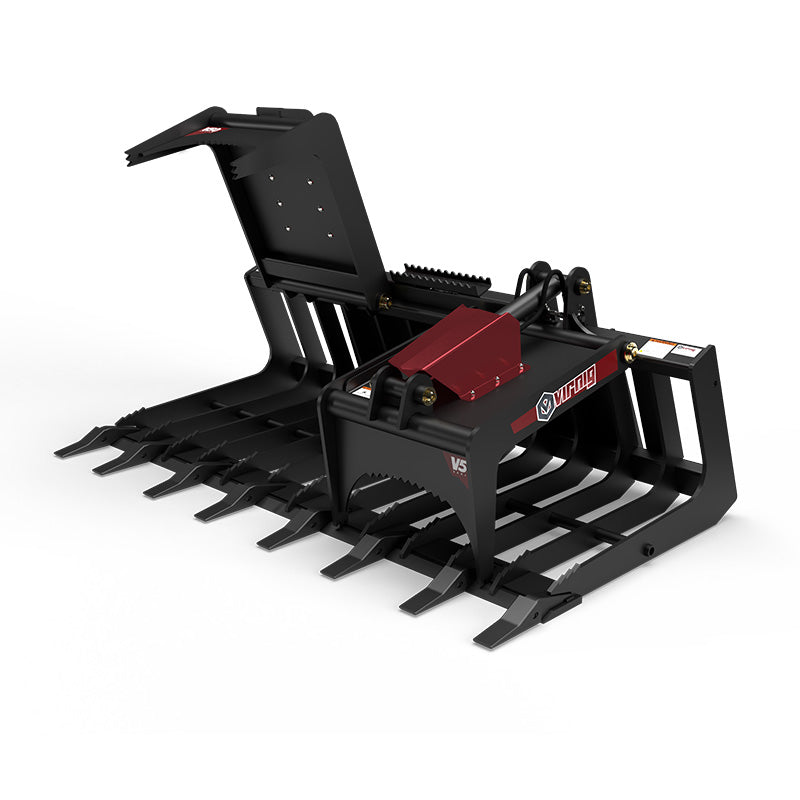

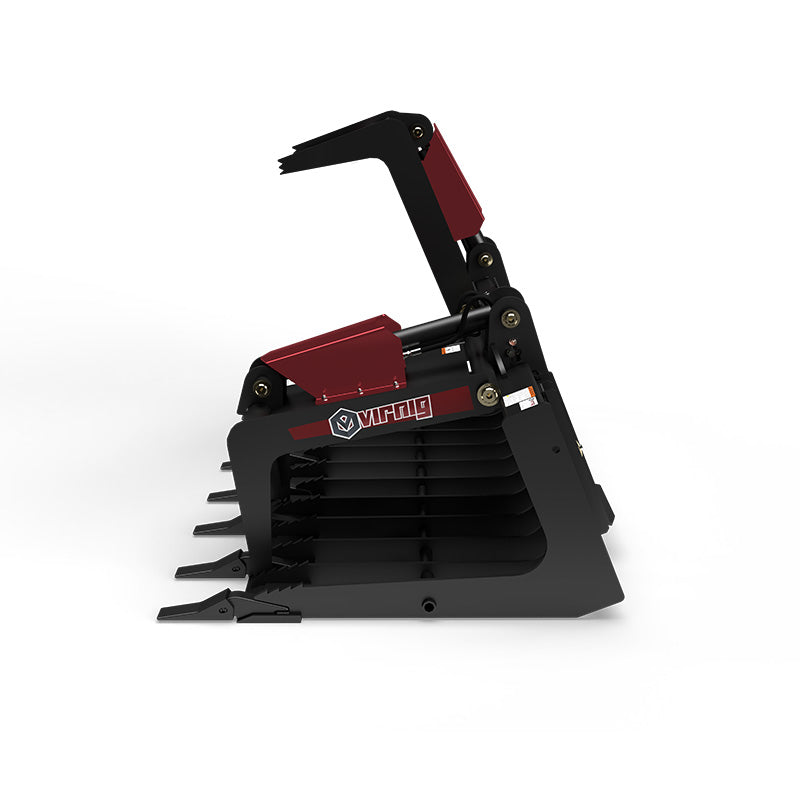

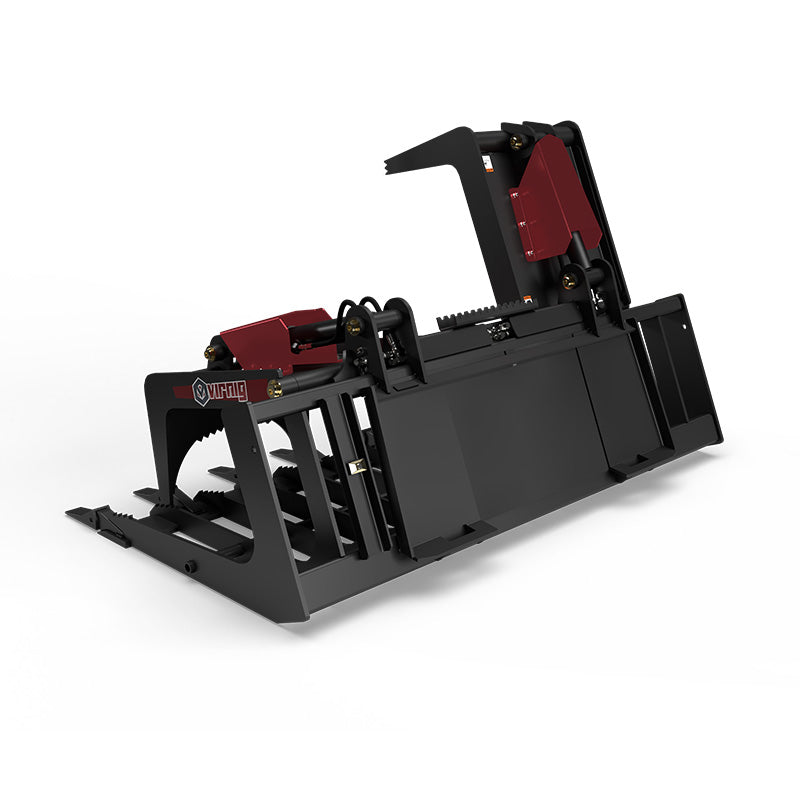

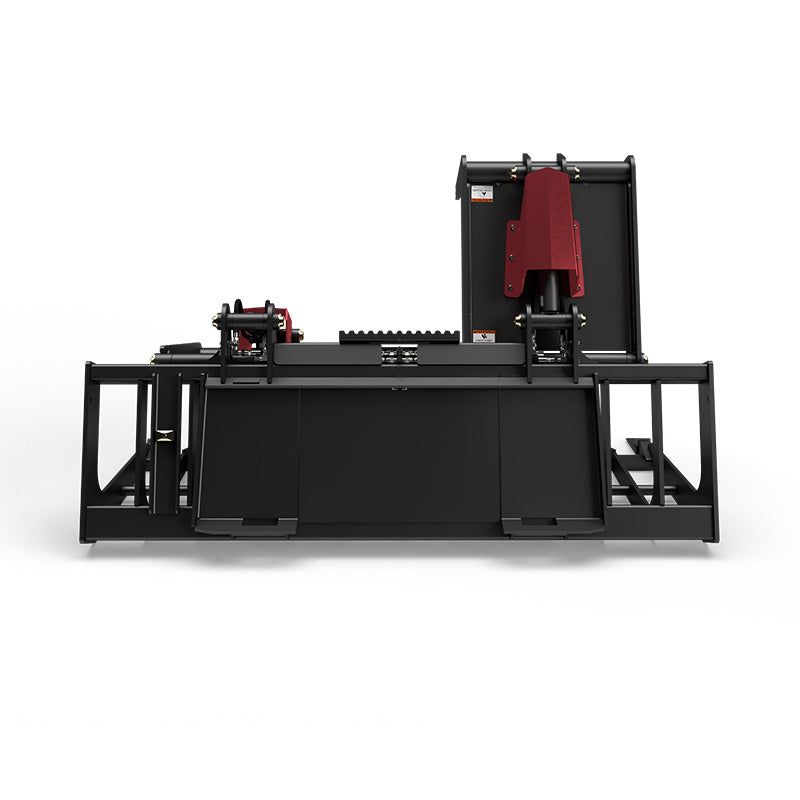

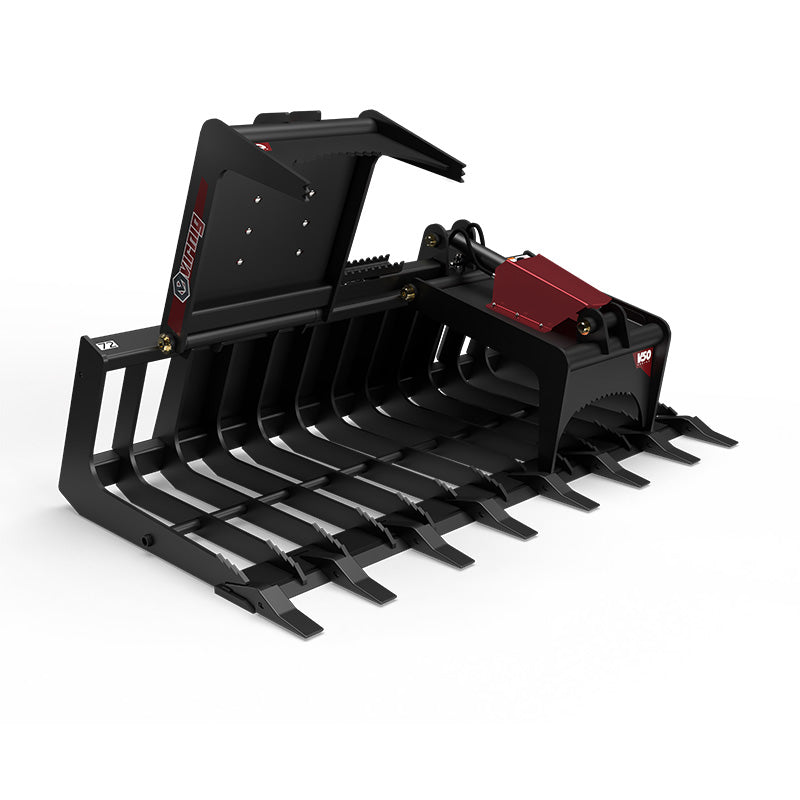

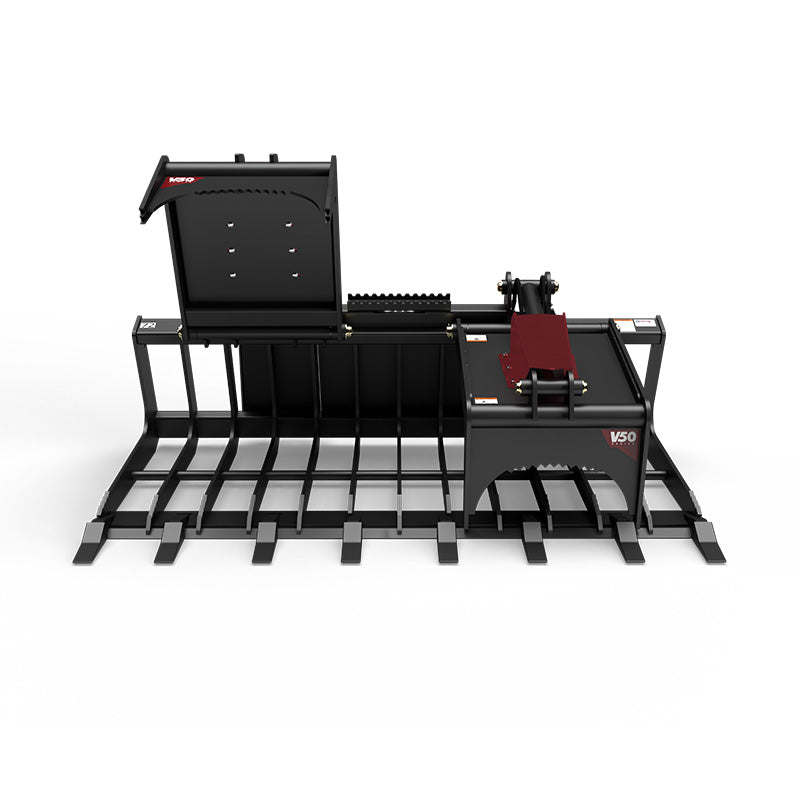

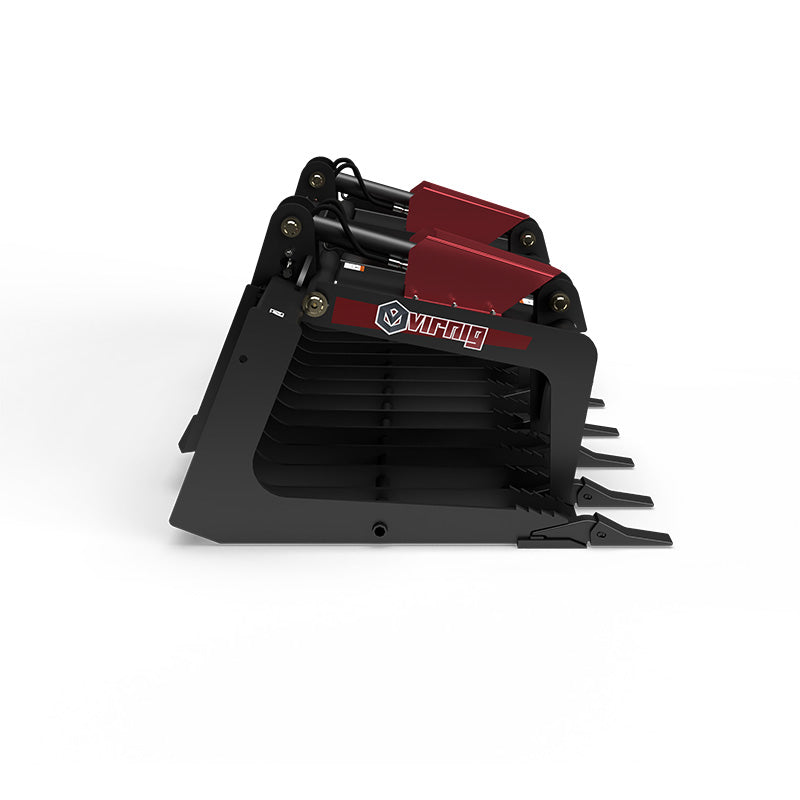

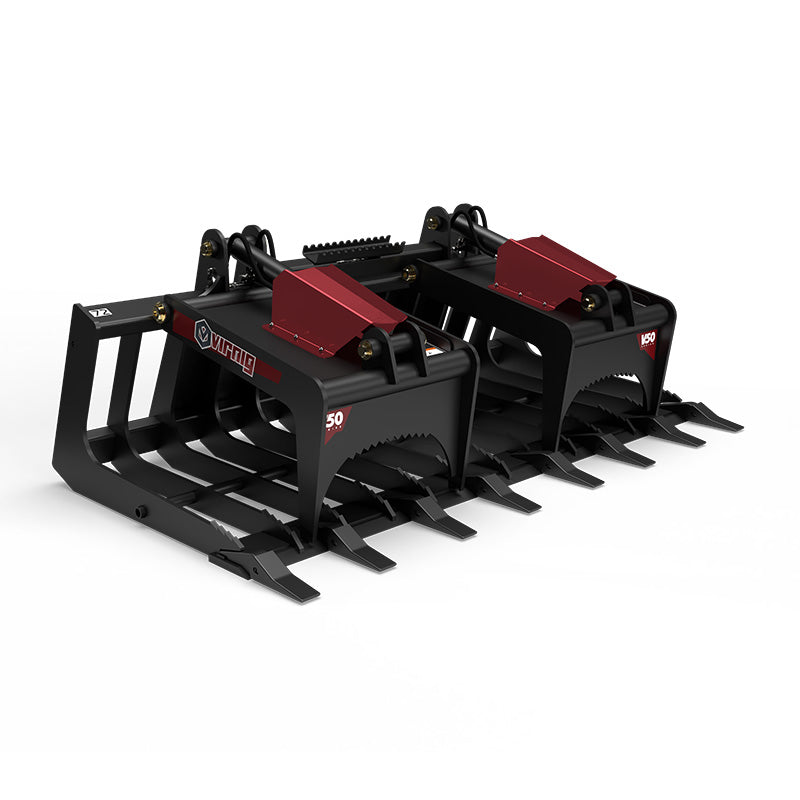

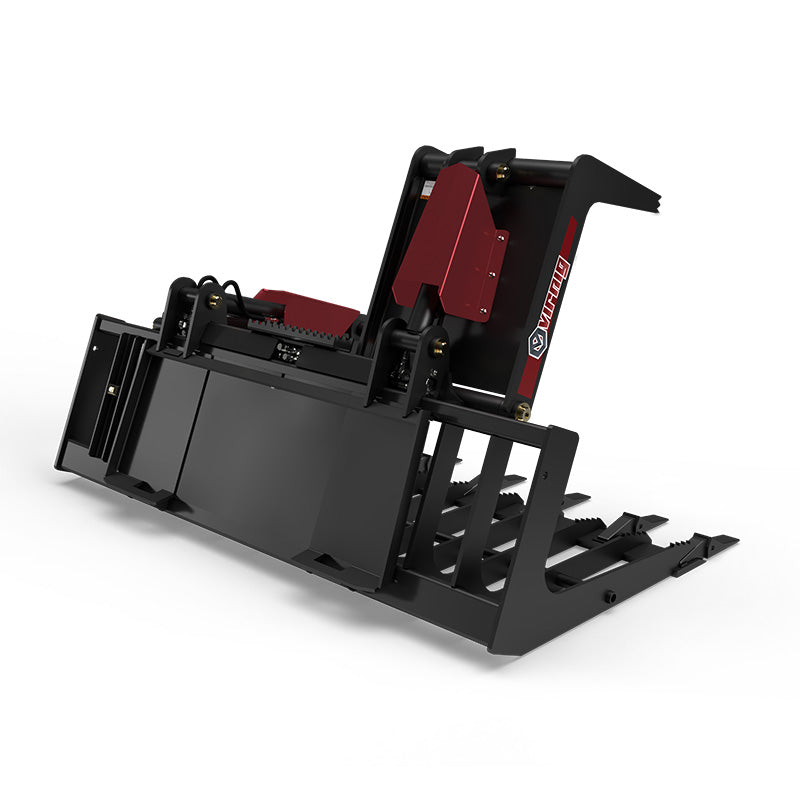

Virnig V50 Skeleton Tooth Grapple

Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differVirnig V50 Skeleton Tooth Grapple; manufacturer family image, configuration may differ
Virnig

Virnig V50 Skeleton Tooth Grapple

SKU: TSGV72 Currently In Stock

$7,570.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

REPLACEABLE DIGGING TEETH

REPLACEABLE SERIES 23 TEETH DIG INTO SOIL TO LOOSEN ROOTS AND ROCKS.

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

OPEN MATERIAL HANDLING

VIRNIG V50 SKELETON TOOTH GRAPPLE COMBINES AN OPEN GRAPPLE WITH REPLACEABLE DIGGING TEETH FOR ROOTS, ROCKS, AND BRUSH.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Skeleton Tooth Grapple combines debris handling with a digging front for roots, rocks, and brush. Series 23 pin-on teeth penetrate soil and work around embedded material, while the open lower frame allows loose dirt to fall through before the load is carried away.

Every tine is made from one piece of steel to maintain rigidity through the bucket floor. The hydraulic grapple holds uneven objects against the lower frame, helping the operator move material after it has been loosened. Replaceable teeth provide serviceable digging points instead of making the entire leading structure a single wear item.

NitroSteel® cylinder rods, Teflon®-coated pivot bushings, and standard cylinder guards equip the hydraulic assembly for repeated digging and handling work. Choose the width and attachment weight to suit the loader and expected loads. The tooth-equipped TSGV family is the choice here when ground penetration is needed in addition to ordinary skeleton grapple handling.

KEY BENEFITS

  • Series 23 pin-on teeth cut into soil, dig out rocks and roots.
  • Every tine is made from one piece of steel for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.
  • Virnig v50 skeleton tooth grapple combines an open grapple with replaceable digging teeth for roots, rocks, and brush.

TECHNICAL SPECIFICATIONS

  • Models: TSGV72 TSGV78 TSGV84 TSGV90
  • Overall Width (in.): TSGV72: 73.5; TSGV78: 79.5; TSGV84: 85.5; TSGV90: 91.5
  • Height: Overall / Bucket (in.): 27.5 / 21.3
  • Overall Depth (in.): 43.3
  • Number of Teeth: TSGV72: 8; TSGV78: 9; TSGV84: 9; TSGV90: 10
  • Space Between Teeth (in.): TSGV72: 6.8-8.8; TSGV78: 6.3-8.8; TSGV84: 6.8-9.3; TSGV90: 6.8-8.8
  • Space Between Tines (in.): 5.5
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 40.9
  • Approximate Weight (lbs): TSGV72: 1005; TSGV78: 1055; TSGV84: 1095; TSGV90: 1145
  • Recommended Loader Capacity: Greater than 1500 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Root removal
  • Rock handling
  • Brush cleanup

VIRNIG V50 SKELETON TOOTH GRAPPLE

WORKING DESIGN

  • Series 23 pin-on teeth cut into soil, dig out rocks and roots.
  • Every tine is made from one piece of steel for maximum rigidity.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: TSGV72 TSGV78 TSGV84 TSGV90
  • Overall Width (in.): TSGV72: 73.5; TSGV78: 79.5; TSGV84: 85.5; TSGV90: 91.5
  • Height: Overall / Bucket (in.): 27.5 / 21.3
  • Overall Depth (in.): 43.3
  • Number of Teeth: TSGV72: 8; TSGV78: 9; TSGV84: 9; TSGV90: 10
  • Space Between Teeth (in.): TSGV72: 6.8-8.8; TSGV78: 6.3-8.8; TSGV84: 6.8-9.3; TSGV90: 6.8-8.8
  • Space Between Tines (in.): 5.5
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375

READY FOR THE FIELD

  • Series 23 pin-on teeth cut into soil, dig out rocks and roots.
  • Every tine is made from one piece of steel for maximum rigidity.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.
  • Virnig v50 skeleton tooth grapple combines an open grapple with replaceable digging teeth for roots, rocks, and brush.
