VIRNIG

V50 Snow / Light Material Bucket

For Skid Steers & Track Loaders

72-101″ Widths

Virnig

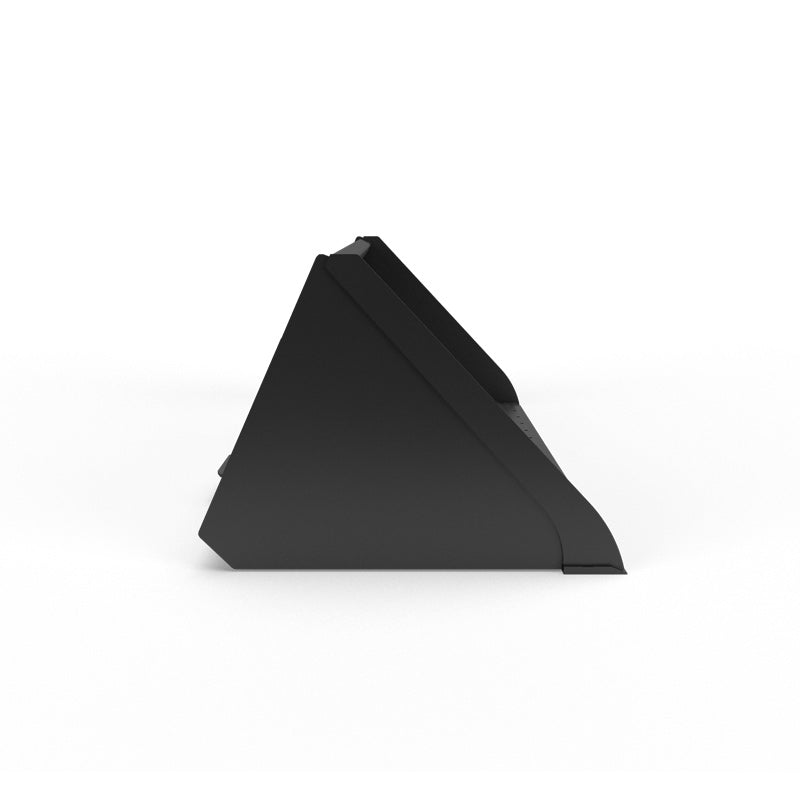

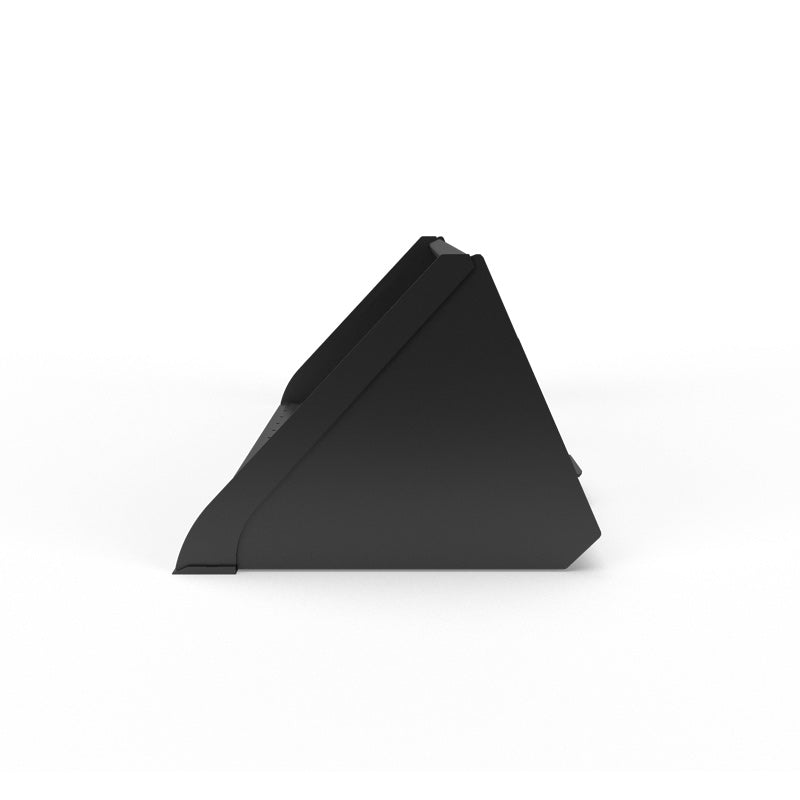

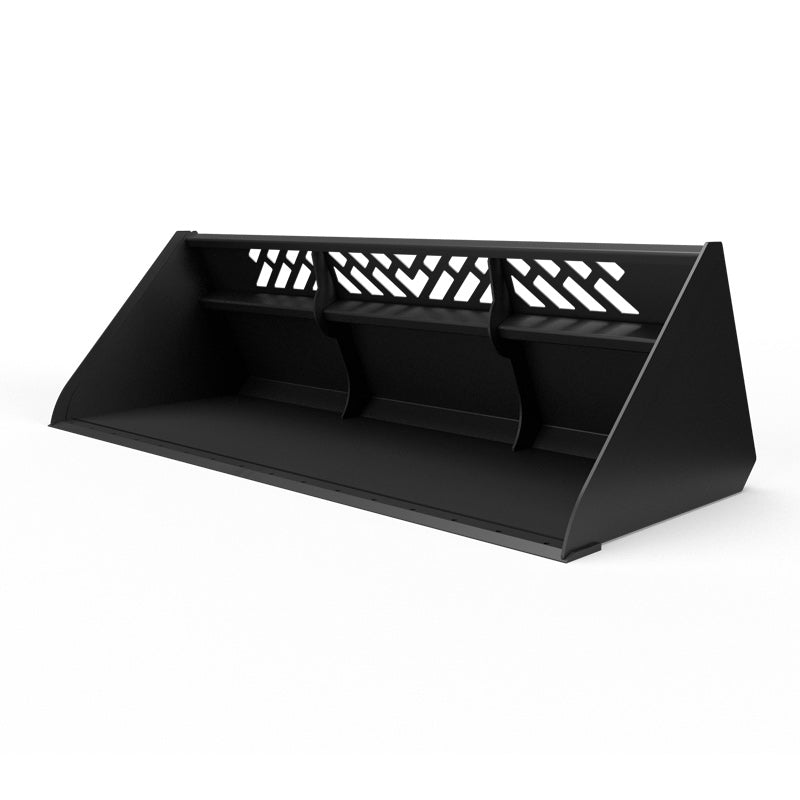

Virnig V50 Snow / Light Material Bucket

SKU: MSHV72 Currently In Stock

Sale price$2,750.00 USD

MOST IMPORTANT FEATURES

MATERIAL CONTAINMENT

A 3/16″ SHELL AND ¼″ SIDE PLATES FORM THE BUCKET FOR SNOW AND LIGHT MATERIALS.

REINFORCED BUCKET

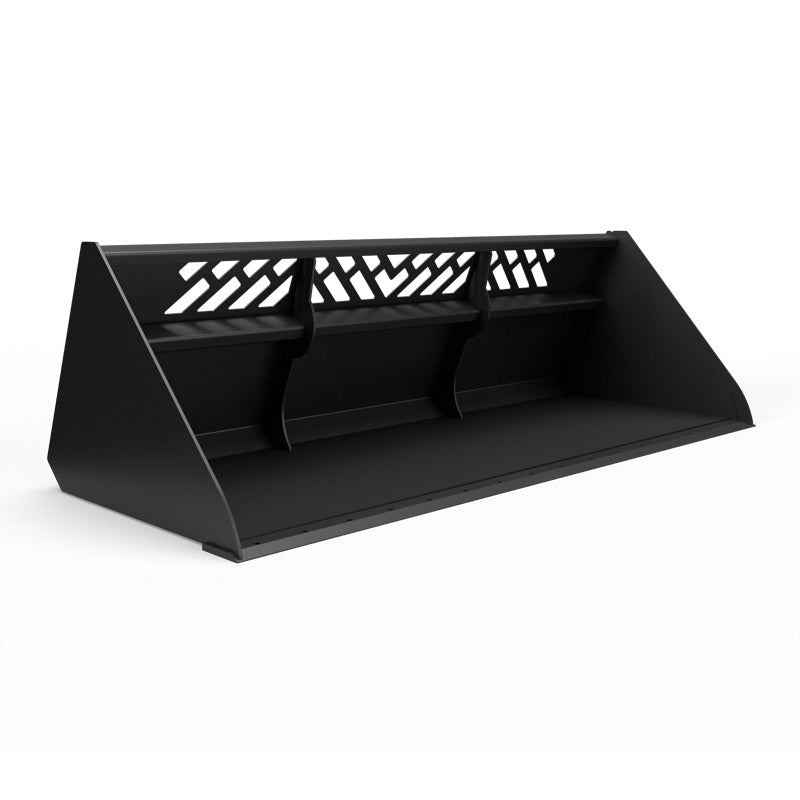

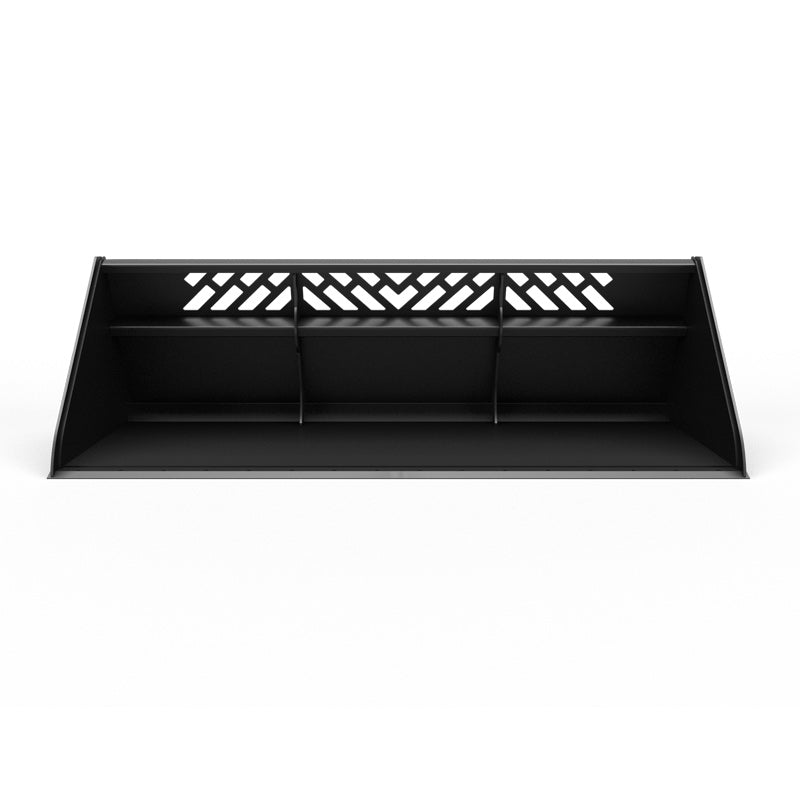

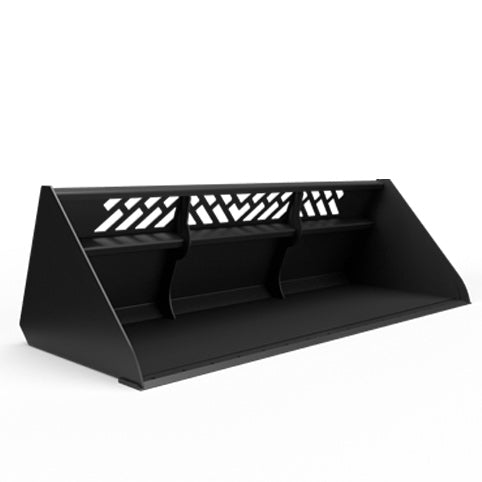

⅜″ VERTICAL BRACES REINFORCE THE BUCKET INTERIOR FOR REPEATED LOADING PASSES.

GUSSETED CONSTRUCTION

⅜″ SIDE EDGES AND GUSSETS REINFORCE THE BUCKET'S OUTER WORKING CORNERS.

OPERATOR SIGHTLINES

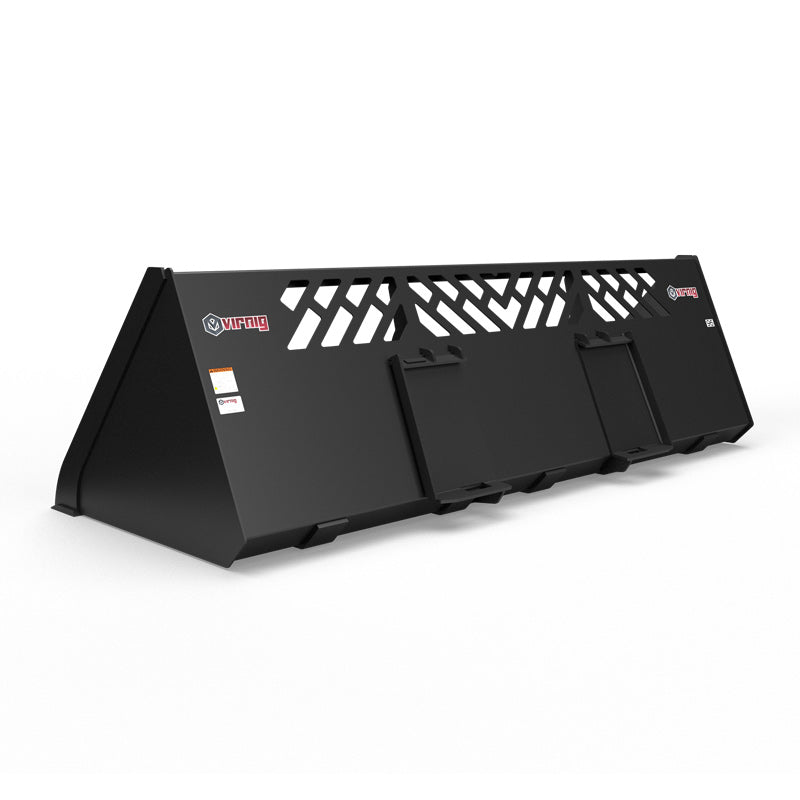

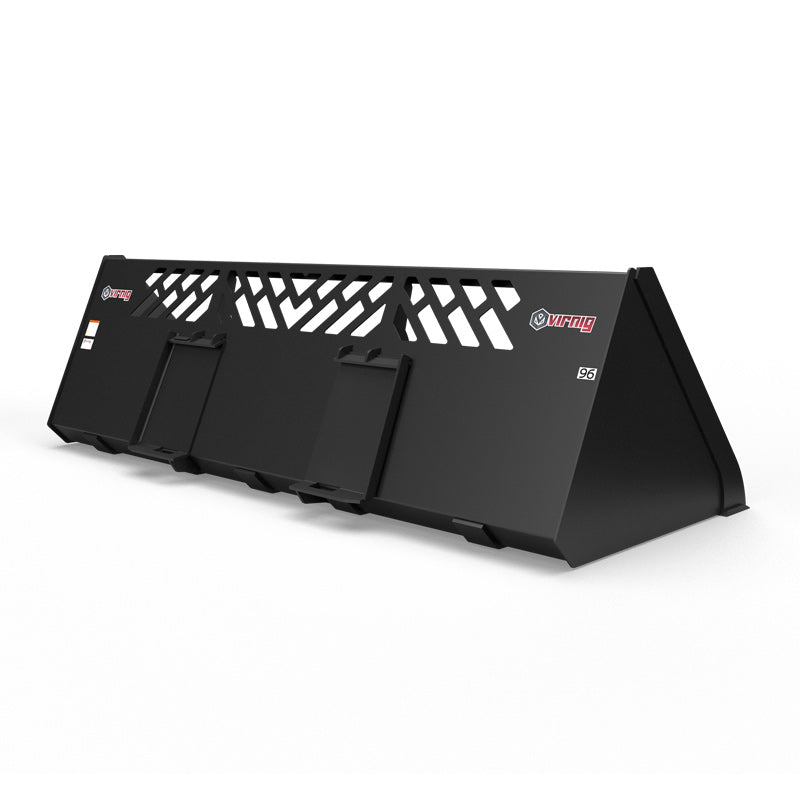

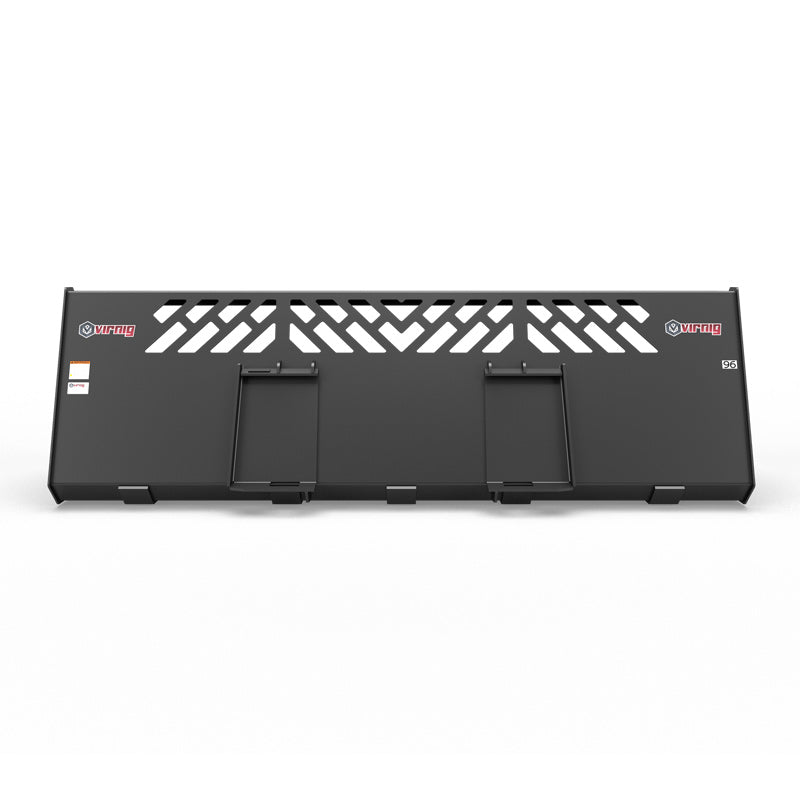

WINDOWED BACKRESTS IMPROVE SIGHTLINES; A SOLID BACK IS AVAILABLE AS AN ALTERNATIVE.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Snow / Light Material Bucket moves high volumes of snow, mulch, and other low-density material with a deep carrying bucket. It is a practical choice when the job involves repeated trips between a loose material pile and a loading or dumping area, rather than concentrated digging into dense ground.

A 3⁄16″ shell, ¼″ side plates, and ⅜″ internal vertical braces form the bucket structure. Side edges and gussets are also ⅜″ thick, with a ¾″ × 6″ weld-on edge at the front. Visibility windows help the operator see through the bucket, and a solid-back configuration is available where preferred.

Choose the width and back configuration around the carrier and intended work. The bucket's volume is intended for lighter materials, so adjust the fill level when handling wet snow or denser contents. Account for both attachment weight and material weight, and keep the loader's rated capacity as the limit for each carried load.

KEY BENEFITS

  • 3/16” shell and 1/4″ side plates.
  • 3/8” vertical braces inside bucket.
  • 3/8” side edges and gussets.
  • Windows for better operator visibility. Available with solid back.
  • 3/4″ x 6″ weld-on edge.

TECHNICAL SPECIFICATIONS

  • Models: MSHV72 MSHV78 MSHV84 MSHV96 MSHV101
  • Width: Overall / Inside (in.): MSHV72: 73.5 / 71.3; MSHV78: 79.5 / 77.3; MSHV84: 85.5 / 83.3; MSHV96: 97.5 / 95.3; MSHV101: 101.5 / 99.3
  • Overall Height (in.): 29.8
  • Depth: Overall / Inside (in.): 43.0 / 39.7
  • Window Height (in.): 8.0
  • Capacity: Struck / Heaped (cu. ft.): MSHV72: 26.6 / 31.9; MSHV78: 28.8 / 34.6; MSHV84: 31.0 / 37.2; MSHV96: 35.5 / 42.6; MSHV101: 37.0 / 44.5
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″x4″): MSHV72: 3; MSHV78: 5; MSHV84: 5; MSHV96: 5; MSHV101: 5
  • Approximate Weight (lbs): MSHV72: 655; MSHV78: 730; MSHV84: 760; MSHV96: 825; MSHV101: 850
  • Recommended Loader Capacity: Greater than 1800 lbs

APPLICATIONS

  • Snow loading
  • Mulch handling
  • Light material transport

VIRNIG V50 SNOW / LIGHT MATERIAL BUCKET

WORKING DESIGN

  • 3/16” shell and 1/4″ side plates.
  • 3/8” vertical braces inside bucket.
  • 3/8” side edges and gussets.
  • Windows for better operator visibility. Available with solid back.
  • 3/4″ x 6″ weld-on edge.

CONFIGURATION AND SPECIFICATIONS

  • Models: MSHV72 MSHV78 MSHV84 MSHV96 MSHV101
  • Width: Overall / Inside (in.): MSHV72: 73.5 / 71.3; MSHV78: 79.5 / 77.3; MSHV84: 85.5 / 83.3; MSHV96: 97.5 / 95.3; MSHV101: 101.5 / 99.3
  • Overall Height (in.): 29.8
  • Depth: Overall / Inside (in.): 43.0 / 39.7
  • Window Height (in.): 8.0
  • Capacity: Struck / Heaped (cu. ft.): MSHV72: 26.6 / 31.9; MSHV78: 28.8 / 34.6; MSHV84: 31.0 / 37.2; MSHV96: 35.5 / 42.6; MSHV101: 37.0 / 44.5
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.19
  • Side Plate Thickness (in.): 0.25

READY FOR THE FIELD

  • 3/16” shell and 1/4″ side plates.
  • 3/8” vertical braces inside bucket.
  • 3/8” side edges and gussets.
  • Windows for better operator visibility. Available with solid back.
  • 3/4″ x 6″ weld-on edge.
