VIRNIG

V50 Trencher

For Skid Steers & Track Loaders

36-60″ Digging Depths

Virnig V50 Trencher

Virnig

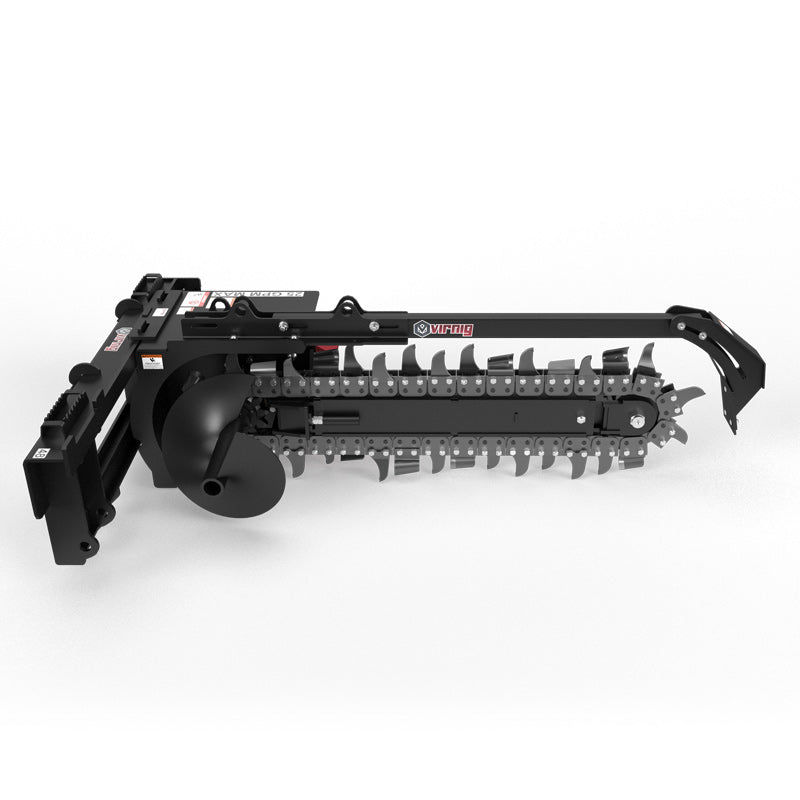

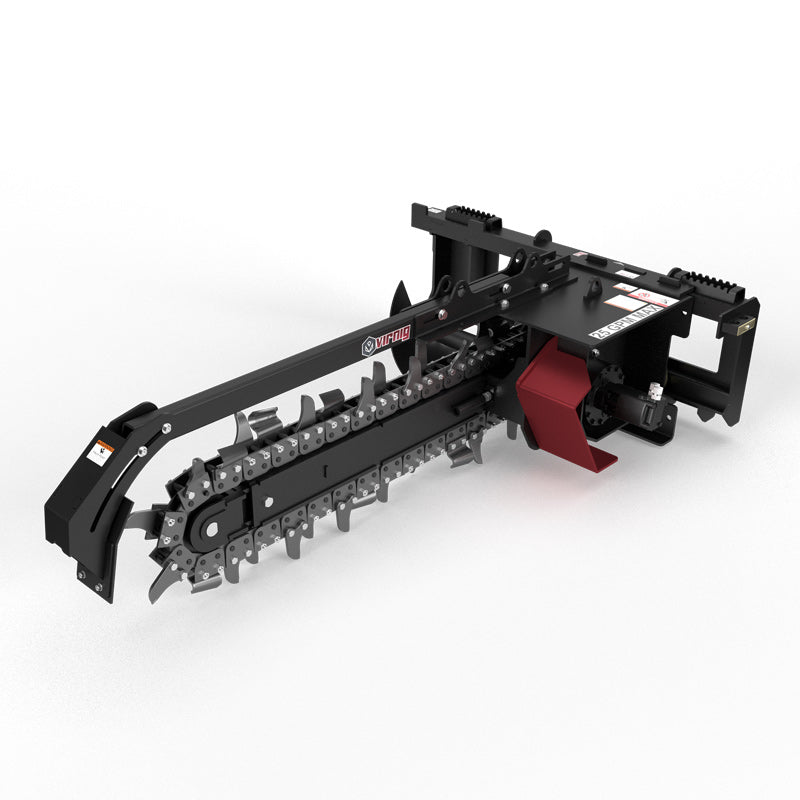

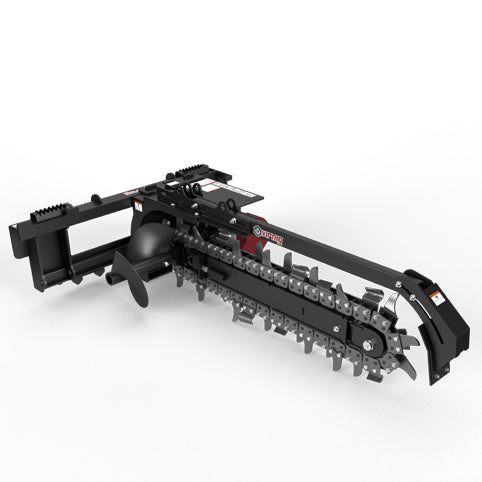

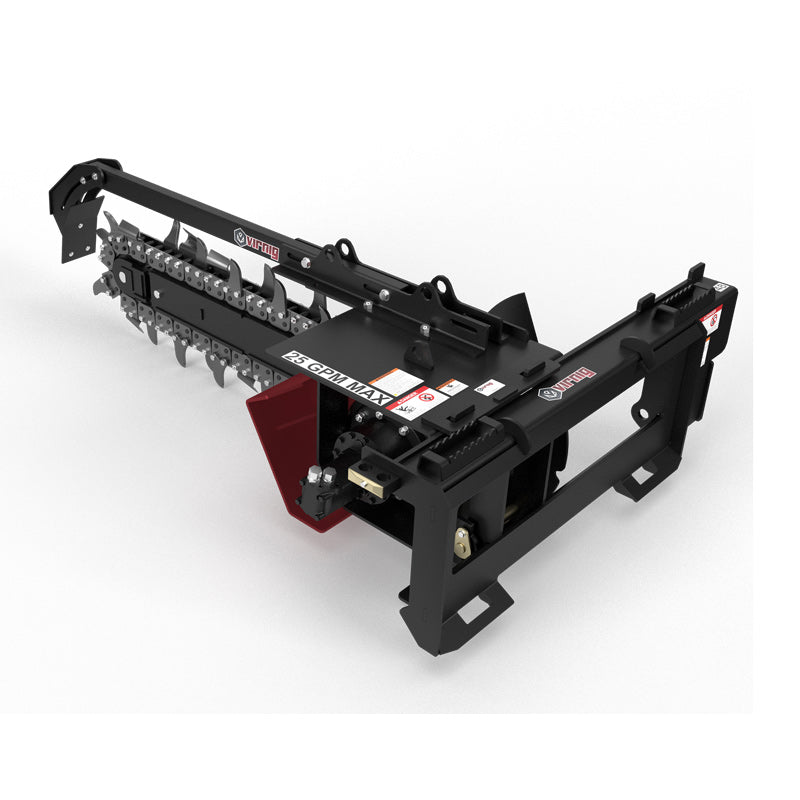

Virnig V50 Trencher

SKU: TCH36-25+15586PP Currently In Stock

Sale price$8,935.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

FOUR-POSITION DEPTH ADJUSTMENT

4-POSITION DEPTH ADJUSTMENT SYSTEM ALLOWS OPERATOR TO SET DESIRED TRENCHING DEPTH.

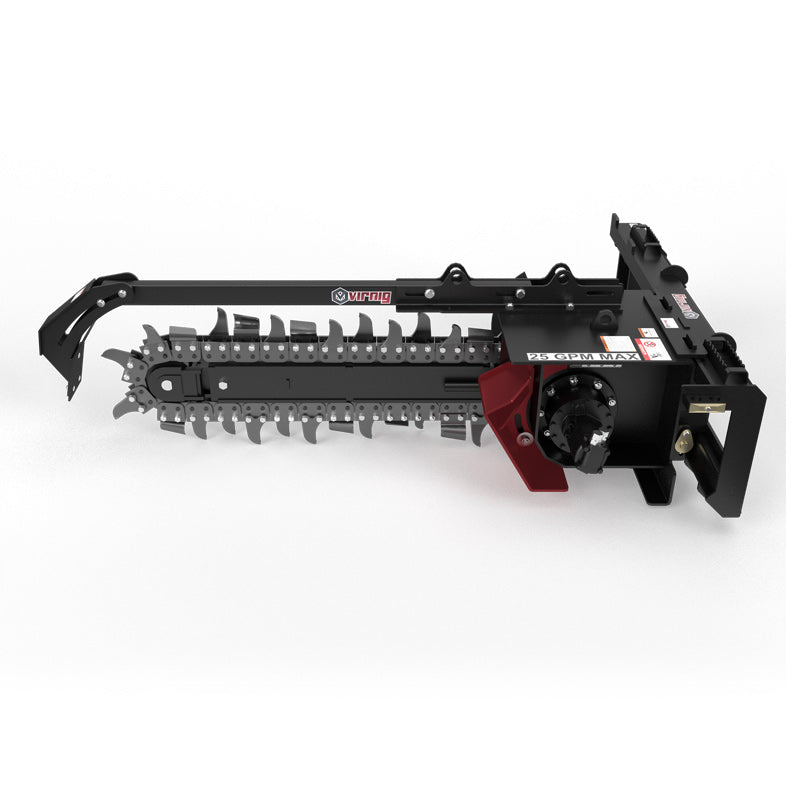

ANTI-BACK FLEX CHAIN

THE ANTI-BACK FLEX CHAIN SUPPORTS DIGGING THROUGH DEMANDING GROUND CONDITIONS.

SIDE-SHIFT ACCESS

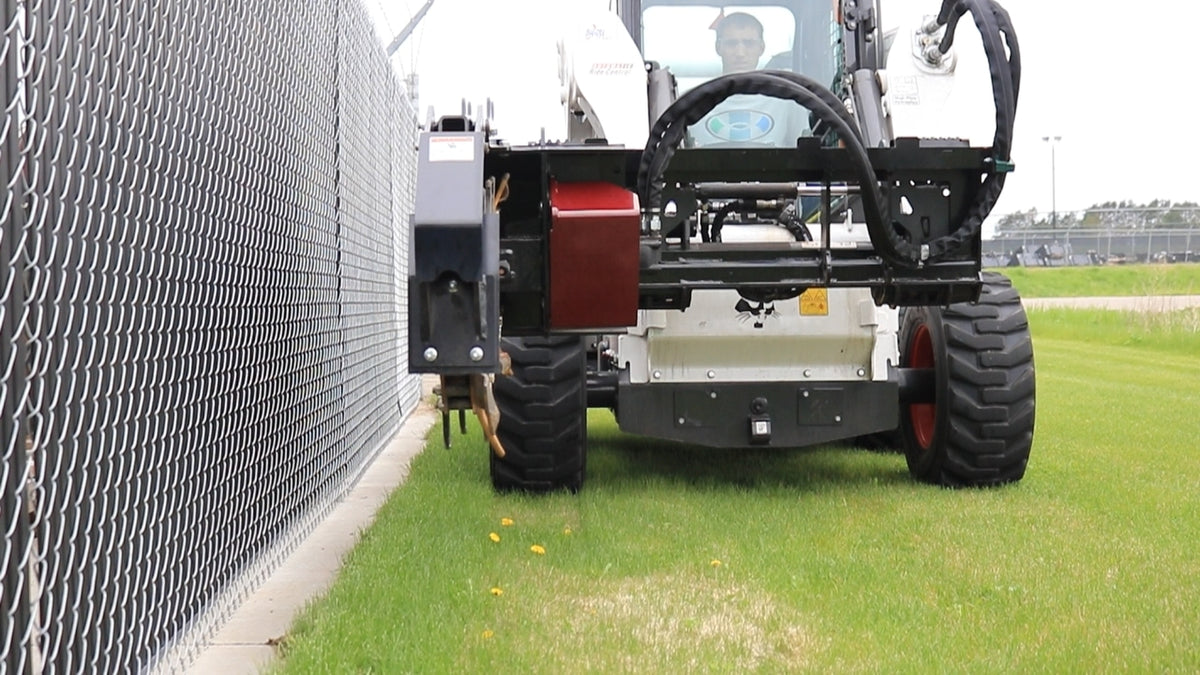

MANUAL SIDE-SHIFT AND REMOVABLE AUGER FOR TRENCHING CLOSE TO STRUCTURES.

GREASEABLE IDLER BEARING

A GREASEABLE IDLER BEARING AT THE BOOM END PROVIDES A SERVICE POINT FOR THE CHAIN DRIVE.

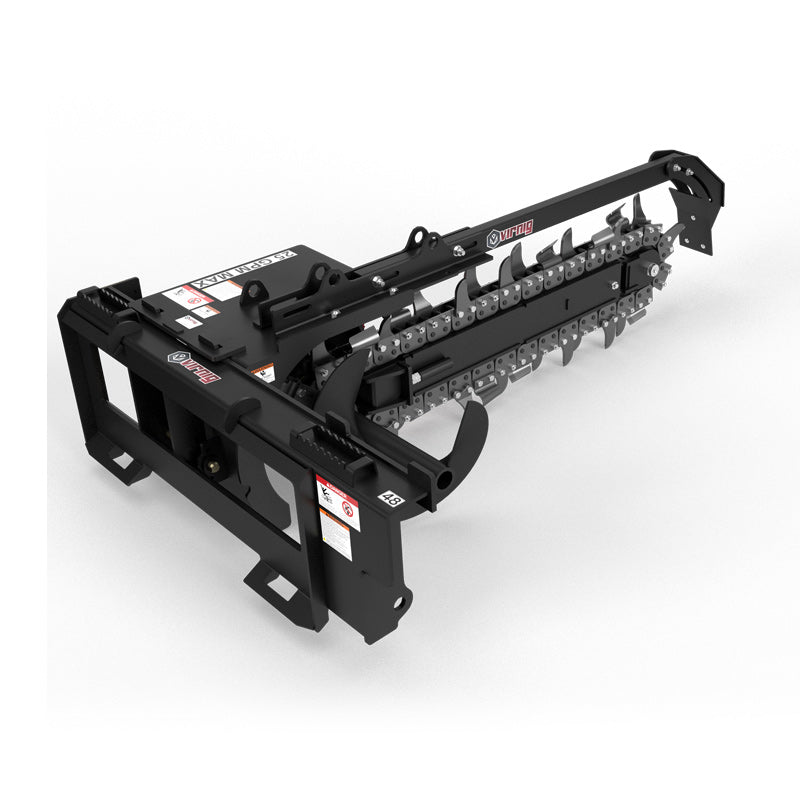

CLEAN TRENCH BOTTOM

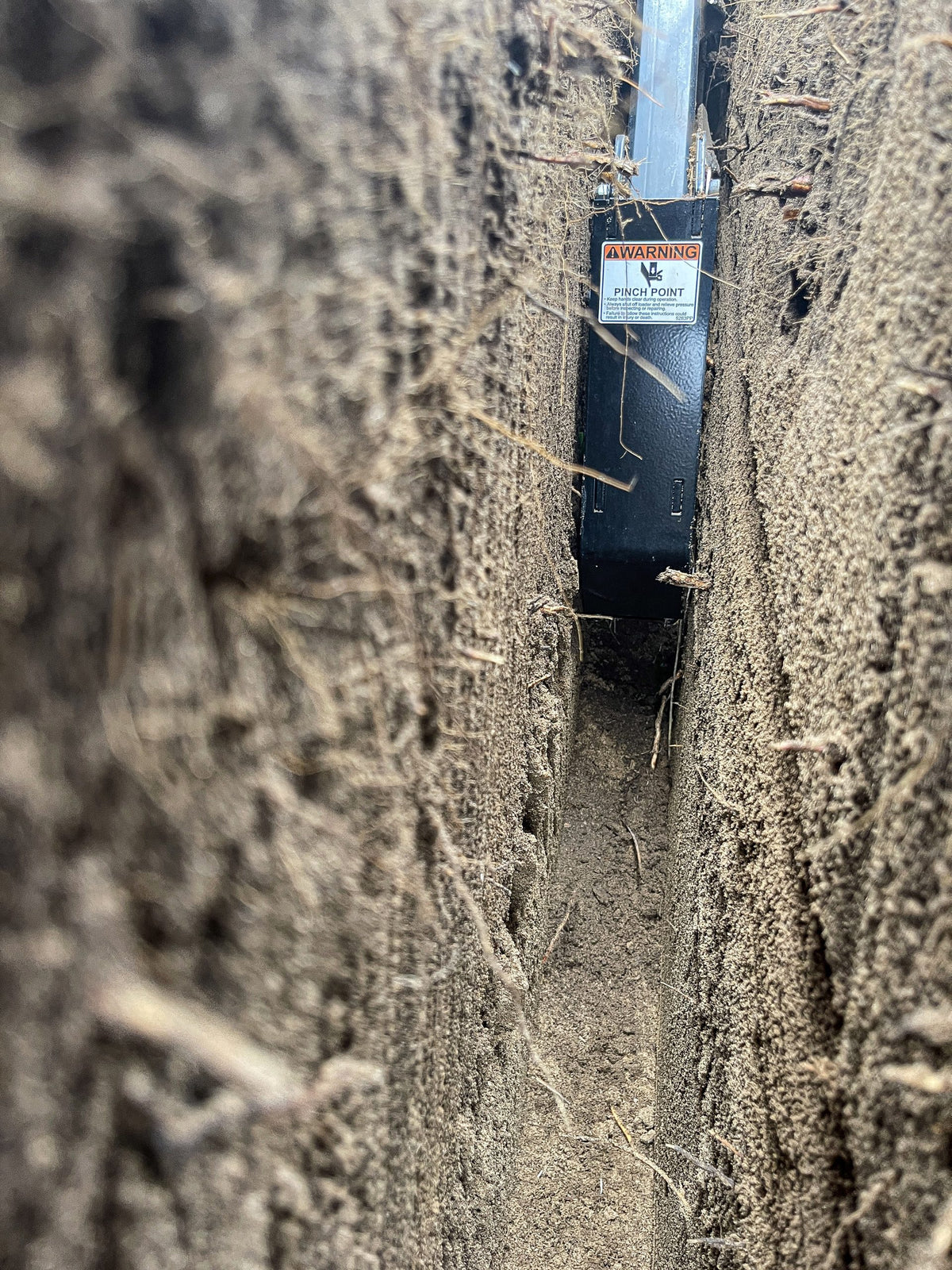

THE STANDARD CRUMBER CLEARS LOOSE MATERIAL TO LEAVE A CLEANER, SMOOTHER TRENCH BOTTOM.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Trencher gives a compatible loader a dedicated digging tool for trenching work where depth, width, and chain selection need to match the job. Its four-position depth adjustment lets the operator set the desired digging depth, while the anti-back-flex chain works through the selected trench path.

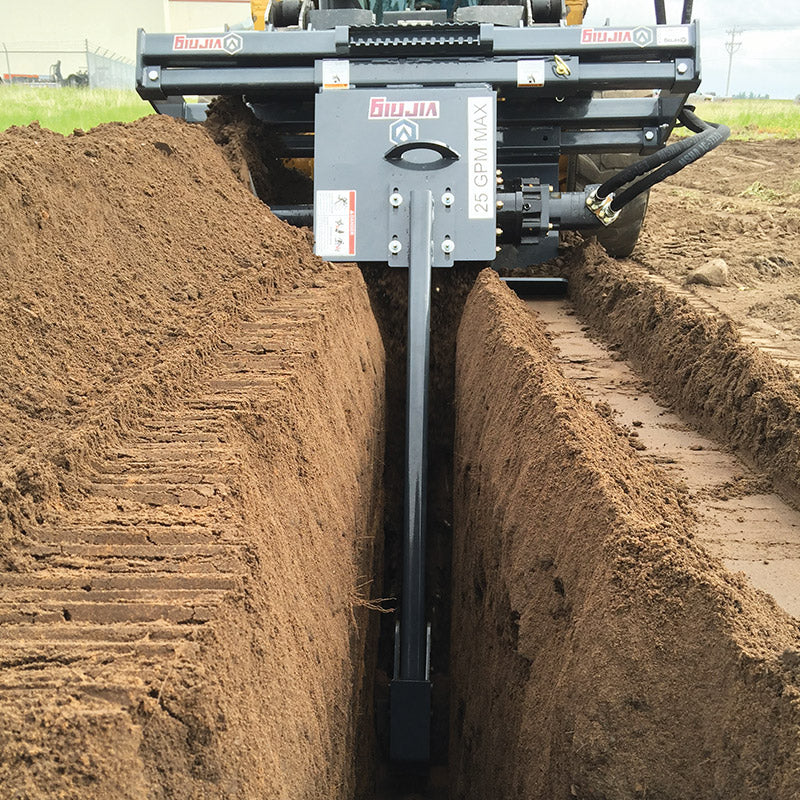

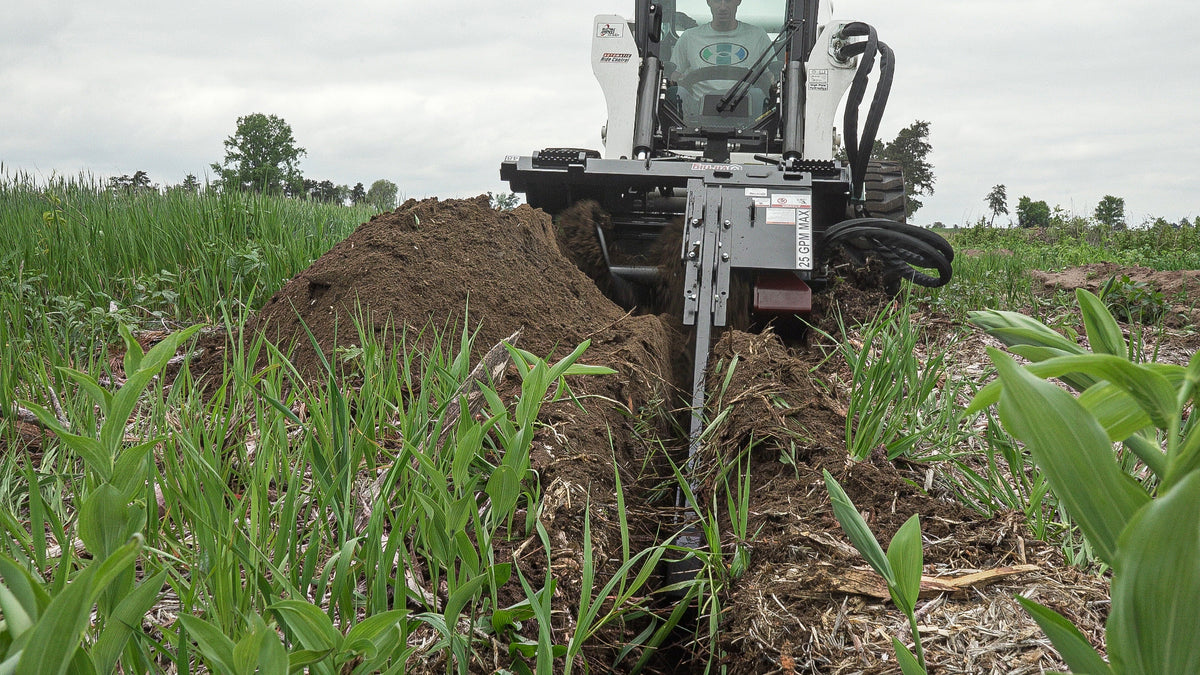

Manual side shift moves the trencher's working position relative to the loader, and the removable auger provides another way to configure the attachment for work near structures. During normal trenching, the auger moves excavated spoil away from the opening, helping keep loose material from collecting directly over the trench.

A standard crumber helps leave the trench bottom clean and smooth, reducing loose material left behind the chain. Bi-directional chain rotation helps expel objects, while the greasable idler bearing at the boom end provides an accessible service point. Select the drive, digging depth, chain width, and tooth arrangement for the carrier hydraulics and actual ground conditions.

KEY BENEFITS

  • 4-position depth adjustment system allows operator to set desired trenching depth.
  • Anti-back flex chain for tough digging conditions.
  • Manual side-shift and removable auger for trenching close to structures.
  • Greasable idler bearing at trencher boom end for longevity.
  • Standard crumber keeps trench bottom clean and smooth.

TECHNICAL SPECIFICATIONS

  • Models: TCH36 TCH48 TCH60
  • Dig Depth (in.): TCH36: 36.0; TCH48: 48.0; TCH60: 60.0
  • Overall Width (in.): 58.5
  • Overall Height (in.): 26.5
  • Overall Length (in.): TCH36: 77.6; TCH48: 91.6; TCH60: 103.6
  • Side Shift Travel From Center (in.): 33.0
  • Auger Diameter (in.): 17.3
  • Spoil Auger Discharge Reach (in.): 20.3
  • Optimal Trenching Angle (degrees): 60
  • Recommended Flow Rate (GPM): 15-25 Standard Flow Only
  • Max Operating Pressure (PSI): 3500
  • Approximate Weight (lbs): TCH36: 1040¹; TCH48: 1100¹; TCH60: 1160¹
  • Recommended Loader Capacity: Greater than 1500 lbs
  • ¹With 70/30 Combo chain.
  • Price includes the selected trencher drive and matching chain. Chain width and tooth pattern are shown in the option selector.

APPLICATIONS

  • Utility trenches
  • Irrigation installation
  • Landscape trenching

VIRNIG V50 TRENCHER

WORKING DESIGN

  • 4-position depth adjustment system allows operator to set desired trenching depth.
  • Anti-back flex chain for tough digging conditions.
  • Manual side-shift and removable auger for trenching close to structures.
  • Greasable idler bearing at trencher boom end for longevity.
  • Standard crumber keeps trench bottom clean and smooth.

CONFIGURATION AND SPECIFICATIONS

  • Models: TCH36 TCH48 TCH60
  • Dig Depth (in.): TCH36: 36.0; TCH48: 48.0; TCH60: 60.0
  • Overall Width (in.): 58.5
  • Overall Height (in.): 26.5
  • Overall Length (in.): TCH36: 77.6; TCH48: 91.6; TCH60: 103.6
  • Side Shift Travel From Center (in.): 33.0
  • Auger Diameter (in.): 17.3
  • Spoil Auger Discharge Reach (in.): 20.3
  • Optimal Trenching Angle (degrees): 60

READY FOR THE FIELD

  • 4-position depth adjustment system allows operator to set desired trenching depth.
  • Anti-back flex chain for tough digging conditions.
  • Manual side-shift and removable auger for trenching close to structures.
  • Greasable idler bearing at trencher boom end for longevity.
  • Standard crumber keeps trench bottom clean and smooth.
