VIRNIG

V50 Utility Bucket

For Skid Steers & Track Loaders

60-84″ Widths

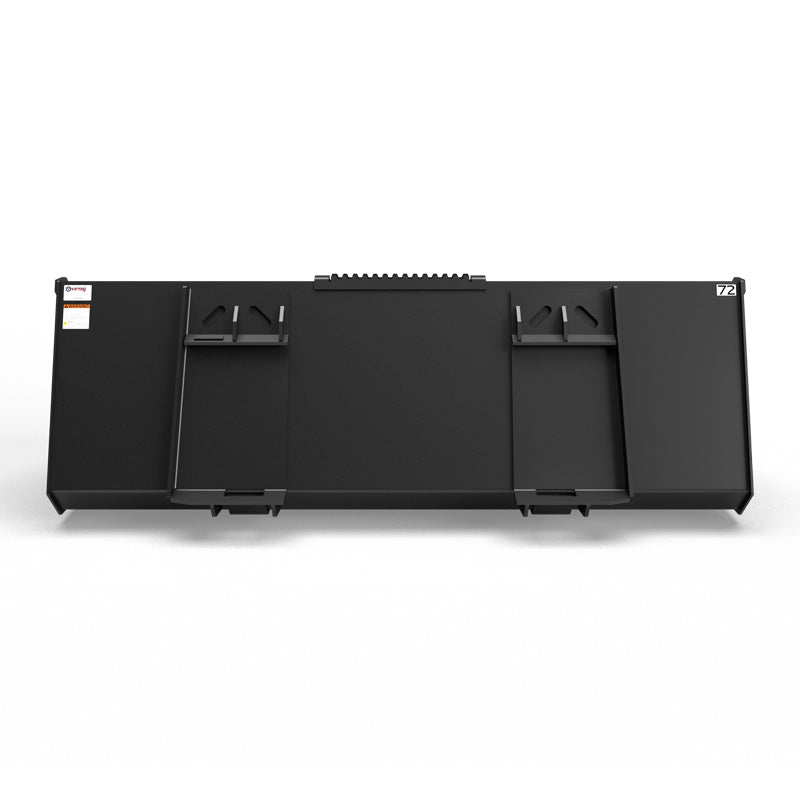

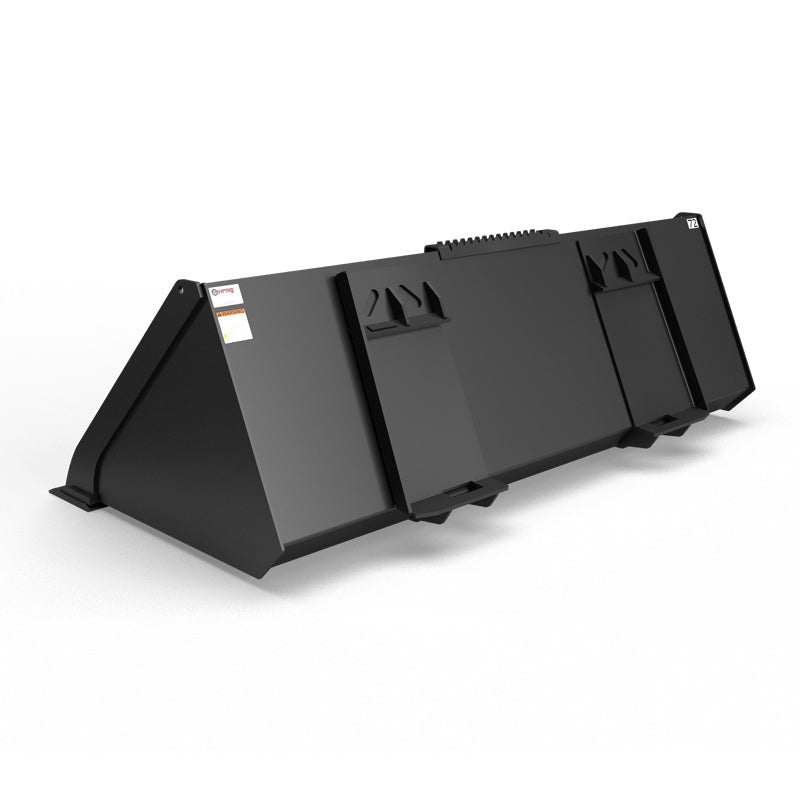

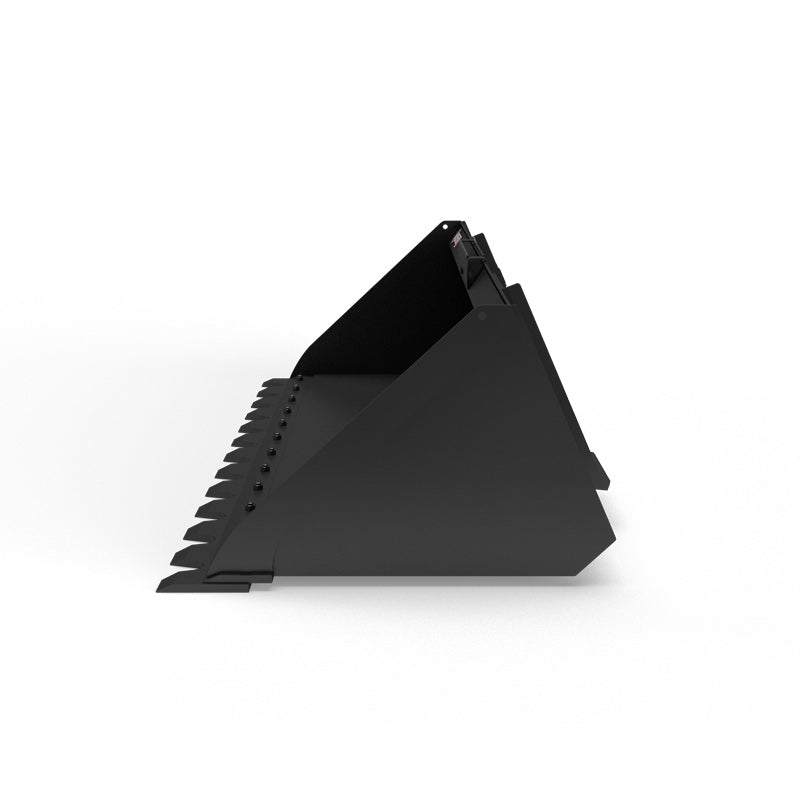

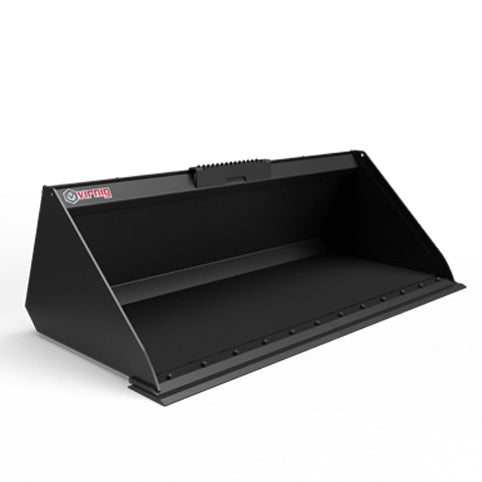

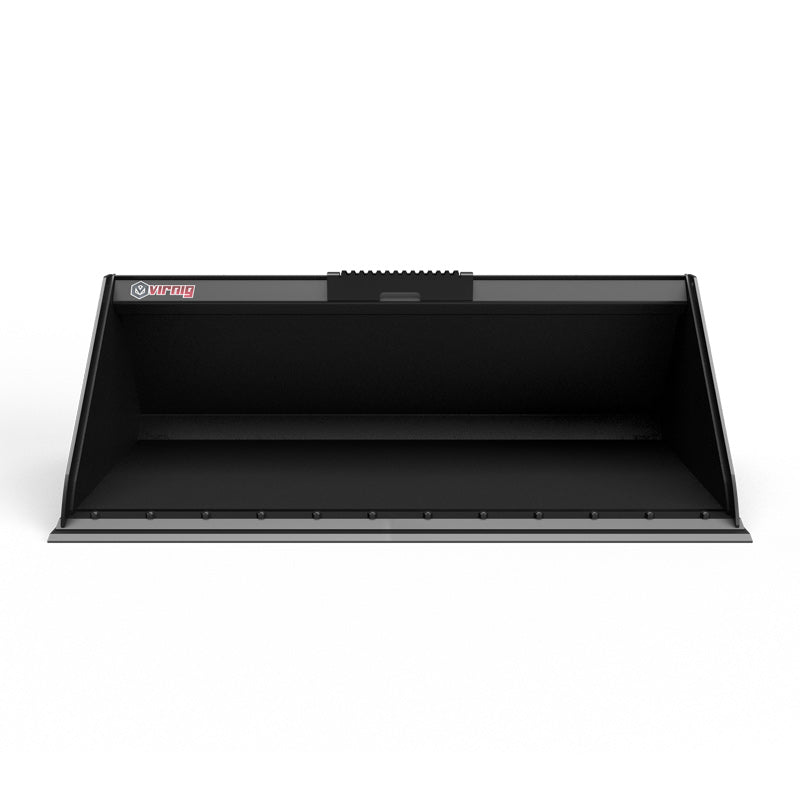

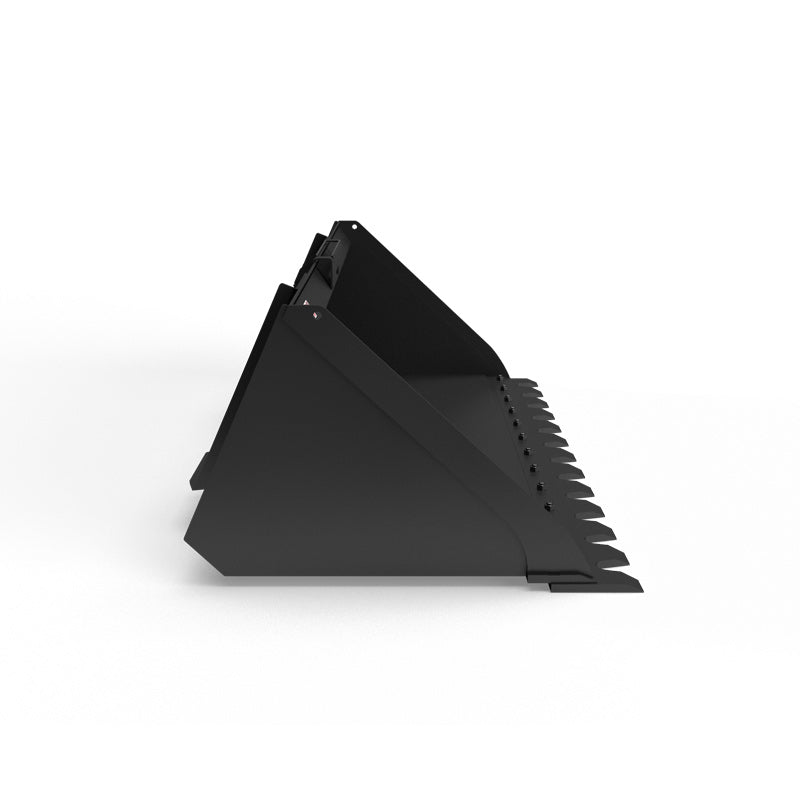

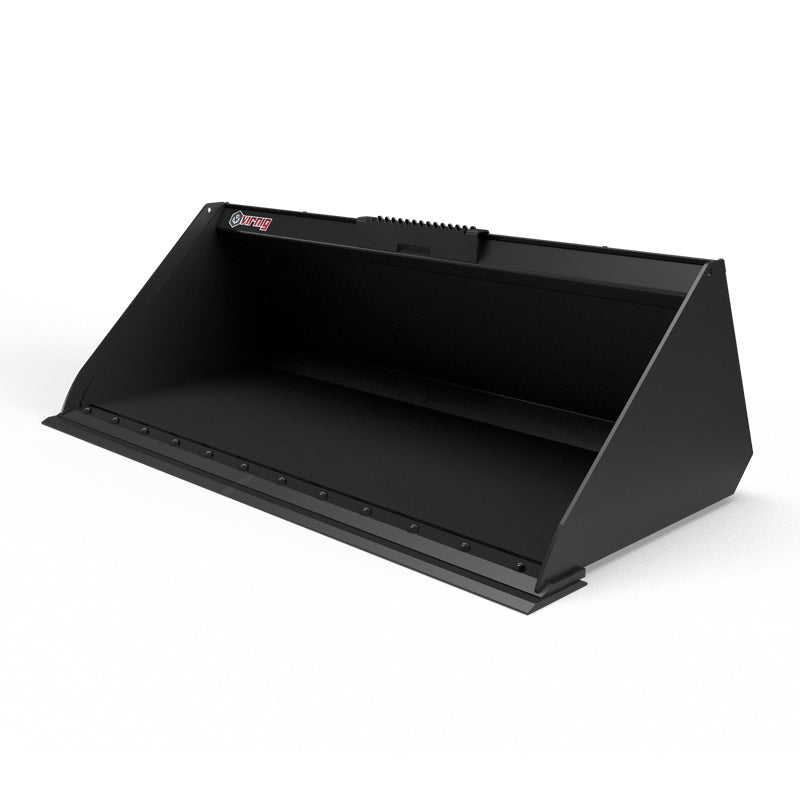

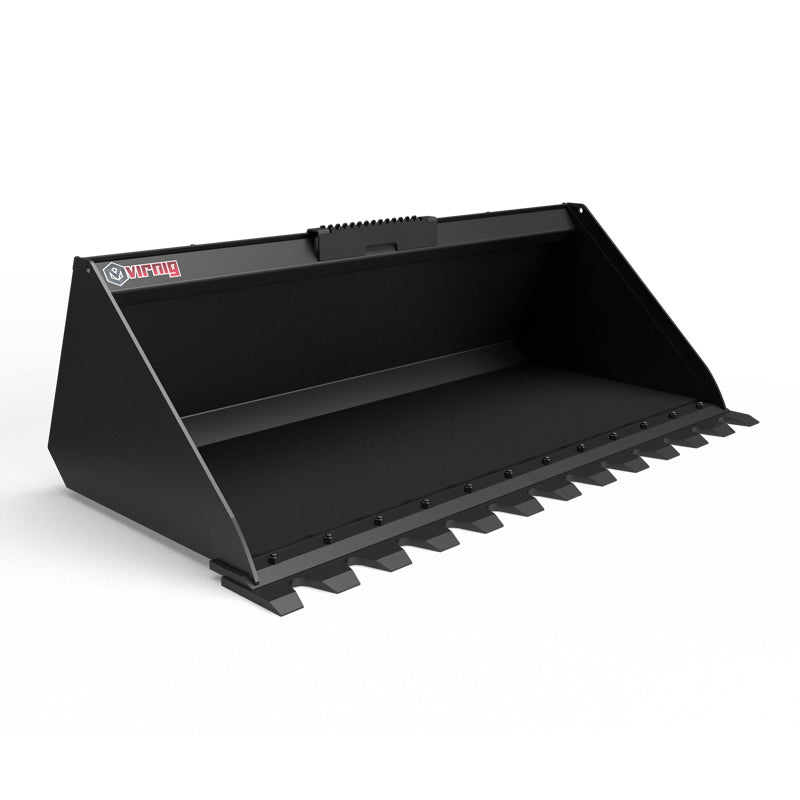

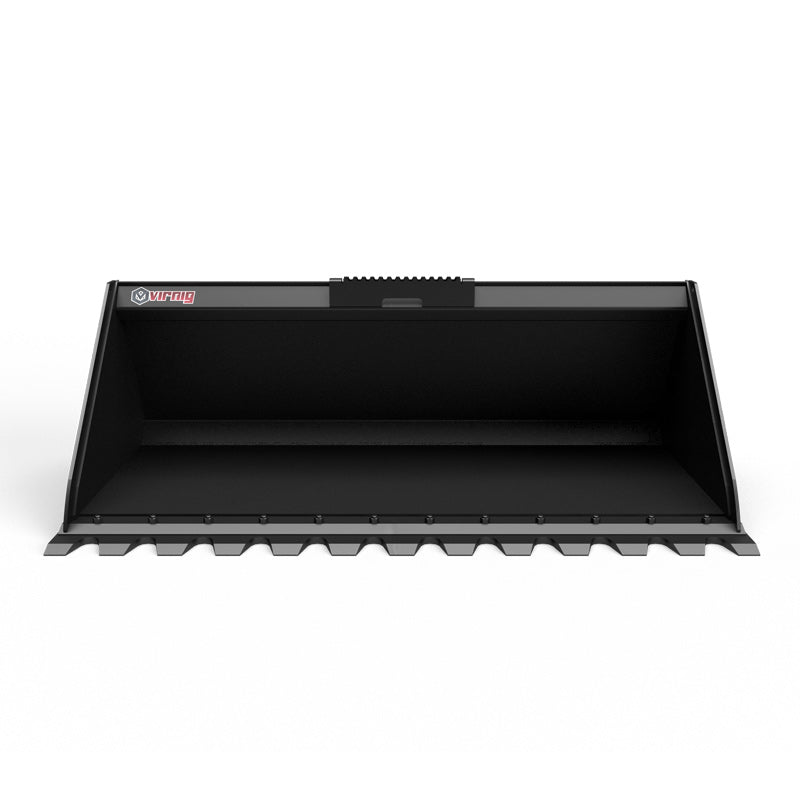

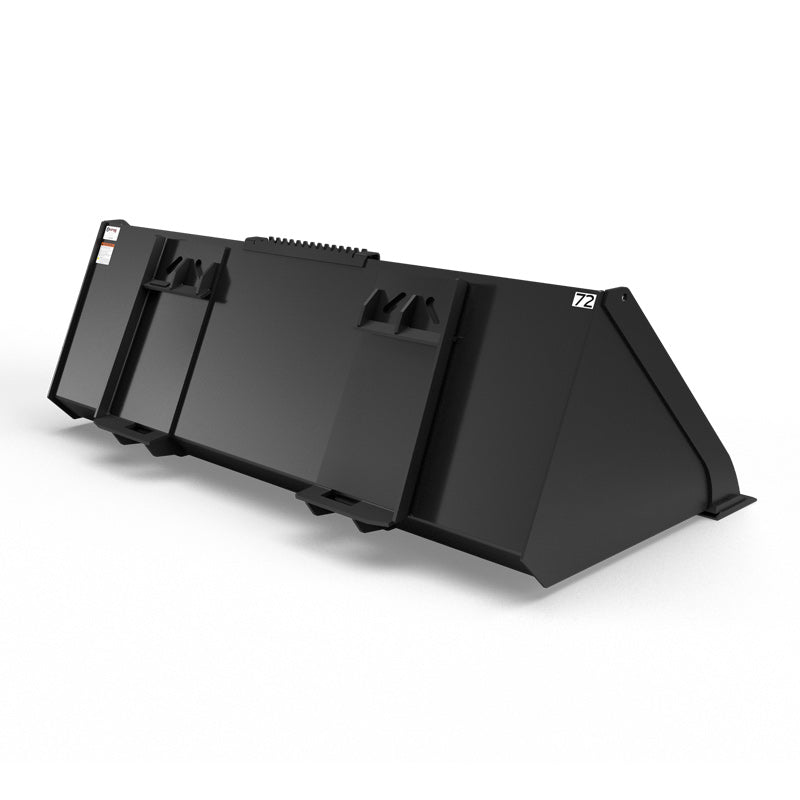

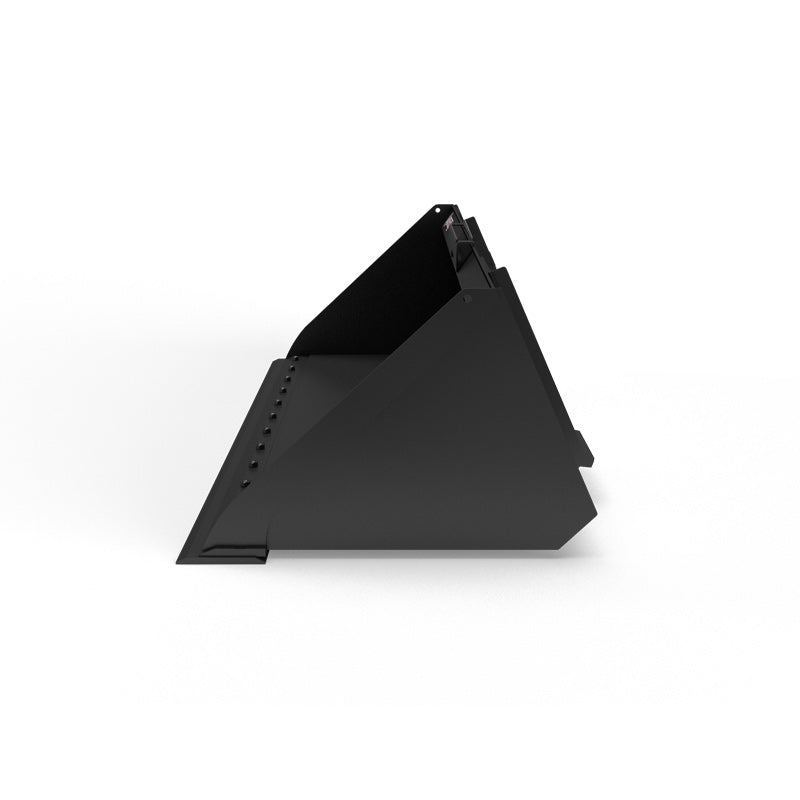

Virnig V50 Utility Bucket

Virnig

Virnig V50 Utility Bucket

SKU: UHV60 Currently In Stock

Sale price$1,990.00 USD

MOST IMPORTANT FEATURES

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

BOTTOM WEAR PROTECTION

½″ X 4″ WEAR BARS SHIELD THE BUCKET BOTTOM FROM REPEATED GROUND CONTACT.

MATERIAL HANDLING

VIRNIG V50 UTILITY BUCKET SCOOPS AND CARRIES DENSE AND BULK MATERIALS.

LOAD CAPACITY OPTIONS

SELECT THE BUCKET CAPACITY TO MATCH THE MATERIAL DENSITY AND YOUR LOADER'S LIFT LIMIT.

WIDTH OPTIONS

MULTIPLE BUCKET WIDTHS LET YOU MATCH WORKING COVERAGE TO THE LOADER AND SITE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V50 Utility Bucket handles everyday scooping, loading, and carrying work with a solid bucket floor. It gives a compatible loader a general material-handling attachment for dense or bulk loads, retaining loose material rather than separating it through the open tines of a skeleton bucket.

A ¾″ × 6″ weld-on edge forms the leading working surface for entering the pile and working against the ground. Underneath, ½″ × 4″ wear bars protect the bucket bottom at repeated contact points. These wear surfaces support routine loading work while keeping the main bucket shell away from some direct ground contact.

Choose the bucket width and volume around the loader and the density of the material being moved. A larger bucket can hold more volume, but the carrier's capacity still limits the actual load. This V50 utility configuration is the straightforward solid-floor choice; the V60 model adds a different internal and upper bracing arrangement.

KEY BENEFITS

  • 3/4″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.
  • Virnig v50 utility bucket scoops and carries dense and bulk materials.
  • Capacity: struck / heaped (cu. ft.): 14.4 / 17.3 | 16.0 / 19.2 | 17.6 / 21.1 | 19.2 / 23.0 | 20.8 / 24.9
  • Width: overall / inside (in.): 61.5 / 59.3 | 67.5 / 65.3 | 73.5 / 71.3 | 79.5 / 77.3 | 85.8 / 83.3

TECHNICAL SPECIFICATIONS

  • Models: UHV60 UHV66 UHV72 UHV78 UHV84
  • Width: Overall / Inside (in.): UHV60: 61.5 / 59.3; UHV66: 67.5 / 65.3; UHV72: 73.5 / 71.3; UHV78: 79.5 / 77.3; UHV84: 85.8 / 83.3
  • Overall Height (in.): 24.0
  • Depth: Overall / Inside (in.): 38.1 / 34.9
  • Capacity: Struck / Heaped (cu. ft.): UHV60: 14.4 / 17.3; UHV66: 16.0 / 19.2; UHV72: 17.6 / 21.1; UHV78: 19.2 / 23.0; UHV84: 20.8 / 24.9
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): UHV60: 0.19; UHV66: 0.19; UHV72: 0.25; UHV78: 0.25; UHV84: 0.25
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″ x 4″): UHV60: 2; UHV66: 2; UHV72: 2; UHV78: 3; UHV84: 3
  • Approximate Weight (lbs): UHV60: 470; UHV66: 500; UHV72: 595; UHV78: 650; UHV84: 680
  • Recommended Loader Capacity: Less than 2400 lbs

APPLICATIONS

  • General material loading
  • Bulk handling
  • Site cleanup

VIRNIG V50 UTILITY BUCKET

WORKING DESIGN

  • 3/4″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.

CONFIGURATION AND SPECIFICATIONS

  • Models: UHV60 UHV66 UHV72 UHV78 UHV84
  • Width: Overall / Inside (in.): UHV60: 61.5 / 59.3; UHV66: 67.5 / 65.3; UHV72: 73.5 / 71.3; UHV78: 79.5 / 77.3; UHV84: 85.8 / 83.3
  • Overall Height (in.): 24.0
  • Depth: Overall / Inside (in.): 38.1 / 34.9
  • Capacity: Struck / Heaped (cu. ft.): UHV60: 14.4 / 17.3; UHV66: 16.0 / 19.2; UHV72: 17.6 / 21.1; UHV78: 19.2 / 23.0; UHV84: 20.8 / 24.9
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): UHV60: 0.19; UHV66: 0.19; UHV72: 0.25; UHV78: 0.25; UHV84: 0.25
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″ x 4″): UHV60: 2; UHV66: 2; UHV72: 2; UHV78: 3; UHV84: 3

READY FOR THE FIELD

  • 3/4″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.
  • Virnig v50 utility bucket scoops and carries dense and bulk materials.
  • Capacity: struck / heaped (cu. ft.): 14.4 / 17.3 | 16.0 / 19.2 | 17.6 / 21.1 | 19.2 / 23.0 | 20.8 / 24.9
  • Width: overall / inside (in.): 61.5 / 59.3 | 67.5 / 65.3 | 73.5 / 71.3 | 79.5 / 77.3 | 85.8 / 83.3
