VIRNIG

V60 Angle Snow Blade

For Skid Steers & Track Loaders

72-120″ Widths

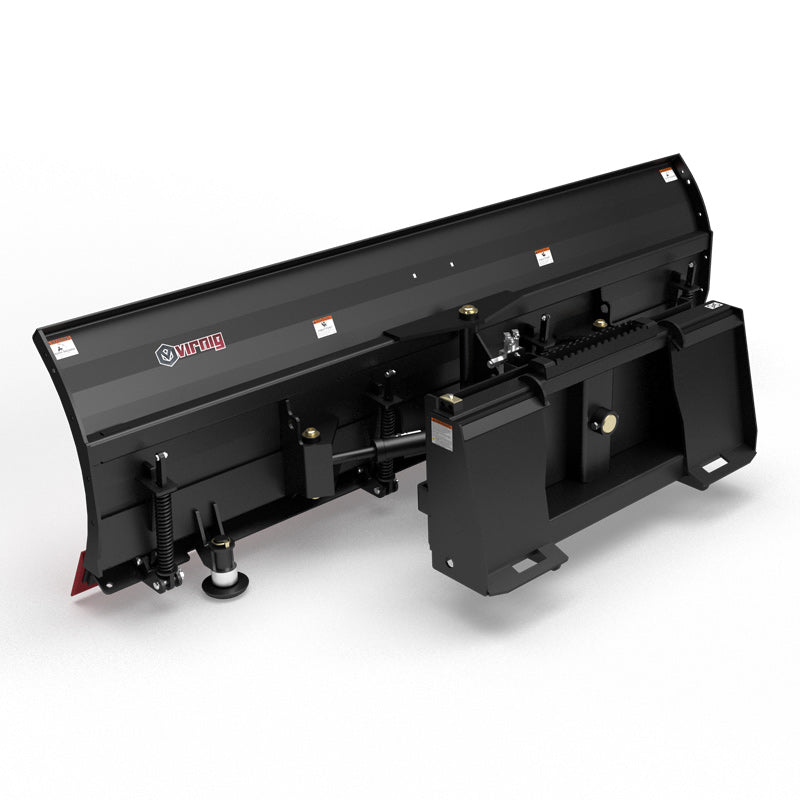

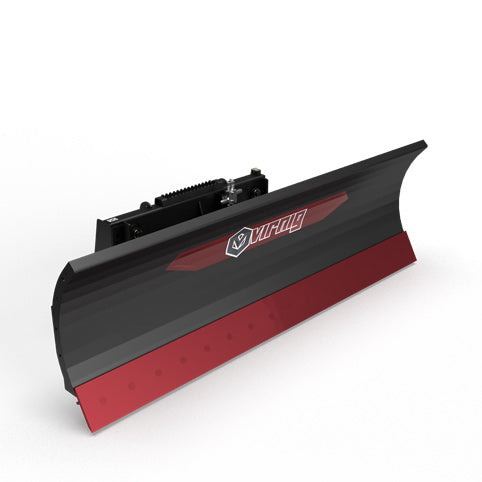

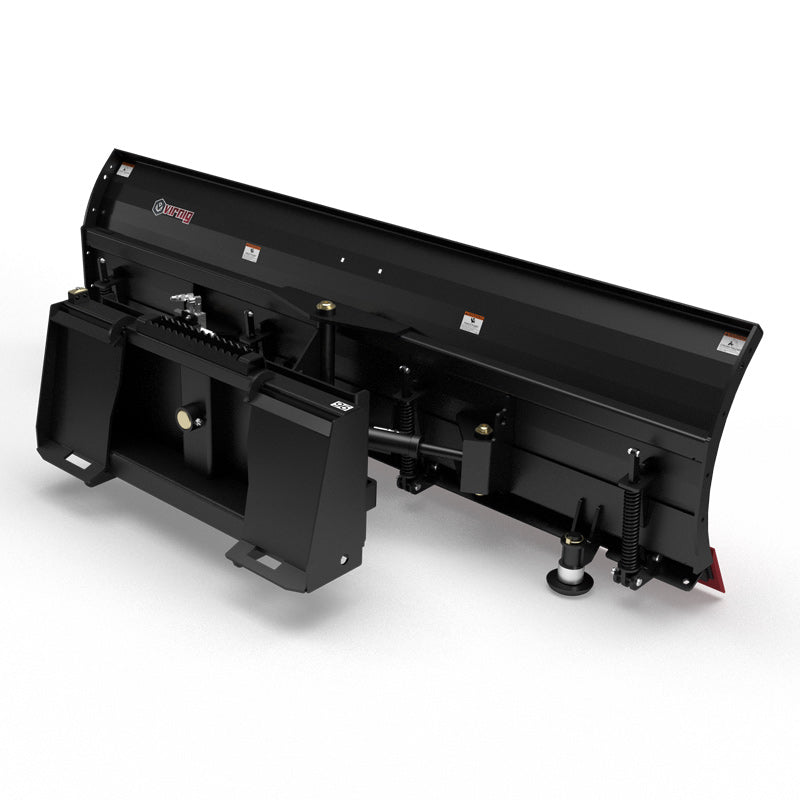

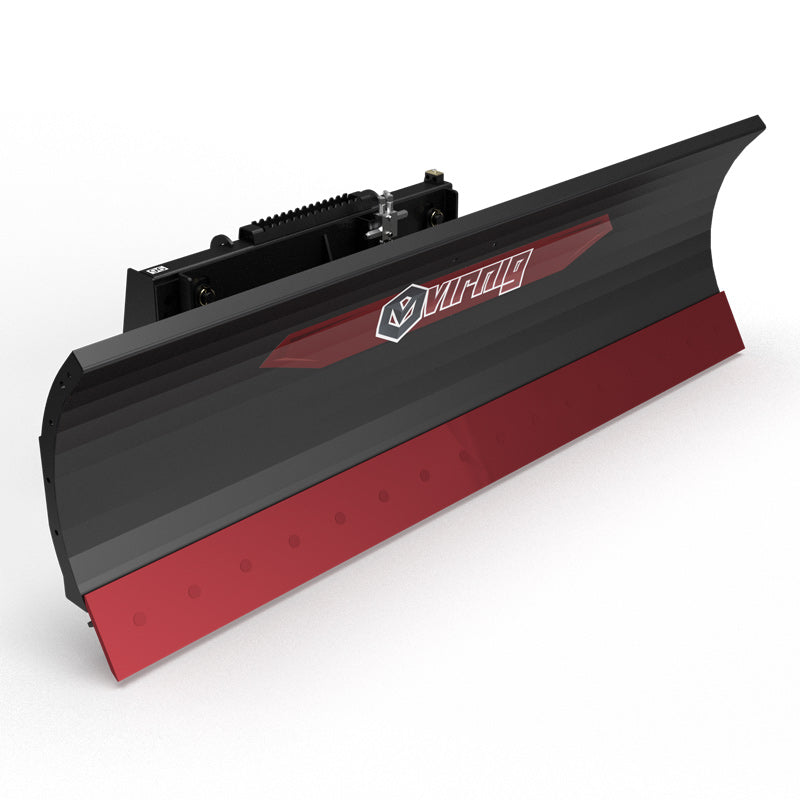

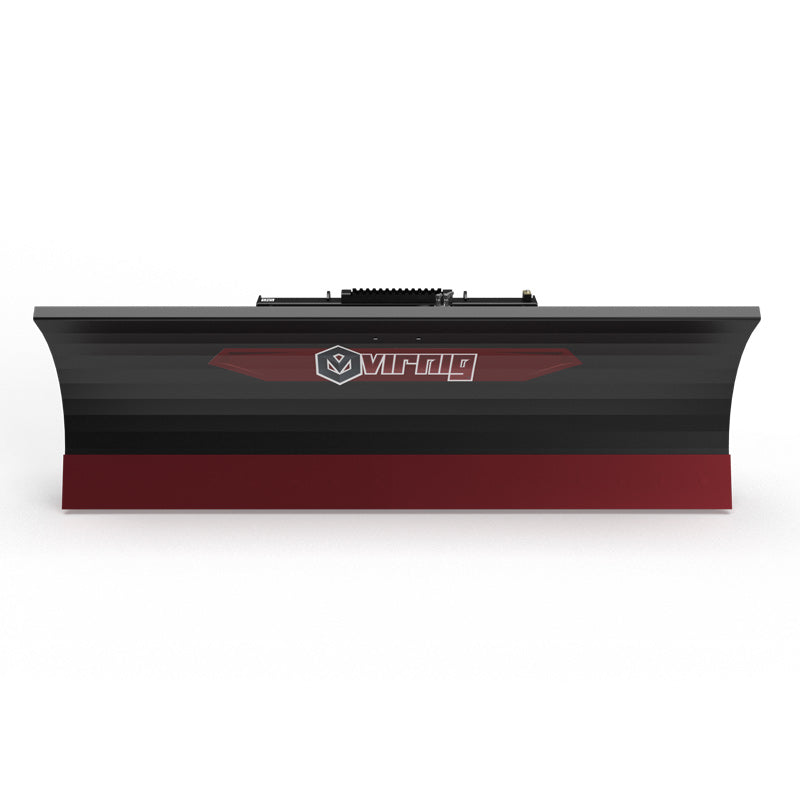

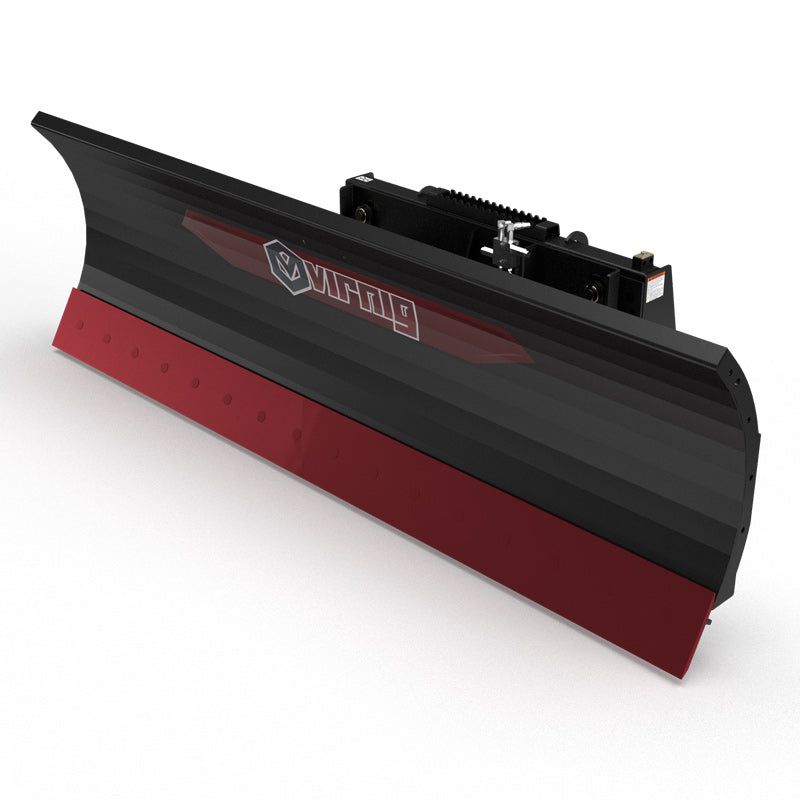

Virnig V60 Angle Snow Blade

Virnig

Virnig V60 Angle Snow Blade

SKU: SBS72 Currently In Stock

Sale price$6,835.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

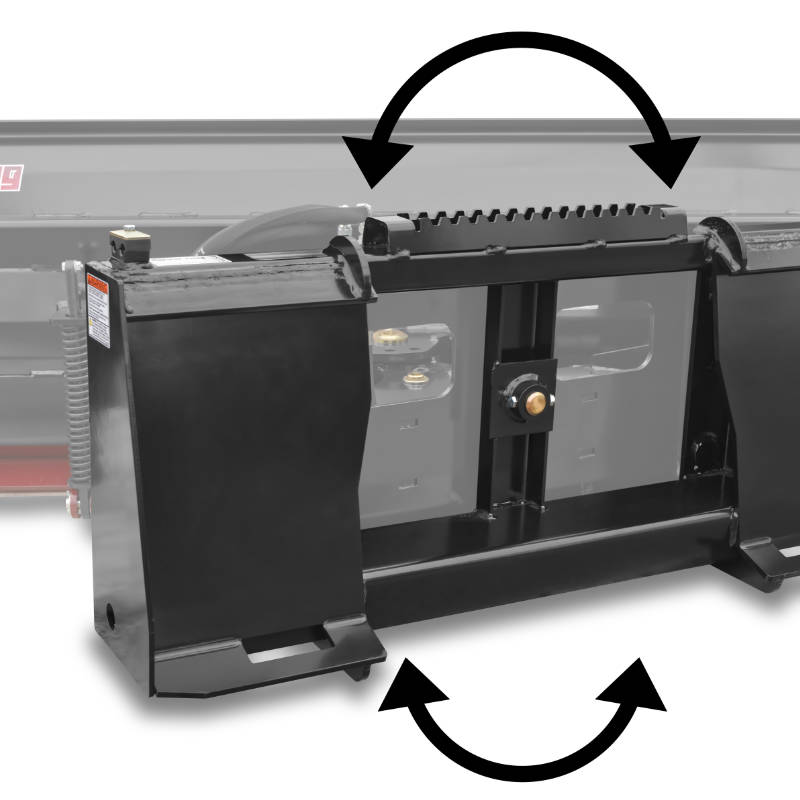

SIDE-TO-SIDE OSCILLATION

4° SIDE-TO-SIDE OSCILLATION HELPS THE WORKING EDGE FOLLOW UNEVEN SURFACES.

HYDRAULIC IMPACT RELIEF

HYDRAULIC CROSSOVER RELIEF VALVE PROTECTS THE ATTACHMENT BY ANGLING THE BLADE UPON IMPACT.

ADJUSTABLE WORKING ANGLE

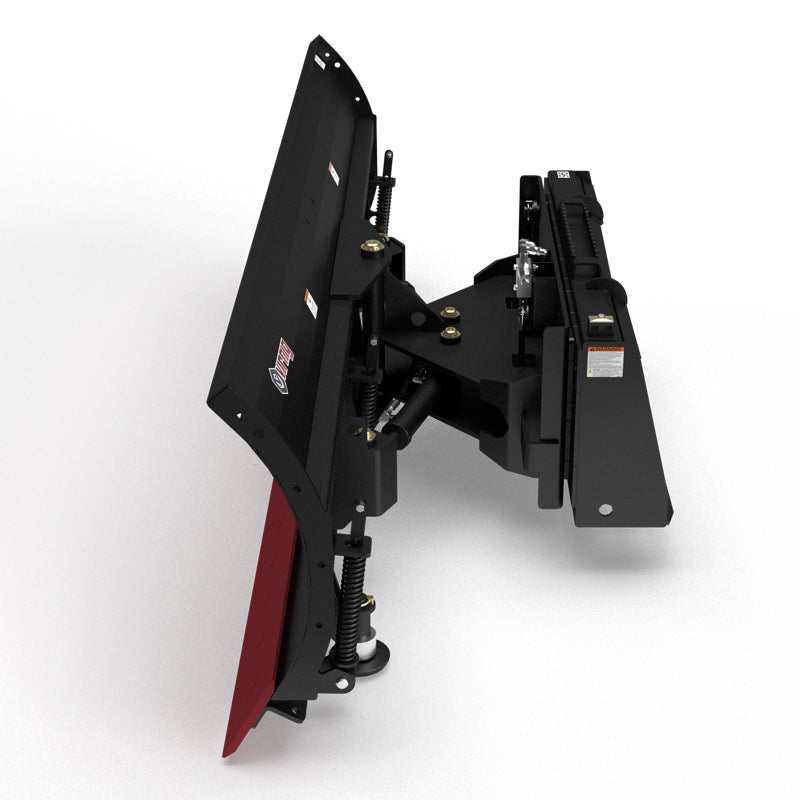

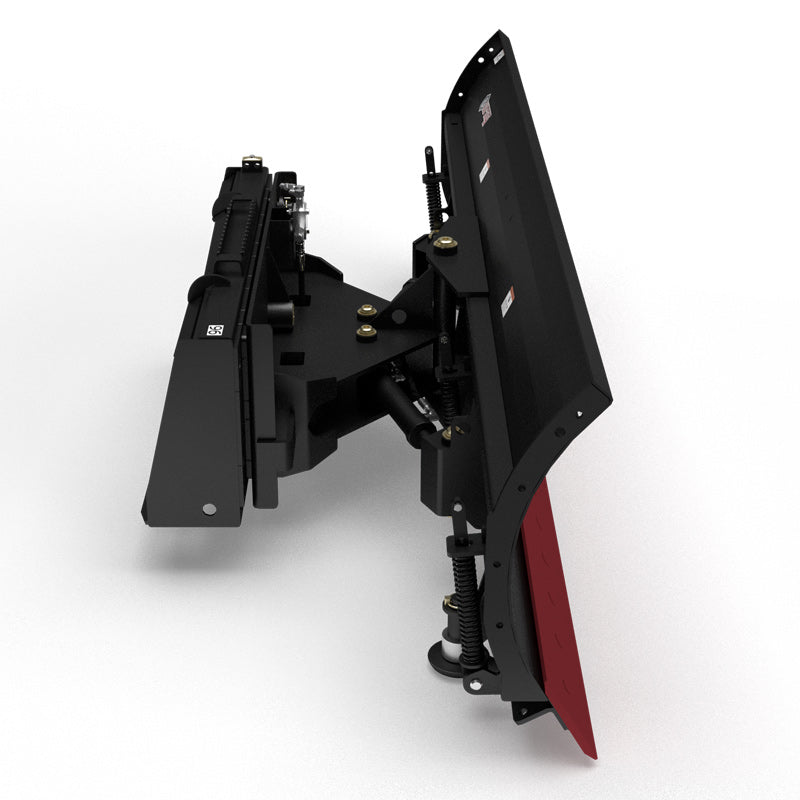

HYDRAULIC ANGLING MOVES THE BLADE 30° LEFT OR RIGHT WITHOUT LEAVING THE CAB.

TRIP-EDGE PROTECTION

THE TRIP EDGE YIELDS WHEN IT MEETS AN OBSTRUCTION TO HELP LIMIT IMPACT LOADS.

REPLACEABLE CUTTING EDGE

5/8″ X 8″ REVERSIBLE STEEL BOLT-ON EDGE ALLOWS 5 1/2″ OF WEAR.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

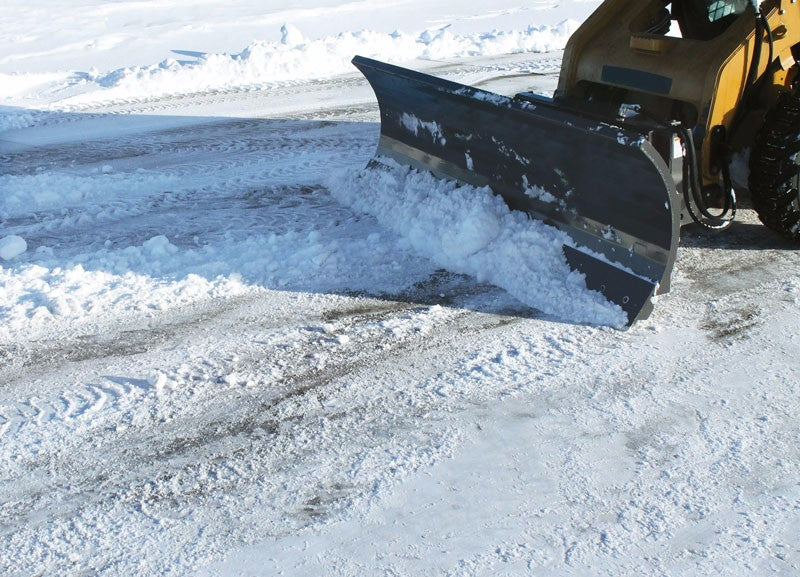

The Virnig V60 Angle Snow Blade clears and windrows snow with hydraulic control that turns the blade up to 30° left or right from the cab. It lets the operator direct snow through repeated passes without manually resetting the blade angle, making it useful for changing clearing routes and wider work areas.

A hydraulic crossover relief valve allows the blade to angle upon impact, helping protect the attachment when it encounters an obstruction. Four degrees of side-to-side oscillation help follow uneven surfaces. A trip edge provides another yielding component at the working surface, with a ⅝″ × 8″ reversible steel bolt-on edge offering up to 5½″ of wear.

Choose the width around the loader and the effective clearing path when fully angled. Match the required hydraulic connections and include the attachment's weight when checking carrier suitability. This is the single angle-blade arrangement; the V-Snow Blade and Hydraulic Snow Blade/Pusher offer different ways to contain or redirect the snow.

KEY BENEFITS

  • 4° side-to-side oscillation follows uneven surfaces.
  • Hydraulic crossover relief valve protects the attachment by angling the blade upon impact.
  • Angle the blade 30° left or right from inside the cab.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.

TECHNICAL SPECIFICATIONS

  • Models: SBS72 SBS84 SBS96 SBS108 SBS120
  • Width: Overall, Straight / Full Angle (in.): SBS72: 74.0 / 64.0; SBS84: 86.0 / 74.0; SBS96: 98.0 / 84.0; SBS108: 110.0 / 95.0; SBS120: 120.0 / 104.0
  • Overall Height (in.): 31.0
  • Overall Depth, Straight (in.): 37.5
  • Blade Angle (degrees): (+/-) 30
  • Moldboard Thickness (in.): 0.19
  • Cutting Edge (in.): 5/8 x 8 Bolt-on
  • Blade Oscillation (degrees): (+/-) 4
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Approximate Weight (lbs): SBS72: 1020¹; SBS84: 1075¹; SBS96: 1130¹; SBS108: 1185¹; SBS120: 1225¹
  • Recommended Loader Capacity: Greater than 1500 lbs
  • ¹Weight with steel edge installed.

APPLICATIONS

  • Driveway plowing
  • Parking lot clearing
  • Winter site maintenance

VIRNIG V60 ANGLE SNOW BLADE

WORKING DESIGN

  • 4° side-to-side oscillation follows uneven surfaces.
  • Hydraulic crossover relief valve protects the attachment by angling the blade upon impact.
  • Angle the blade 30° left or right from inside the cab.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.

CONFIGURATION AND SPECIFICATIONS

  • Models: SBS72 SBS84 SBS96 SBS108 SBS120
  • Width: Overall, Straight / Full Angle (in.): SBS72: 74.0 / 64.0; SBS84: 86.0 / 74.0; SBS96: 98.0 / 84.0; SBS108: 110.0 / 95.0; SBS120: 120.0 / 104.0
  • Overall Height (in.): 31.0
  • Overall Depth, Straight (in.): 37.5
  • Blade Angle (degrees): (+/-) 30
  • Moldboard Thickness (in.): 0.19
  • Cutting Edge (in.): 5/8 x 8 Bolt-on
  • Blade Oscillation (degrees): (+/-) 4
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375

READY FOR THE FIELD

  • 4° side-to-side oscillation follows uneven surfaces.
  • Hydraulic crossover relief valve protects the attachment by angling the blade upon impact.
  • Angle the blade 30° left or right from inside the cab.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.
