VIRNIG

V60 High Capacity Dirt Bucket

For Skid Steers & Track Loaders

72-90″ Widths

Virnig

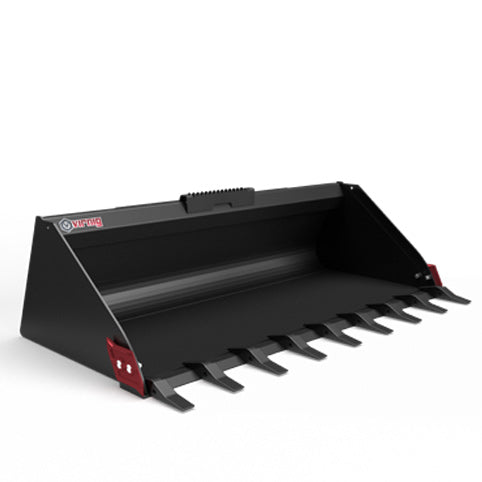

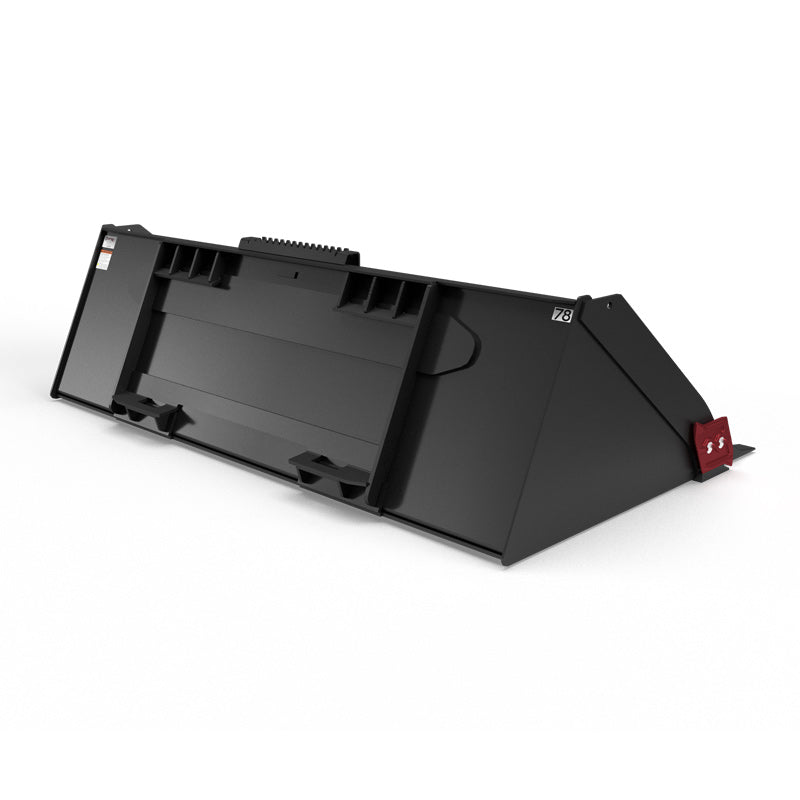

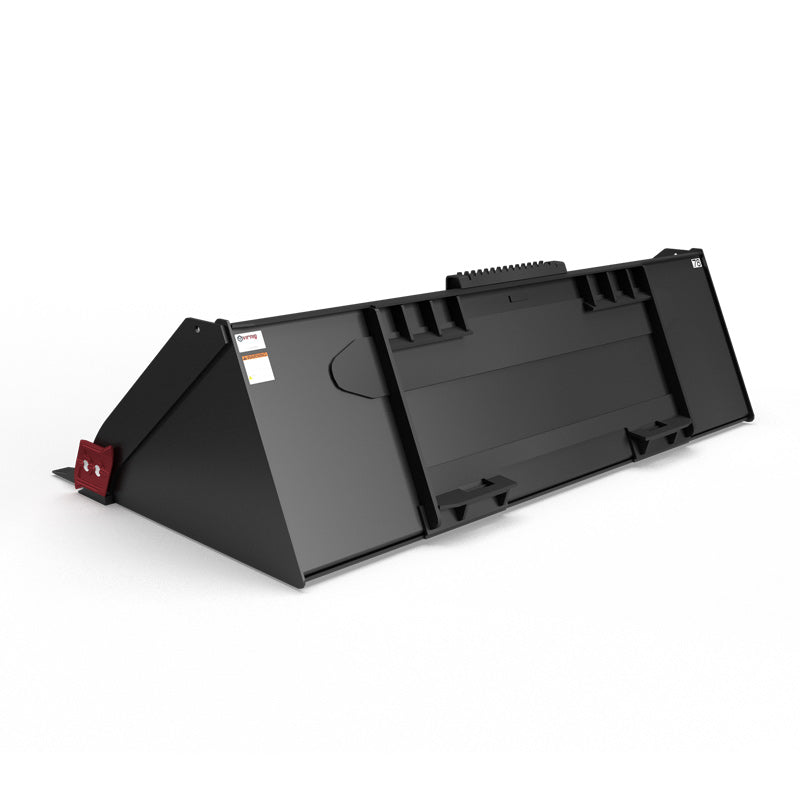

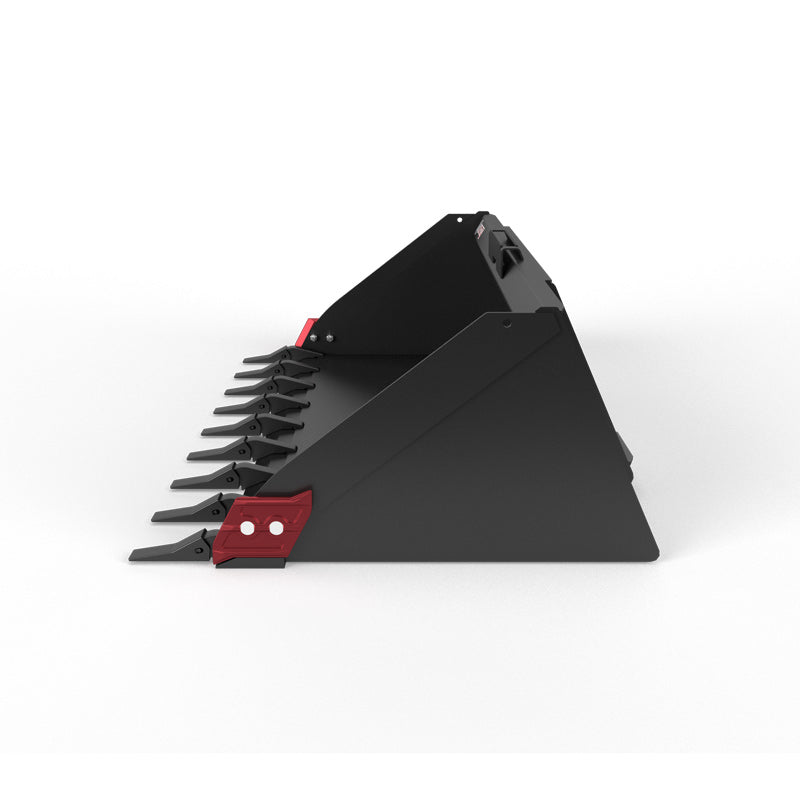

Virnig V60 High Capacity Dirt Bucket

SKU: HCDB72 Currently In Stock

Sale price$2,860.00 USD

MOST IMPORTANT FEATURES

VISIBLE CUTTING EDGE

A VISIBLE CUTTING EDGE HELPS THE OPERATOR PLACE THE BUCKET FOR DIGGING AND GRADING.

GRADING AND CLEANOUT PROFILE

GRADING BEND FOR OPTIMAL REVERSE GRADING AND CURVED INSIDE FOR EASIER MATERIAL CLEANOUT.

ONE-INCH WELD-ON EDGE

A 1″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S GROUND-CONTACT SURFACE.

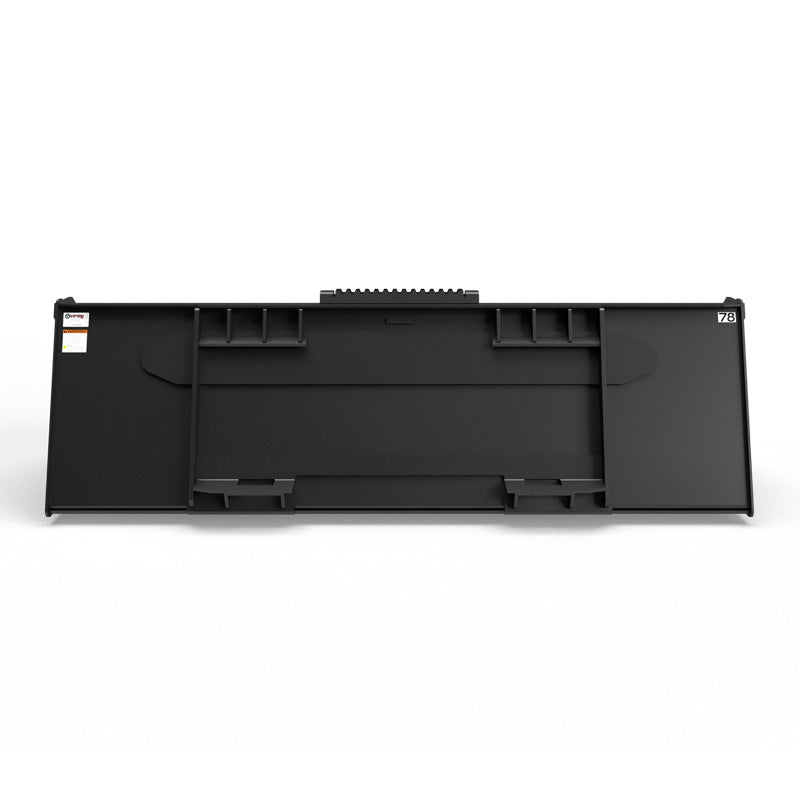

REAR BUCKET GUSSETS

ADDITIONAL REAR GUSSETS REINFORCE THE BUCKET NEAR ITS MOUNTING AREA.

FULL-WIDTH HEEL WEAR BAR

A FULL-WIDTH HEEL WEAR BAR PROTECTS THE REAR CONTACT AREA DURING GRADING.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 High Capacity Dirt Bucket adds carrying volume with a taller bucket profile while retaining a visible cutting edge. It is useful when loading and moving dirt or bulk material takes priority, but the operator still needs to see the edge for approaching the pile and working along the ground.

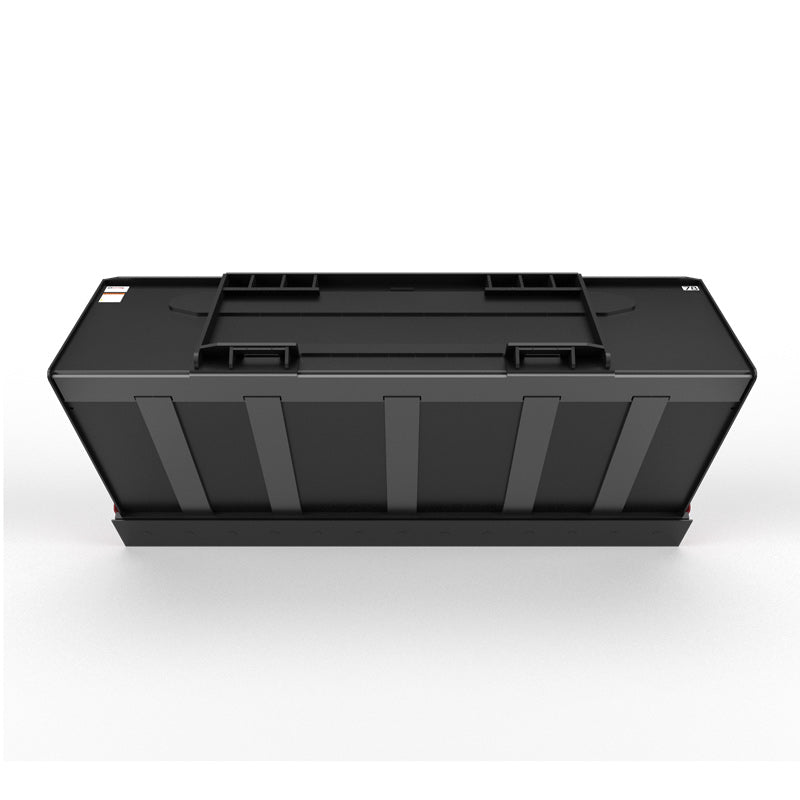

A grading bend supports reverse grading, and the curved interior helps release material during unloading. The leading surface uses a 1″ × 6″ weld-on edge. Additional rear gusseting, ½″ × 4″ bottom wear bars, and an extra wear bar across the full bucket heel reinforce and protect the areas exposed to repeated loading contact.

Choose the width and capacity for the carrier and the material's density. The taller bucket can hold more volume than a low-profile alternative, but the loader's weight limit still controls how much may be carried. Account for attachment weight and load position when selecting the configuration and deciding the appropriate fill level.

KEY BENEFITS

  • Cutting edge visible from inside cab.
  • Grading bend for optimal reverse grading and curved inside for easier material cleanout.
  • 1″ x 6″ weld-on edge.
  • Additional gusseting on back of bucket.
  • Additional wear bar across entire bucket heel for longevity.

TECHNICAL SPECIFICATIONS

  • Models: HCDB72 HCDB78 HCDB84 HCDB90
  • Width: Overall / Inside (in.): HCDB72: 73.5 / 71.3; HCDB78: 79.5 / 77.3; HCDB84: 85.5 / 83.3; HCDB90: 91.5 / 89.3
  • Overall Height (in.): 24.1
  • Depth: Overall / Inside (in.): 40.0 / 35.4
  • Capacity: Struck / Heaped (cu. ft.): HCDB72: 19.5 / 23.4; HCDB78: 21.1 / 25.3; HCDB84: 22.7 / 27.2; HCDB90: 24.3 / 29.2
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″ x 4″): 5
  • Approximate Weight (lbs): HCDB72: 805; HCDB78: 850; HCDB84: 890; HCDB90: 935
  • Recommended Loader Capacity: Greater than 2400 lbs

APPLICATIONS

  • Bulk earthmoving
  • Dirt loading
  • Site material handling

VIRNIG V60 HIGH CAPACITY DIRT BUCKET

WORKING DESIGN

  • Cutting edge visible from inside cab.
  • Grading bend for optimal reverse grading and curved inside for easier material cleanout.
  • 1″ x 6″ weld-on edge.
  • Additional gusseting on back of bucket.
  • Additional wear bar across entire bucket heel for longevity.

CONFIGURATION AND SPECIFICATIONS

  • Models: HCDB72 HCDB78 HCDB84 HCDB90
  • Width: Overall / Inside (in.): HCDB72: 73.5 / 71.3; HCDB78: 79.5 / 77.3; HCDB84: 85.5 / 83.3; HCDB90: 91.5 / 89.3
  • Overall Height (in.): 24.1
  • Depth: Overall / Inside (in.): 40.0 / 35.4
  • Capacity: Struck / Heaped (cu. ft.): HCDB72: 19.5 / 23.4; HCDB78: 21.1 / 25.3; HCDB84: 22.7 / 27.2; HCDB90: 24.3 / 29.2
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″ x 4″): 5

READY FOR THE FIELD

  • Cutting edge visible from inside cab.
  • Grading bend for optimal reverse grading and curved inside for easier material cleanout.
  • 1″ x 6″ weld-on edge.
  • Additional gusseting on back of bucket.
  • Additional wear bar across entire bucket heel for longevity.
