VIRNIG

V60 Hydraulic Snow Blade/Pusher

For Skid Steers & Track Loaders

120-156″ Widths

Virnig

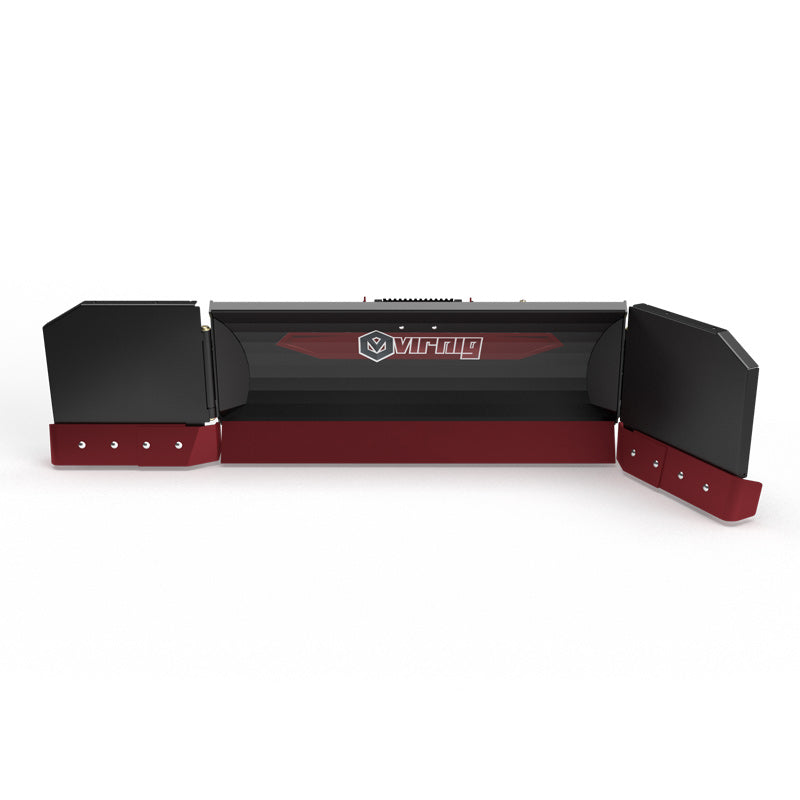

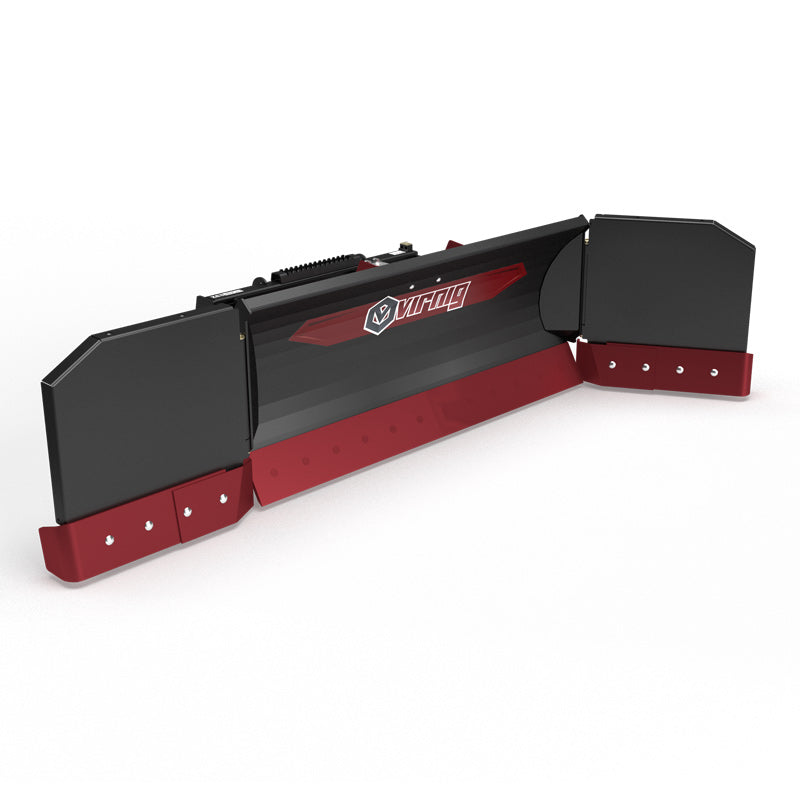

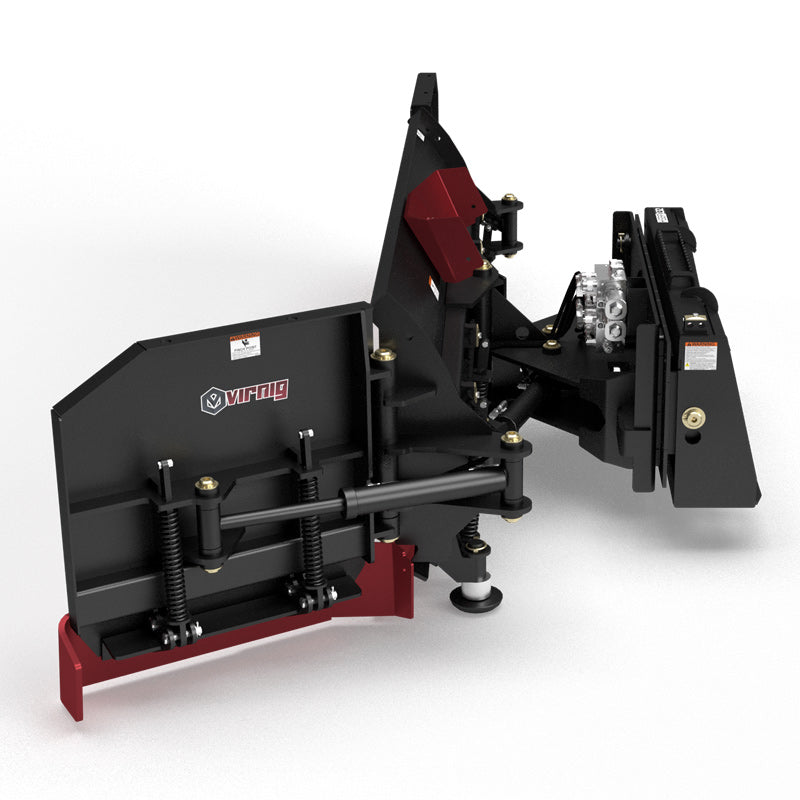

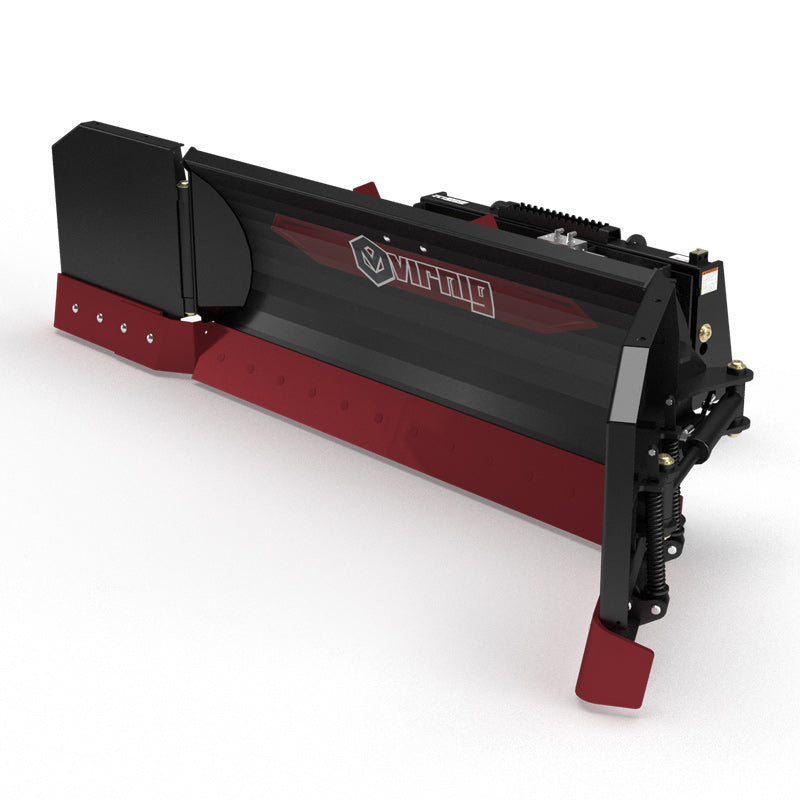

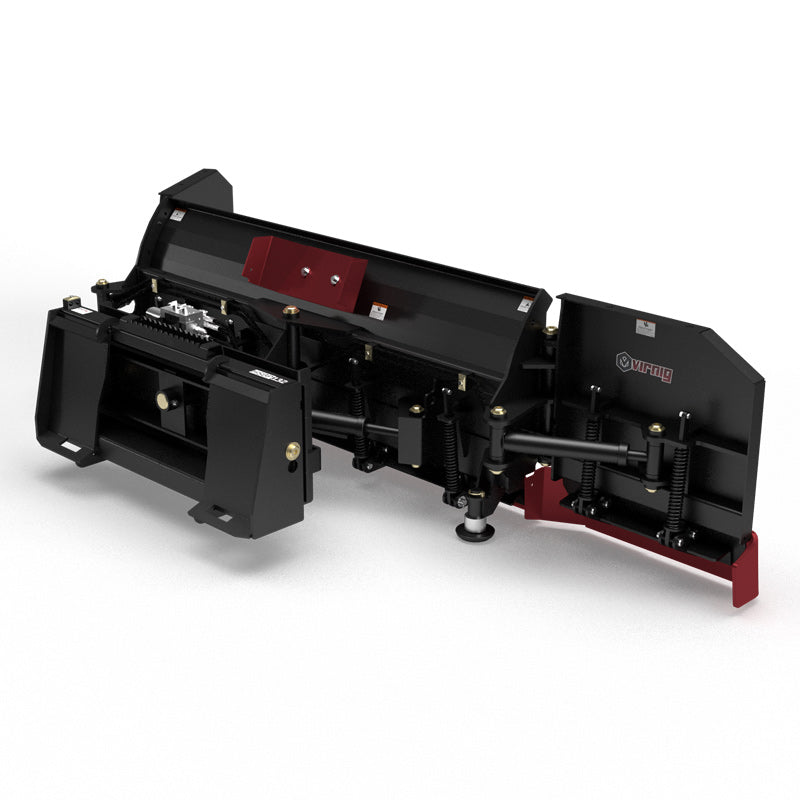

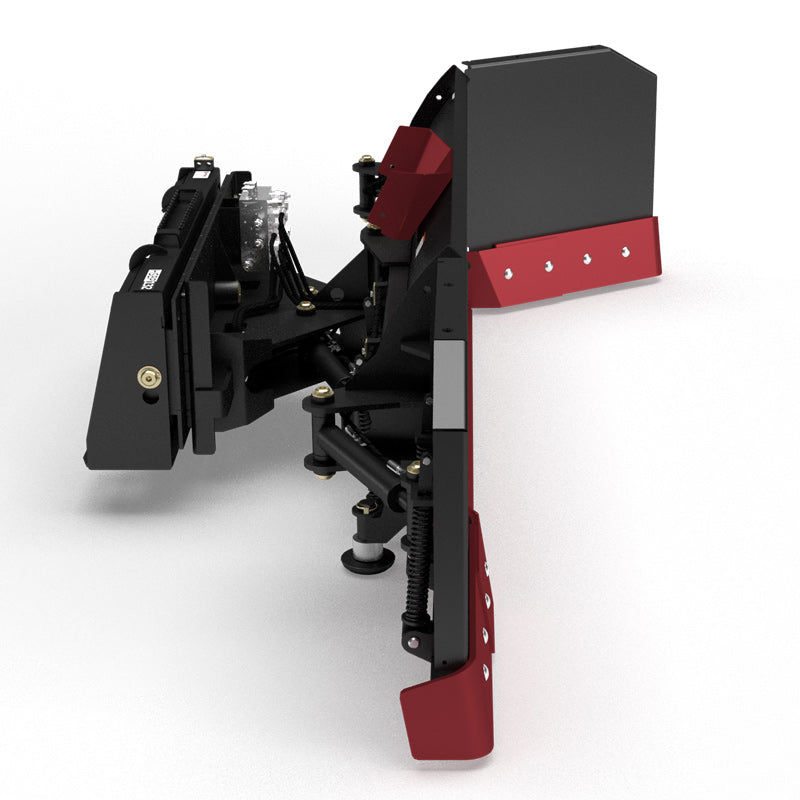

Virnig V60 Hydraulic Snow Blade/Pusher

SKU: HSBP120+ELC7-G3 Currently In Stock

Sale price$14,365.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

TERRAIN-FOLLOWING DESIGN

FREE FLOATING DESIGN AUTOMATICALLY ADAPTS TO UNEVEN GROUND IN ALL DIRECTIONS WHILE ALLOWING FULL DOWN PRESSURE.

HYDRAULIC IMPACT RELIEF

DUAL HYDRAULIC CROSSOVER RELIEF VALVES PROTECT THE ATTACHMENT BY ANGLING THE BLADE UPON IMPACT.

ADJUSTABLE WORKING ANGLE

INDEPENDENTLY ANGLE EACH WING 60° AND ANGLE THE BLADE 30° LEFT OR RIGHT, FROM INSIDE THE CAB.

TRIP-EDGE PROTECTION

TRIP EDGES ON MAIN BLADE AND WINGS PROTECT OPERATOR AND EQUIPMENT.

REVERSIBLE

REVERSIBLE, HARDENED MAIN EDGE AND AR400 WING EDGES INCREASE DURABILITY AND ALLOW 5 1/2″ OF WEAR.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

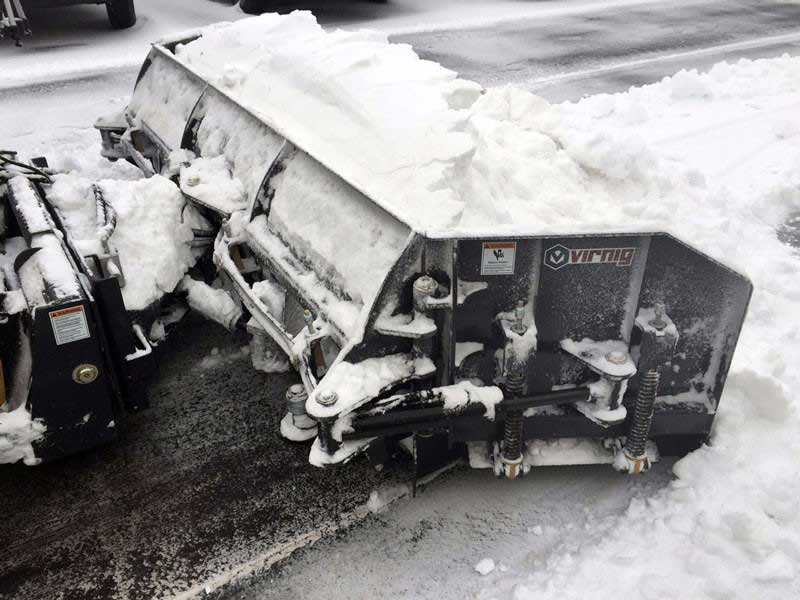

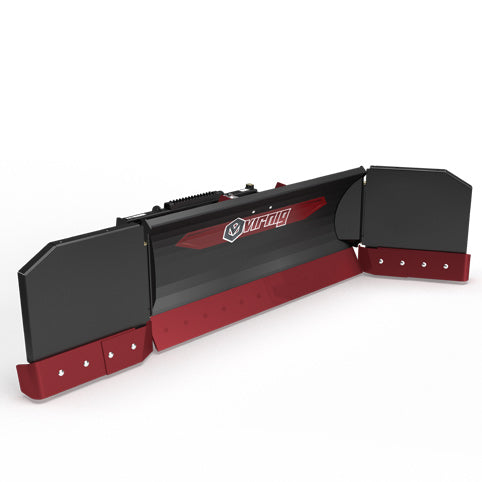

The Virnig V60 Hydraulic Snow Blade/Pusher combines directional plowing and snow containment with a main blade and independently controlled wings. Angle the main blade up to 30° left or right, and each wing up to 60°, to change how the attachment gathers, carries, and releases snow through the clearing pass.

The free-floating arrangement follows uneven ground in multiple directions while allowing full down pressure. Dual hydraulic crossover relief valves allow the blade to angle upon impact. Trip edges on both the main blade and wings add yielding working surfaces where the attachment contacts obstacles during plowing.

A reversible hardened main edge and AR400 wing edges provide serviceable wear surfaces with up to 5½″ of wear. Choose the model around the loader, control connections, and desired clearing width in the working position. This configuration is useful when one attachment needs to switch between windrowing snow and containing it for movement to a pile.

KEY BENEFITS

  • Free floating design automatically adapts to uneven ground in all directions while allowing full down pressure.
  • Dual hydraulic crossover relief valves protect the attachment by angling the blade upon impact.
  • Independently angle each wing 60° and angle the blade 30° left or right, from inside the cab.
  • Trip edges on main blade and wings protect operator and equipment.
  • Reversible, hardened main edge and AR400 wing edges increase durability and allow 5 1/2″ of wear.

TECHNICAL SPECIFICATIONS

  • Models: HSBP120 HSBP132 HSBP144 HSBP156
  • Main Moldboard Width (in.): HSBP120: 62.0; HSBP132: 74.0; HSBP144: 86.0; HSBP156: 98.0
  • Overall Height (in.): 31.0
  • Overall Depth, Straight (in.): 39.5
  • Angle: Blade / Wing (degrees): (+/-) 30 / 60
  • Moldboard Thickness (in.): 0.19
  • Edge: Main / Wing (in.): 5/8 x 8 Bolt-on / 1/2 x 7 3/4 AR400, Bolt-on

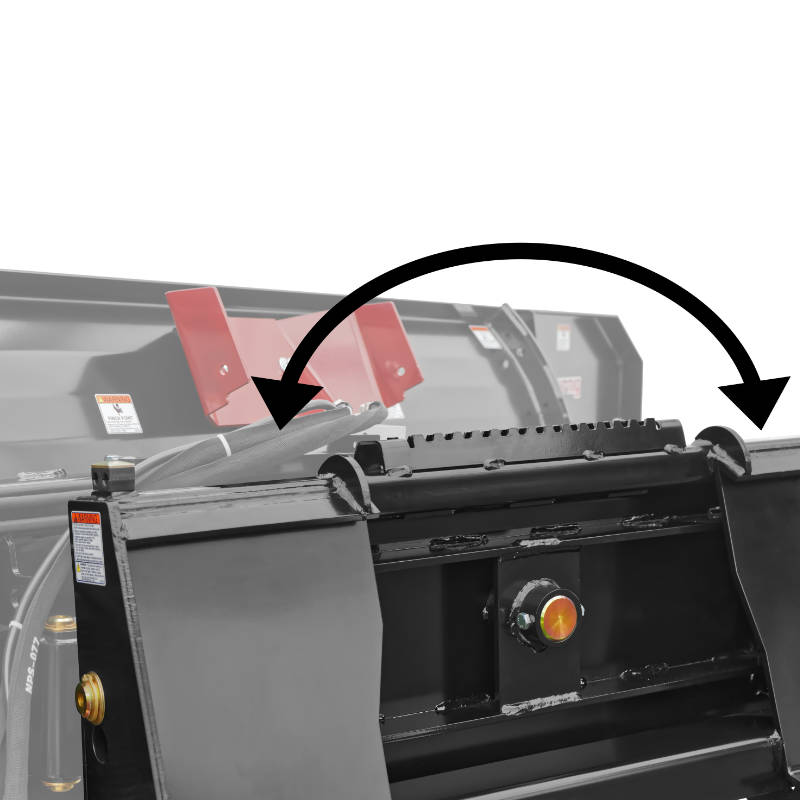

  • Blade Oscillation (degrees): (+/-) 4

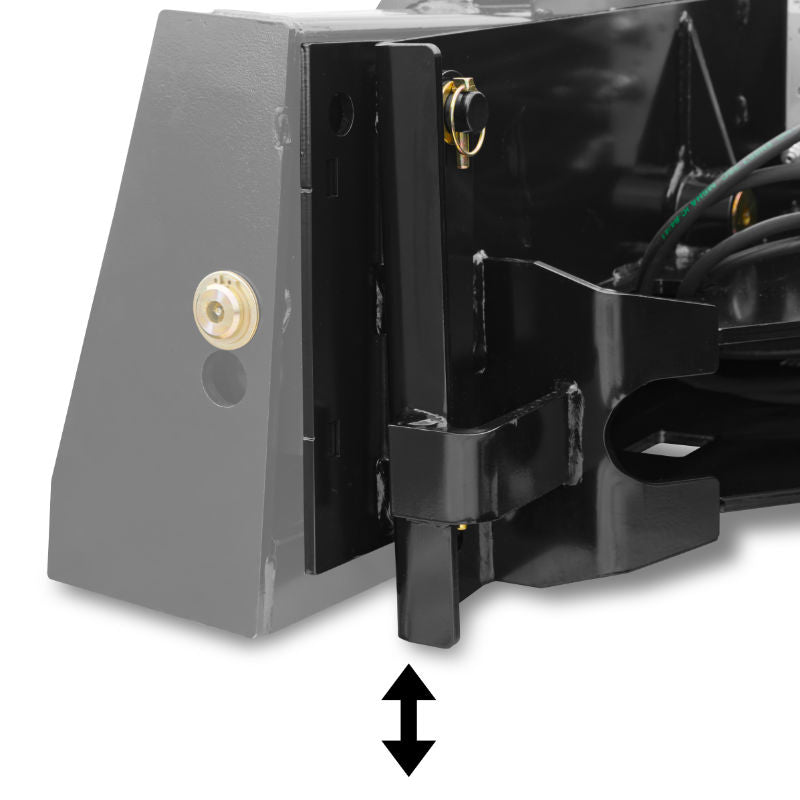

  • Float Link Angle (degrees): (+/-) 5
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Diameter (in.): 1.25 / 1.563
  • Approximate Weight (lbs): HSBP120: 1540¹; HSBP132: 1600¹; HSBP144: 1650¹; HSBP156: 1705¹
  • Recommended Loader Capacity: Greater than 1800 lbs
  • ¹Weight with Steel Edge installed.
  • Price includes the selected electrical controller. Match the controller to the carrier connection and hydraulic system.
  • HSBP120 widths (in.): straight overall 126; full angle with both wings open, overall / blade 112 / 108; full angle with one wing open 92.5 / 88; full angle and full scoop 93.5 / 84.5; full scoop 102.5 / 91.5.
  • HSBP132 widths (in.): straight overall 138; full angle with both wings open, overall / blade 122.5 / 118; full angle with one wing open 102.5 / 98.5; full angle and full scoop 103.5 / 95; full scoop 114.5 / 103.5.
  • HSBP144 widths (in.): straight overall 150; full angle with both wings open, overall / blade 133 / 128.5; full angle with one wing open 113 / 109; full angle and full scoop 114 / 105.5; full scoop 126.5 / 115.5.
  • HSBP156 widths (in.): straight overall 162; full angle with both wings open, overall / blade 143.5 / 139; full angle with one wing open 123.5 / 119.5; full angle and full scoop 124.5 / 116; full scoop 138.5 / 127.5.

APPLICATIONS

  • Commercial snow removal
  • Parking lot clearing
  • Snow stacking

VIRNIG V60 HYDRAULIC SNOW BLADE/PUSHER

WORKING DESIGN

  • Free floating design automatically adapts to uneven ground in all directions while allowing full down pressure.
  • Dual hydraulic crossover relief valves protect the attachment by angling the blade upon impact.
  • Independently angle each wing 60° and angle the blade 30° left or right, from inside the cab.
  • Trip edges on main blade and wings protect operator and equipment.
  • Reversible, hardened main edge and AR400 wing edges increase durability and allow 5 1/2″ of wear.

CONFIGURATION AND SPECIFICATIONS

  • Models: HSBP120 HSBP132 HSBP144 HSBP156
  • Main Moldboard Width (in.): HSBP120: 62.0; HSBP132: 74.0; HSBP144: 86.0; HSBP156: 98.0
  • Overall Height (in.): 31.0
  • Overall Depth, Straight (in.): 39.5
  • Angle: Blade / Wing (degrees): (+/-) 30 / 60
  • Moldboard Thickness (in.): 0.19
  • Edge: Main / Wing (in.): 5/8 x 8 Bolt-on / 1/2 x 7 3/4 AR400, Bolt-on
  • Blade Oscillation (degrees): (+/-) 4
  • Float Link Angle (degrees): (+/-) 5

READY FOR THE FIELD

  • Free floating design automatically adapts to uneven ground in all directions while allowing full down pressure.
  • Dual hydraulic crossover relief valves protect the attachment by angling the blade upon impact.
  • Independently angle each wing 60° and angle the blade 30° left or right, from inside the cab.
  • Trip edges on main blade and wings protect operator and equipment.
  • Reversible, hardened main edge and AR400 wing edges increase durability and allow 5 1/2″ of wear.
