VIRNIG

V60 Large Capacity Skeleton Grapple

For Skid Steers & Track Loaders

72-84″ Widths

Virnig

Virnig V60 Large Capacity Skeleton Grapple

SKU: LCG72 Currently In Stock

Sale price$9,415.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

GUSSETED CONSTRUCTION

GUSSETS REINFORCE THE TINE TIPS WHERE THEY CONTACT AND SUPPORT THE LOAD.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

OPEN MATERIAL HANDLING

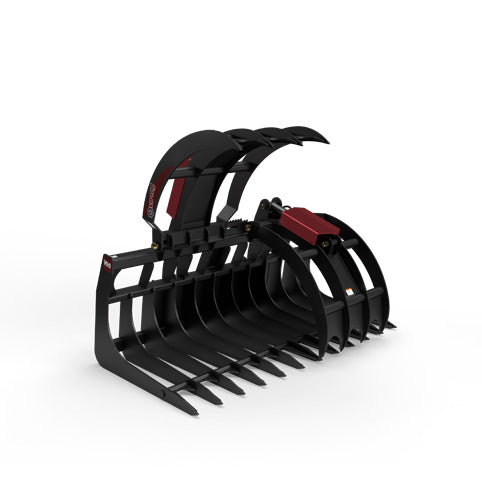

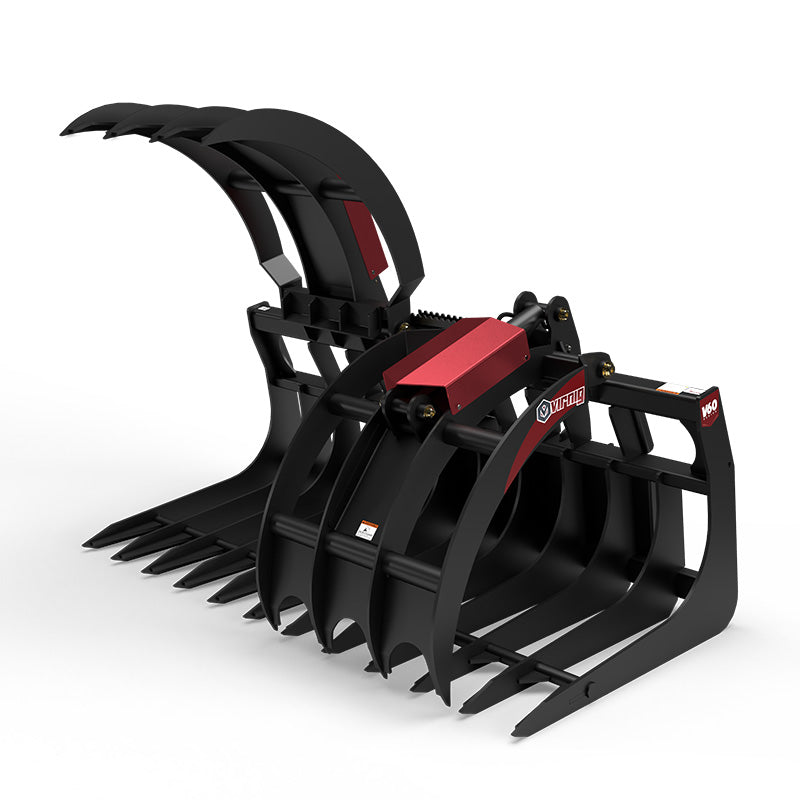

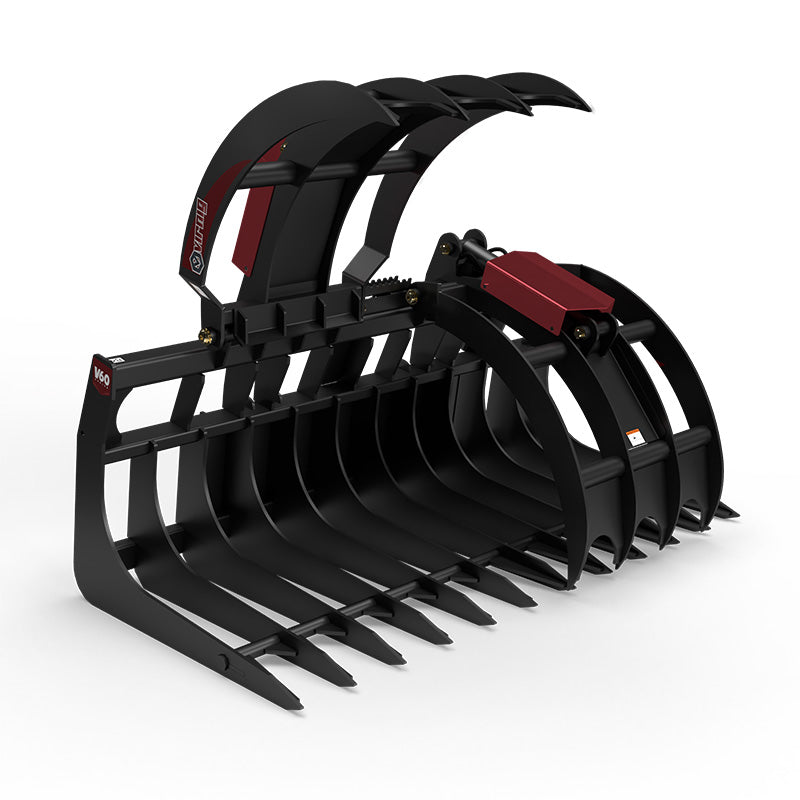

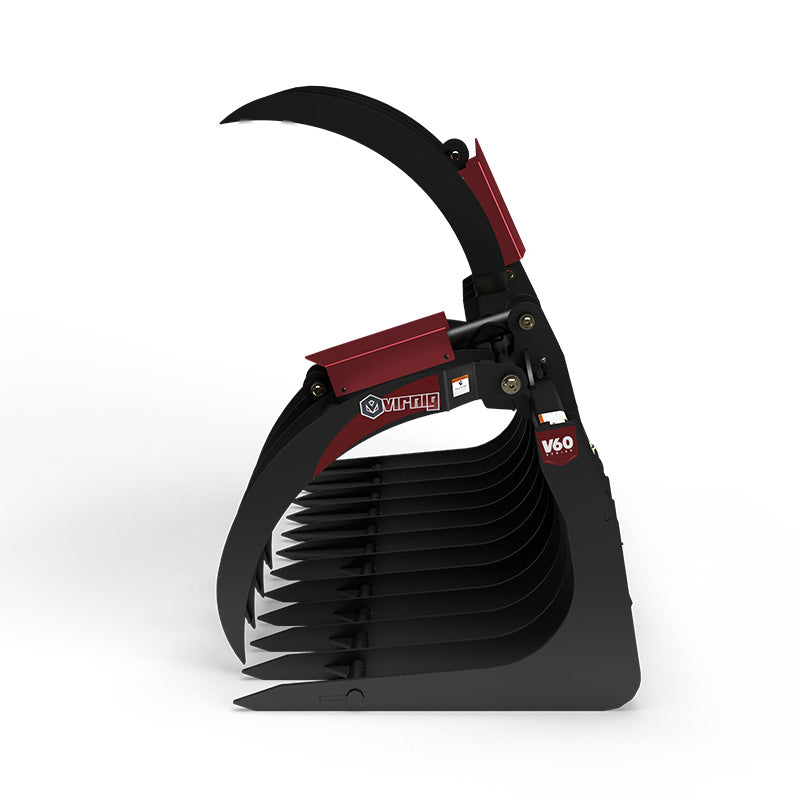

VIRNIG V60 LARGE CAPACITY SKELETON GRAPPLE HANDLES BULKY LOGS, BRUSH, AND UNEVEN LOADS WITH A LARGE GRAPPLE OPENING.

GRAPPLE JAW OPENING

THE 62.8″ JAW OPENING PROVIDES ROOM FOR BULKY LOGS AND LARGE BRUSH LOADS.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Large Capacity Skeleton Grapple is designed for bulky logs, brush, and uneven cleanup loads that need more room inside the grapple. Its 62.8″ jaw opening creates space to gather substantial piles, while the open lower frame lets loose soil fall through before the material is carried away.

One-half-inch Grade 80 steel tines support the load, with fully gusseted tine tips reinforcing the working end of the frame. The hydraulic grapple holds projecting branches and irregular objects against the lower bucket. This LCG arrangement emphasizes a larger gathering space rather than the closer sorting layout of a rock grapple.

NitroSteel® cylinder rods and Teflon®-coated bushings equip the hydraulic pivots, with cylinder guards included as standard. The larger frame also carries significant attachment weight, so size the model to the loader's capacity and the position of the intended load. Consider access width and transport clearance when choosing between the available models.

KEY BENEFITS

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Tine tips fully gusseted for added strength.
  • Standard with cylinder guards.
  • Virnig v60 large capacity skeleton grapple handles bulky logs, brush, and uneven loads with a large grapple opening.
  • Grapple jaw opening (in.): 62.8

TECHNICAL SPECIFICATIONS

  • Models: LCG72 LCG84
  • Overall Width (in.): LCG72: 73.0; LCG84: 85.0
  • Height: Overall / Bucket (in.): 42.5 / 33.0
  • Overall Depth (in.): 46.0
  • Number of Tines (w/ sides): LCG72: 10; LCG84: 12
  • Space Between Tines (in.): LCG72: 7.5; LCG84: 7.1
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.5 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 62.8
  • Approximate Weight (lbs): LCG72: 1585; LCG84: 1690
  • Recommended Loader Capacity: Greater than 2400 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Bulky brush loading
  • Log handling
  • Land clearing

VIRNIG V60 LARGE CAPACITY SKELETON GRAPPLE

WORKING DESIGN

  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Tine tips fully gusseted for added strength.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: LCG72 LCG84
  • Overall Width (in.): LCG72: 73.0; LCG84: 85.0
  • Height: Overall / Bucket (in.): 42.5 / 33.0
  • Overall Depth (in.): 46.0
  • Number of Tines (w/ sides): LCG72: 10; LCG84: 12
  • Space Between Tines (in.): LCG72: 7.5; LCG84: 7.1
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.5 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563

READY FOR THE FIELD

  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Tine tips fully gusseted for added strength.
  • Standard with cylinder guards.
  • Virnig v60 large capacity skeleton grapple handles bulky logs, brush, and uneven loads with a large grapple opening.
  • Grapple jaw opening (in.): 62.8
