VIRNIG

V60 Multi-Purpose Bucket (4-In-1)

For Skid Steers & Track Loaders

66-84″ Widths

Request QuoteAdd To Cart

Virnig V60 Multi-Purpose Bucket (4-in-1)

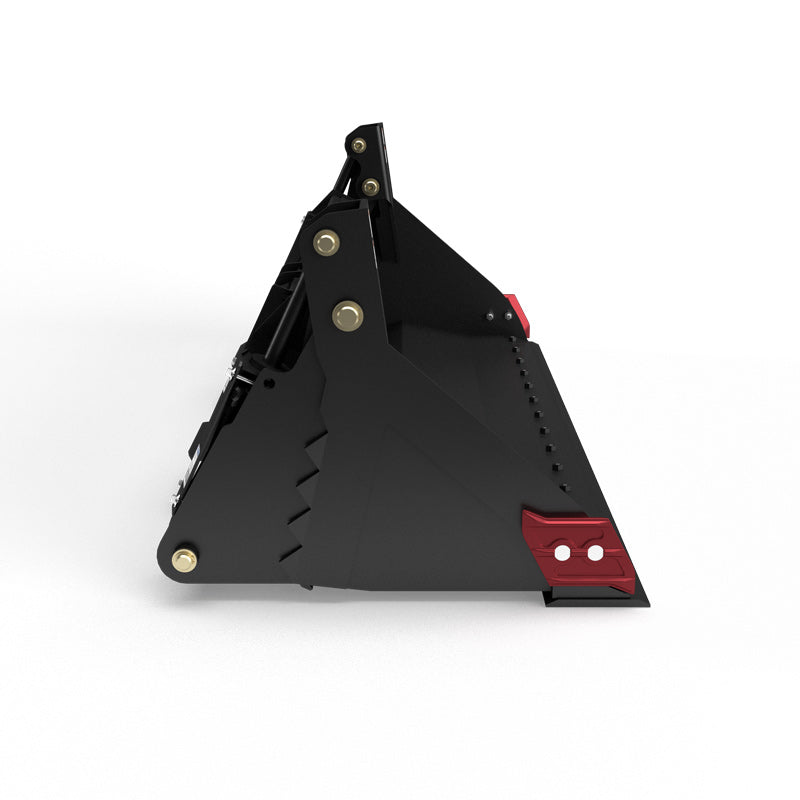

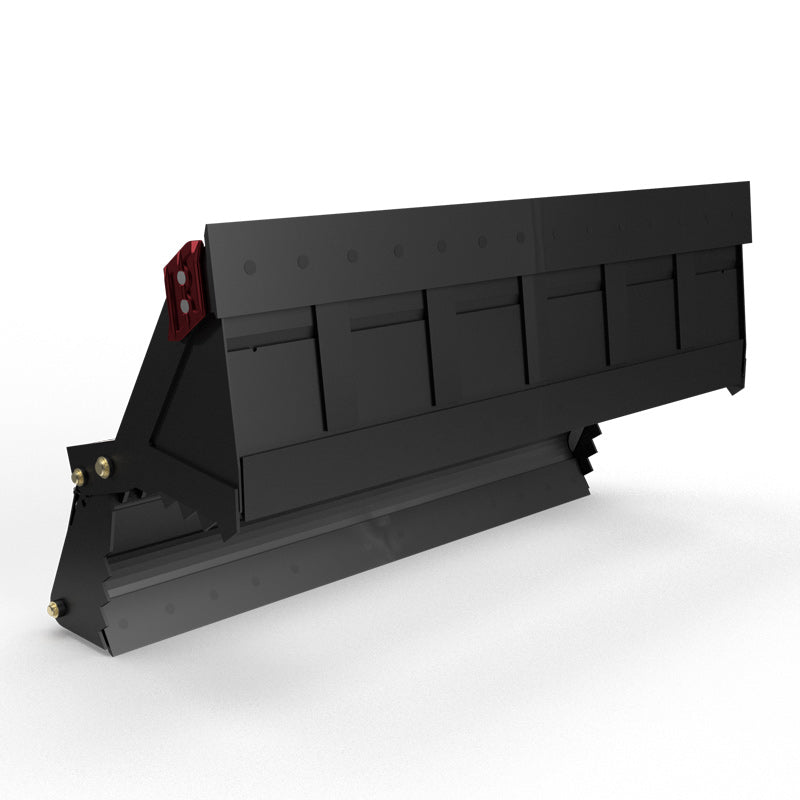

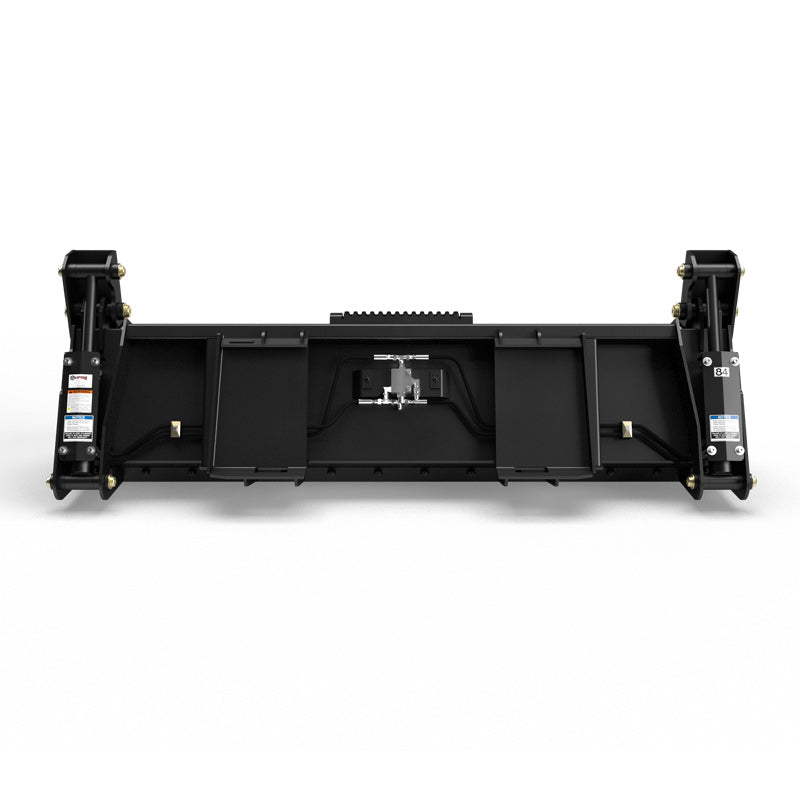

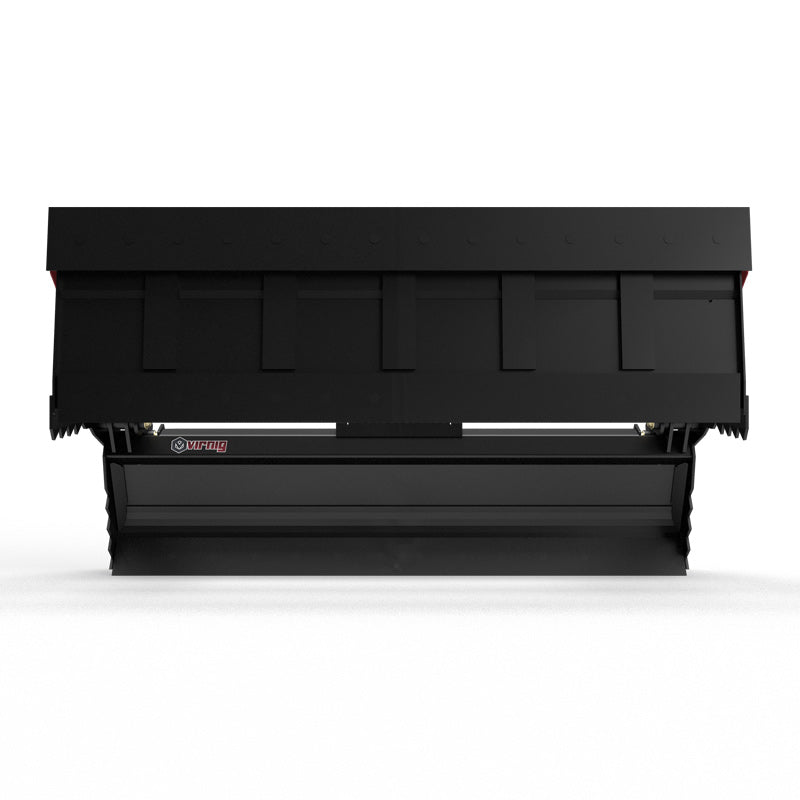

Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ

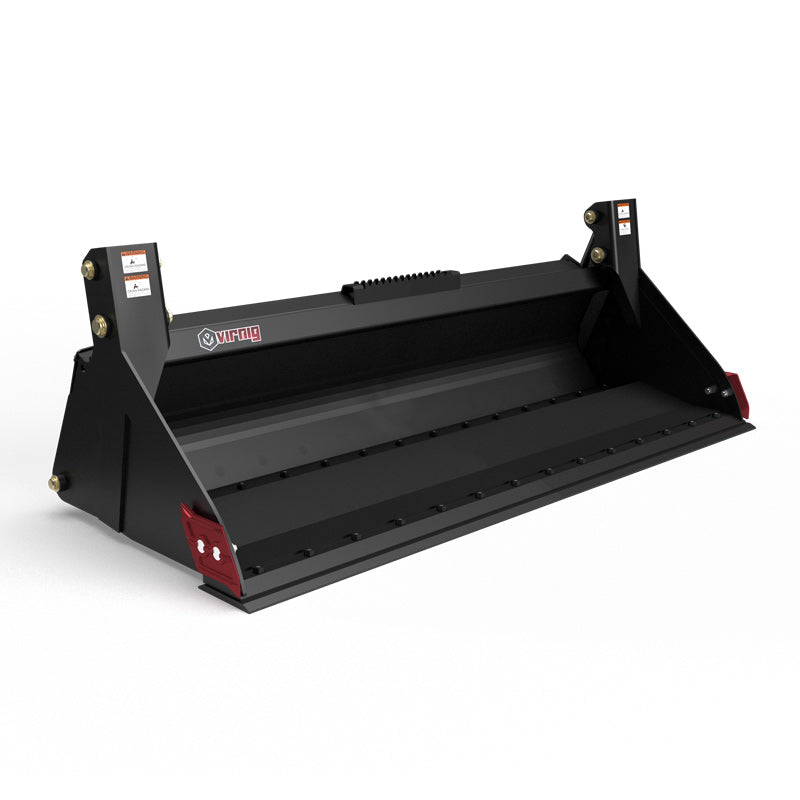

Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ

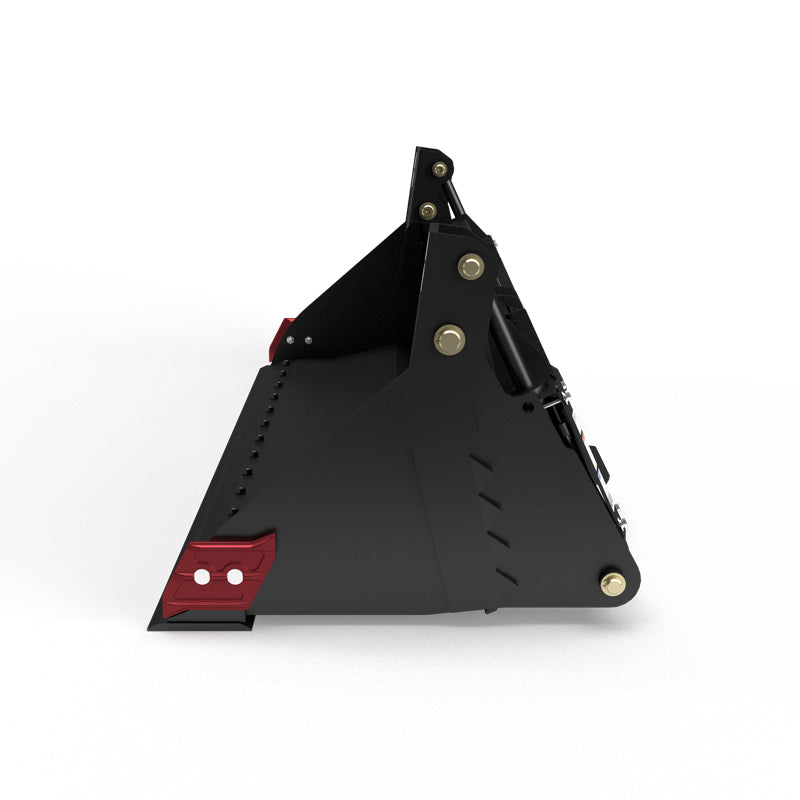

Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ

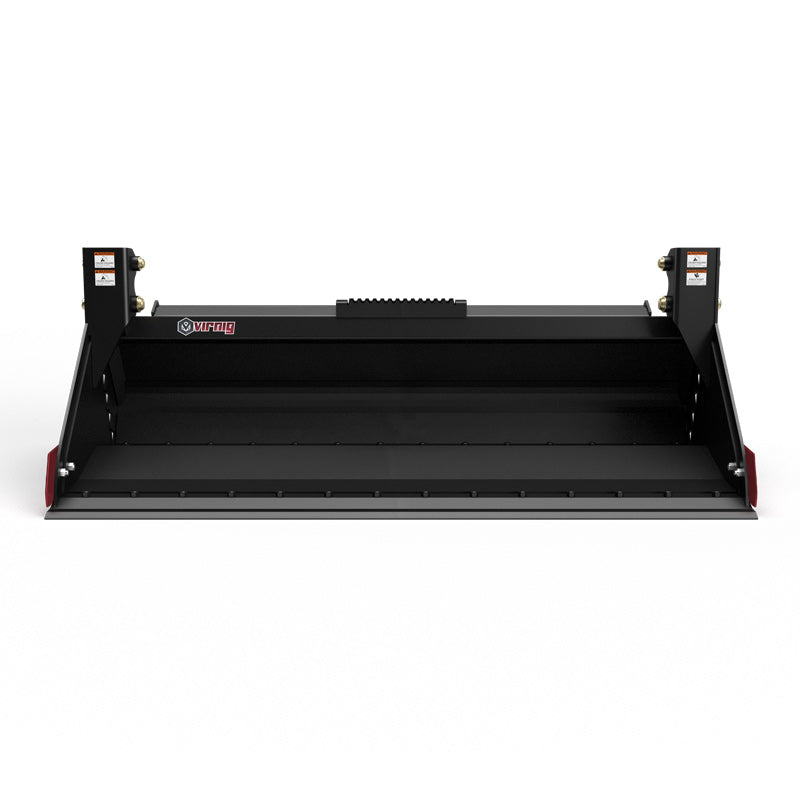

Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differVirnig V60 Multi-Purpose Bucket (4-in-1); manufacturer family image, configuration may differ
Virnig

Virnig V60 Multi-Purpose Bucket (4-in-1)

SKU: HMPV66 Currently In Stock

$6,535.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

REPLACEABLE CUTTING EDGE

REVERSIBLE ⅝″ X 6″ BOLT-ON EDGES CAN BE TURNED OR REPLACED AS THE WORKING FACE WEARS.

WELD-ON CUTTING EDGE

A 1″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S GROUND-CONTACT SURFACE.

MATERIAL HANDLING

VIRNIG V60 MULTI-PURPOSE BUCKET (4-IN-1) COMBINES DOZING, CLAMMING, LEVELING, AND BOTTOM DUMPING IN ONE BUCKET.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Multi-Purpose Bucket brings dozing, clamming, leveling, and bottom dumping together in a single hydraulic 4-in-1 bucket. It gives the operator several ways to engage and place material, helping one attachment cover loading, surface work, and cleanup tasks around a job site.

A 1″ × 6″ weld-on edge distinguishes the V60 bucket's leading construction from the V50 model. Reversible ⅝″ × 6″ steel bolt-on edges provide renewable working surfaces, while the opening clam arrangement adds gripping and controlled bottom release. The operating approach can be changed from the loader without replacing the entire attachment.

Standard guards shield the cylinders, and NitroSteel® rods with Teflon®-coated bushings equip the hydraulic pivots. Match bucket width, attachment weight, and hydraulic connections to the carrier before choosing a configuration. The bucket's multiple functions add versatility, but the loader's actual capacity still determines how much material can be safely handled.

KEY BENEFITS

  • Standard with cylinder guards.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 5/8″ x 6″ reversible steel bolt-on edges.
  • 1″ x 6″ weld-on edge.
  • Virnig v60 multi-purpose bucket (4-in-1) combines dozing, clamming, leveling, and bottom dumping in one bucket.

TECHNICAL SPECIFICATIONS

  • Models: HMPV66 HMPV72 HMPV78 HMPV84
  • Width: Overall, Straight / Inside (in.): HMPV66: 67.5 / 65.5; HMPV72: 73.5 / 71.5; HMPV78: 79.5 / 77.5; HMPV84: 85.5 / 83.5
  • Height: Overall / Bucket / Open (in.): 29.8 / 21.3 / 46.0
  • Depth: Overall / Inside (in.): 37.0 / 28.5
  • Working Width (in.): HMPV66: 65.9; HMPV72: 71.9; HMPV78: 77.9; HMPV84: 83.9
  • Clam Opening (in.): 33.0
  • Thickness: Shell / Hinge Structure (in.): 0.25 / 0.5
  • Structural Wear Bars Under Bucket (1/2” x 4”): HMPV66: 4; HMPV72: 4; HMPV78: 5; HMPV84: 5
  • Bucket (1/2” x 4”) Cylinder Bore / Stroke (in.): 2.5 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Approximate Weight (lbs): HMPV66: 1045; HMPV72: 1100; HMPV78: 1165; HMPV84: 1220
  • Recommended Loader Capacity: Greater than 2400 lbs

APPLICATIONS

  • Grading
  • Clamping and carrying material

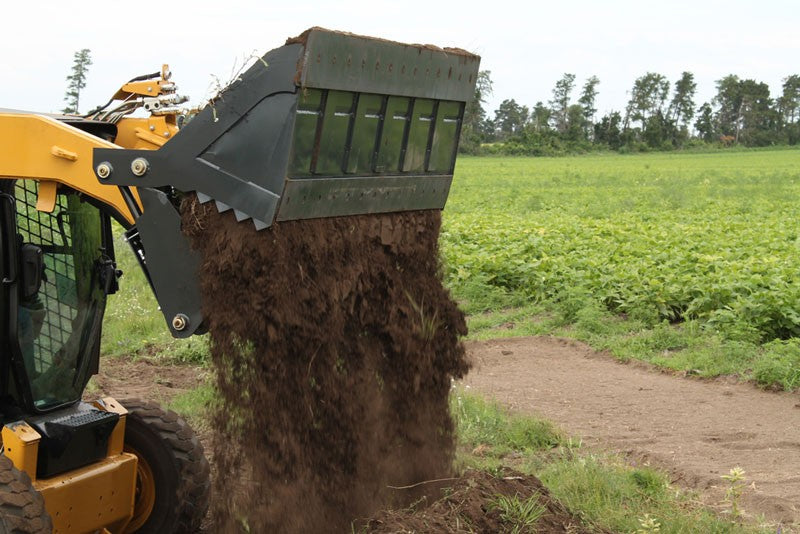

  • Controlled bottom dumping

VIRNIG V60 MULTI-PURPOSE BUCKET (4-IN-1)

WORKING DESIGN

  • Standard with cylinder guards.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 5/8″ x 6″ reversible steel bolt-on edges.
  • 1″ x 6″ weld-on edge.

CONFIGURATION AND SPECIFICATIONS

  • Models: HMPV66 HMPV72 HMPV78 HMPV84
  • Width: Overall, Straight / Inside (in.): HMPV66: 67.5 / 65.5; HMPV72: 73.5 / 71.5; HMPV78: 79.5 / 77.5; HMPV84: 85.5 / 83.5
  • Height: Overall / Bucket / Open (in.): 29.8 / 21.3 / 46.0
  • Depth: Overall / Inside (in.): 37.0 / 28.5
  • Working Width (in.): HMPV66: 65.9; HMPV72: 71.9; HMPV78: 77.9; HMPV84: 83.9
  • Clam Opening (in.): 33.0
  • Thickness: Shell / Hinge Structure (in.): 0.25 / 0.5
  • Structural Wear Bars Under Bucket (1/2” x 4”): HMPV66: 4; HMPV72: 4; HMPV78: 5; HMPV84: 5
  • Bucket (1/2” x 4”) Cylinder Bore / Stroke (in.): 2.5 / 8.375

READY FOR THE FIELD

  • Standard with cylinder guards.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 5/8″ x 6″ reversible steel bolt-on edges.
  • 1″ x 6″ weld-on edge.
  • Virnig v60 multi-purpose bucket (4-in-1) combines dozing, clamming, leveling, and bottom dumping in one bucket.
