VIRNIG

V60 Root Rake Grapple

For Skid Steers & Track Loaders

72-84″ Widths

Request QuoteAdd To Cart

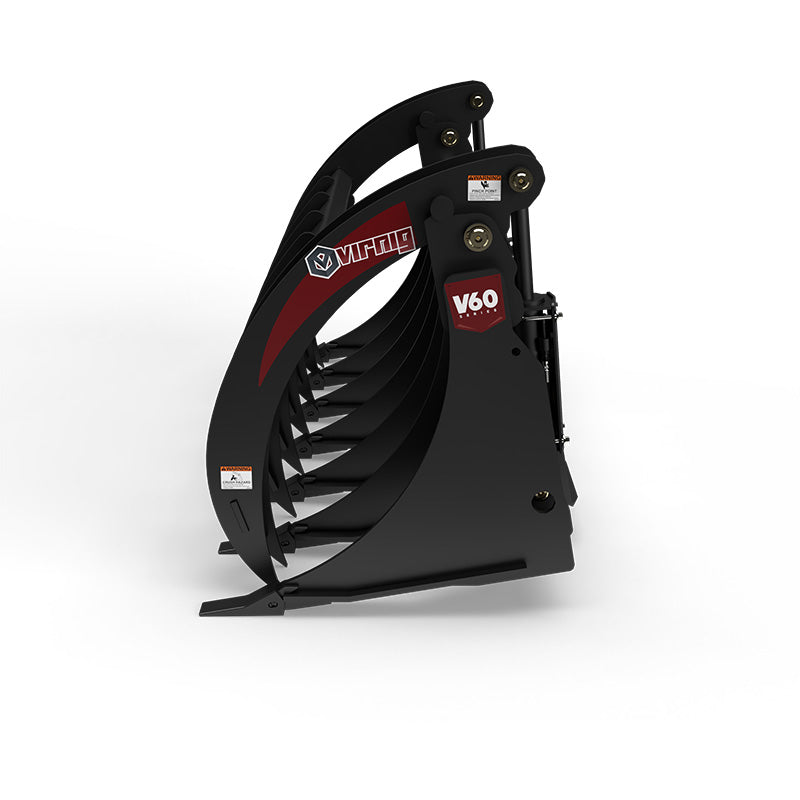

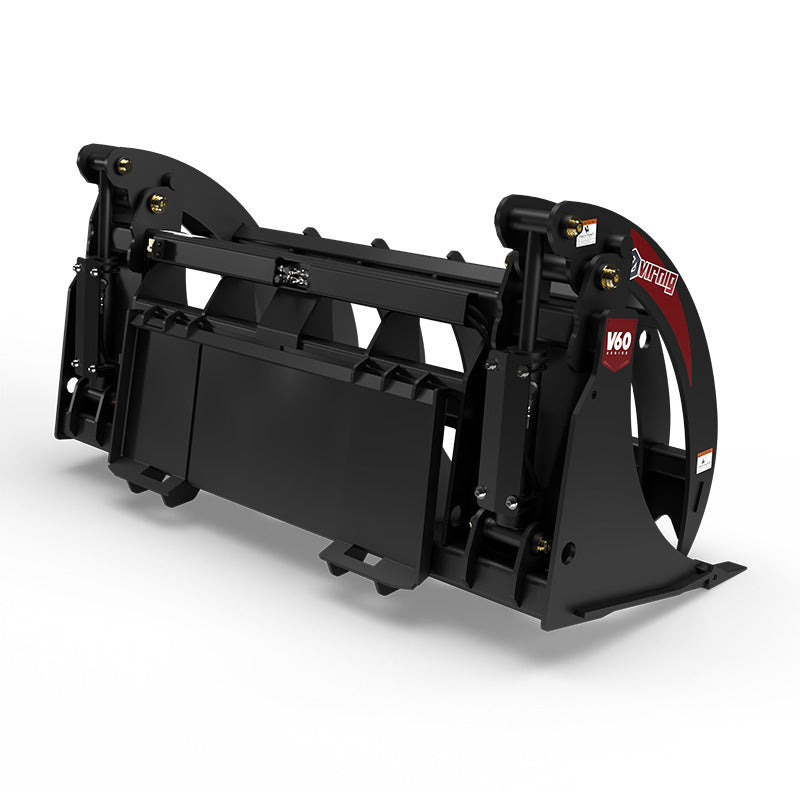

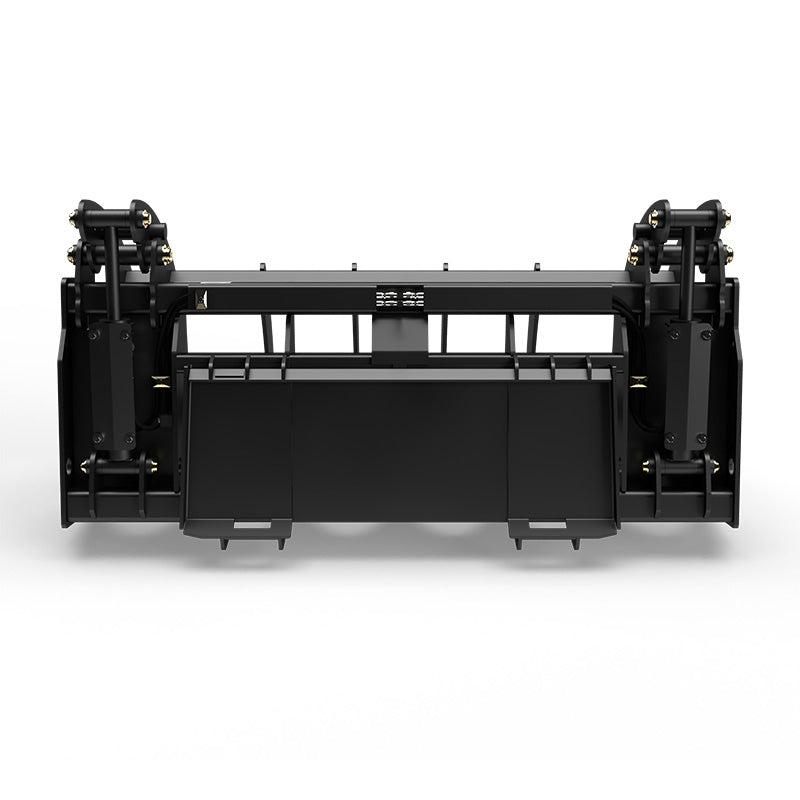

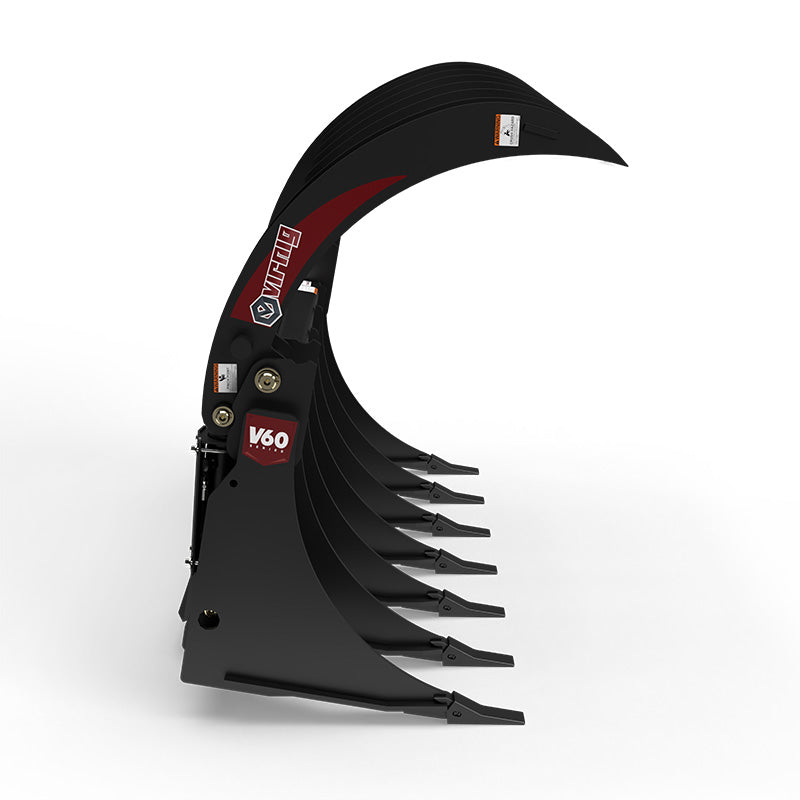

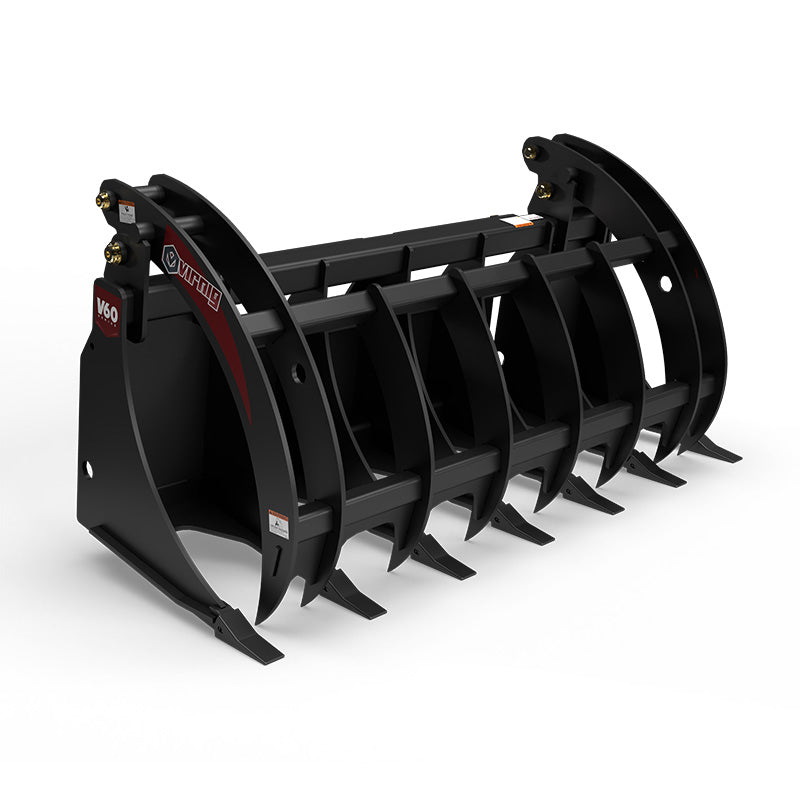

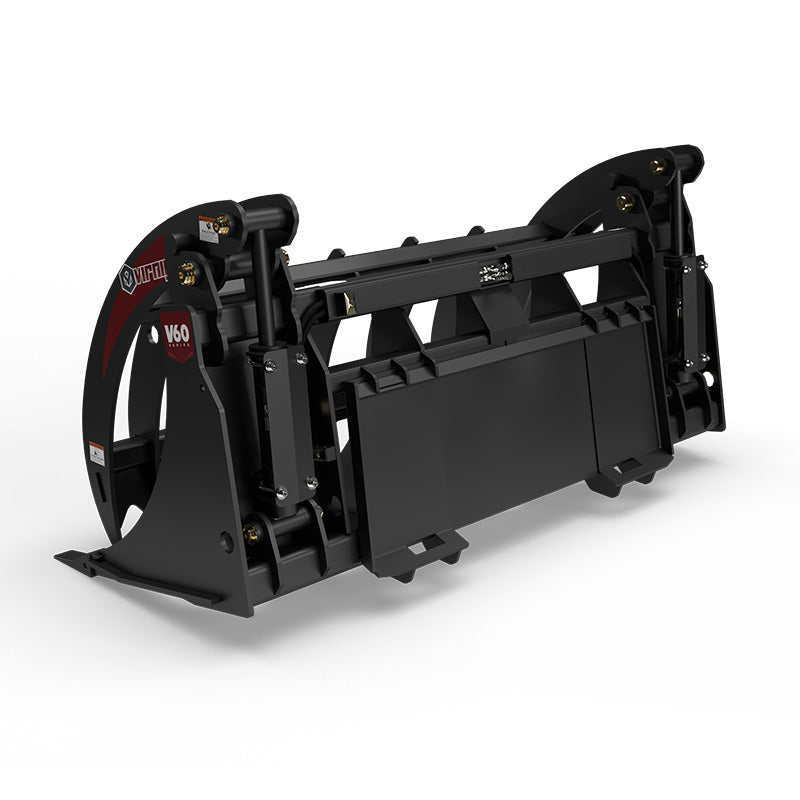

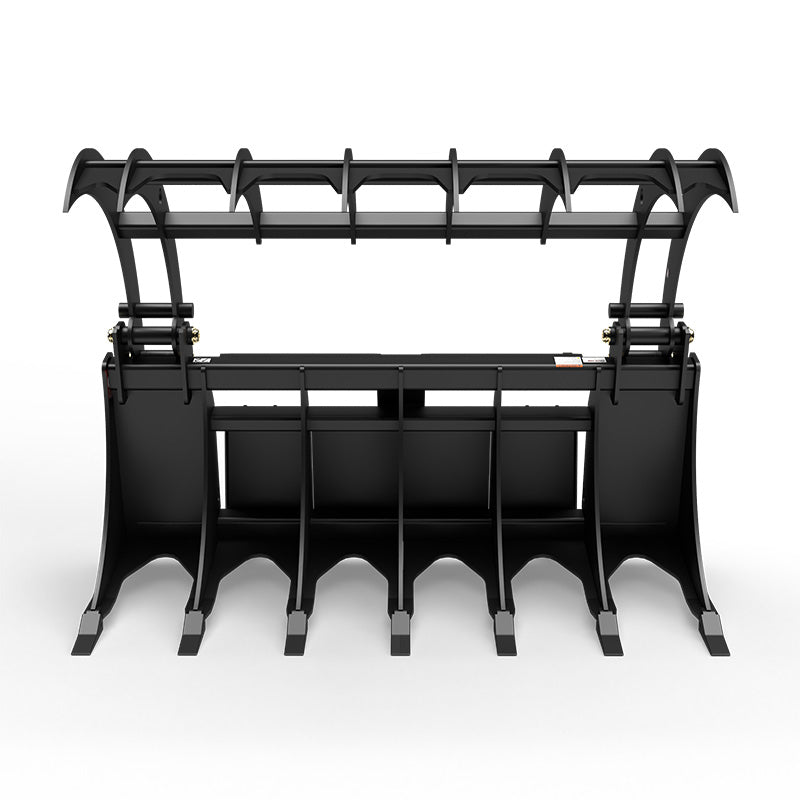

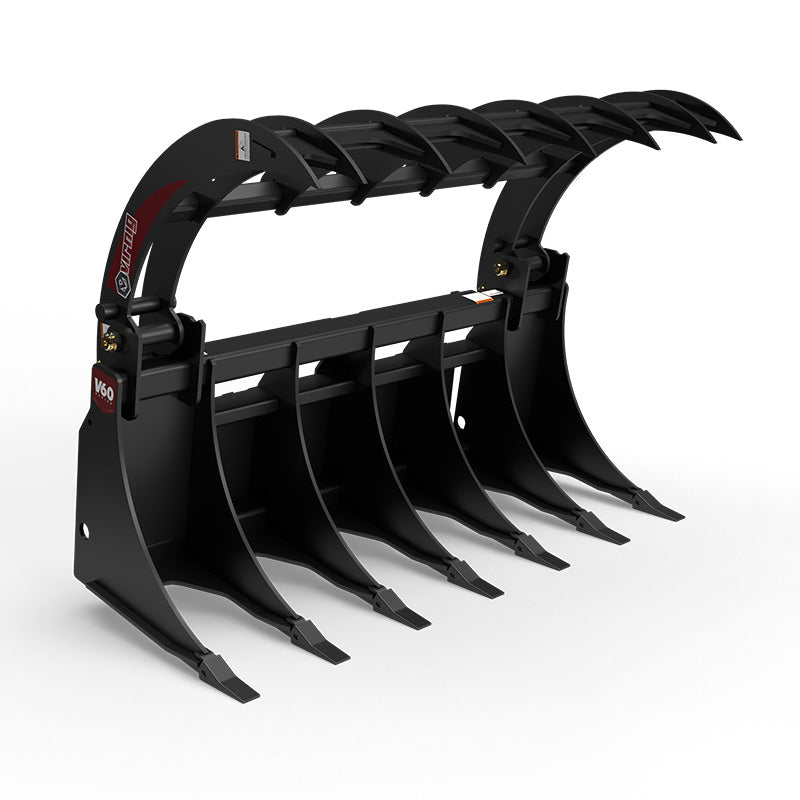

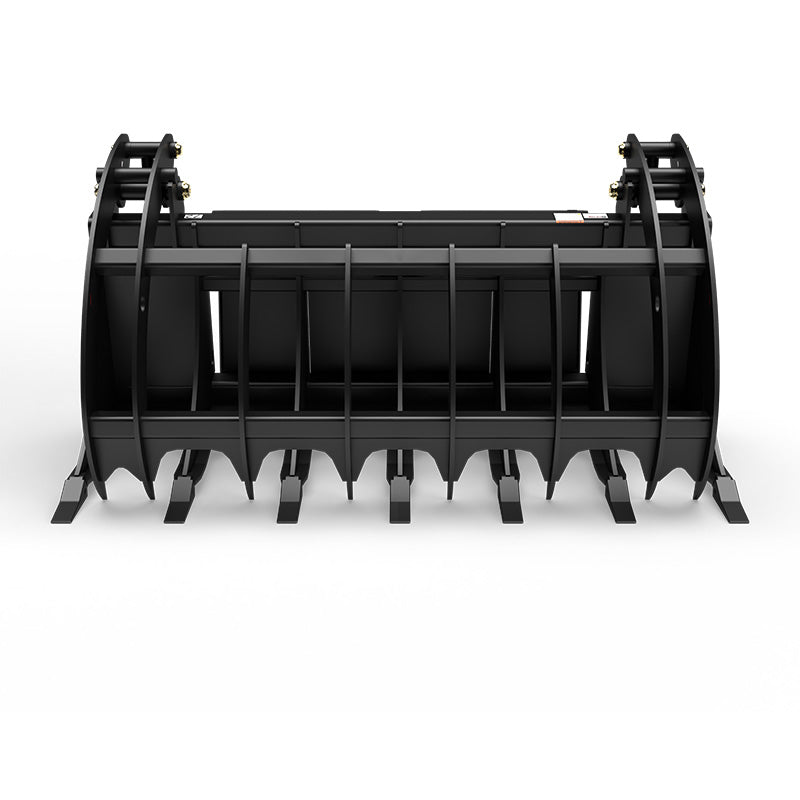

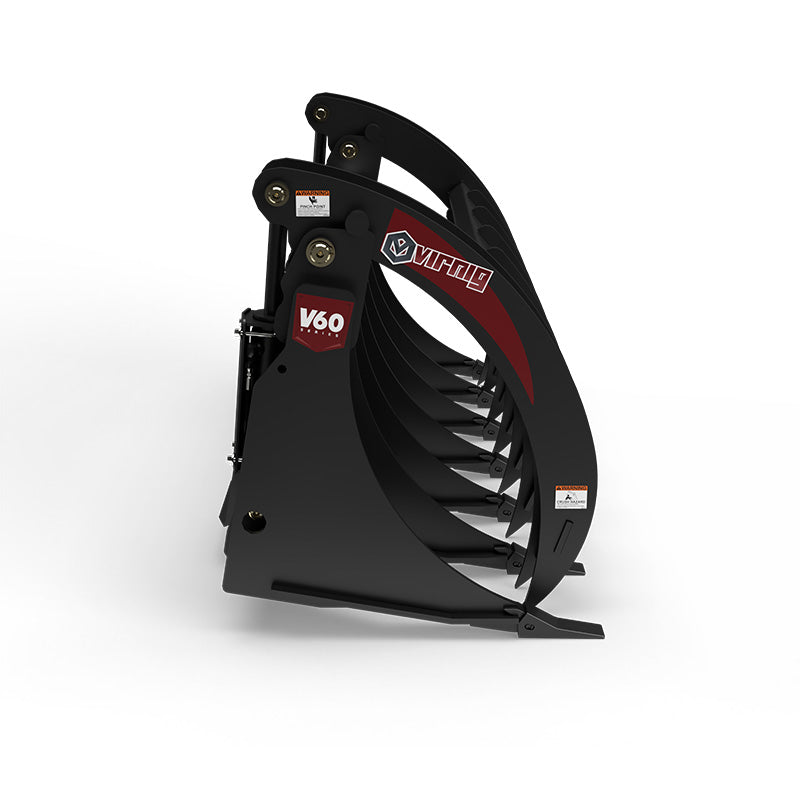

Virnig V60 Root Rake Grapple

Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differVirnig V60 Root Rake Grapple; manufacturer family image, configuration may differ
Virnig

Virnig V60 Root Rake Grapple

SKU: RRG72 Currently In Stock

$7,925.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

CYLINDER STRESS CONTROL

HARD STOPS LIMIT JAW TRAVEL TO HELP PREVENT EXCESSIVE STRESS ON THE CYLINDERS.

REPLACEABLE DIGGING TEETH

REPLACEABLE SERIES 23 TEETH DIG INTO SOIL TO LOOSEN ROOTS AND ROCKS.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

OPEN MATERIAL HANDLING

VIRNIG V60 ROOT RAKE GRAPPLE DIGS, RAKES, PILES, AND LOADS BRUSH WITH A TOOTHED LOWER FRAME AND HYDRAULIC GRAPPLE.

GRAPPLE JAW OPENING

A 53.7″ JAW OPENING ACCEPTS BULKY BRUSH AND ROOT MATERIAL FOR LOADING.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Root Rake Grapple is built for demanding root, rock, and brush cleanup with a toothed lower frame and a large hydraulic grapple opening. It lets the operator dig and rake material into a pile, then clamp the loosened debris for loading or removal from the work area.

Series 23 pin-on teeth provide serviceable ground-engaging points, while hard stops help prevent excess stress on the hydraulic cylinders. Standard cylinder guards shield the cylinders from debris. The V60 RRG frame uses ½″ Grade 80 tines and a 53.7″ jaw opening for handling bulky, uneven material.

Choose the width and attachment weight around the loader's rated capacity and the loads being handled. The 72″ RRG has known clearance concerns on Takeuchi® TL12, Bobcat® T66, and John Deere® 330G, 331G, 332G, and 333G loaders. Check that exact machine and attachment combination before ordering rather than assuming all widths fit alike.

KEY BENEFITS

  • Hard stops to prevent excess cylinder stress.
  • Series 23 pin-on teeth cut into soil, dig out rocks and roots.
  • Standard with cylinder guards.
  • Virnig v60 root rake grapple digs, rakes, piles, and loads brush with a toothed lower frame and hydraulic grapple.
  • Grapple jaw opening (in.): 53.7

TECHNICAL SPECIFICATIONS

  • Models: RRG72 RRG78 RRG84
  • Overall Width (in.): RRG72: 74.5; RRG78: 80.5; RRG84: 86.5
  • Height: Overall / Bucket (in.): 38.3 / 29.7
  • Overall Depth (in.): 31.6
  • Number of Teeth: RRG72: 7; RRG78: 7; RRG84: 8
  • Space Between Teeth (in.): RRG72: 9.8; RRG78: 10.8; RRG84: 9.8
  • Space Between Tines, Grapple Jaws (in.): RRG72: 10.5; RRG78: 11.7; RRG84: 10.7
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.5 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 53.7
  • Approximate Weight (lbs): RRG72: 1175; RRG78: 1230; RRG84: 1315
  • Recommended Loader Capacity: Greater than 2400 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Brush removal
  • Root cleanup
  • Land clearing

VIRNIG V60 ROOT RAKE GRAPPLE

WORKING DESIGN

  • Hard stops to prevent excess cylinder stress.
  • Series 23 pin-on teeth cut into soil, dig out rocks and roots.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: RRG72 RRG78 RRG84
  • Overall Width (in.): RRG72: 74.5; RRG78: 80.5; RRG84: 86.5
  • Height: Overall / Bucket (in.): 38.3 / 29.7
  • Overall Depth (in.): 31.6
  • Number of Teeth: RRG72: 7; RRG78: 7; RRG84: 8
  • Space Between Teeth (in.): RRG72: 9.8; RRG78: 10.8; RRG84: 9.8
  • Space Between Tines, Grapple Jaws (in.): RRG72: 10.5; RRG78: 11.7; RRG84: 10.7
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.5 / 8.375

READY FOR THE FIELD

  • Hard stops to prevent excess cylinder stress.
  • Series 23 pin-on teeth cut into soil, dig out rocks and roots.
  • Standard with cylinder guards.
  • Virnig v60 root rake grapple digs, rakes, piles, and loads brush with a toothed lower frame and hydraulic grapple.
  • Grapple jaw opening (in.): 53.7
