VIRNIG

V60 Scrap Grapple

For Skid Steers & Track Loaders

72-90″ Widths

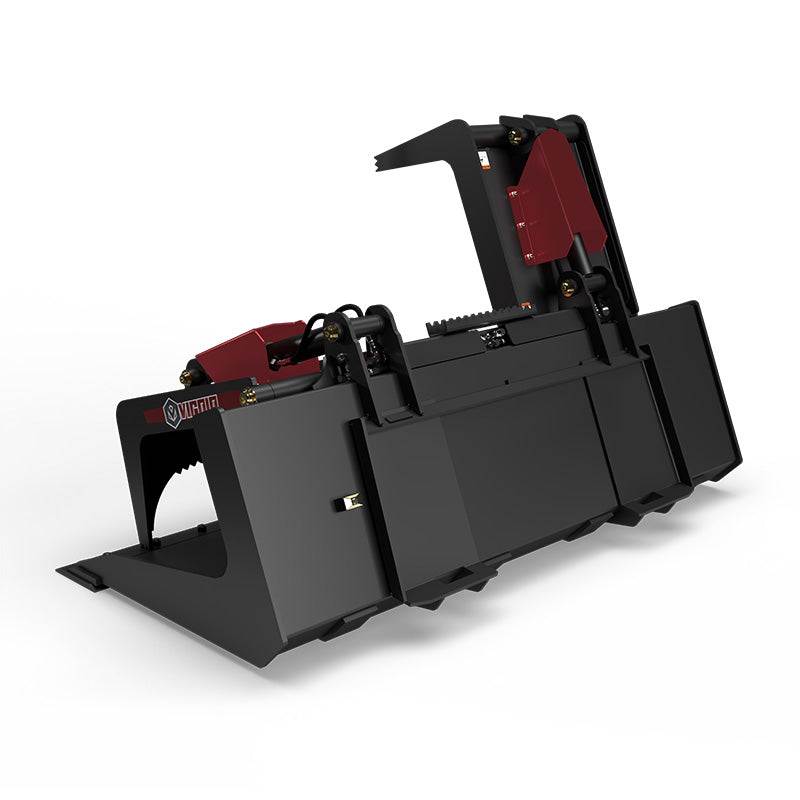

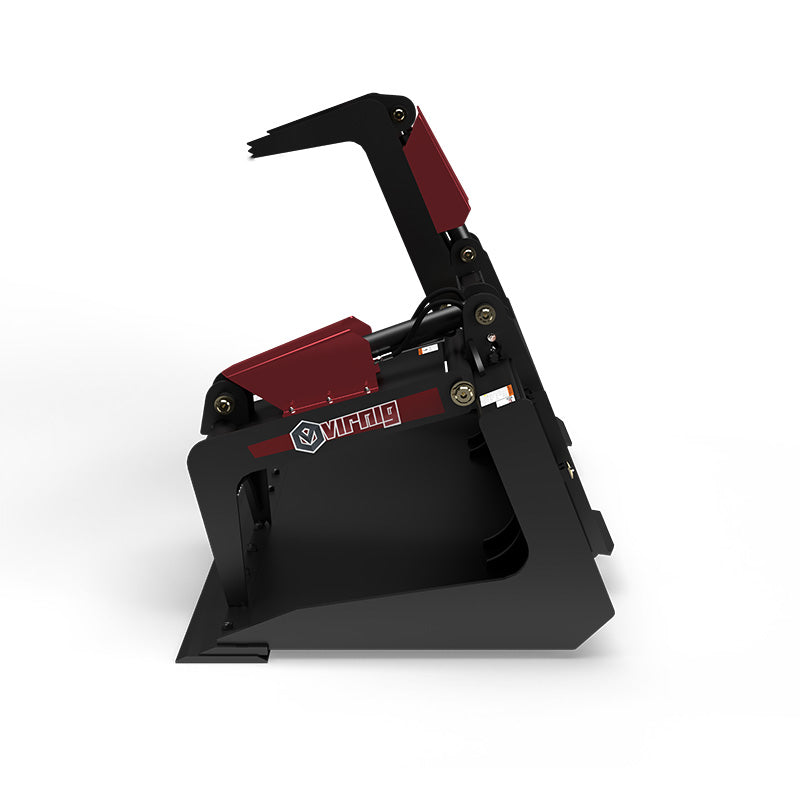

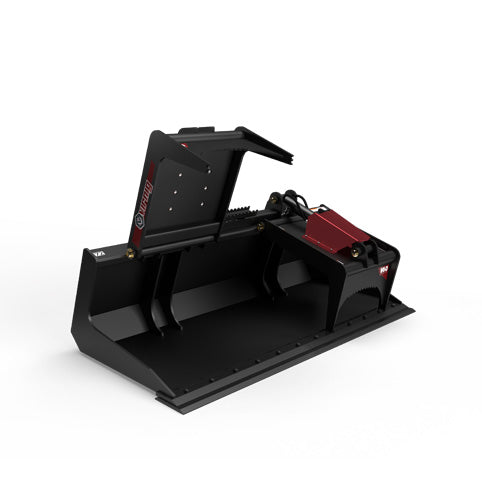

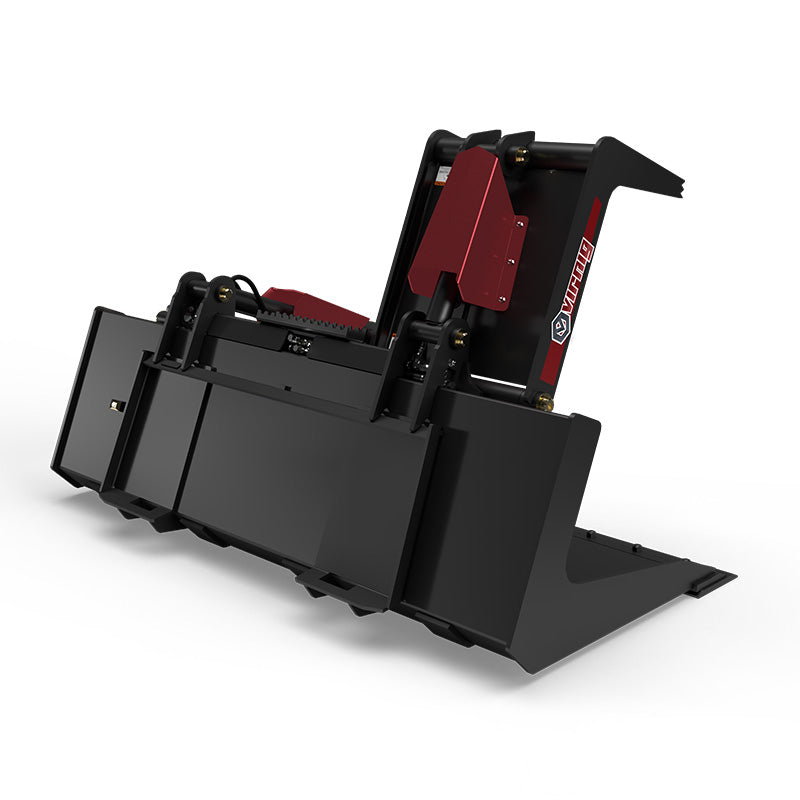

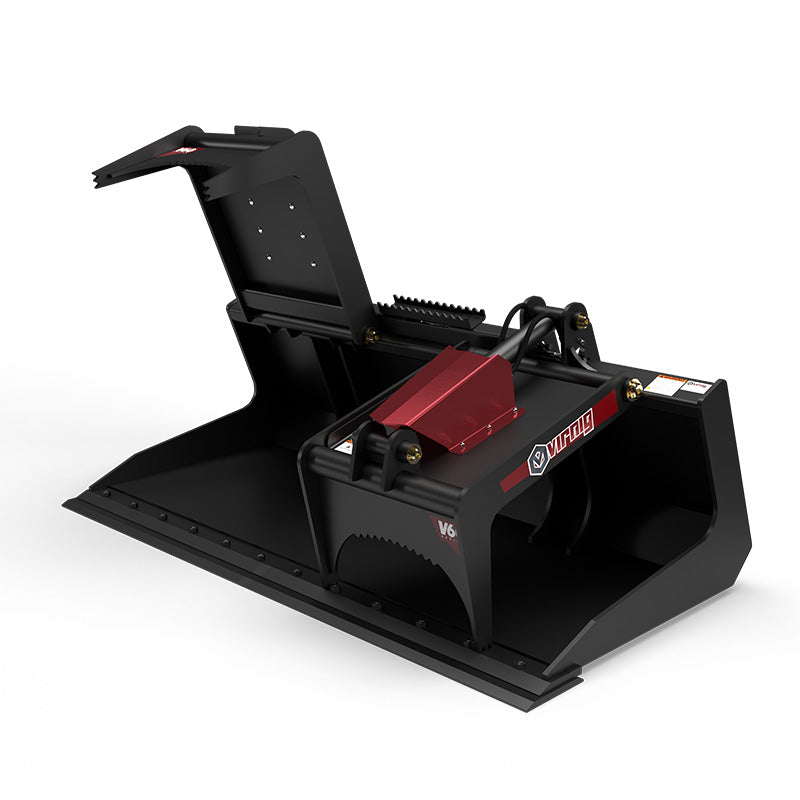

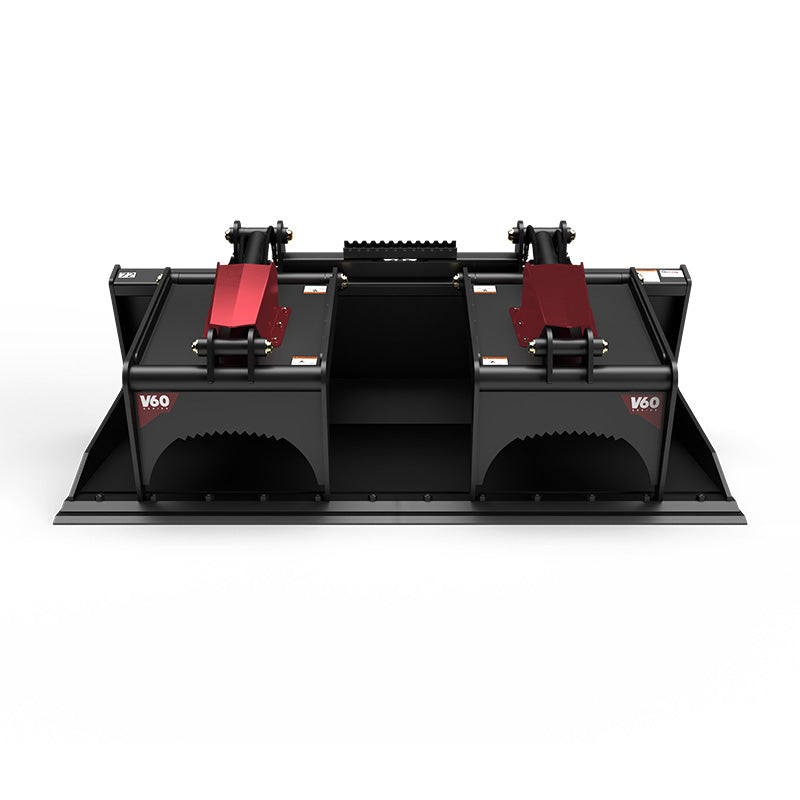

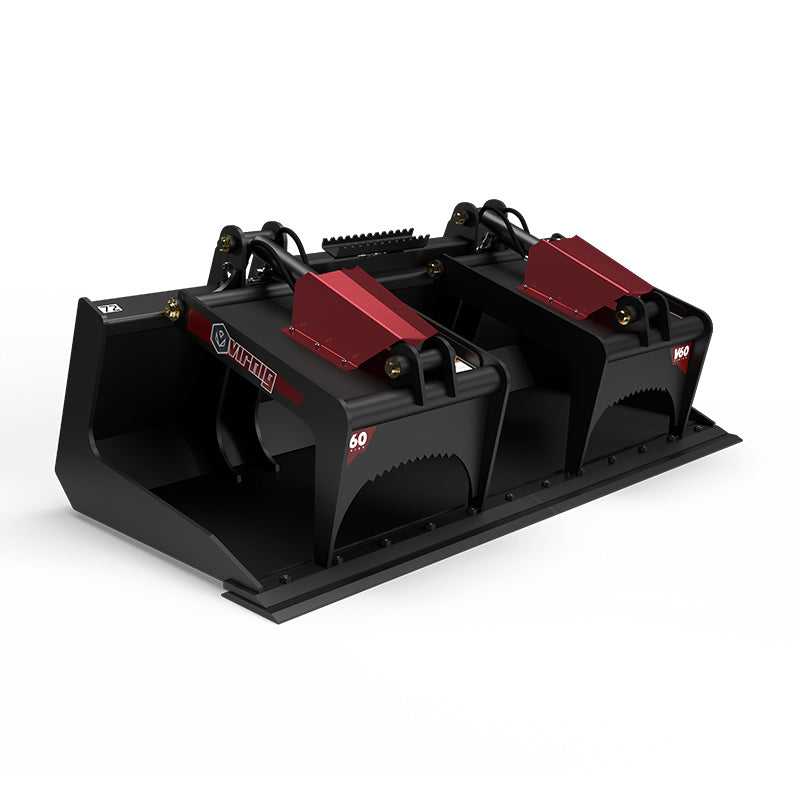

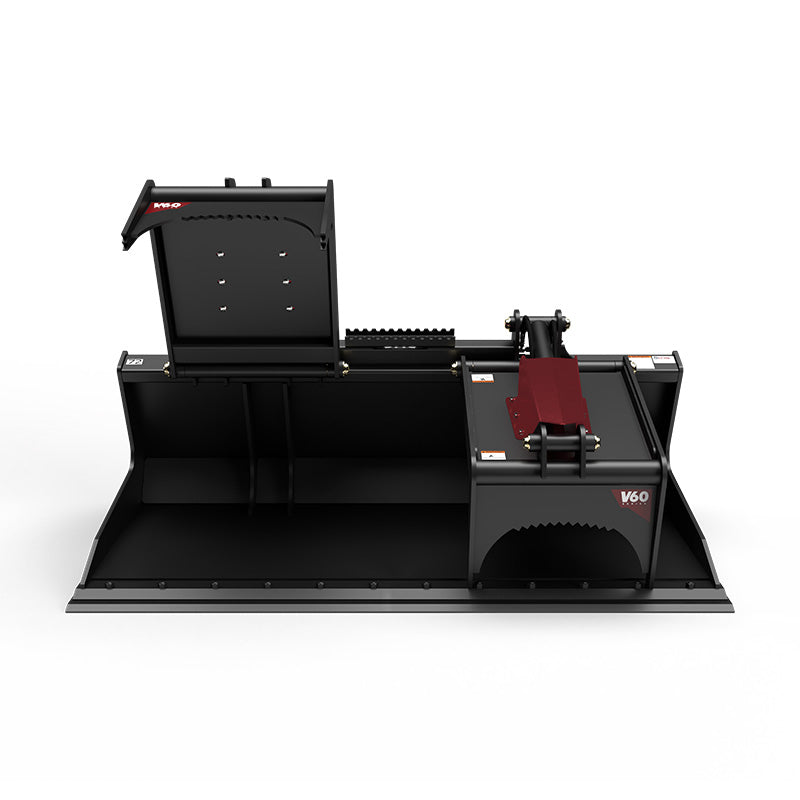

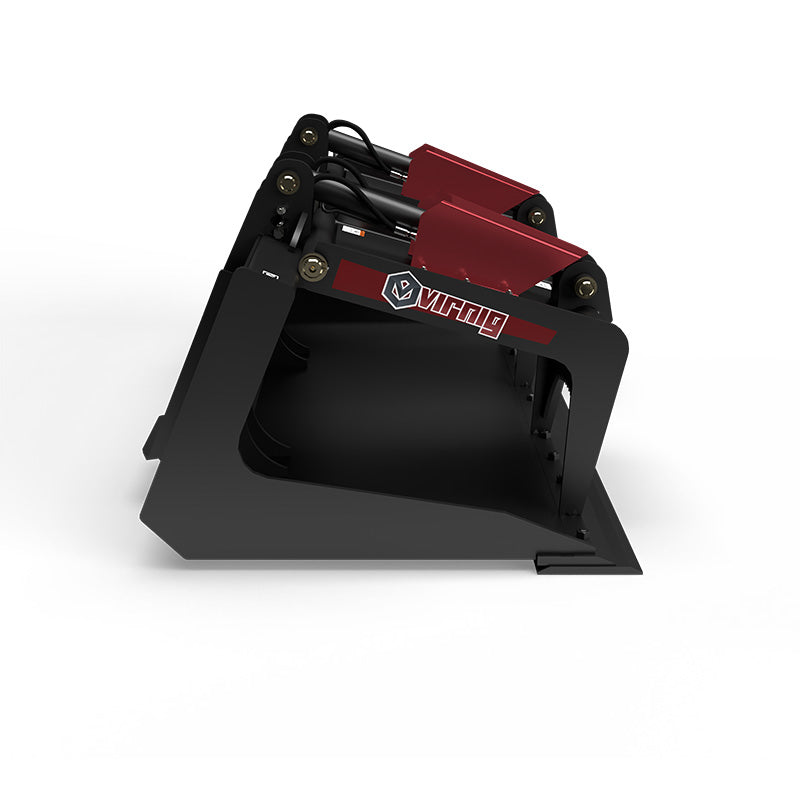

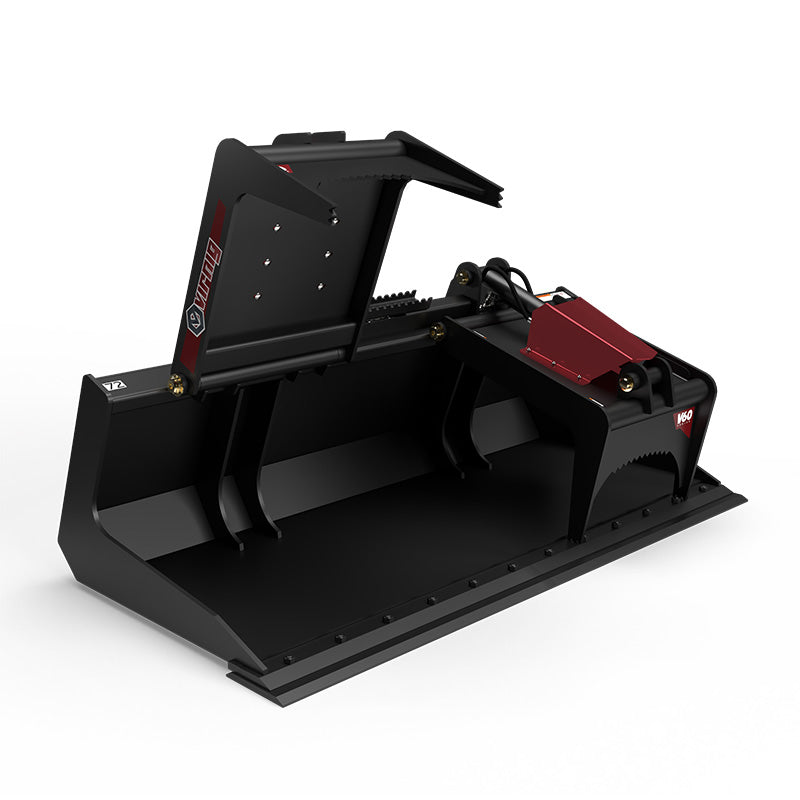

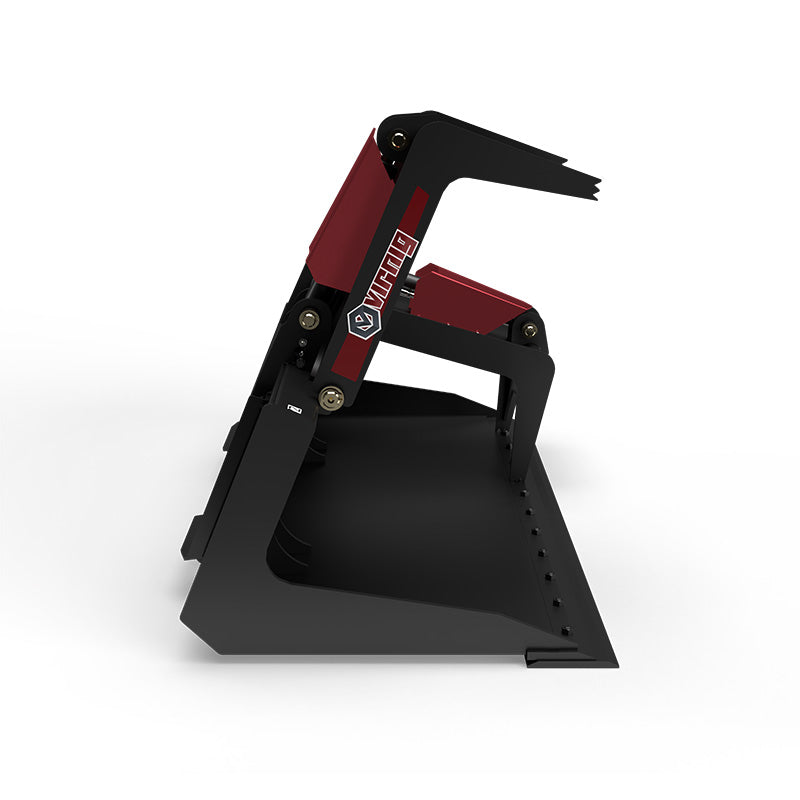

Virnig V60 Scrap Grapple

Virnig

Virnig V60 Scrap Grapple

SKU: ISG72 Currently In Stock

Sale price$7,070.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

REINFORCED BUCKET

AN EXTRA BRACE PLATE AND ½″ VERTICAL BRACES REINFORCE THE BUCKET FOR HEAVY CLEANUP.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

DEBRIS CLEANUP

VIRNIG V60 SCRAP GRAPPLE SCOOPS LOOSE DEBRIS AND CLAMPS BULKY LOADS IN A SOLID-BOTTOM BUCKET.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Scrap Grapple gives larger loaders a reinforced solid-bottom bucket for gathering loose debris and clamping bulky material. The bucket retains smaller pieces while the upper jaws secure the larger objects, allowing mixed cleanup loads to be handled with one attachment instead of relying on an open sorting floor.

An extra internal brace plate works with ½″ vertical braces to strengthen the bucket structure. A ¾″ × 6″ weld-on edge provides the leading working surface, and wear bars protect the underside during repeated loading passes. The V60 ISG family offers the heavier scrap handling arrangement for this solid-floor grapple application.

Standard guards shield the hydraulic cylinders, while NitroSteel® rods and Teflon®-coated pivot bushings equip the moving connections. Select the width and attachment weight to match the carrier and the debris being moved. The loader's actual rated capacity and the position of the load remain the limits for safe handling.

KEY BENEFITS

  • Extra brace plate and 1/2” vertical braces inside bucket for added strength.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 3/4″ x 6″ weld-on edge.
  • Standard with cylinder guards.
  • Virnig v60 scrap grapple scoops loose debris and clamps bulky loads in a solid-bottom bucket.

TECHNICAL SPECIFICATIONS

  • Models: ISG72 ISG78 ISG84 ISG90
  • Overall Width (in.): ISG72: 73.5; ISG78: 79.5; ISG84: 85.5; ISG90: 91.5
  • Height: Overall / Bucket (in.): 29.0 / 22.5
  • Overall Depth (in.): 35.5
  • Structural Wear Bars Under Bucket (1/2” x 4”): ISG72: 4; ISG78: 5; ISG84: 5; ISG90: 5
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 38.8
  • Approximate Weight (lbs): ISG72: 1080; ISG78: 1130; ISG84: 1170; ISG90: 1210
  • Recommended Loader Capacity: Greater than 2400 lbs

APPLICATIONS

  • Debris cleanup
  • Loose material loading
  • Bulky scrap handling

VIRNIG V60 SCRAP GRAPPLE

WORKING DESIGN

  • Extra brace plate and 1/2” vertical braces inside bucket for added strength.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 3/4″ x 6″ weld-on edge.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: ISG72 ISG78 ISG84 ISG90
  • Overall Width (in.): ISG72: 73.5; ISG78: 79.5; ISG84: 85.5; ISG90: 91.5
  • Height: Overall / Bucket (in.): 29.0 / 22.5
  • Overall Depth (in.): 35.5
  • Structural Wear Bars Under Bucket (1/2” x 4”): ISG72: 4; ISG78: 5; ISG84: 5; ISG90: 5
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 38.8
  • Approximate Weight (lbs): ISG72: 1080; ISG78: 1130; ISG84: 1170; ISG90: 1210

READY FOR THE FIELD

  • Extra brace plate and 1/2” vertical braces inside bucket for added strength.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • 3/4″ x 6″ weld-on edge.
  • Standard with cylinder guards.
  • Virnig v60 scrap grapple scoops loose debris and clamps bulky loads in a solid-bottom bucket.
