VIRNIG

V60 Skeleton Rock Bucket

For Skid Steers & Track Loaders

72-90″ Widths

Virnig

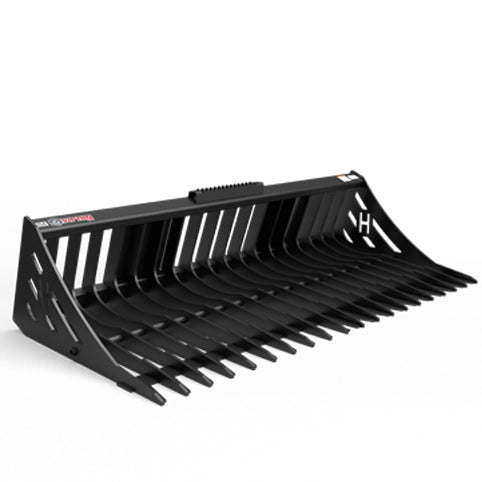

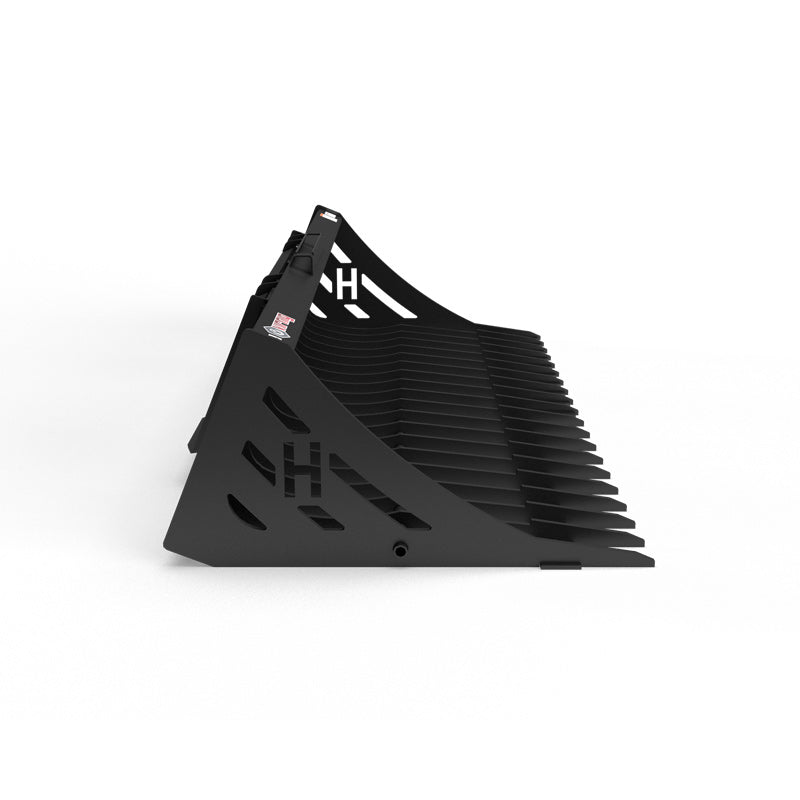

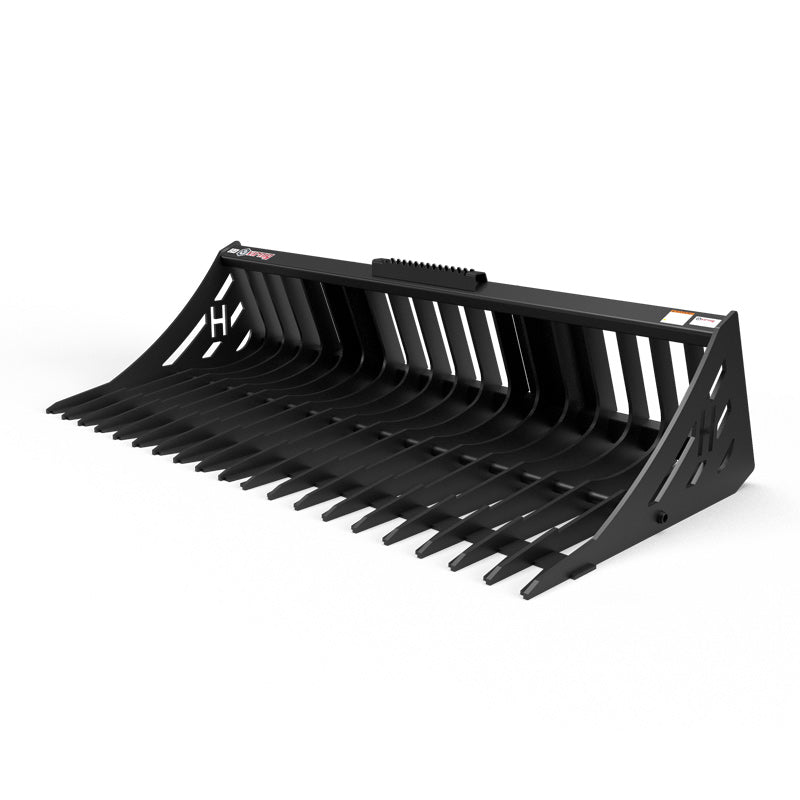

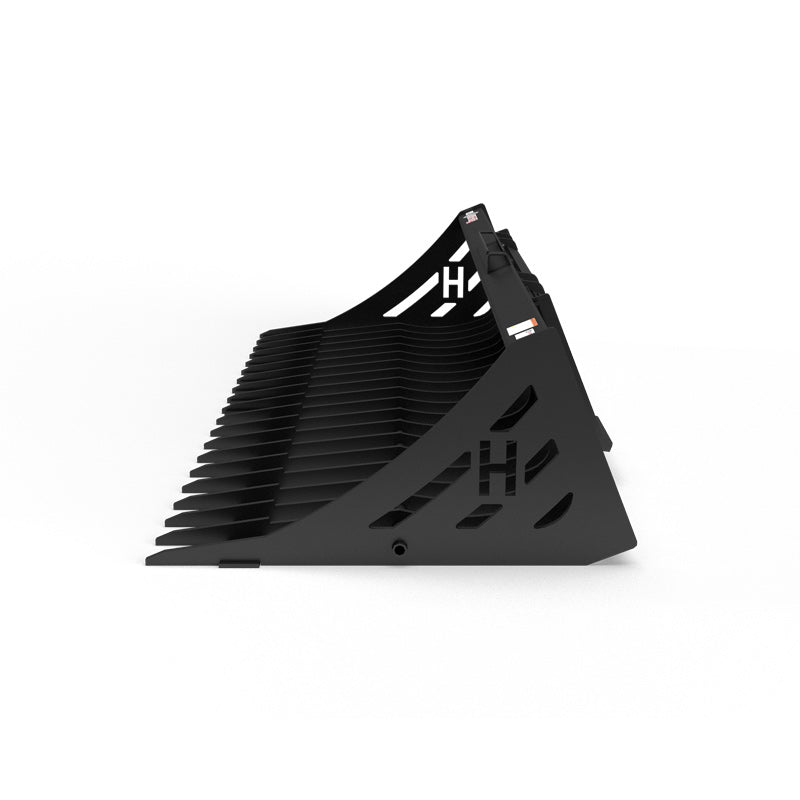

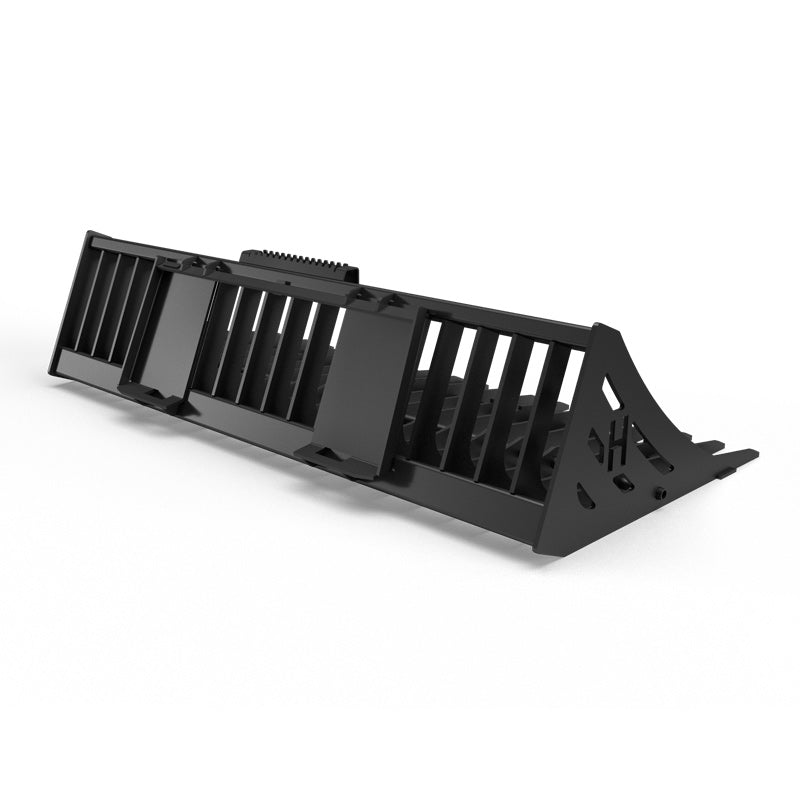

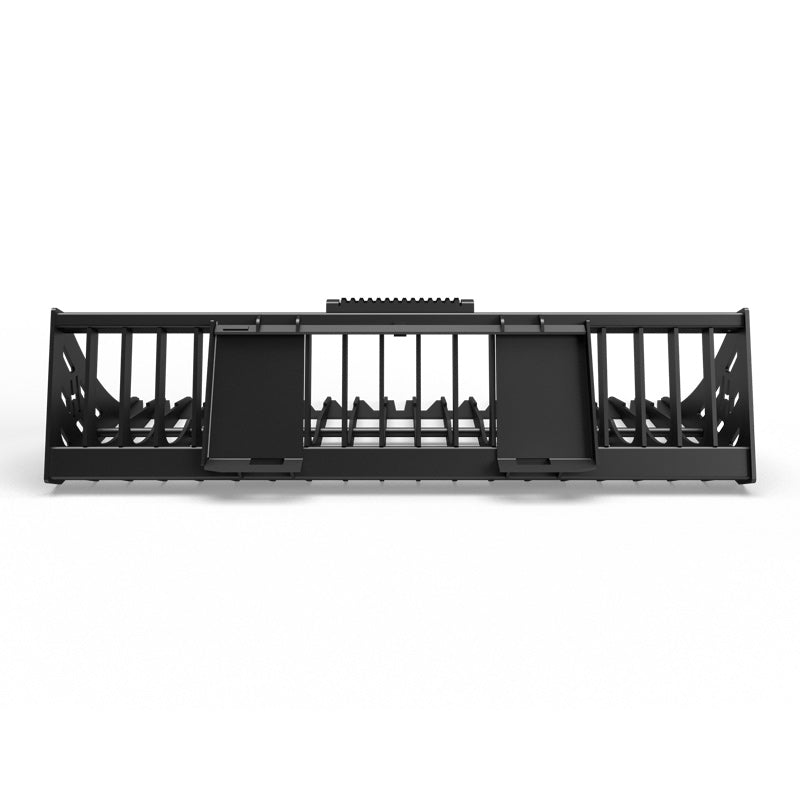

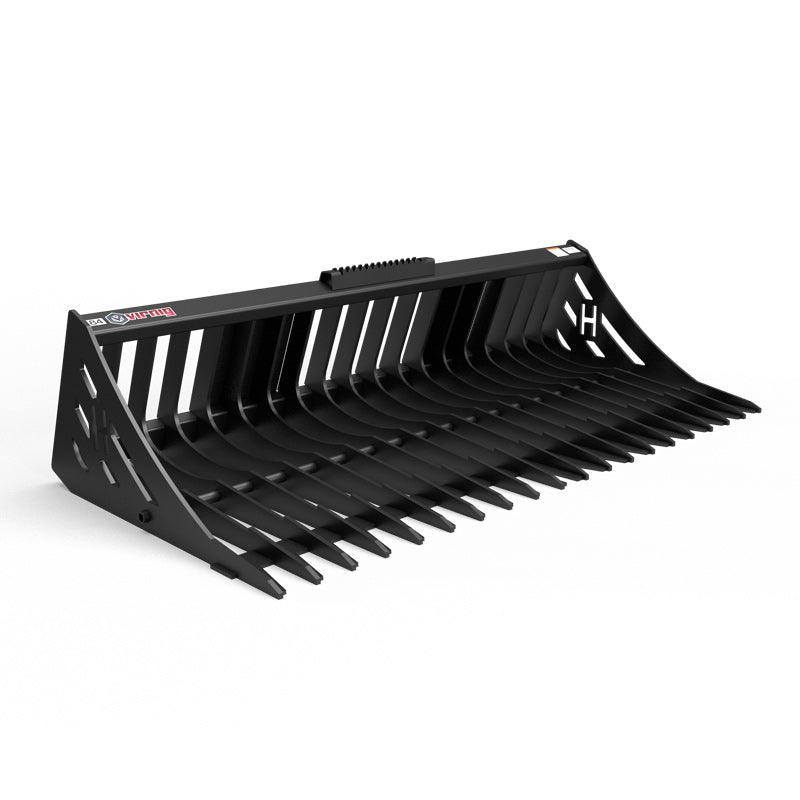

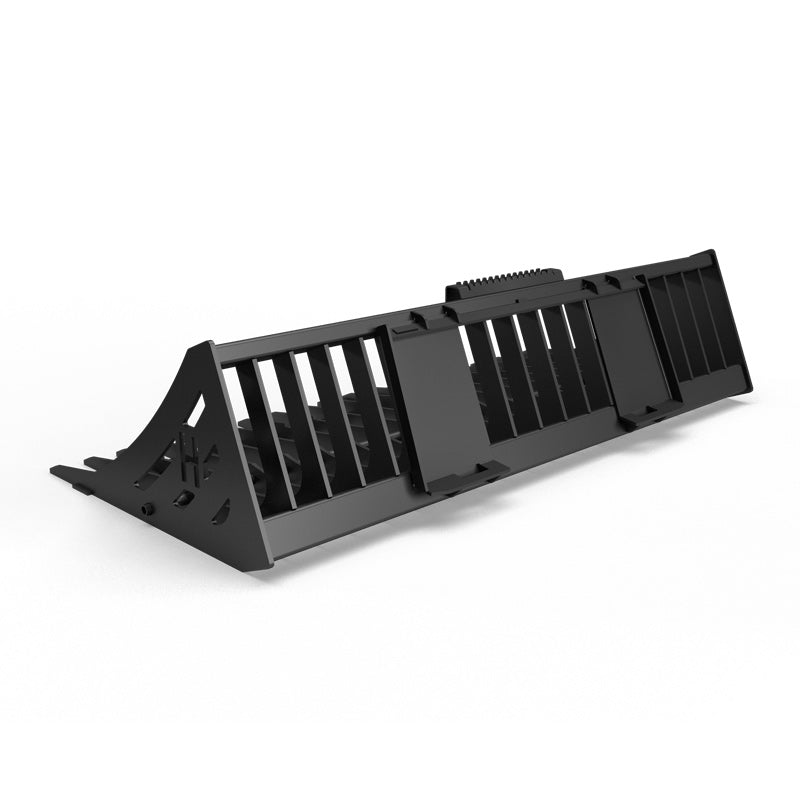

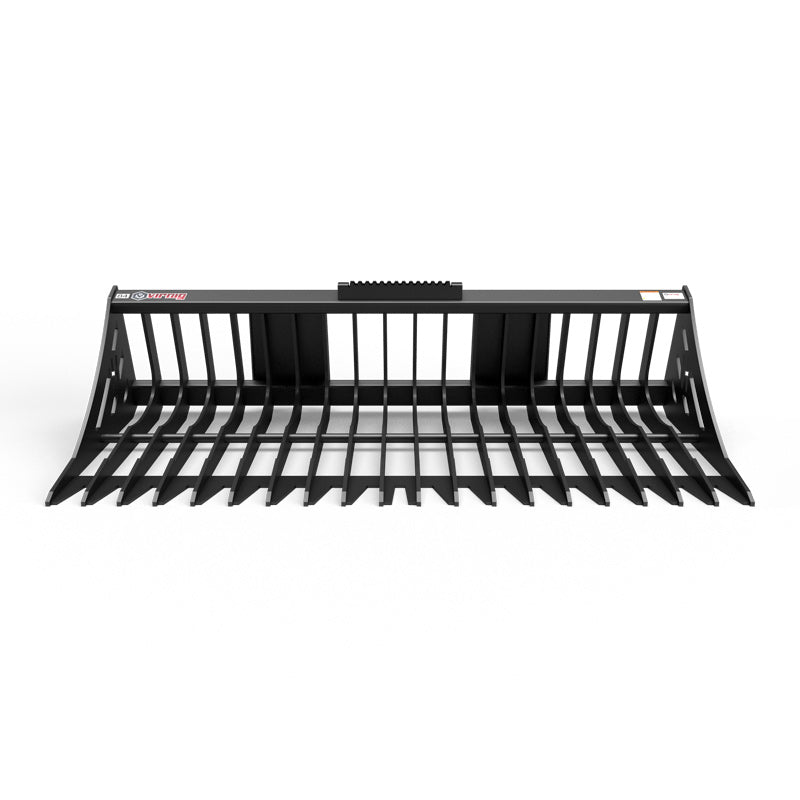

Virnig V60 Skeleton Rock Bucket

SKU: HSRV72 Currently In Stock

Sale price$3,435.00 USD

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

ROCK RETENTION

A ROCK DAM AND NOTCHED TINE TIPS HELP RETAIN ROCKS WHILE LOOSE SOIL FALLS THROUGH.

GUSSETED CONSTRUCTION

GUSSETS REINFORCE THE TINE TIPS WHERE THEY CONTACT AND SUPPORT THE LOAD.

ROCK SORTING

THE OPEN BUCKET FLOOR SEPARATES LOOSE SOIL FROM ROCKS AS MATERIAL IS GATHERED.

WIDTH OPTIONS

72-90″ MODEL OPTIONS LET YOU MATCH ROCK-SORTING COVERAGE TO THE LOADER AND SITE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Skeleton Rock Bucket gives a compatible loader an open-bottom tool for collecting rocks and separating loose soil. The sorting floor lets finer material fall away before the bucket is carried off, helping focus the load on the rocks and debris that need to be removed.

Each tine is made from one piece of steel, with the V60 HSRV family using a heavier tine arrangement than the V50 bucket. Fully gusseted tips reinforce the working end. A rock dam and notches near the tine tips help keep stones inside the bucket during gathering and transport.

Match the selected width and attachment weight to the loader's capacity and the material being handled. This is the plain V60 rock bucket rather than the grapple version, so it does not include an upper clamping jaw. Choose it when sorting and scooping are the primary tasks and the load can be retained by bucket positioning.

KEY BENEFITS

  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY.
  • ROCK DAM AND NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY.
  • TINE TIPS FULLY GUSSETED FOR ADDED STRENGTH.
  • VIRNIG V60 SKELETON ROCK BUCKET SEPARATES ROCKS FROM LOOSE SOIL AS IT GATHERS AND CARRIES MATERIAL.
  • LOOSE SOIL FALLS THROUGH THE OPEN FLOOR WHILE LARGER ROCKS REMAIN SUPPORTED.

TECHNICAL SPECIFICATIONS

  • HSRV72: overall width 73.5 inches; weight 675 lb.
  • HSRV78: overall width 79.5 inches; weight 710 lb.
  • HSRV84: overall width 85.5 inches; weight 765 lb.
  • HSRV90: overall width 91.5 inches; weight 800 lb.
  • Tine thickness: 0.5 inch, Grade 80 steel.
  • Tine spacing: approximately 4 inches.
  • Overall depth / height: 42.9 / 21.5 inches.
  • Recommended loader capacity: greater than 1,800 lb.

APPLICATIONS

  • Rock cleanup
  • Soil separation
  • Site preparation

VIRNIG V60 SKELETON ROCK BUCKET

WORKING DESIGN

  • Every tine is made from one piece of steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • Tine tips fully gusseted for added strength.

CONFIGURATION AND SPECIFICATIONS

  • HSRV72: overall width 73.5 inches; weight 675 lb.
  • HSRV78: overall width 79.5 inches; weight 710 lb.
  • HSRV84: overall width 85.5 inches; weight 765 lb.
  • HSRV90: overall width 91.5 inches; weight 800 lb.
  • Tine thickness: 0.5 inch, Grade 80 steel.
  • Tine spacing: approximately 4 inches.
  • Overall depth / height: 42.9 / 21.5 inches.
  • Recommended loader capacity: greater than 1,800 lb.

READY FOR THE FIELD

  • EVERY TINE IS MADE FROM ONE PIECE OF STEEL FOR MAXIMUM RIGIDITY.
  • ROCK DAM AND NOTCH NEAR TINE TIPS HOLD ROCKS SECURELY.
  • TINE TIPS FULLY GUSSETED FOR ADDED STRENGTH.
  • VIRNIG V60 SKELETON ROCK BUCKET SEPARATES ROCKS FROM LOOSE SOIL AS IT GATHERS AND CARRIES MATERIAL.
  • LOOSE SOIL FALLS THROUGH THE OPEN FLOOR WHILE LARGER ROCKS REMAIN SUPPORTED.
