VIRNIG

V60 Skeleton Rock Grapple

For Skid Steers & Track Loaders

72-90″ Widths

Virnig

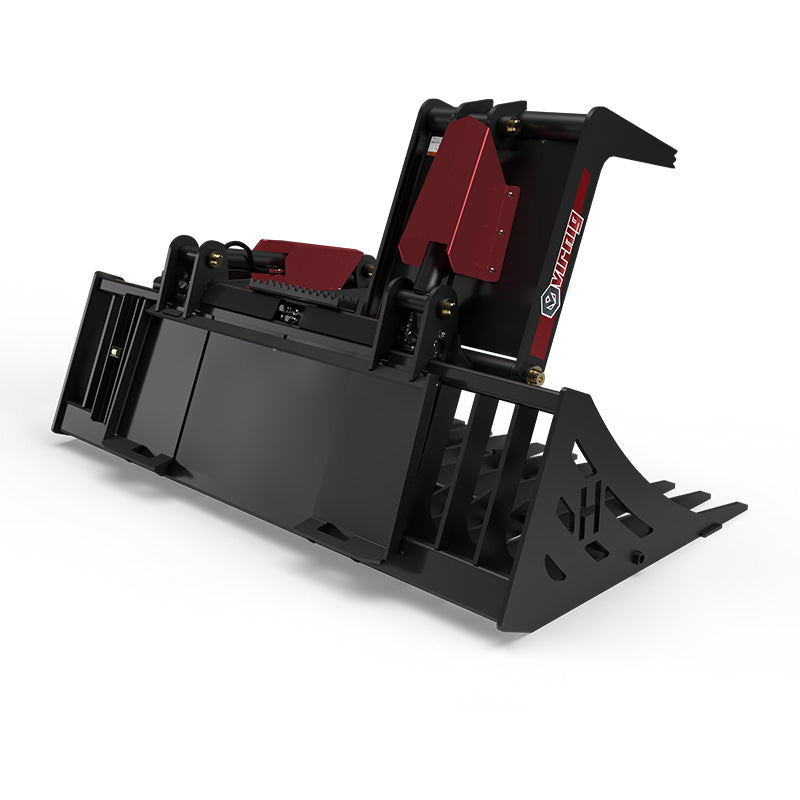

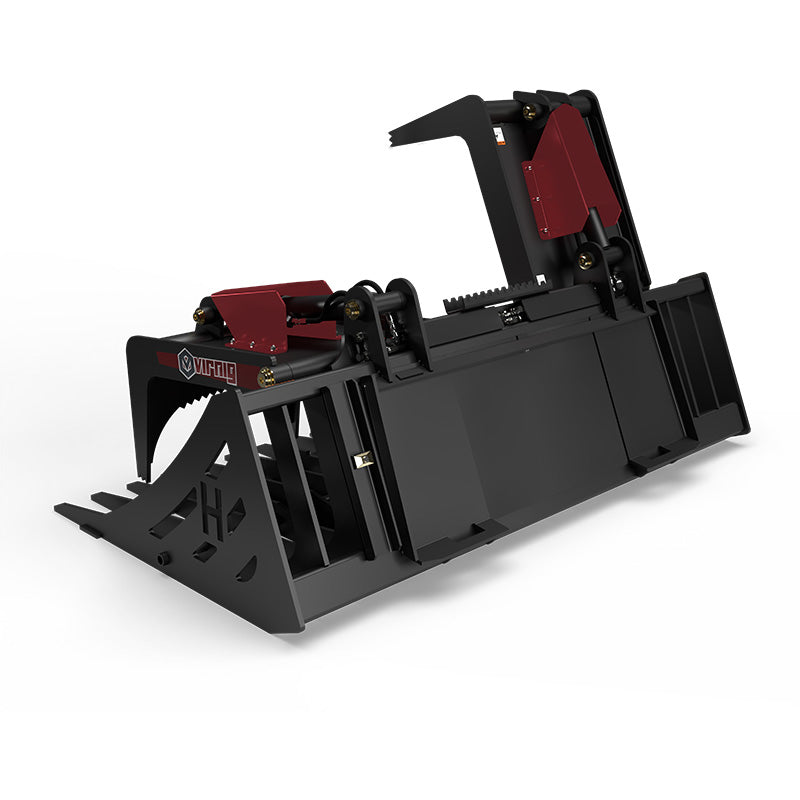

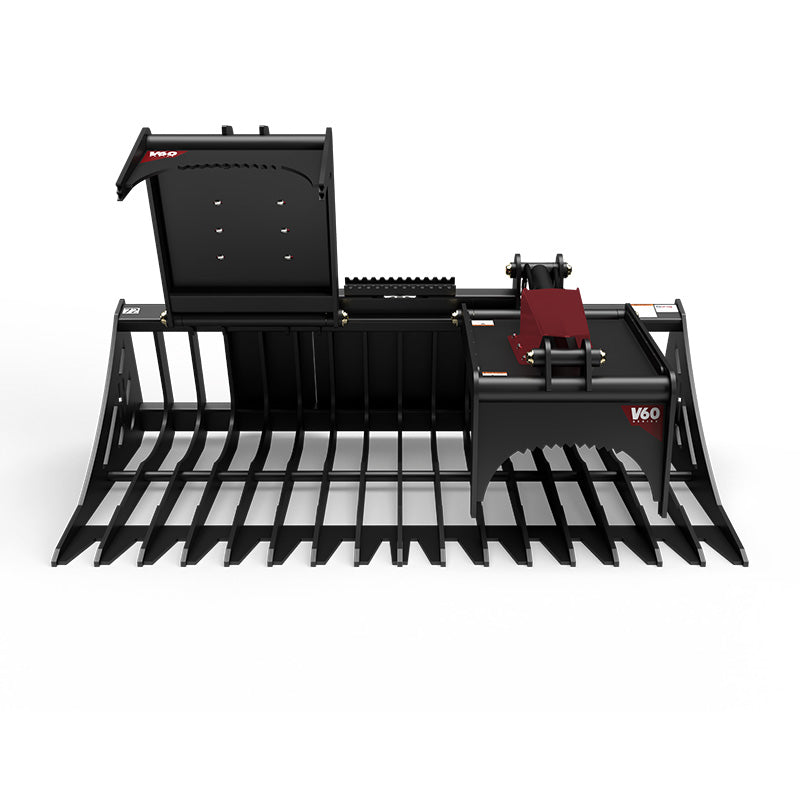

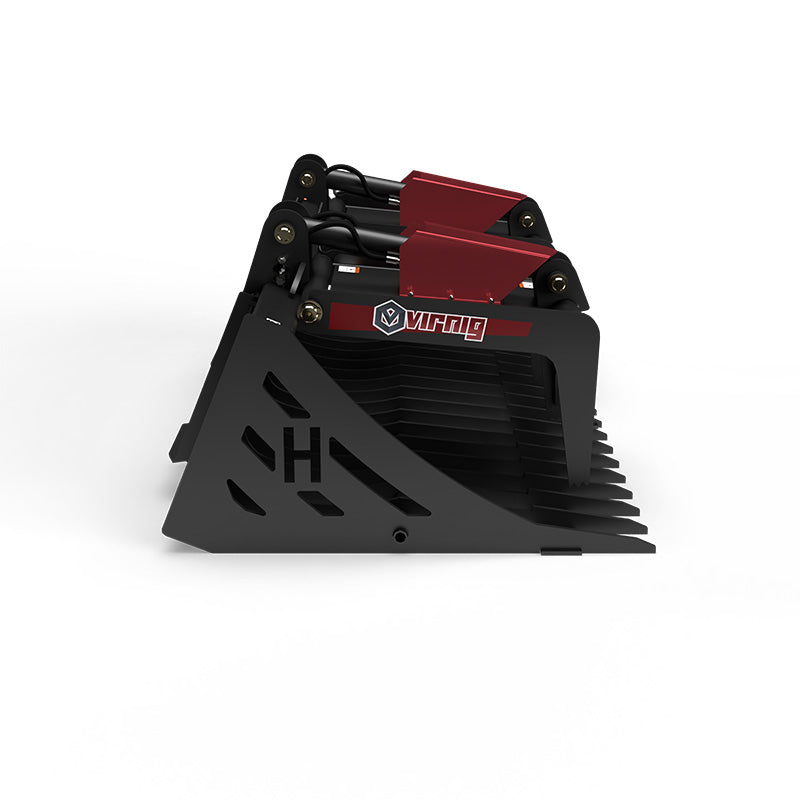

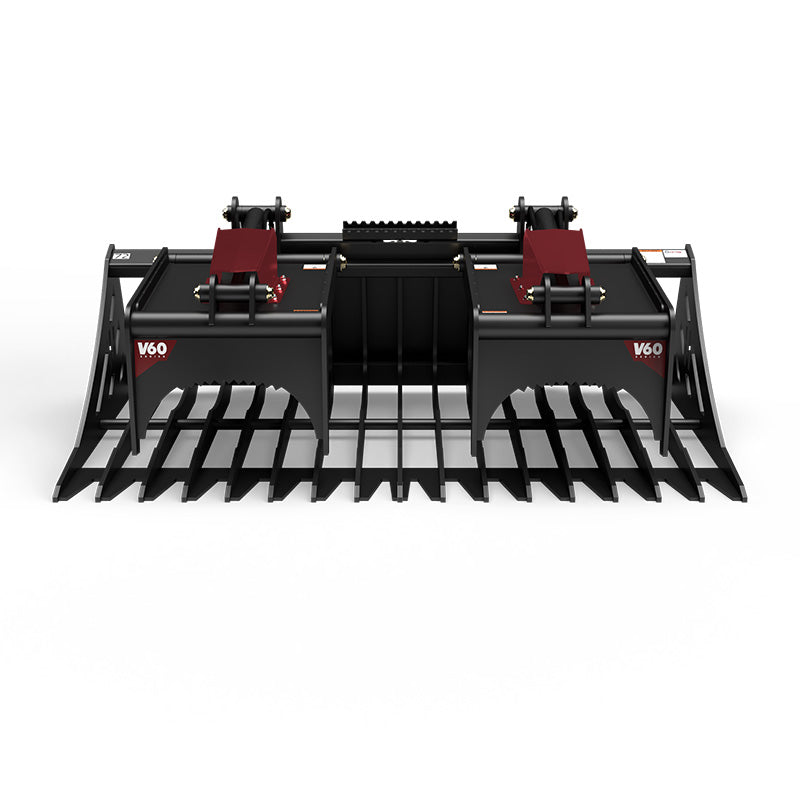

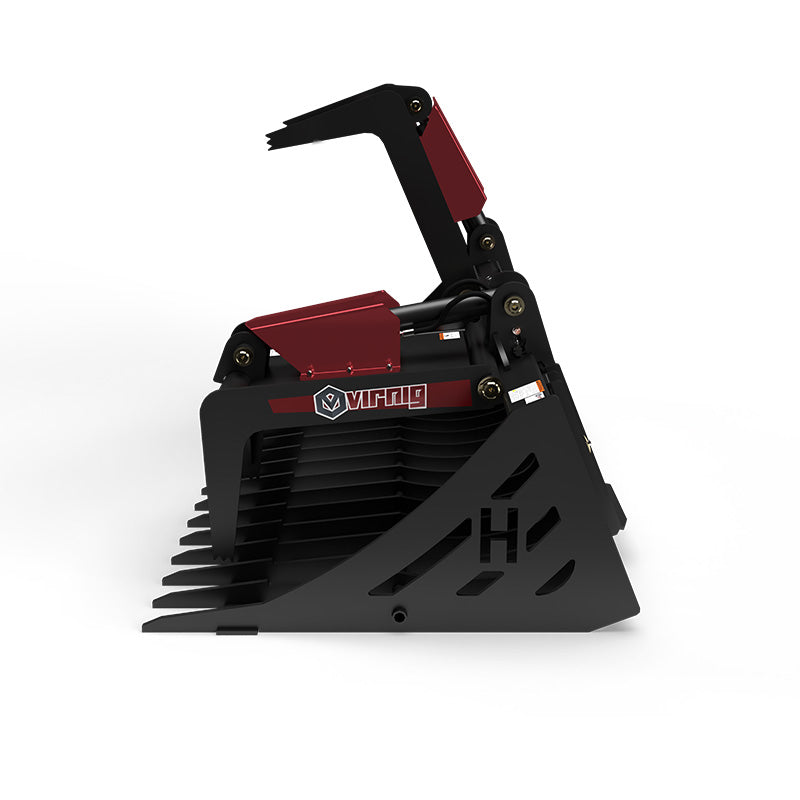

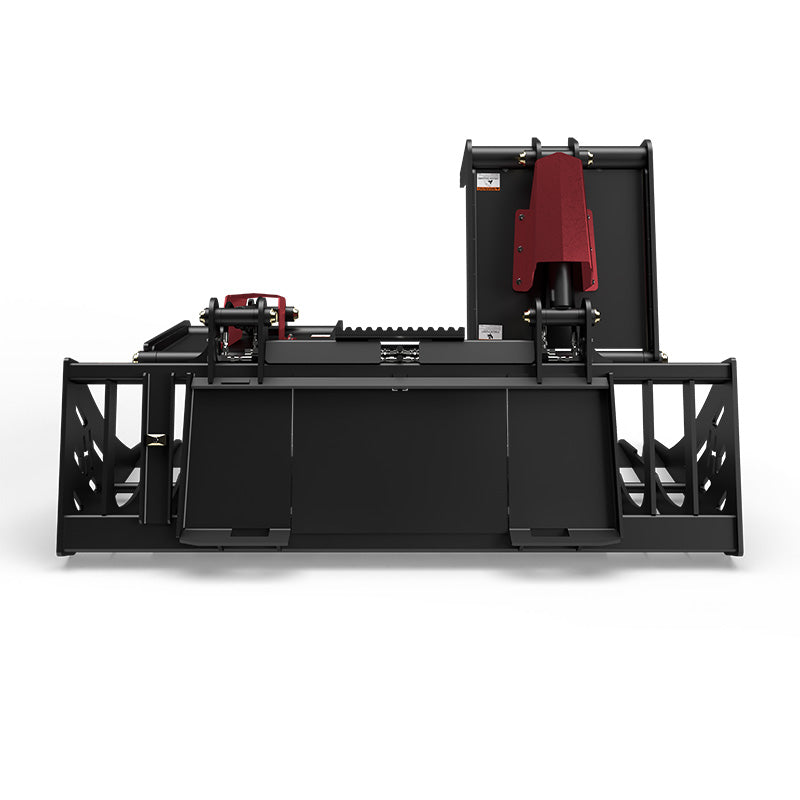

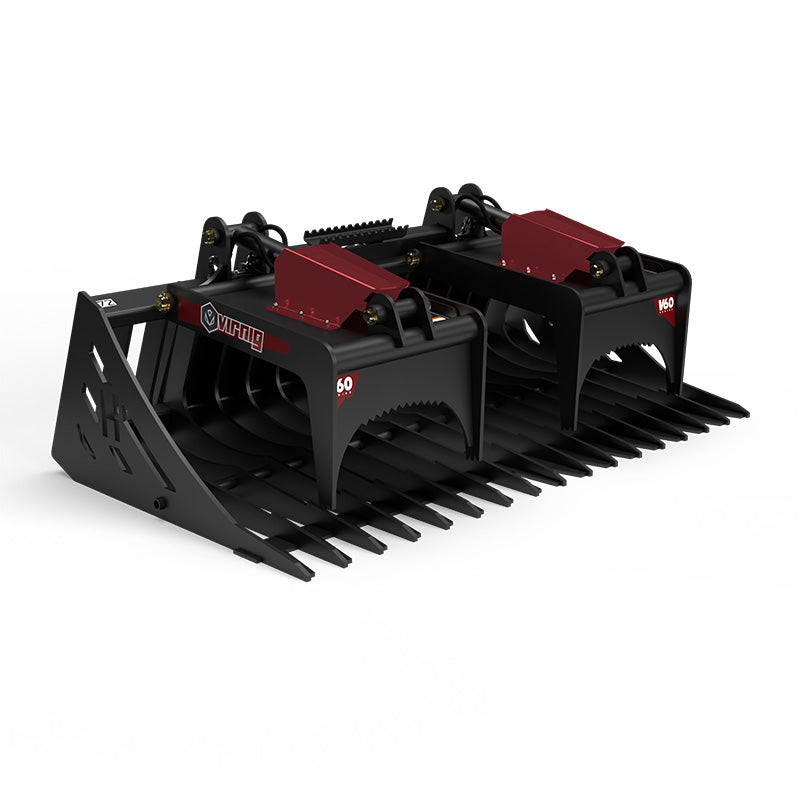

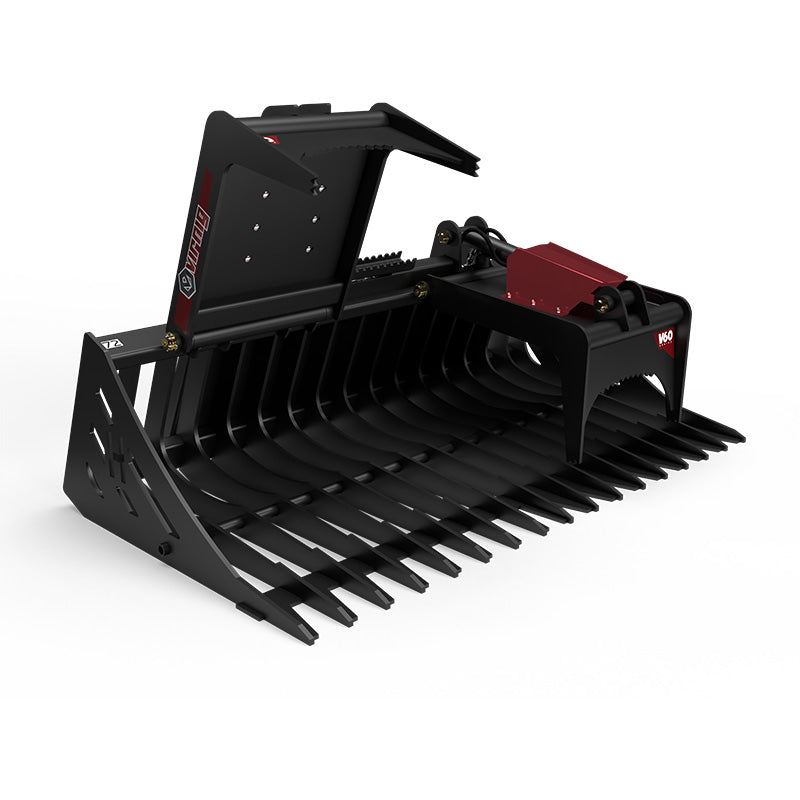

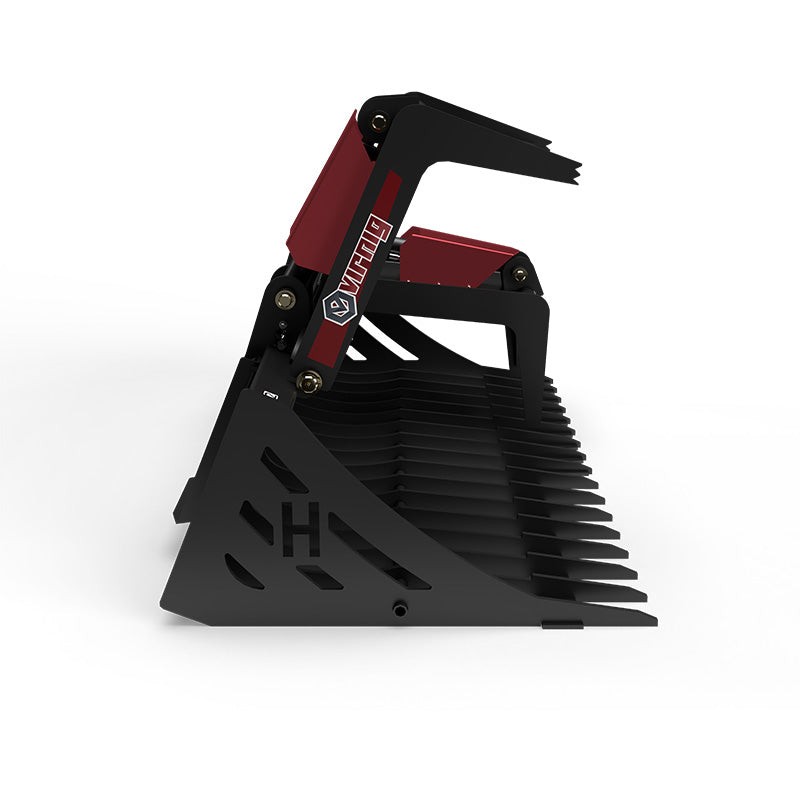

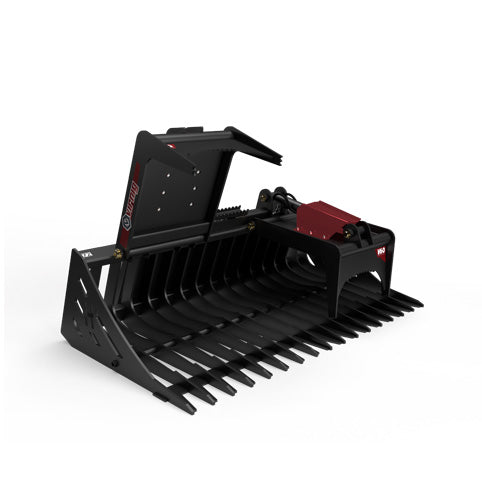

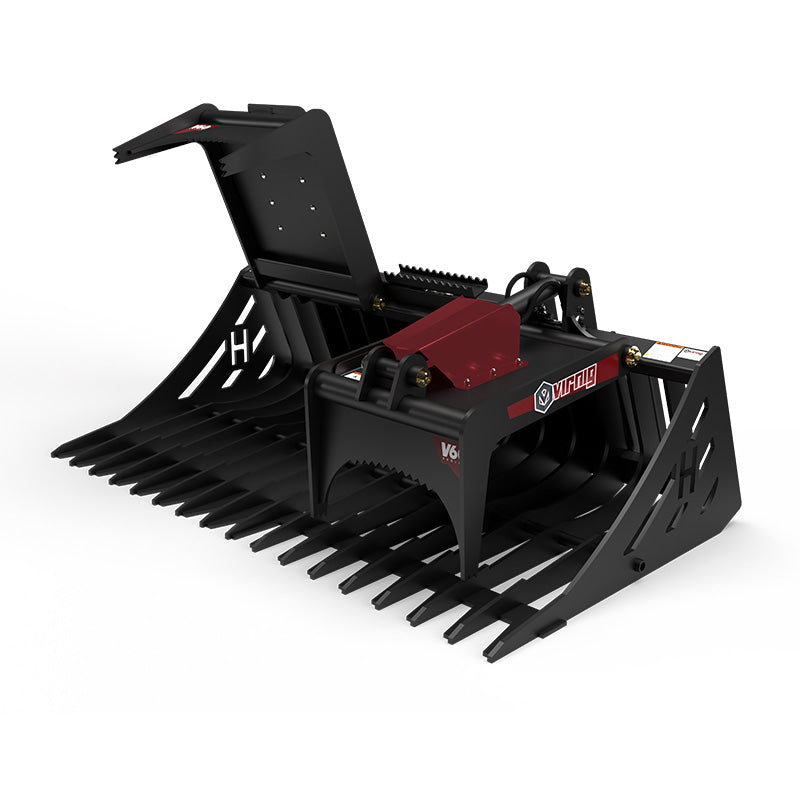

Virnig V60 Skeleton Rock Grapple

SKU: HSRGV72 Currently In Stock

Sale price$7,575.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

ONE-PIECE STEEL TINES

ONE-PIECE STEEL TINES PROVIDE RIGID SUPPORT WHEN LIFTING AND SORTING UNEVEN LOADS.

ROCK RETENTION

A ROCK DAM AND NOTCHED TINE TIPS HELP RETAIN ROCKS WHILE LOOSE SOIL FALLS THROUGH.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

OPEN MATERIAL HANDLING

VIRNIG V60 SKELETON ROCK GRAPPLE SECURES ROCKS AND UNEVEN LOADS WHILE ITS OPEN BOTTOM LETS LOOSE SOIL FALL THROUGH.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Skeleton Rock Grapple is built for collecting rocks and securing bulky, uneven debris on larger cleanup jobs. The open lower frame lets loose soil fall through, while the rock dam and notches near the tine tips help hold stones in place before the upper grapple closes around the load.

One-piece steel tines form the lower frame, with the V60 HSRGV family using ½″ Grade 80 tines. This heavier tine arrangement distinguishes it from the V50 rock grapple rather than simply adding another width choice. The upper grapple helps retain irregular loads while the operator carries them away from the sorting area.

Standard cylinder guards shield the hydraulic cylinders, and NitroSteel® rods with Teflon®-coated pivot bushings equip the moving assembly. Select the model around the loader's capacity, attachment weight, and the rocks or debris you expect to handle. The open floor is intended for separation, rather than containing fine material like a solid-bottom bucket.

KEY BENEFITS

  • Every tine is made from one piece of steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.
  • Virnig v60 skeleton rock grapple secures rocks and uneven loads while its open bottom lets loose soil fall through.

TECHNICAL SPECIFICATIONS

  • Models: HSRGV72 HSRGV78 HSRGV84 HSRGV90
  • Overall Width (in.): HSRGV72: 73.5; HSRGV78: 79.5; HSRGV84: 85.5; HSRGV90: 91.5
  • Height: Overall / Bucket (in.): 27.8 / 21.5
  • Overall Depth (in.): 42.9
  • Number of Tines (w/ sides): HSRGV72: 17; HSRGV78: 18; HSRGV84: 20; HSRGV90: 21
  • Space Between Tines (in.): HSRGV72: 4.0; HSRGV78: 4.1; HSRGV84: 3.9; HSRGV90: 4.0
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 36.1
  • Approximate Weight (lbs): HSRGV72: 1080; HSRGV78: 1115; HSRGV84: 1170; HSRGV90: 1205
  • Recommended Loader Capacity: Greater than 1800 lbs
  • ¹Material is Grade 80 Plate (80,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Rock cleanup
  • Sorting rocky soil
  • Handling uneven debris

VIRNIG V60 SKELETON ROCK GRAPPLE

WORKING DESIGN

  • Every tine is made from one piece of steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: HSRGV72 HSRGV78 HSRGV84 HSRGV90
  • Overall Width (in.): HSRGV72: 73.5; HSRGV78: 79.5; HSRGV84: 85.5; HSRGV90: 91.5
  • Height: Overall / Bucket (in.): 27.8 / 21.5
  • Overall Depth (in.): 42.9
  • Number of Tines (w/ sides): HSRGV72: 17; HSRGV78: 18; HSRGV84: 20; HSRGV90: 21
  • Space Between Tines (in.): HSRGV72: 4.0; HSRGV78: 4.1; HSRGV84: 3.9; HSRGV90: 4.0
  • Tine Thickness (in.): 0.5¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563

READY FOR THE FIELD

  • Every tine is made from one piece of steel for maximum rigidity.
  • Rock dam and notch near tine tips hold rocks securely.
  • Nitrosteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.
  • Virnig v60 skeleton rock grapple secures rocks and uneven loads while its open bottom lets loose soil fall through.
