VIRNIG

V60 Snow / Light Material Bucket

For Skid Steers & Track Loaders

78-101″ Widths

Virnig

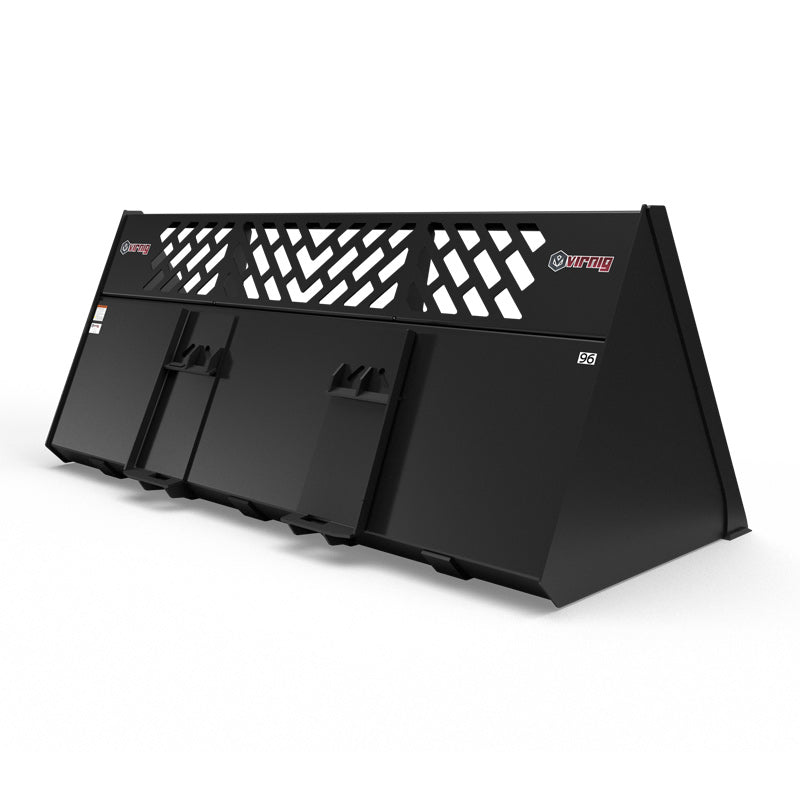

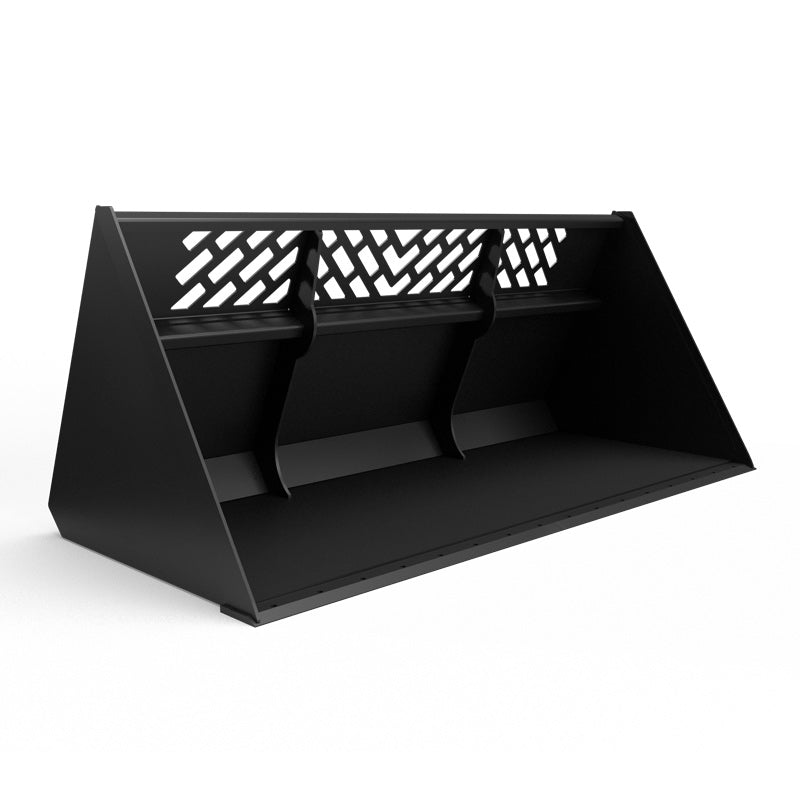

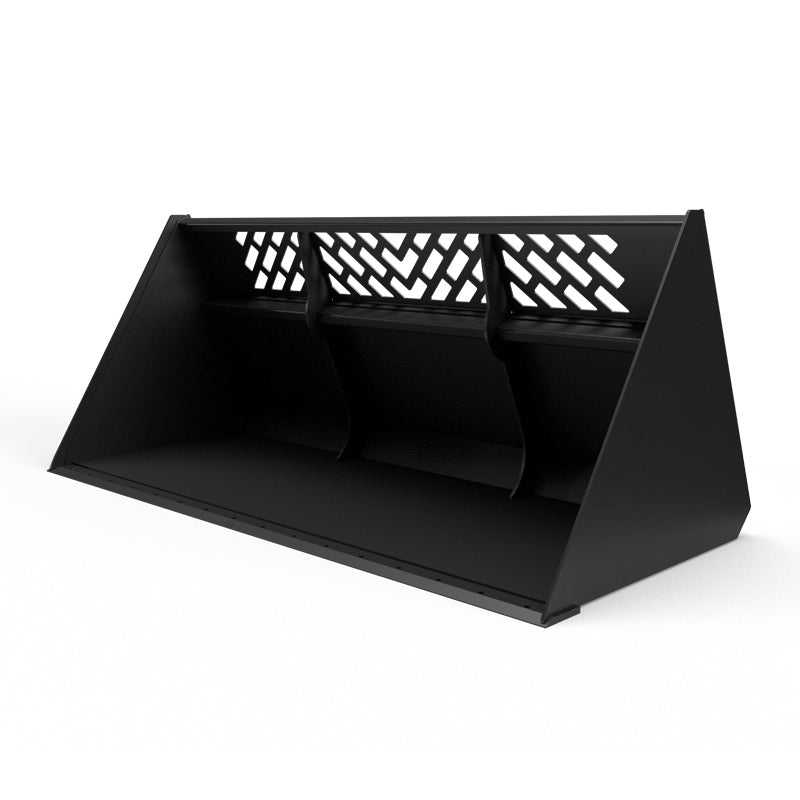

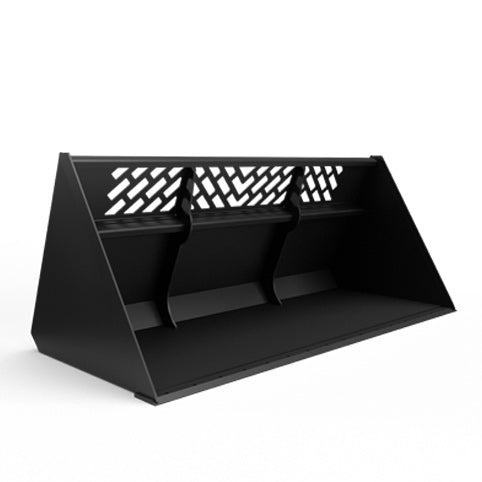

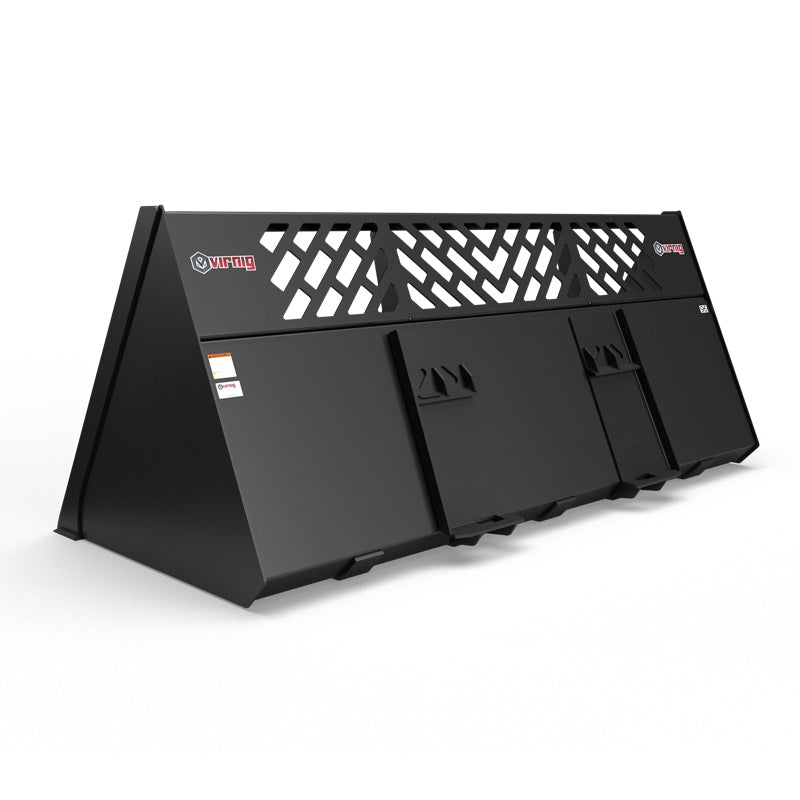

Virnig V60 Snow / Light Material Bucket

SKU: SBHV78 Currently In Stock

Sale price$4,050.00 USD

MOST IMPORTANT FEATURES

INTERNAL BRACE PLATE

AN ADDITIONAL INTERNAL BRACE PLATE REINFORCES THE BUCKET DURING MATERIAL HANDLING.

QUARTER-INCH STEEL SHELL

¼″ STEEL SHELL AND SIDE PLATES PROVIDE THE BUCKET'S MATERIAL-CONTAINING STRUCTURE.

HALF-INCH VERTICAL BRACES

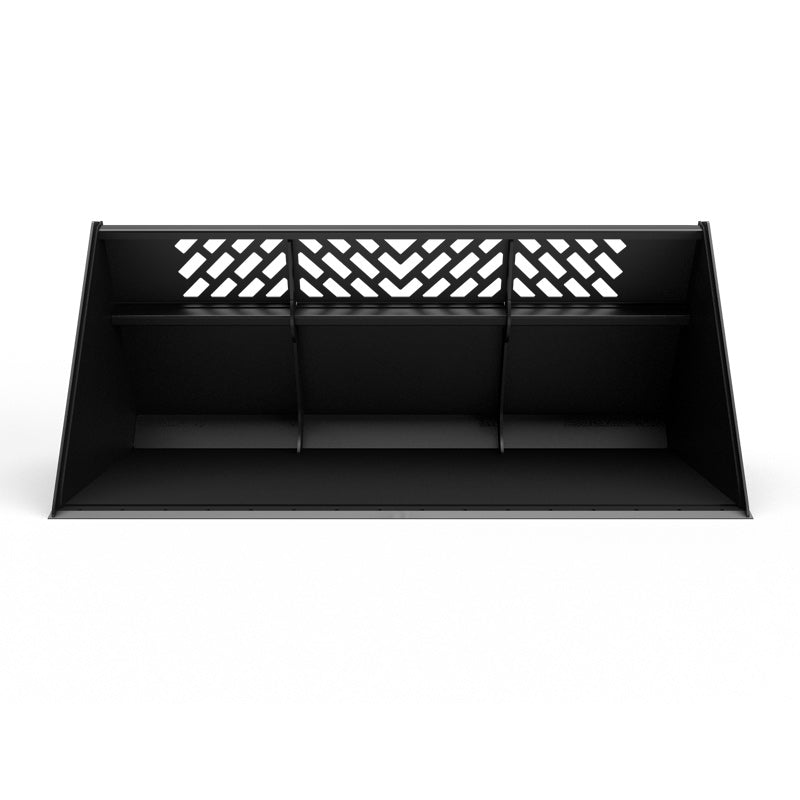

½″ VERTICAL BRACES REINFORCE THE BUCKET INTERIOR FOR REPEATED LOADING WORK.

REINFORCED SIDE EDGES

⅜″ SIDE EDGES AND GUSSETS REINFORCE THE BUCKET'S OUTER WORKING CORNERS.

OPERATOR VISIBILITY OPTIONS

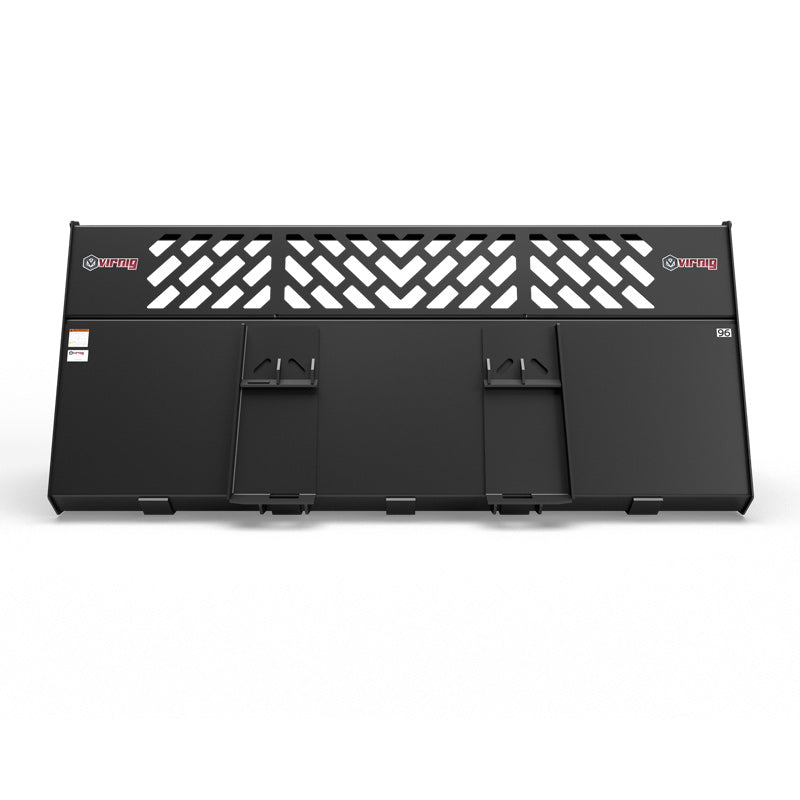

WINDOWED BACKRESTS IMPROVE SIGHTLINES; A SOLID BACK IS AVAILABLE AS AN ALTERNATIVE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Snow / Light Material Bucket combines high-volume carrying space with additional internal reinforcement for snow, mulch, and other lighter bulk material. Its bucket shape is intended to gather a larger volume per trip, helping with repeated pile movement and loading work where a small dirt bucket would fill quickly.

Quarter-inch shell and side plates work with ½″ vertical braces and an extra internal brace plate. The side edges and gussets are ⅜″ thick, while the front uses a ¾″ × 6″ weld-on edge. Visibility windows provide a view through the bucket, with a solid-back option available for a different rear layout.

Match the width, attachment weight, and material volume to the loader. The V60's reinforcement differs from the V40 and V50 constructions, but it does not increase the carrier's lifting capacity. Wet snow and denser materials can consume the available capacity before the bucket is full, so choose the fill level around the actual load.

KEY BENEFITS

  • Extra brace plate inside bucket for added strength.
  • 1/4” shell and side plates.
  • 1/2” vertical braces inside bucket.
  • 3/8” side edges and gussets.
  • Windows for better operator visibility. Available with solid back.

TECHNICAL SPECIFICATIONS

  • Models: SBHV78 SBHV84 SBHV96 SBHV101
  • Width: Overall / Inside (in.): SBHV78: 79.5 / 77.3; SBHV84: 85.5 / 83.3; SBHV96: 97.5 / 95.3; SBHV101: 101.5 / 99.3
  • Overall Height (in.): 40.5
  • Depth: Overall / Inside (in.): 47.6 / 43.0
  • Window Height (in.): 12.0
  • Capacity: Struck / Heaped (cu. ft.): SBHV78: 40.1 / 48.1; SBHV84: 43.2 / 51.8; SBHV96: 49.4 / 59.3; SBHV101: 52.2 / 62.6

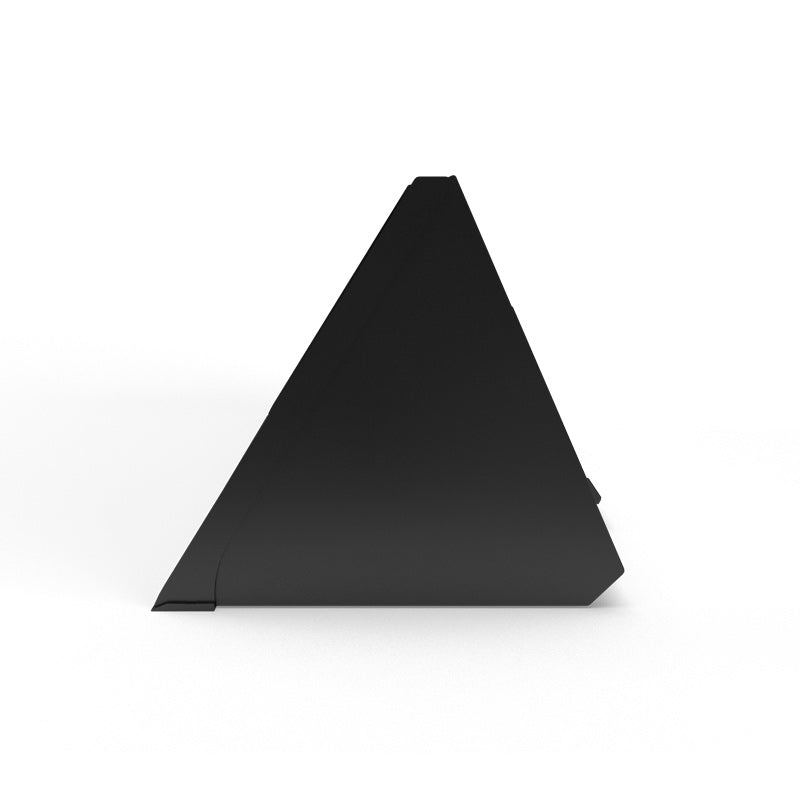

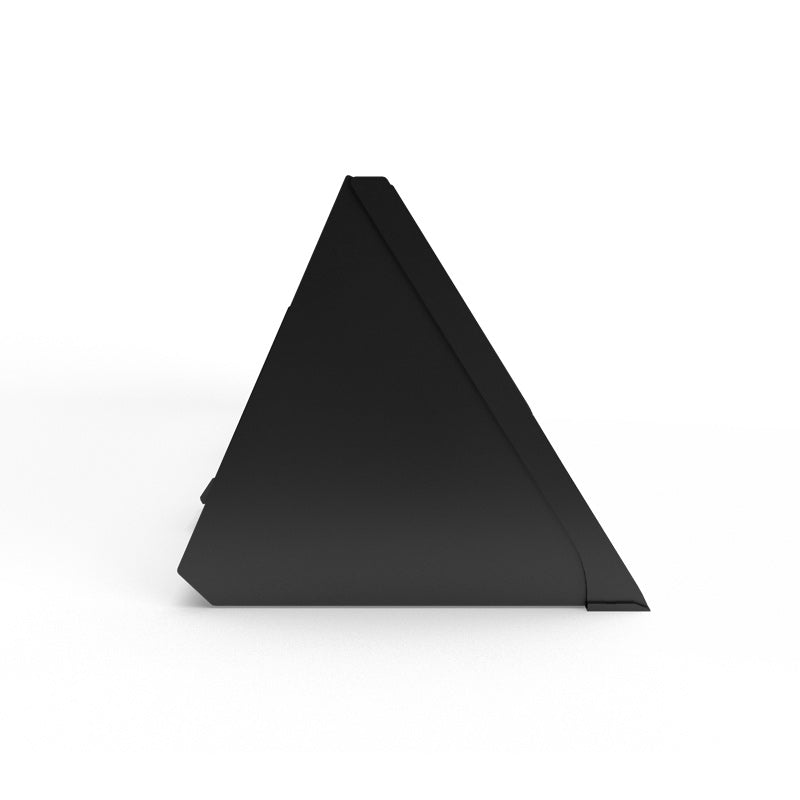

  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″ x 4″): 5
  • Approximate Weight (lbs): SBHV78: 1045; SBHV84: 1095; SBHV96: 1195; SBHV101: 1225
  • Recommended Loader Capacity: Greater than 2400 lbs

APPLICATIONS

  • Snow loading
  • Mulch handling
  • Light material transport

VIRNIG V60 SNOW / LIGHT MATERIAL BUCKET

WORKING DESIGN

  • Extra brace plate inside bucket for added strength.
  • 1/4” shell and side plates.
  • 1/2” vertical braces inside bucket.
  • 3/8” side edges and gussets.
  • Windows for better operator visibility. Available with solid back.

CONFIGURATION AND SPECIFICATIONS

  • Models: SBHV78 SBHV84 SBHV96 SBHV101
  • Width: Overall / Inside (in.): SBHV78: 79.5 / 77.3; SBHV84: 85.5 / 83.3; SBHV96: 97.5 / 95.3; SBHV101: 101.5 / 99.3
  • Overall Height (in.): 40.5
  • Depth: Overall / Inside (in.): 47.6 / 43.0
  • Window Height (in.): 12.0
  • Capacity: Struck / Heaped (cu. ft.): SBHV78: 40.1 / 48.1; SBHV84: 43.2 / 51.8; SBHV96: 49.4 / 59.3; SBHV101: 52.2 / 62.6
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25

READY FOR THE FIELD

  • Extra brace plate inside bucket for added strength.
  • 1/4” shell and side plates.
  • 1/2” vertical braces inside bucket.
  • 3/8” side edges and gussets.
  • Windows for better operator visibility. Available with solid back.
