VIRNIG

V60 Tine Fork Grapple

For Skid Steers & Track Loaders

72-90″ Widths

Virnig

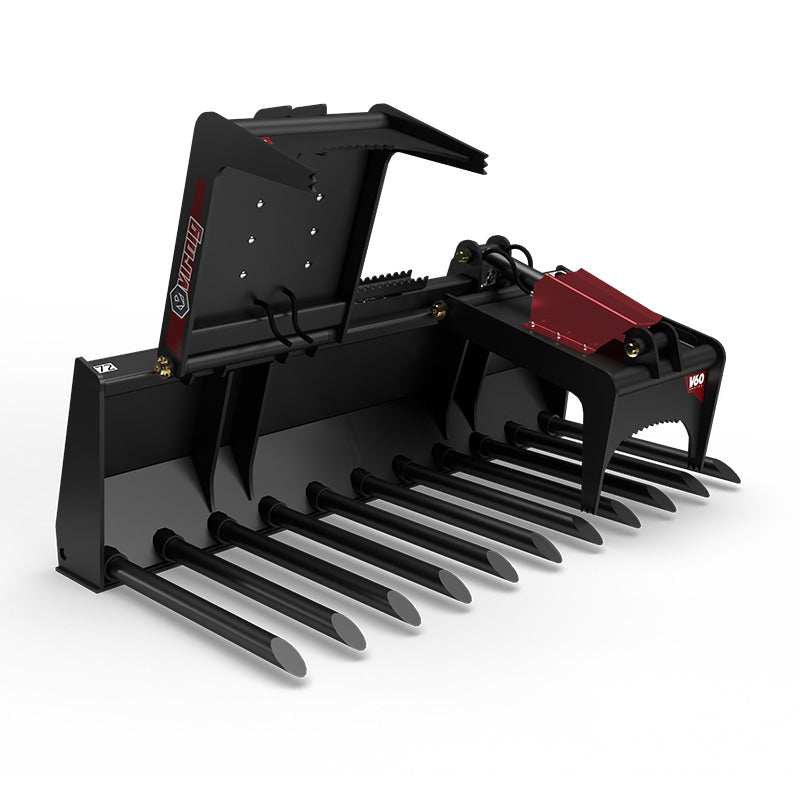

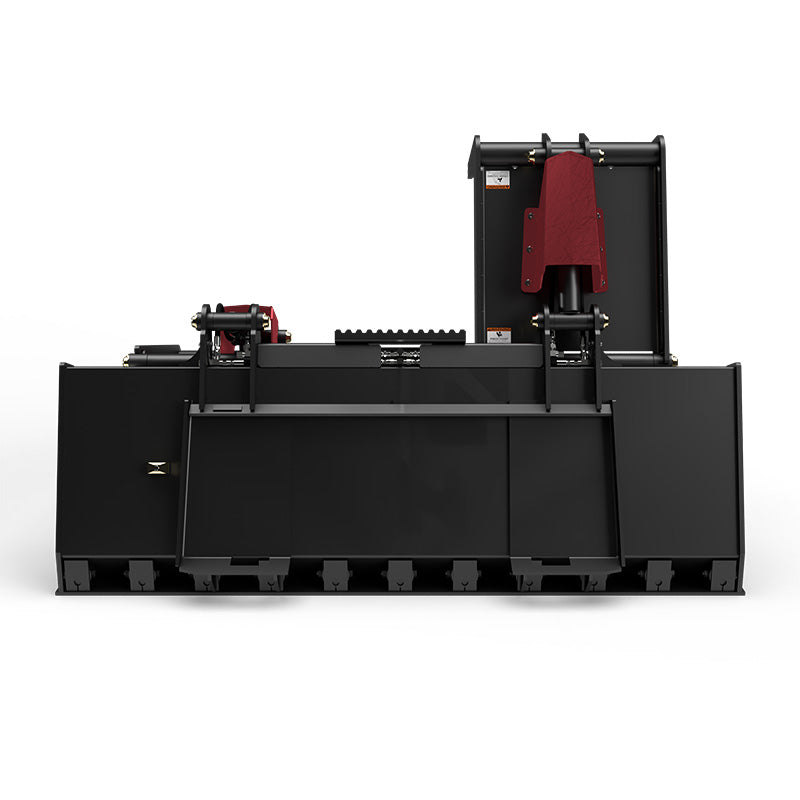

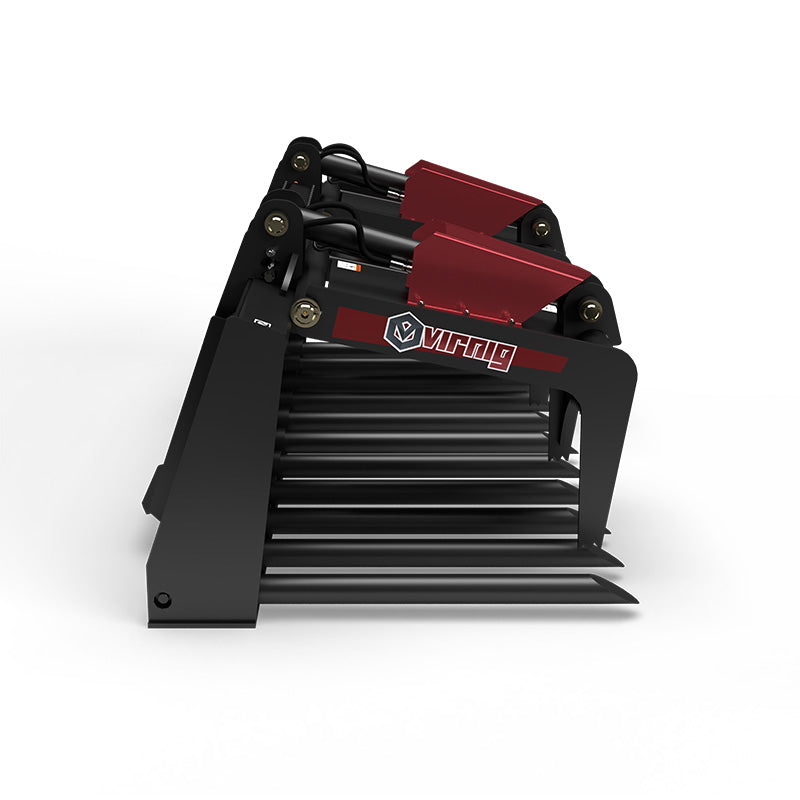

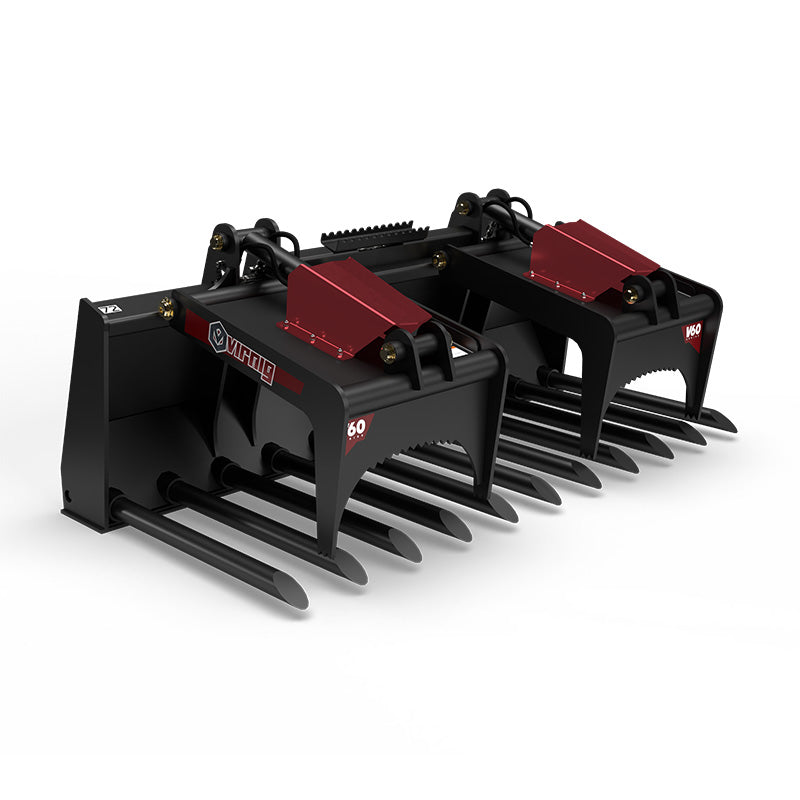

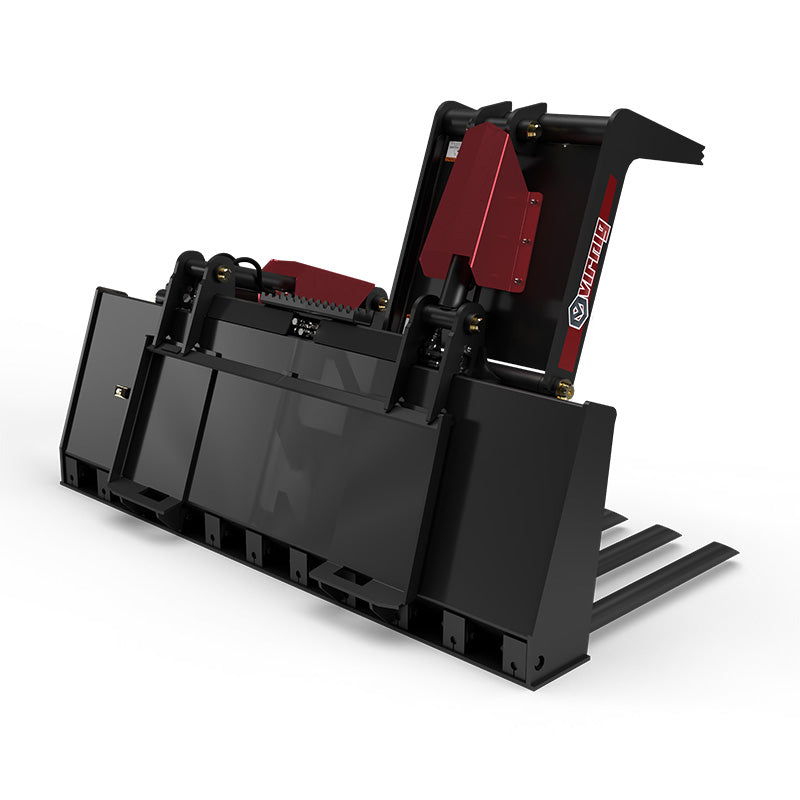

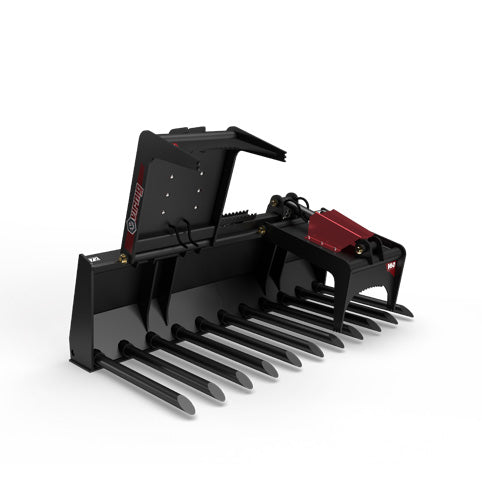

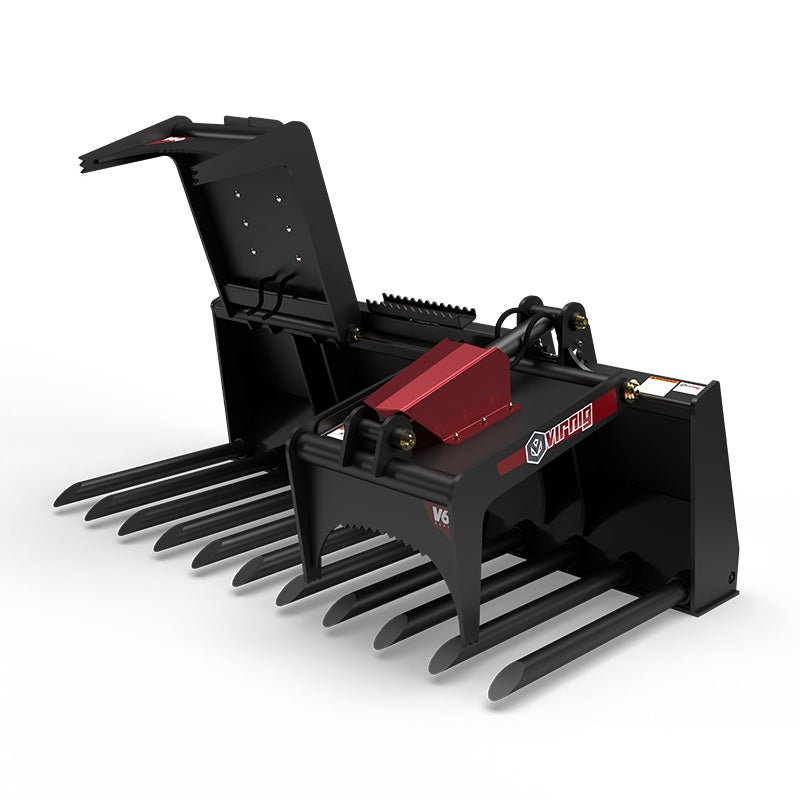

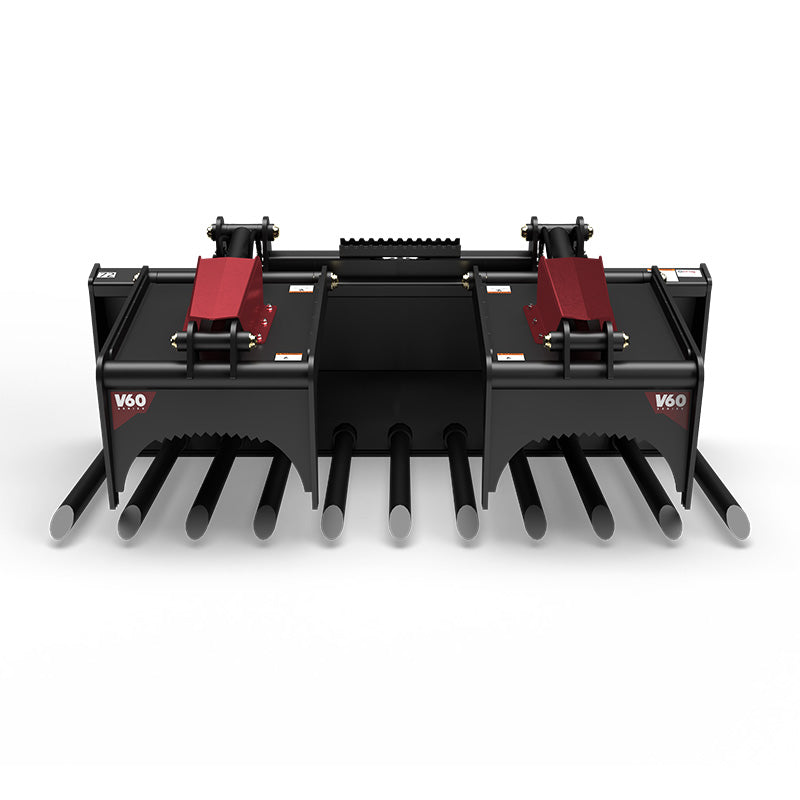

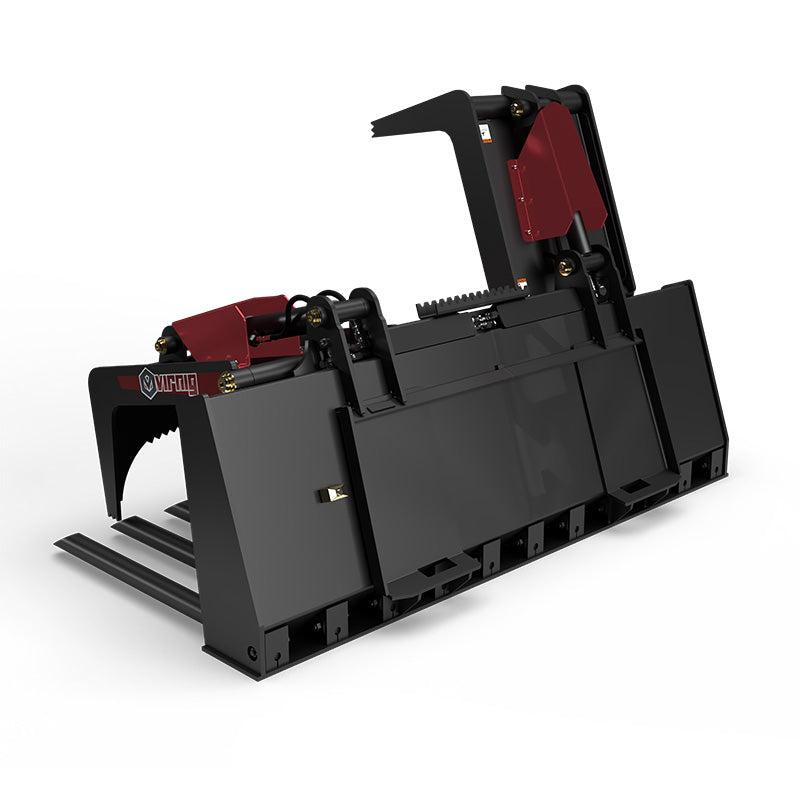

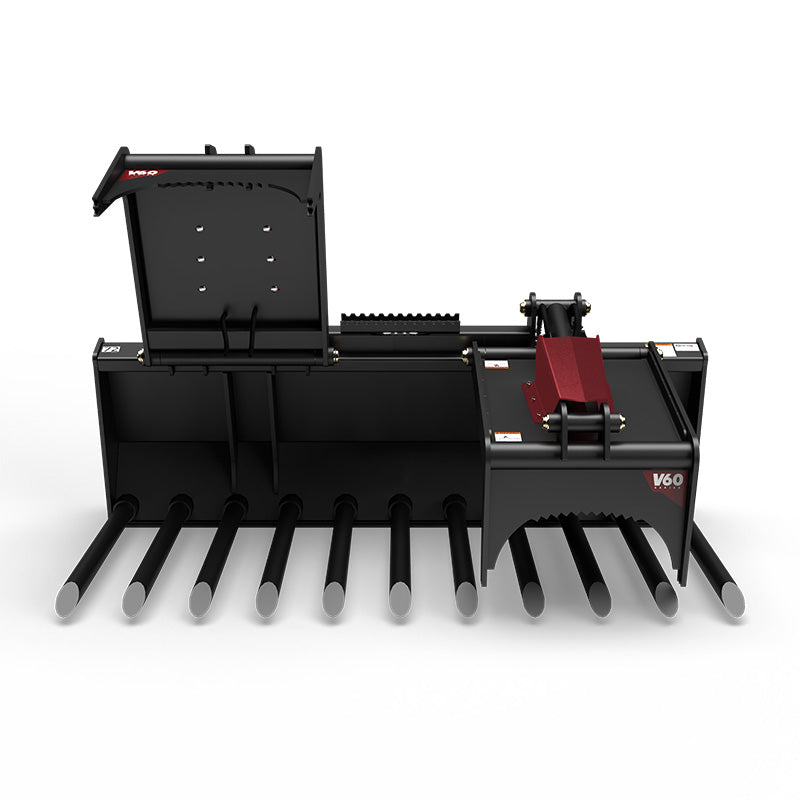

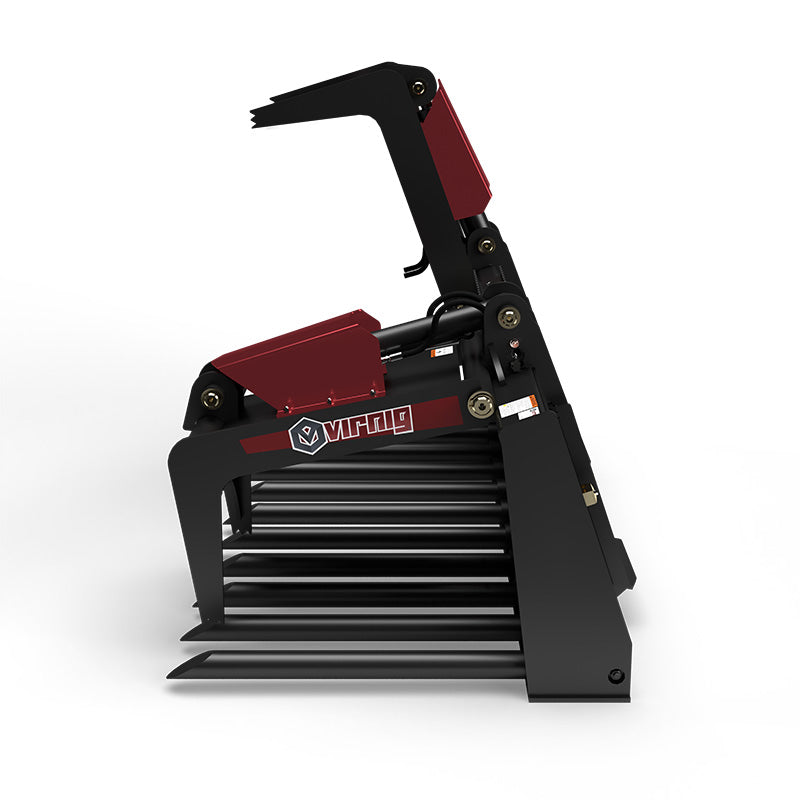

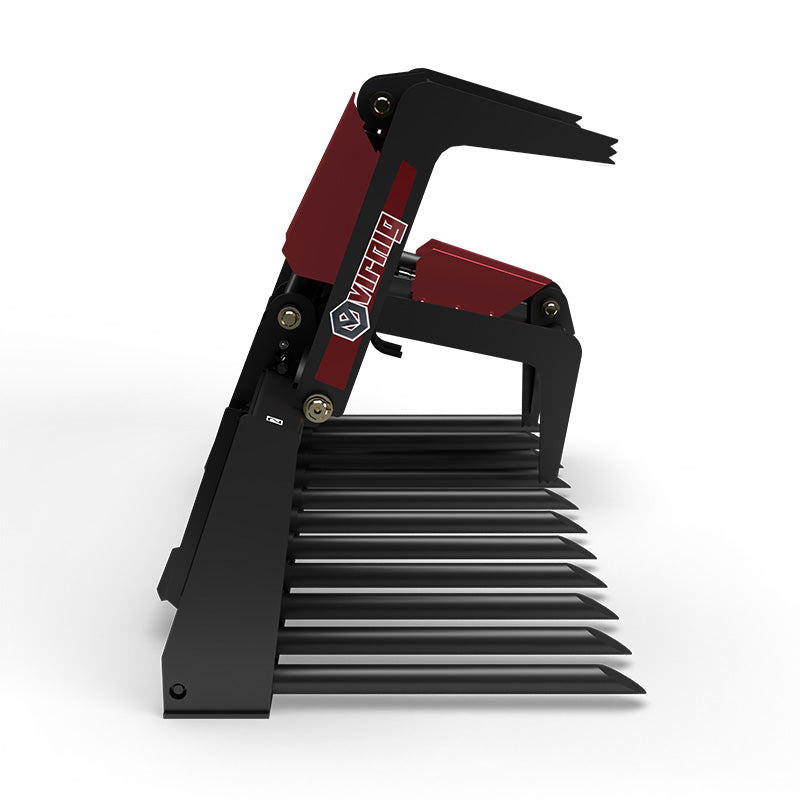

Virnig V60 Tine Fork Grapple

SKU: ITG72 Currently In Stock

Sale price$8,050.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

OPEN TINE ENTRY

AN UNOBSTRUCTED TINE ENTRY SLIDES INTO MATERIAL WITHOUT A FRONT CROSS MEMBER IN THE WAY.

REINFORCED BUCKET

½″ VERTICAL BRACES REINFORCE THE BUCKET INTERIOR FOR REPEATED LOADING WORK.

REPLACEABLE TINES

HIGH-STRENGTH TINES CAN BE REPLACED INDIVIDUALLY TO KEEP THE FORK IN SERVICE.

PROTECTED HYDRAULIC PIVOTS

NITROSTEEL® RODS AND TEFLON®-COATED PIVOT BUSHINGS SUPPORT SMOOTH GRAPPLE MOVEMENT.

CYLINDER GUARDS

STANDARD GUARDS SHIELD THE HYDRAULIC CYLINDERS DURING MATERIAL HANDLING.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Tine Fork Grapple gives larger loaders a tool for gathering manure, brush, and bulky cleanup debris. An unobstructed tine entry reaches into material without a front cross member blocking penetration, while the hydraulic grapple jaws hold the load against the lower fork for transport and placement.

The ITG family combines 2¼″ diameter high-strength replaceable tines with ½″ vertical braces inside the bucket. These components support repeated loading work, and individual tine replacement allows worn working parts to be serviced separately. A 40.2″ jaw opening provides room to gather uneven material before closing the grapple.

NitroSteel® cylinder rods and Teflon®-coated pivot bushings equip the hydraulic connections, with cylinder guards included as standard. Match the selected width and attachment weight to the loader's rated capacity. On M-Series Bobcat® loaders, confirm clearance with cylinder guards installed and the jaws open because that configuration has a known interference concern.

KEY BENEFITS

  • No cross member for better penetration.
  • 1/2” vertical braces inside bucket.
  • High strength replaceable tines.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.

TECHNICAL SPECIFICATIONS

  • Models: ITG72 ITG78 ITG84 ITG90
  • Overall Width (in.): ITG72: 73.3; ITG78: 79.3; ITG84: 85.3; ITG90: 91.3
  • Height: Overall / Bucket (in.): 28.5 / 23.5
  • Overall Depth (in.): 37.0
  • Number of Tines (w/ sides): ITG72: 11; ITG78: 12; ITG84: 13; ITG90: 13
  • Space Between Tines (in.): ITG72: 4.6; ITG78: 4.5; ITG84: 4.4; ITG90: 4.9
  • Tine Diameter (in.): 2.25¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Grapple Jaw Opening (in.): 40.2
  • Approximate Weight (lbs): ITG72: 1325; ITG78: 1400; ITG84: 1470; ITG90: 1495
  • Recommended Loader Capacity: Greater than 2400 lbs
  • ¹Material is 1045 CFSR Round Stock (100,000 PSI Minimum Yield Strength).

APPLICATIONS

  • Manure handling
  • Brush cleanup
  • Farm material loading

VIRNIG V60 TINE FORK GRAPPLE

WORKING DESIGN

  • No cross member for better penetration.
  • 1/2” vertical braces inside bucket.
  • High strength replaceable tines.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.

CONFIGURATION AND SPECIFICATIONS

  • Models: ITG72 ITG78 ITG84 ITG90
  • Overall Width (in.): ITG72: 73.3; ITG78: 79.3; ITG84: 85.3; ITG90: 91.3
  • Height: Overall / Bucket (in.): 28.5 / 23.5
  • Overall Depth (in.): 37.0
  • Number of Tines (w/ sides): ITG72: 11; ITG78: 12; ITG84: 13; ITG90: 13
  • Space Between Tines (in.): ITG72: 4.6; ITG78: 4.5; ITG84: 4.4; ITG90: 4.9
  • Tine Diameter (in.): 2.25¹
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563

READY FOR THE FIELD

  • No cross member for better penetration.
  • 1/2” vertical braces inside bucket.
  • High strength replaceable tines.
  • NitroSteel® cylinder rods and Teflon® coated bushings on all pivots.
  • Standard with cylinder guards.
