VIRNIG

V60 Trencher

For Skid Steers & Track Loaders

36-60″ Digging Depths

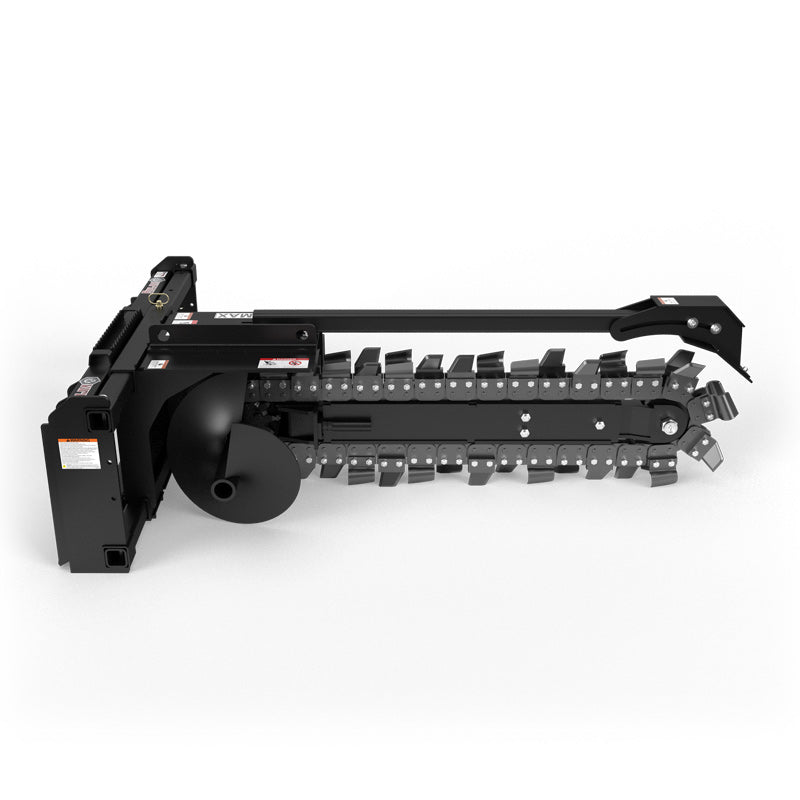

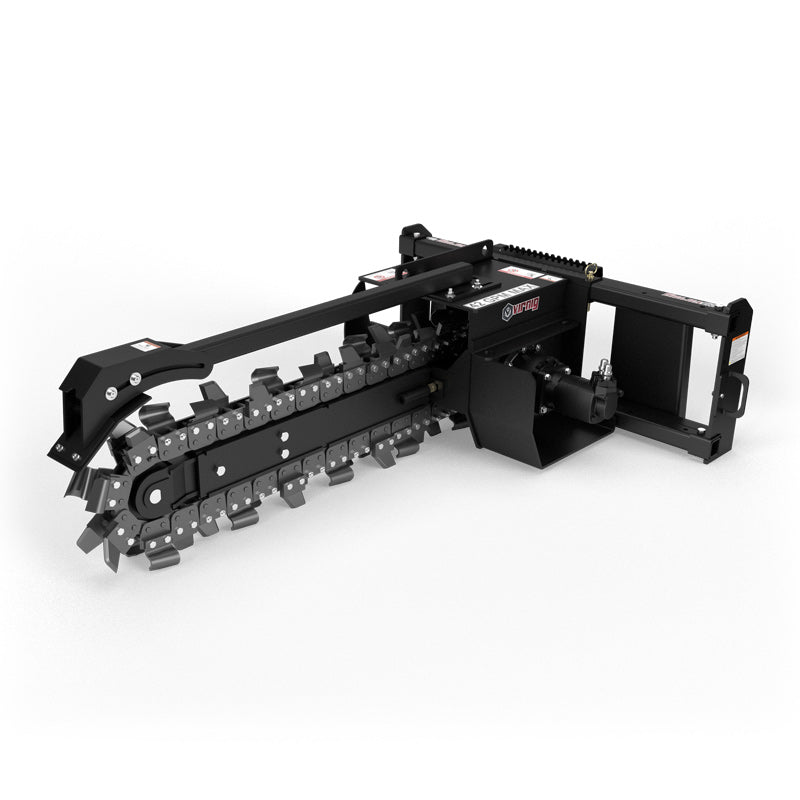

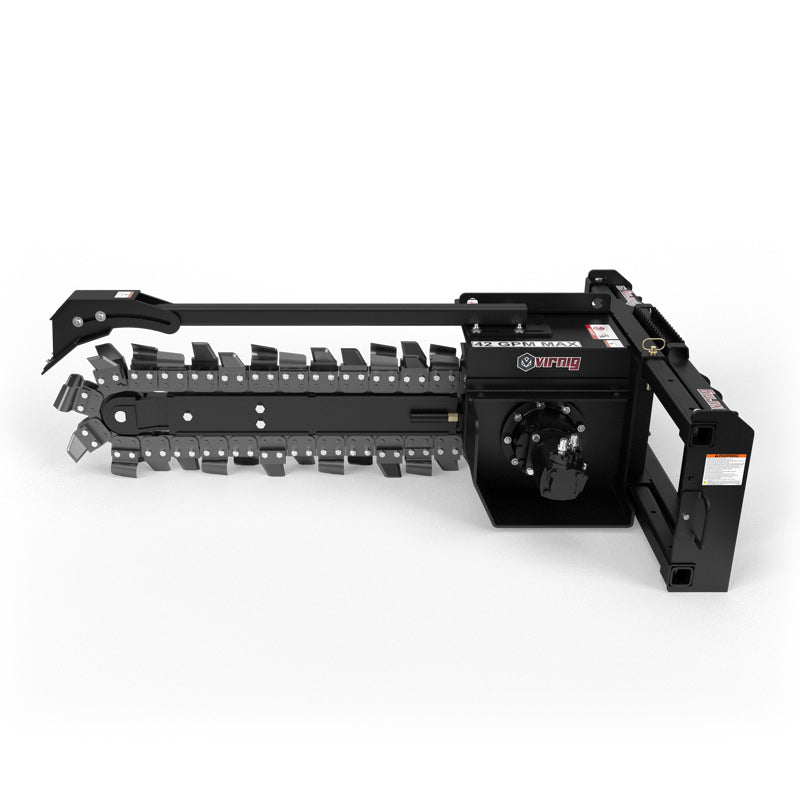

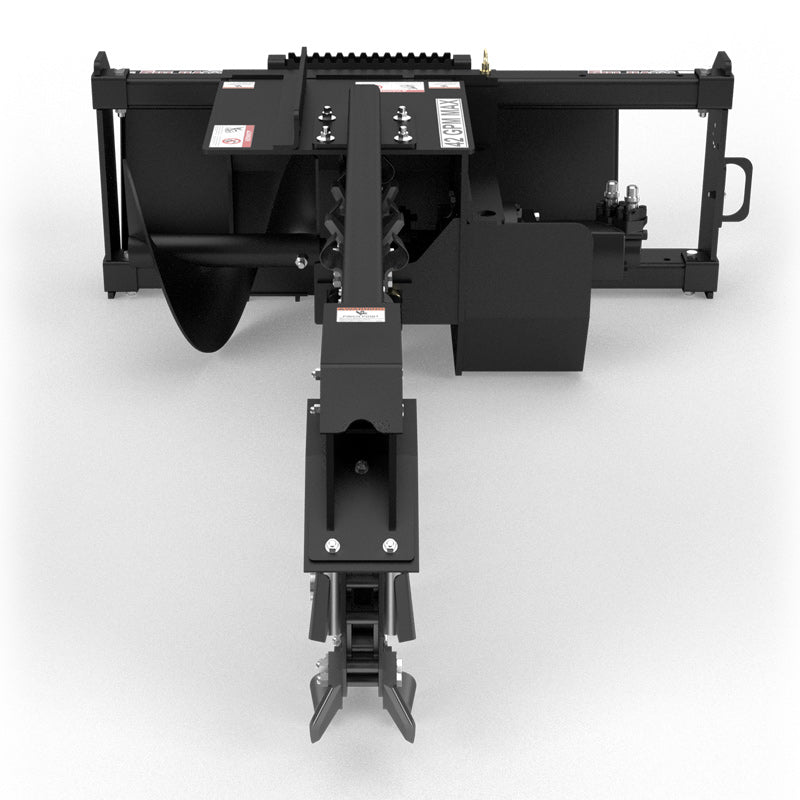

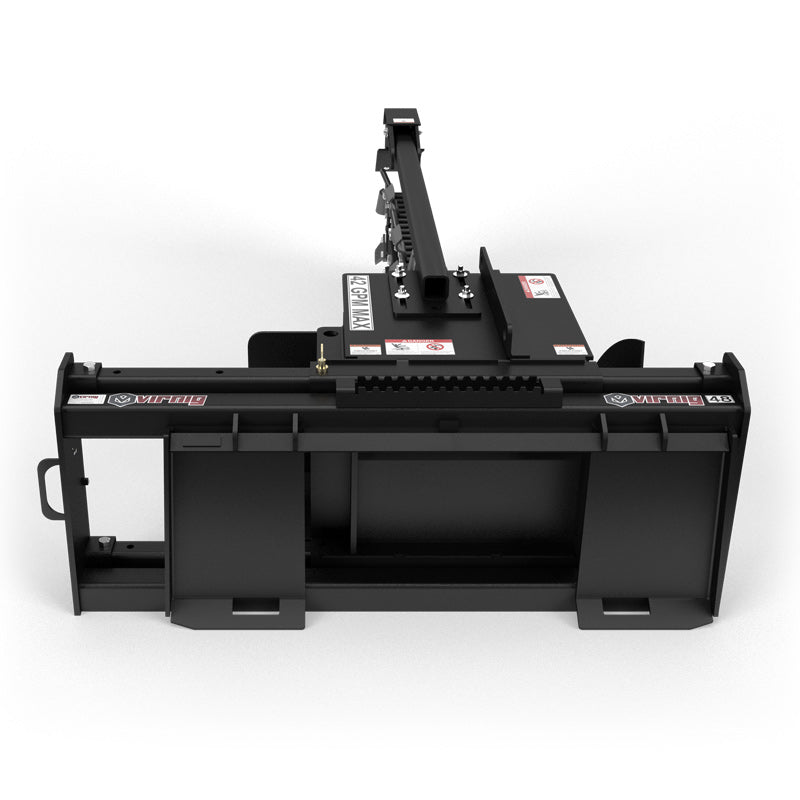

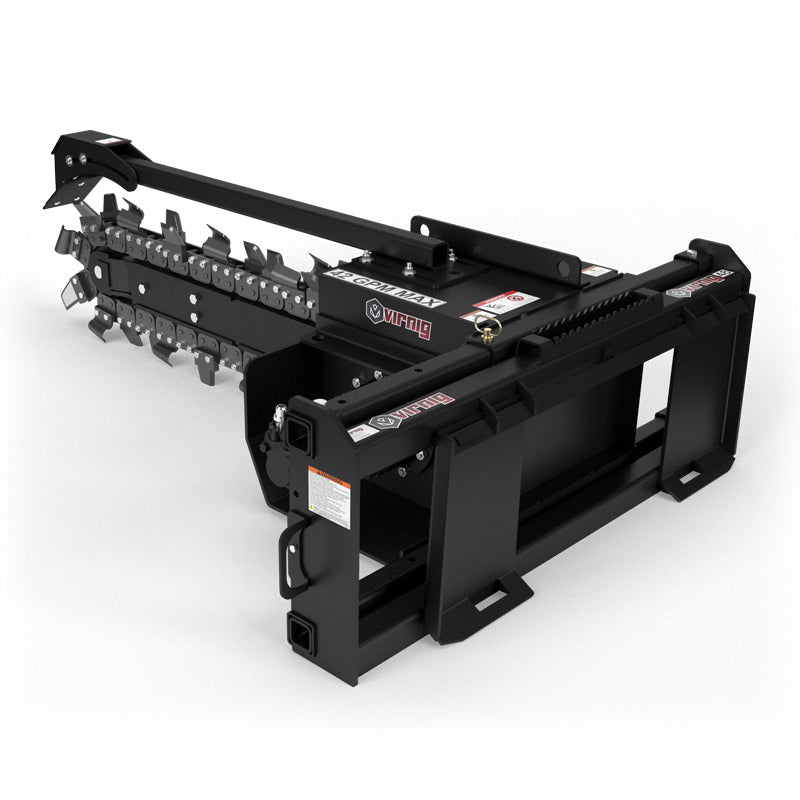

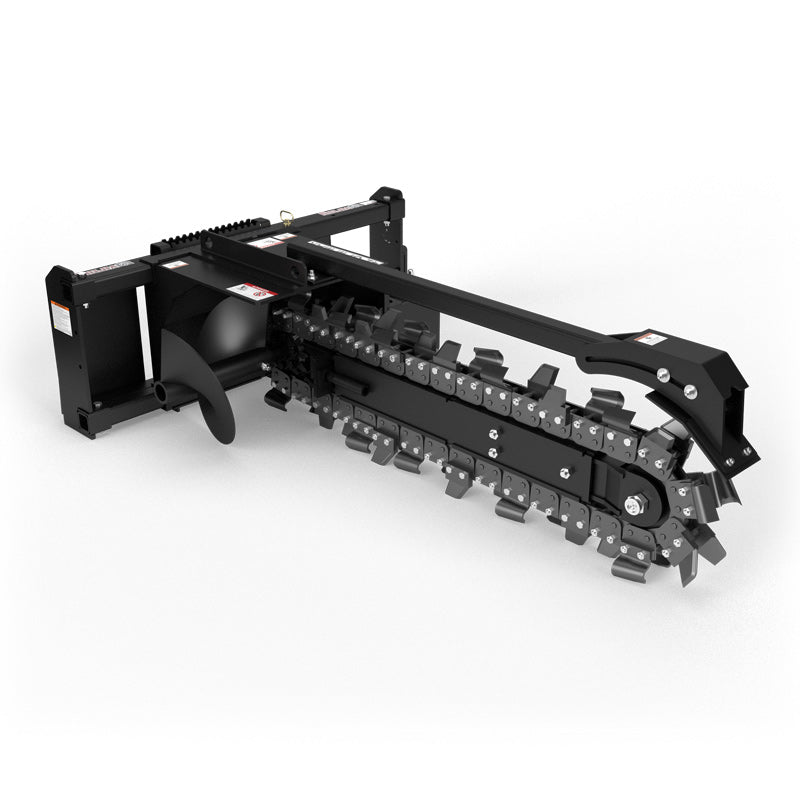

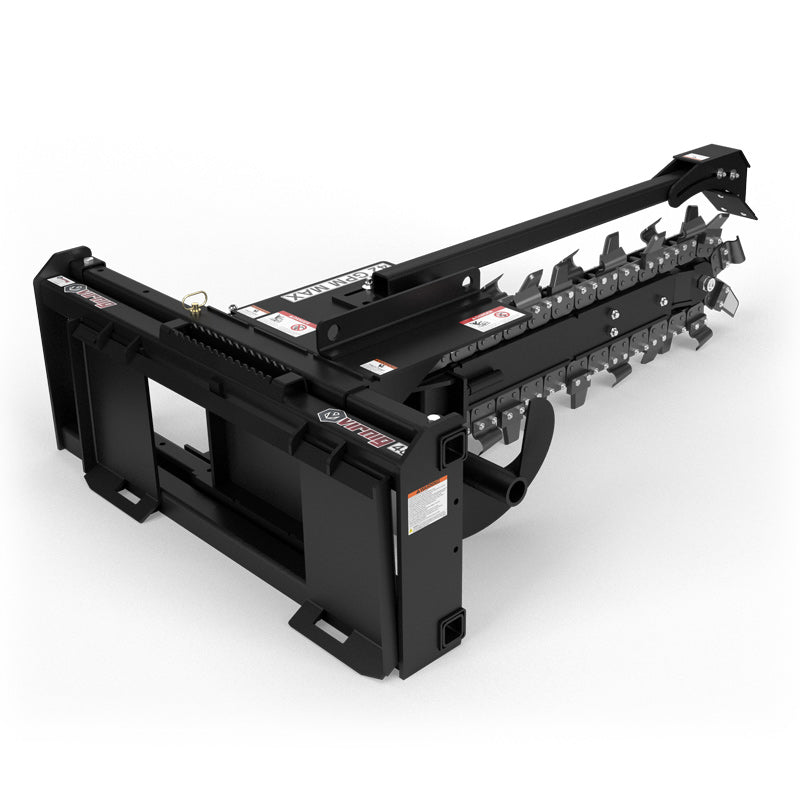

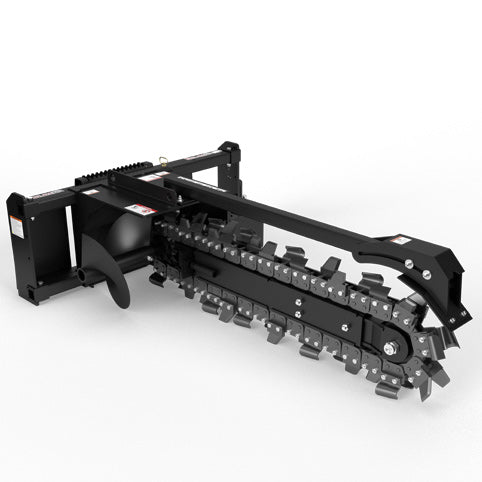

Virnig V60 Trencher

Virnig

Virnig V60 Trencher

SKU: TRN36-25+10138PP Currently In Stock

Sale price$10,155.00 USD

Select Your Machine to Check Compatibility

MOST IMPORTANT FEATURES

HYDRAULIC MOTOR OPTIONS

THREE MOTOR OPTIONS COVER 15-45 GPM, LETTING YOU MATCH THE DRIVE TO THE LOADER'S FLOW.

CHAIN WIDTH OPTIONS

CHOOSE A 6″, 8″, 10″ OR 12″ CHAIN TO MATCH THE TRENCH WIDTH TO THE JOB.

HEAVY-DUTY DIGGING CHAIN

A USA-MADE, 50,000 LB ANTI-BACK FLEX CHAIN SUPPORTS HEAVY-DUTY TRENCHING WORK.

THREE SIDE-SHIFT POSITIONS

THREE MANUAL SIDE-SHIFT POSITIONS PLACE THE DIGGING CHAIN CLOSER TO STRUCTURES.

REMOVABLE SPOIL AUGER

THE REMOVABLE AUGER MOVES EXCAVATED SOIL AWAY FROM THE TRENCH AS YOU DIG.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Trencher is built for demanding trenching with a heavy-duty anti-back-flex chain and multiple hydraulic motor choices. Available drive configurations cover 15-45 GPM across the family, allowing the trencher to be matched to standard- or high-flow carriers rather than treating every loader as the same setup.

Choose a 6″, 8″, 10″, or 12″ chain width around the required trench. The USA-made chain has a 50,000 lb rating, and three manual side-shift positions help place the cutting path closer to structures. A removable auger moves excavated spoil away from the opening and allows the setup to be adapted for close work.

The standard crumber helps clear loose material from the trench bottom as the chain advances. Match the selected motor's specific flow range to the loader, and choose depth and chain style for the soil being excavated. The V60 combines a heavier digging chain with configurable drive and width choices for contractors who need a dedicated trenching attachment.

KEY BENEFITS

  • 15-45gpm three motor options standard and high flow.
  • 6″, 8″, 10″, 12″ chain widths.
  • Heavy-duty 50,000lb anti-back flex chain made in the usa.
  • Three manual side-shift positions for trenching near structures.
  • Removable auger clears excavated soil away from the trench.

TECHNICAL SPECIFICATIONS

  • Digging depths: 36, 48, or 60 inches.
  • Available chain widths: 6, 8, 10, or 12 inches.
  • Overall width / height: 58.5 / 25.8 inches.
  • Overall lengths by digging depth: 69.7 / 84.9 / 95.7 inches.
  • Standard-flow drive: 15-25 GPM, maximum operating pressure 3,500 PSI.
  • High-flow and high-pressure drives are selected separately. High-pressure motor flow range: 33–45 GPM.
  • Maximum operating pressure depends on the selected drive: 3,500, 4,100, or 4,500 PSI.
  • Approximate weights by digging depth: 1,135 / 1,220 / 1,285 lb with a 50/50 chain.
  • Recommended loader capacity: greater than 1,500 lb.
  • The selected price includes the drive head and chain. Optional accessories are not included unless selected.

APPLICATIONS

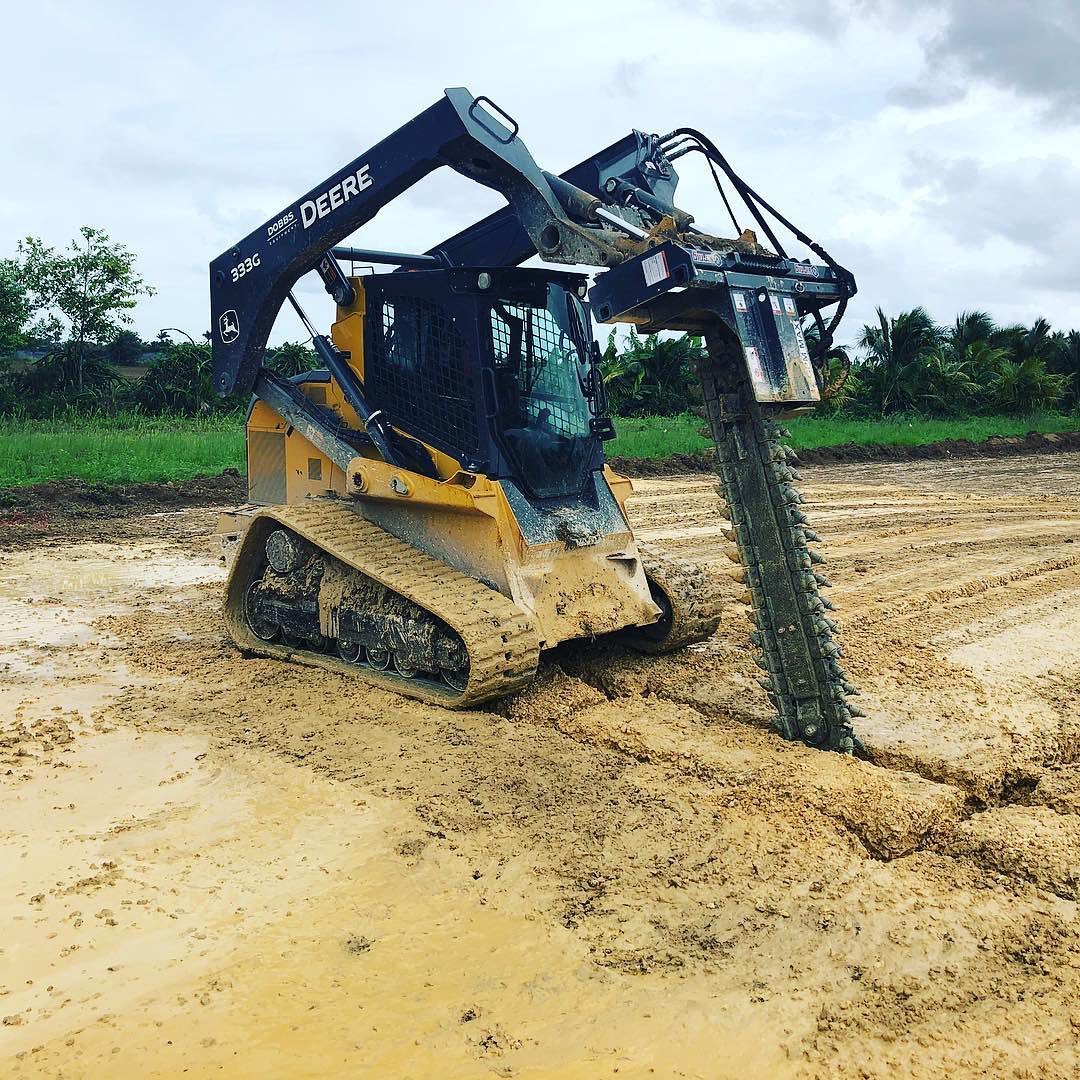

  • Utility trenches
  • Irrigation installation
  • Landscape trenching

VIRNIG V60 TRENCHER

WORKING DESIGN

  • 15-45gpm three motor options standard and high flow.
  • 6″, 8″, 10″, 12″ chain widths.
  • Heavy-duty 50,000lb anti-back flex chain made in the usa.
  • Three manual side-shift positions for trenching near structures.
  • Removable auger clears excavated soil away from the trench.

CONFIGURATION AND SPECIFICATIONS

  • Digging depths: 36, 48, or 60 inches.
  • Available chain widths: 6, 8, 10, or 12 inches.
  • Overall width / height: 58.5 / 25.8 inches.
  • Overall lengths by digging depth: 69.7 / 84.9 / 95.7 inches.
  • Standard-flow drive: 15-25 GPM, maximum operating pressure 3,500 PSI.
  • High-flow and high-pressure drives are selected separately. High-pressure motor flow range: 33–45 GPM.
  • Maximum operating pressure depends on the selected drive: 3,500, 4,100, or 4,500 PSI.

READY FOR THE FIELD

  • 15-45gpm three motor options standard and high flow.
  • 6″, 8″, 10″, 12″ chain widths.
  • Heavy-duty 50,000lb anti-back flex chain made in the usa.
  • Three manual side-shift positions for trenching near structures.
  • Removable auger clears excavated soil away from the trench.
