VIRNIG

V60 Utility Bucket

For Skid Steers & Track Loaders

72-96″ Widths

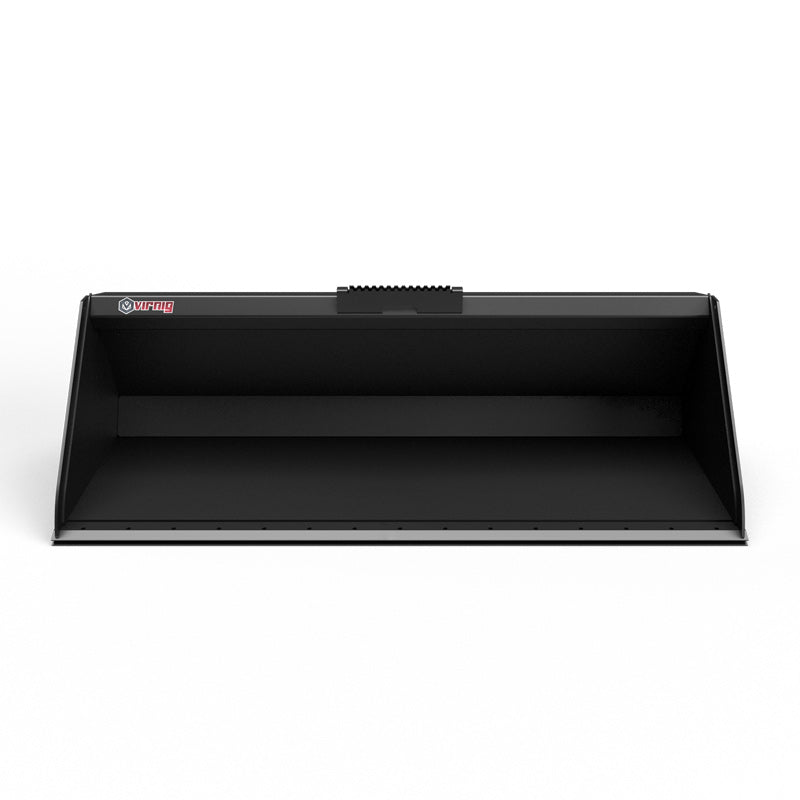

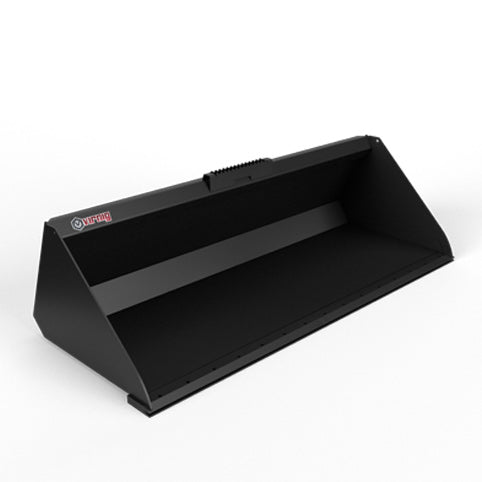

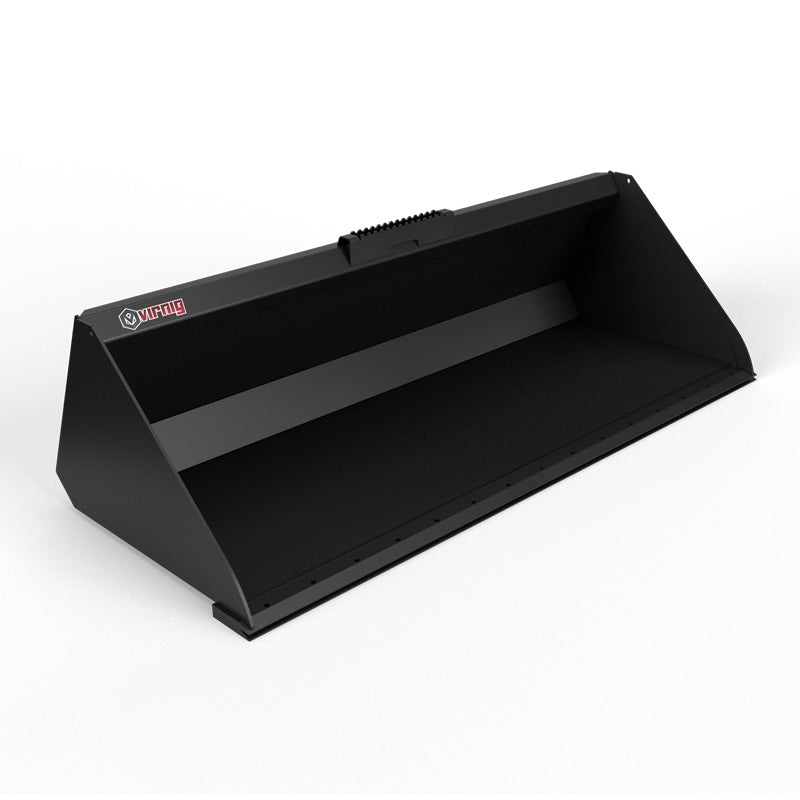

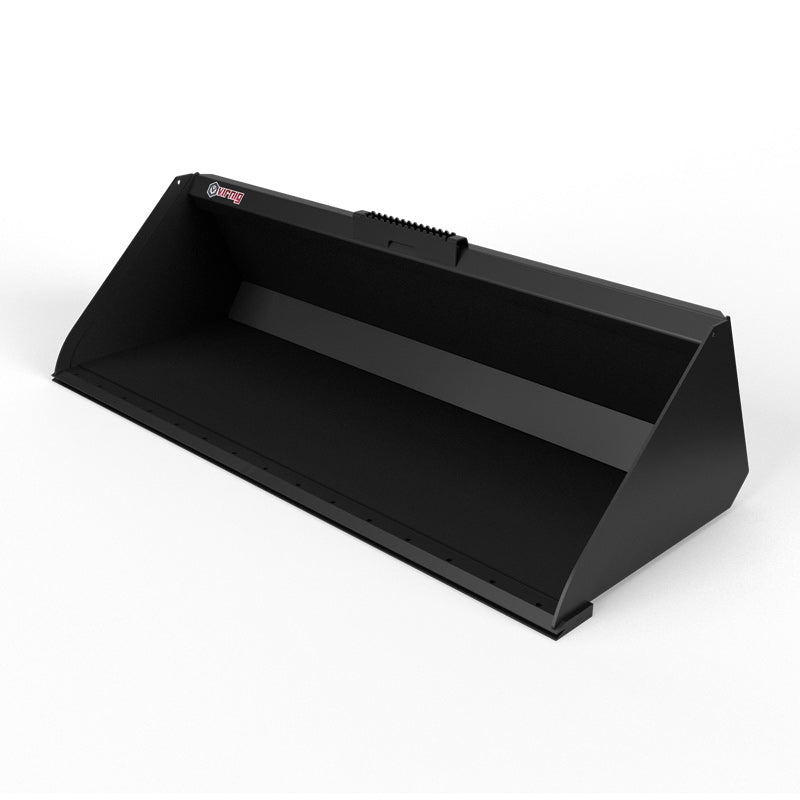

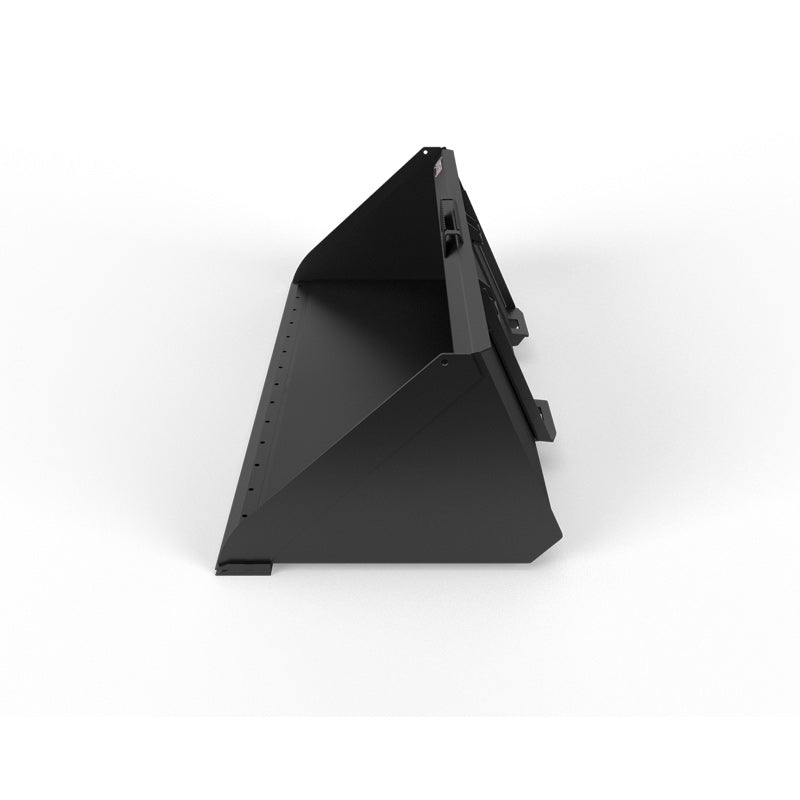

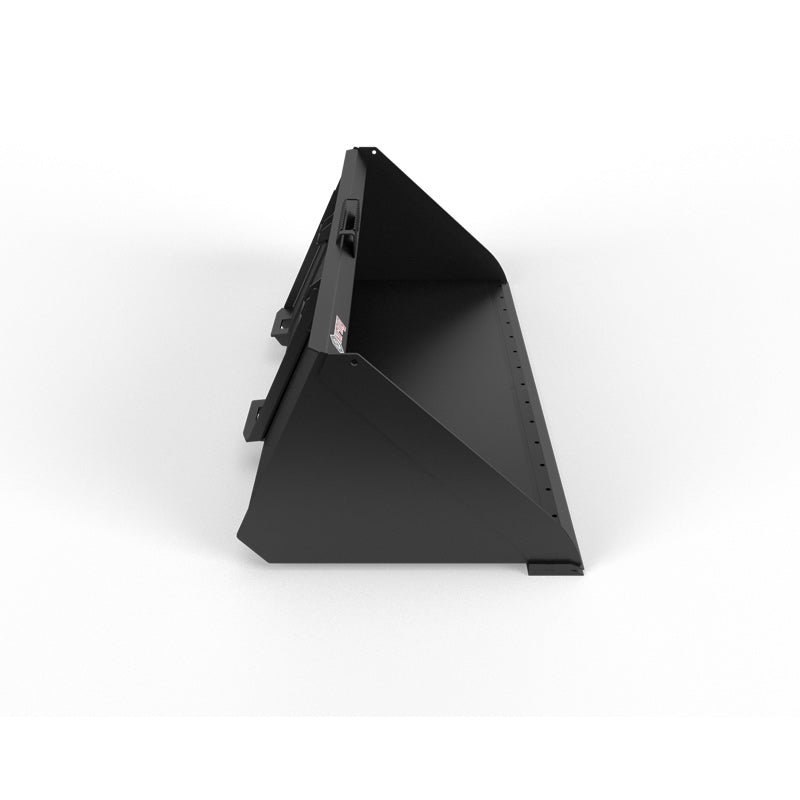

Virnig V60 Utility Bucket

Virnig

Virnig V60 Utility Bucket

SKU: HUHV72 Currently In Stock

Sale price$2,905.00 USD

MOST IMPORTANT FEATURES

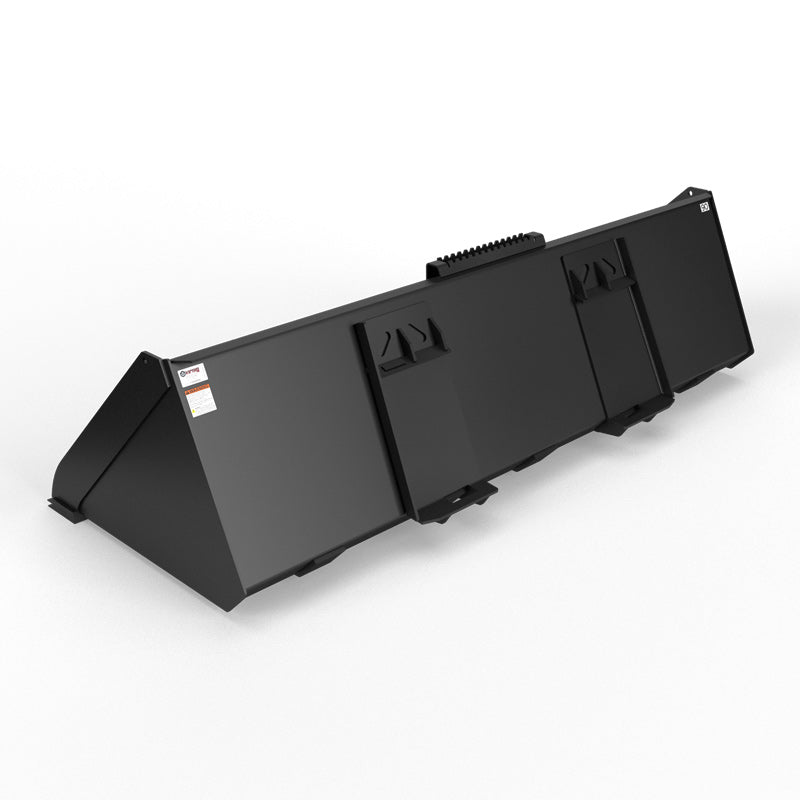

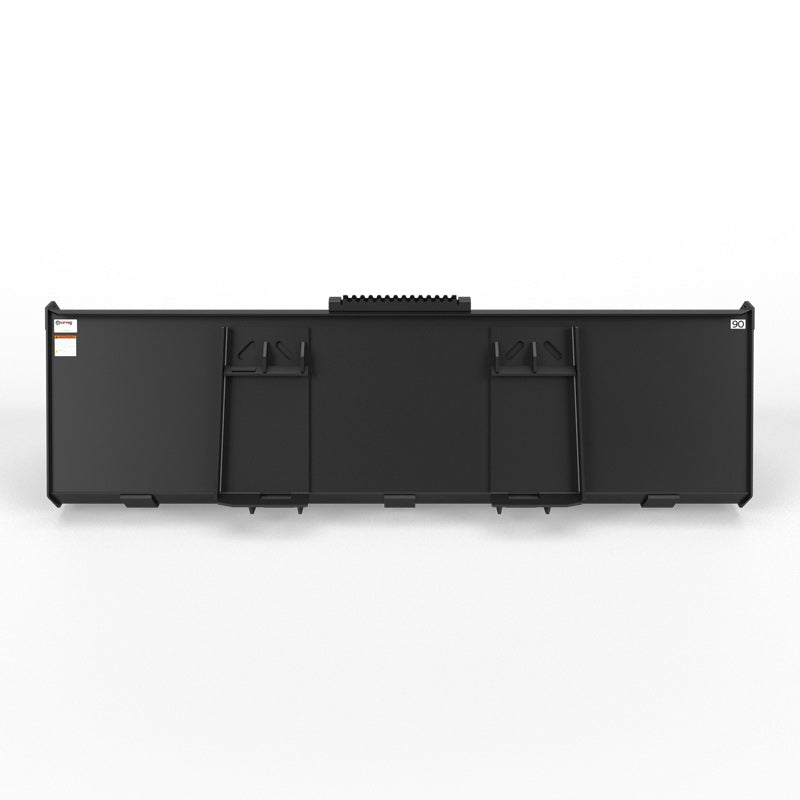

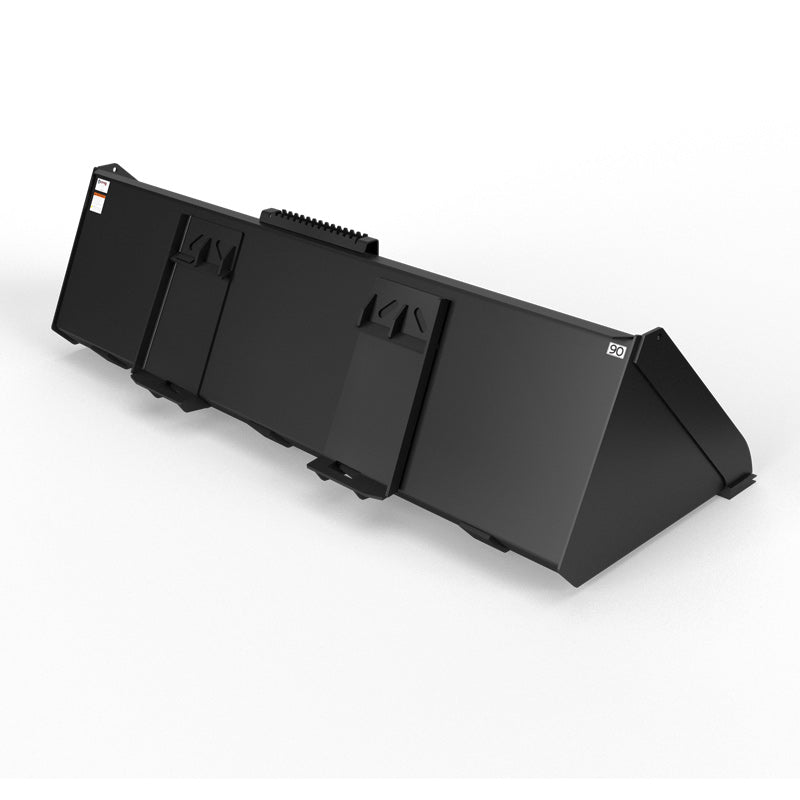

MOUNT-TO-TOP BRACING

HEAVY-DUTY BRACING CONNECTS THE BUCKET TOP TO THE QUICK-ATTACH MOUNT.

INTERNAL BRACE PLATE

AN ADDITIONAL INTERNAL BRACE PLATE REINFORCES THE BUCKET DURING MATERIAL HANDLING.

WELD-ON CUTTING EDGE

A ¾″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S WORKING CONTACT WITH THE GROUND.

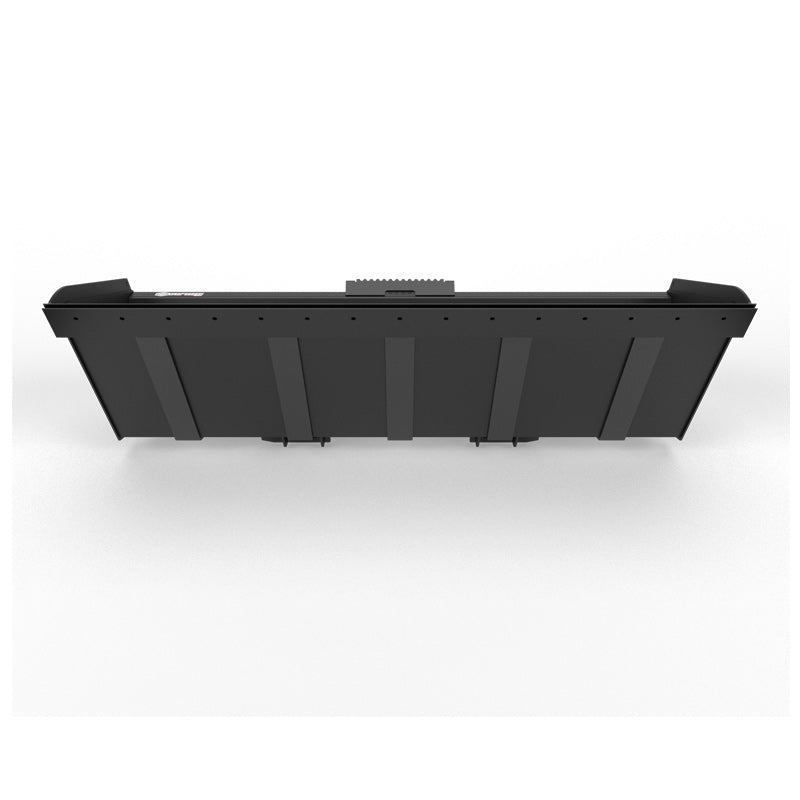

BOTTOM WEAR BARS

½″ X 4″ WEAR BARS SHIELD THE BUCKET BOTTOM FROM REPEATED GROUND CONTACT.

DENSE MATERIAL HANDLING

VIRNIG V60 UTILITY BUCKET SCOOPS AND CARRIES DENSE AND BULK MATERIALS.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 Utility Bucket is a reinforced solid-floor bucket for scooping and carrying dense or bulk material. It combines general loading capability with additional structural bracing, making it useful when the work calls for a utility bucket that retains loose material and stands up to repeated pile entry.

Heavy-duty bracing ties the upper bucket structure to the quick-attach plate, while an extra brace plate reinforces the interior. A ¾″ × 6″ weld-on edge provides the leading working surface. Half-inch × 4″ wear bars protect the bottom where the bucket repeatedly contacts the ground during loading and cleanup.

Select the model around the carrier, material density, and space available for loading and unloading. The V60's bracing distinguishes it from the V50 utility bucket, but added bucket strength does not change the loader's rated lifting capacity. Account for the attachment weight and the contents together when deciding how much material to carry.

KEY BENEFITS

  • Heavy-duty bracing ties top to quick tach plate.
  • Extra brace plate inside bucket for added strength.
  • 3/4″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.
  • Virnig V60 Utility Bucket scoops and carries dense and bulk materials.

TECHNICAL SPECIFICATIONS

  • Models: HUHV72 HUHV78 HUHV84 HUHV90 HUHV96
  • Width: Overall / Inside (in.): HUHV72: 73.5 / 71.3; HUHV78: 79.5 / 77.3; HUHV84: 85.5 / 83.3; HUHV90: 91.5 / 89.3; HUHV96: 97.5 / 95.3
  • Overall Height (in.): 24.9
  • Depth: Overall / Inside (in.): 40.1 / 35.5
  • Capacity: Struck / Heaped (cu. ft.): HUHV72: 19.2 / 23.0; HUHV78: 20.9 / 25.1; HUHV84: 22.6 / 27.1; HUHV90: 24.3 / 29.2; HUHV96: 26.0 / 31.2
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″ x 4″): HUHV72: 4; HUHV78: 5; HUHV84: 5; HUHV90: 5; HUHV96: 5
  • Approximate Weight (lbs): HUHV72: 720; HUHV78: 775; HUHV84: 815; HUHV90: 855; HUHV96: 890
  • Recommended Loader Capacity: Greater than 2400 lbs

APPLICATIONS

  • General material loading
  • Bulk handling
  • Site cleanup

VIRNIG V60 UTILITY BUCKET

WORKING DESIGN

  • Heavy-duty bracing ties top to quick tach plate.
  • Extra brace plate inside bucket for added strength.
  • 3/4″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.

CONFIGURATION AND SPECIFICATIONS

  • Models: HUHV72 HUHV78 HUHV84 HUHV90 HUHV96
  • Width: Overall / Inside (in.): HUHV72: 73.5 / 71.3; HUHV78: 79.5 / 77.3; HUHV84: 85.5 / 83.3; HUHV90: 91.5 / 89.3; HUHV96: 97.5 / 95.3
  • Overall Height (in.): 24.9
  • Depth: Overall / Inside (in.): 40.1 / 35.5
  • Capacity: Struck / Heaped (cu. ft.): HUHV72: 19.2 / 23.0; HUHV78: 20.9 / 25.1; HUHV84: 22.6 / 27.1; HUHV90: 24.3 / 29.2; HUHV96: 26.0 / 31.2
  • Bucket Back Angle (degrees): 66
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″ x 4″): HUHV72: 4; HUHV78: 5; HUHV84: 5; HUHV90: 5; HUHV96: 5

READY FOR THE FIELD

  • Heavy-duty bracing ties top to quick tach plate.
  • Extra brace plate inside bucket for added strength.
  • 3/4″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.
  • Virnig V60 Utility Bucket scoops and carries dense and bulk materials.
