VIRNIG

V60 V-Snow Blade

For Skid Steers & Track Loaders

48-120″ Widths

Request QuoteAdd To Cart

Virnig V60 V-Snow Blade

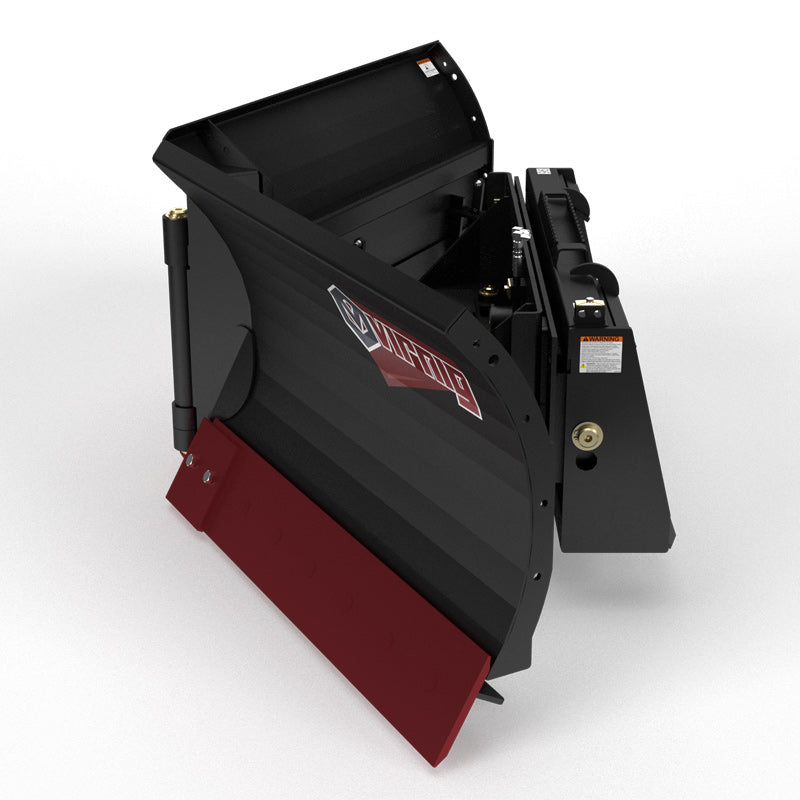

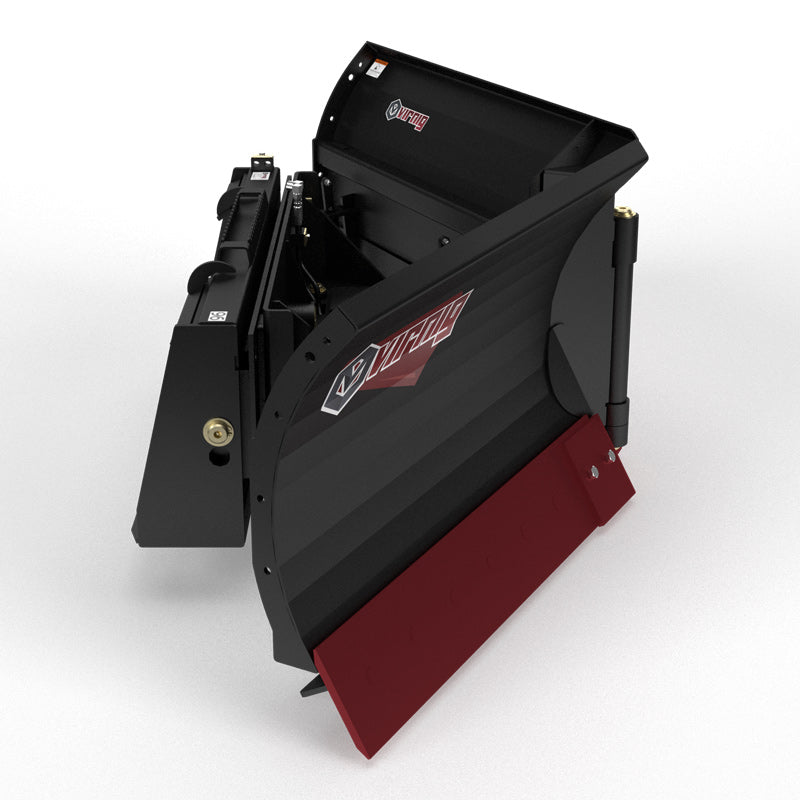

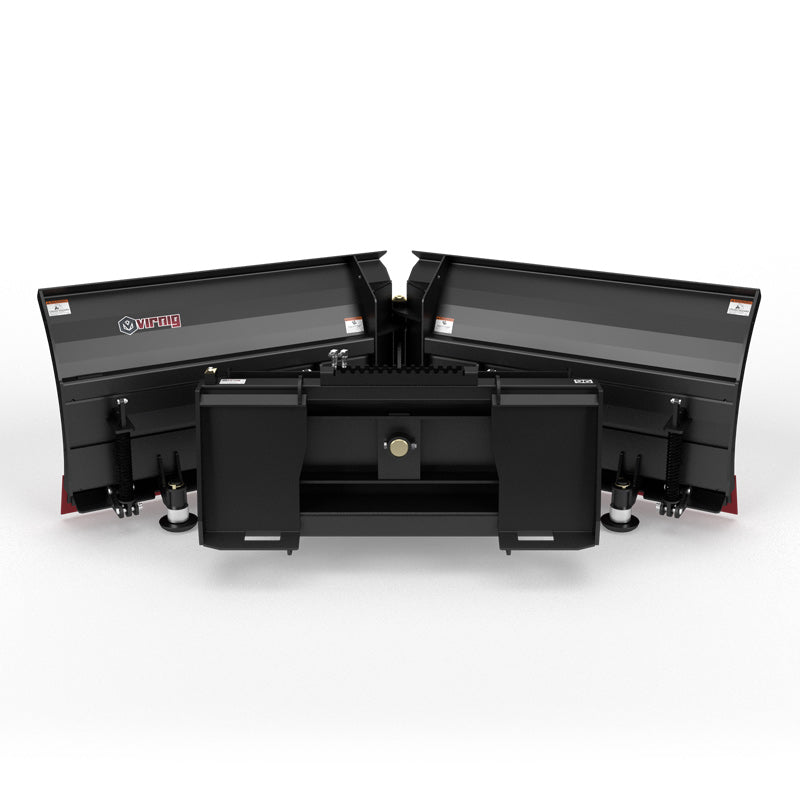

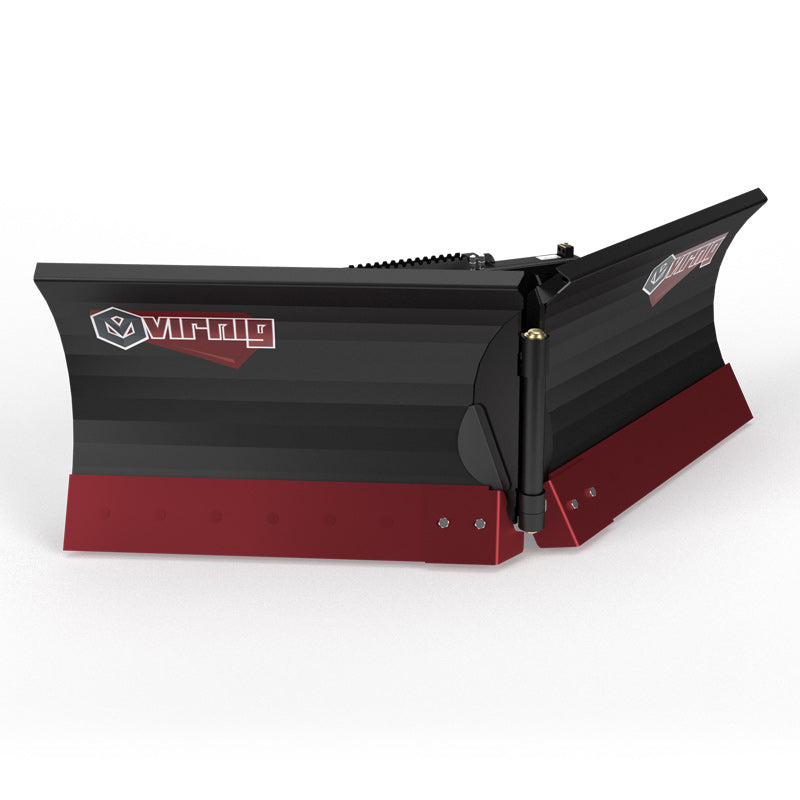

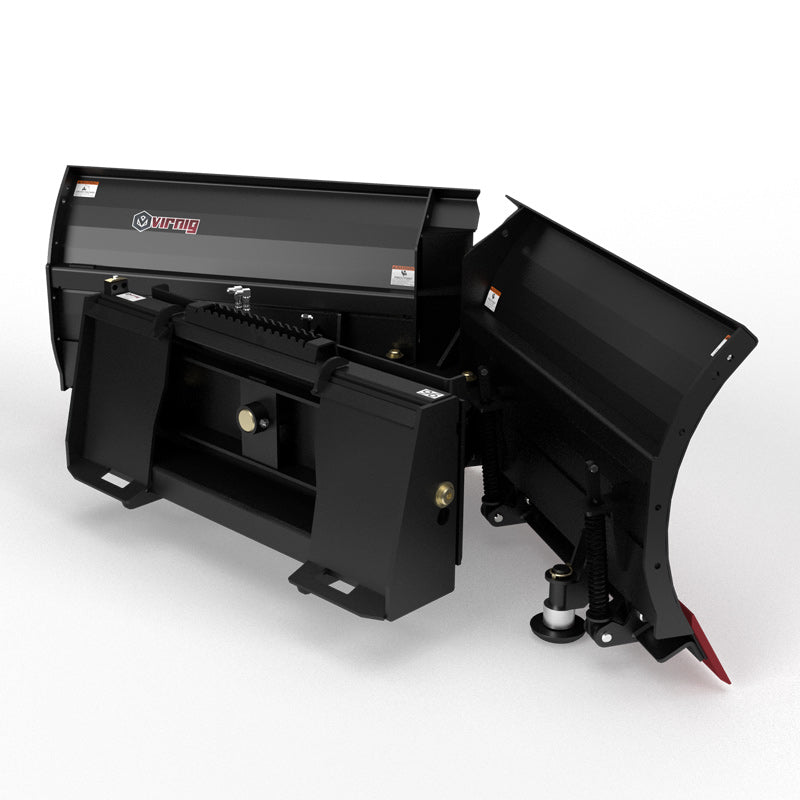

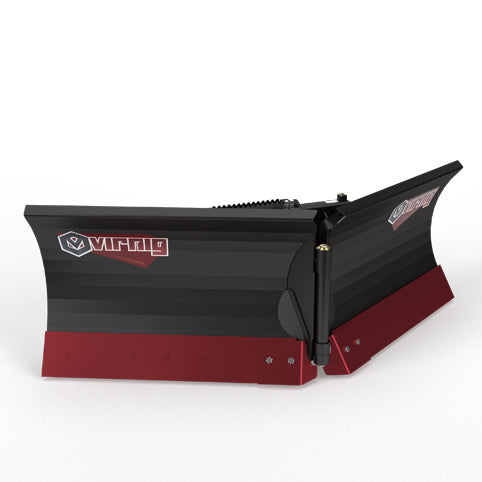

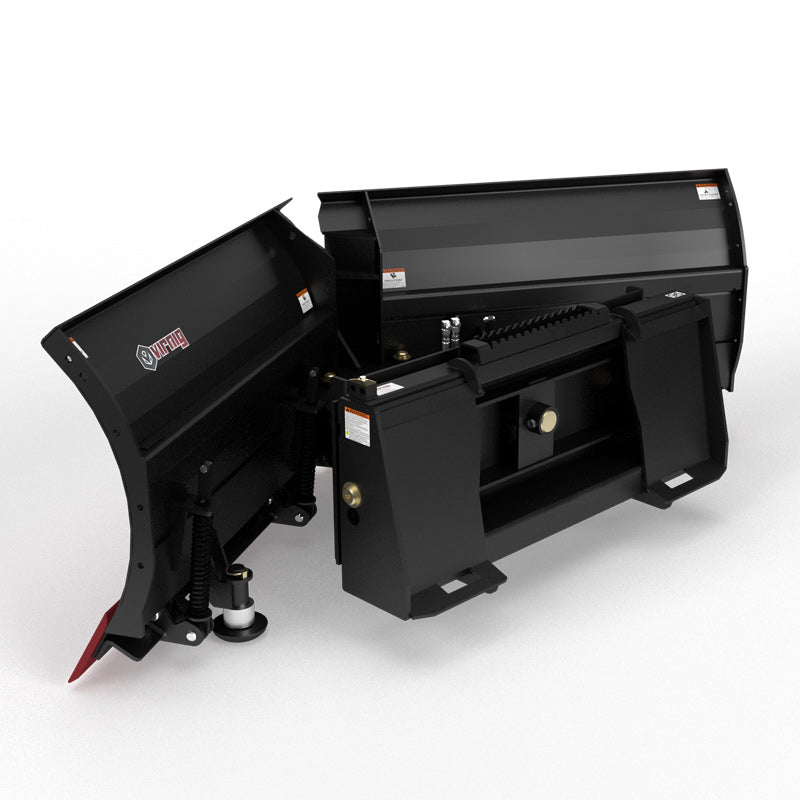

Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differVirnig V60 v-Snow Blade; manufacturer family image, configuration may differ
Virnig

Virnig V60 V-Snow Blade

SKU: SBV48 Currently In Stock

$8,205.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed

Select Your Machine to Check Compatibility
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

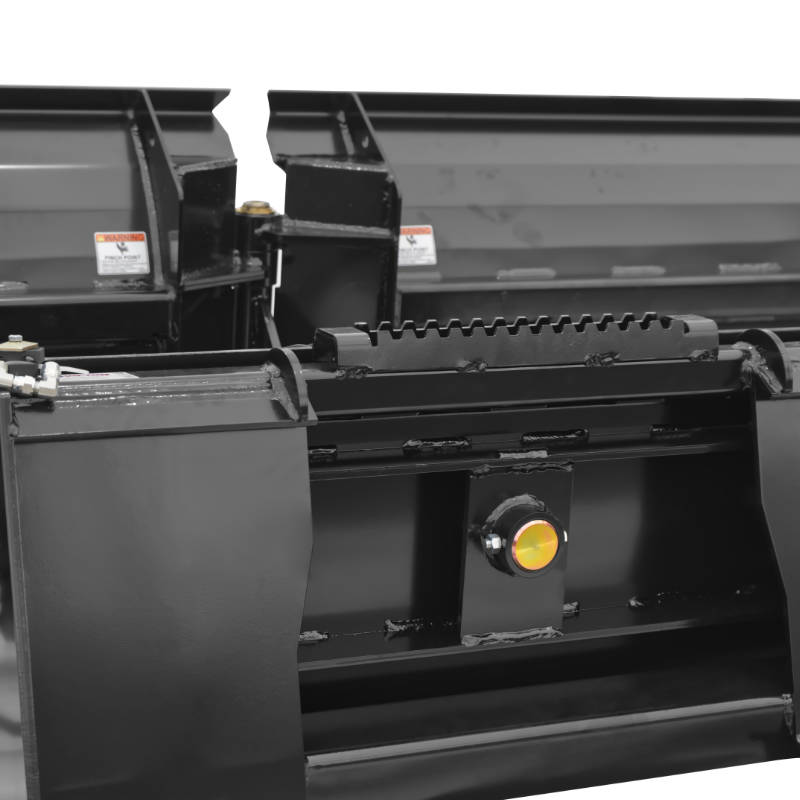

TERRAIN-FOLLOWING DESIGN

FREE FLOATING DESIGN AUTOMATICALLY ADAPTS TO UNEVEN GROUND IN ALL DIRECTIONS WHILE ALLOWING FULL DOWN PRESSURE.

HYDRAULIC IMPACT RELIEF

HYDRAULIC CROSSOVER RELIEF VALVE PROTECTS THE ATTACHMENT BY ANGLING THE BLADES UPON IMPACT.

INDEPENDENT BLADE ANGLE

INDEPENDENTLY ANGLE EACH BLADE 30° FORWARD OR BACKWARD FROM INSIDE THE CAB.

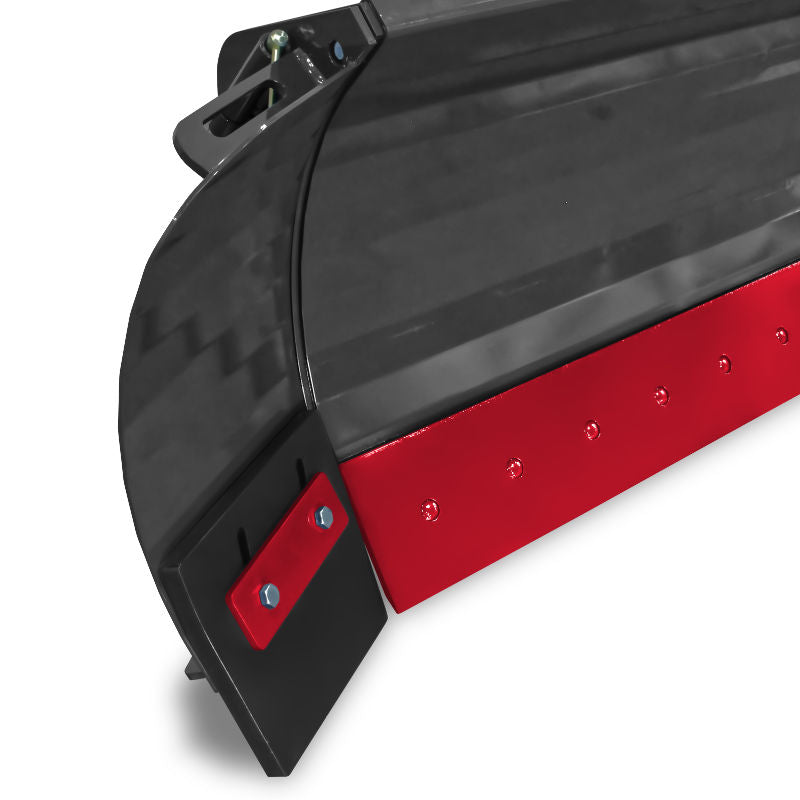

TRIP-EDGE PROTECTION

THE TRIP EDGE YIELDS WHEN IT MEETS AN OBSTRUCTION TO HELP LIMIT IMPACT LOADS.

REVERSIBLE STEEL EDGES

5/8″ X 8″ REVERSIBLE STEEL BOLT-ON EDGE ALLOWS 5 1/2″ OF WEAR.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V60 V-Snow Blade changes shape for breaking into drifts, windrowing, or gathering snow. Each blade wing angles independently up to 30° forward or backward from the cab, allowing the operator to change the working arrangement as the snow depth, route, and placement needs change.

A free-floating design follows uneven ground in multiple directions while still allowing full down pressure. The hydraulic crossover relief valve lets the blades angle upon impact, and the trip edge provides a yielding contact edge. Together, these features help the blade accommodate changing surfaces and unexpected obstructions during controlled plowing.

The ⅝″ × 8″ reversible steel bolt-on edge provides up to 5½″ of wear. Select the width and hydraulic control setup for the loader and clearing area, checking the usable path in the intended blade position. The independently moving wings distinguish this configuration from a conventional one-piece angle snow blade.

KEY BENEFITS

  • Free floating design automatically adapts to uneven ground in all directions while allowing full down pressure.
  • Hydraulic crossover relief valve protects the attachment by angling the blades upon impact.
  • Independently angle each blade 30° forward or backward from inside the cab.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.

TECHNICAL SPECIFICATIONS

  • Models: SBV48 SBV60 SBV72 SBV84 SBV96 SBV108 SBV120
  • Width: Overall, Straight / Full Angle (in.): 51.5 / 44.0 62.0 / 53.0 74.0 / 64.0 86.0 / 74.0 98.0 / 84.0 110.0 / 95.0 120.0/104.0
  • Width: Full Scoop / Full V (in.): 39.8 / 48.0 49.0 / 57.0 60.0 / 66.0 70.0 / 76.0 81.0 / 88.0 92.0 / 99.0 101.0/108.0
  • Blade Height (in.): 31.0
  • Overall Depth, Straight / Full V (in.): 43.5 / 41.0
  • Blade Angle (degrees): (+/-) 30
  • Moldboard Thickness (in.): 0.19
  • Edge: Cutting / Center (in.): 5/8 x 8 Bolt-on / 1/2 High Tensile Steel, Bolt-on
  • Blade Oscillation (degrees): (+/-) 4
  • Float Link Angle (degrees): (+/-) 5
  • Cylinder Bore / Stroke (in.): 2.0 / 8.375
  • Cylinder Pins / Hinge Pins Dia. (in.): 1.25 / 1.563
  • Approximate Weight (lbs): SBV48: 1065¹; SBV60: 1135¹; SBV72: 1185¹; SBV84: 1240¹; SBV96: 1295¹; SBV108: 1350¹; SBV120: 1390¹
  • Recommended Loader Capacity: Greater than 1500 lbs
  • ¹Weight with Steel Edge installed.

APPLICATIONS

  • Deep snow clearing
  • Windrowing
  • Commercial plowing

VIRNIG V60 V-SNOW BLADE

WORKING DESIGN

  • Free floating design automatically adapts to uneven ground in all directions while allowing full down pressure.
  • Hydraulic crossover relief valve protects the attachment by angling the blades upon impact.
  • Independently angle each blade 30° forward or backward from inside the cab.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.

CONFIGURATION AND SPECIFICATIONS

  • Models: SBV48 SBV60 SBV72 SBV84 SBV96 SBV108 SBV120
  • Width: Overall, Straight / Full Angle (in.): 51.5 / 44.0 62.0 / 53.0 74.0 / 64.0 86.0 / 74.0 98.0 / 84.0 110.0 / 95.0 120.0/104.0
  • Width: Full Scoop / Full V (in.): 39.8 / 48.0 49.0 / 57.0 60.0 / 66.0 70.0 / 76.0 81.0 / 88.0 92.0 / 99.0 101.0/108.0
  • Blade Height (in.): 31.0
  • Overall Depth, Straight / Full V (in.): 43.5 / 41.0
  • Blade Angle (degrees): (+/-) 30
  • Moldboard Thickness (in.): 0.19
  • Edge: Cutting / Center (in.): 5/8 x 8 Bolt-on / 1/2 High Tensile Steel, Bolt-on
  • Blade Oscillation (degrees): (+/-) 4

READY FOR THE FIELD

  • Free floating design automatically adapts to uneven ground in all directions while allowing full down pressure.
  • Hydraulic crossover relief valve protects the attachment by angling the blades upon impact.
  • Independently angle each blade 30° forward or backward from inside the cab.
  • Trip edge protects operator and equipment.
  • 5/8″ x 8″ reversible steel bolt-on edge allows 5 1/2″ of wear.
