VIRNIG

V70 CWL General Purpose Bucket

For Compact Wheel Loaders

72-96″ Widths

Virnig

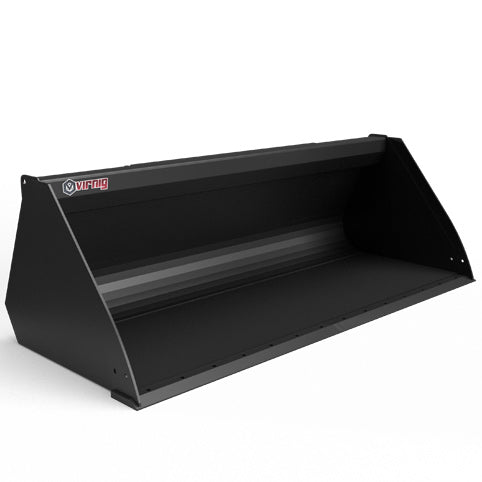

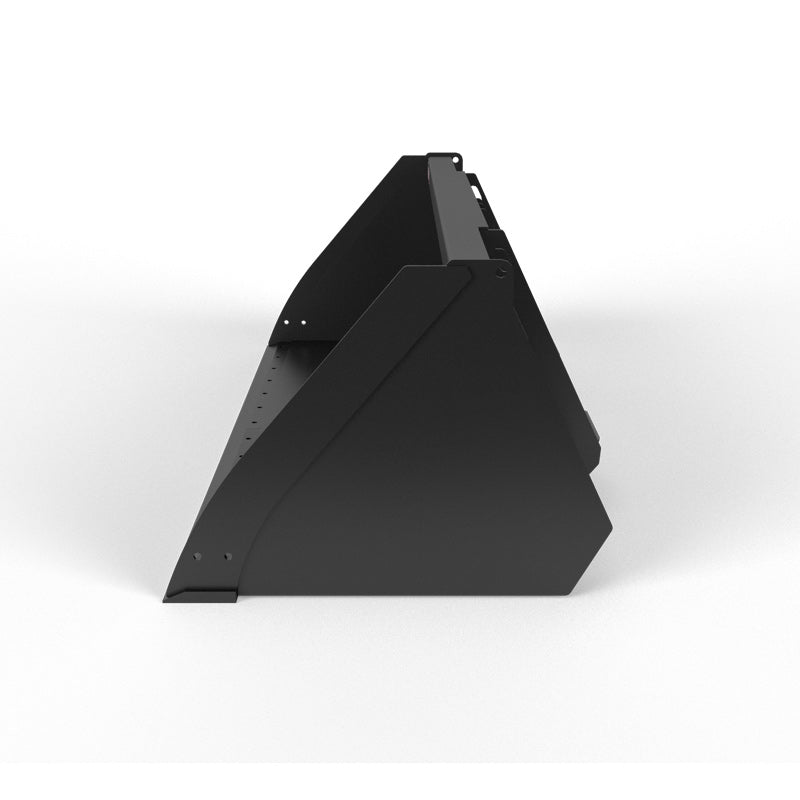

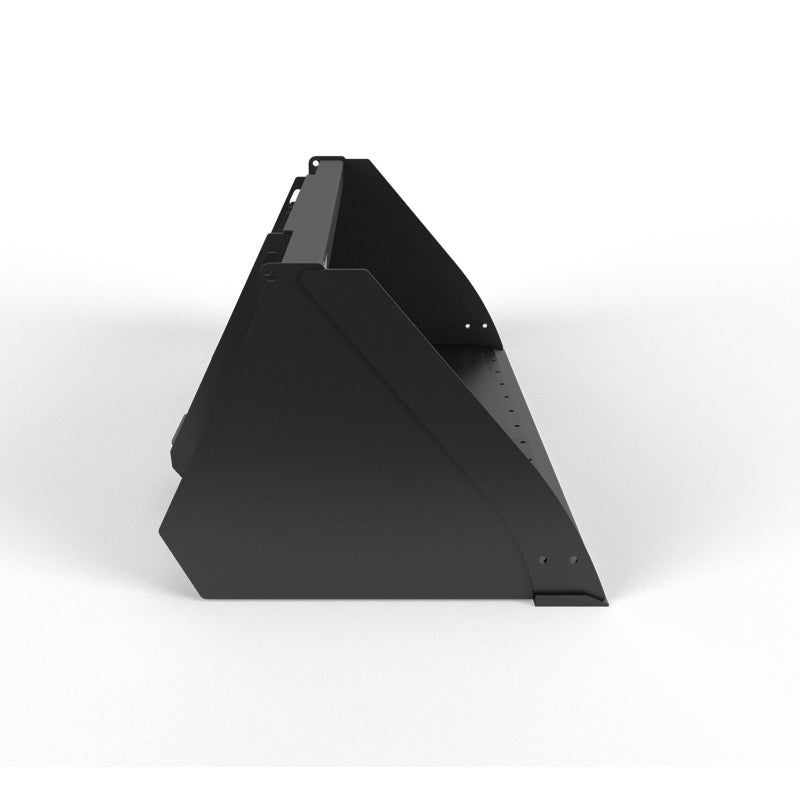

Virnig V70 CWL General Purpose Bucket

SKU: WGP72 Currently In Stock

Sale price$2,640.00 USD

MOST IMPORTANT FEATURES

LEVEL REFERENCE

THE FLAT BUCKET TOP GIVES THE OPERATOR A VISUAL REFERENCE FOR LEVEL POSITIONING.

EASIER MATERIAL CLEANOUT

THE CURVED INTERIOR HELPS MATERIAL RELEASE WHEN THE BUCKET IS DUMPED.

MATERIAL CONTAINMENT

A ¼″ STEEL SHELL AND SIDE PLATES FORM THE BUCKET FOR REPEATED MATERIAL HANDLING.

WELD-ON CUTTING EDGE

A 1″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S GROUND-CONTACT SURFACE.

BOTTOM WEAR PROTECTION

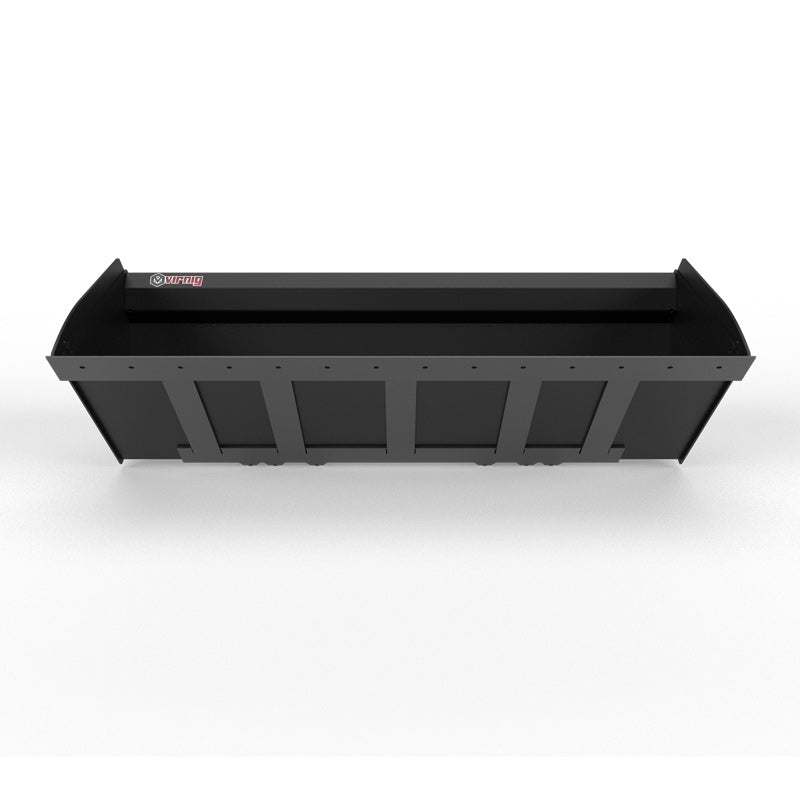

½″ X 4″ WEAR BARS SHIELD THE BUCKET BOTTOM FROM REPEATED GROUND CONTACT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

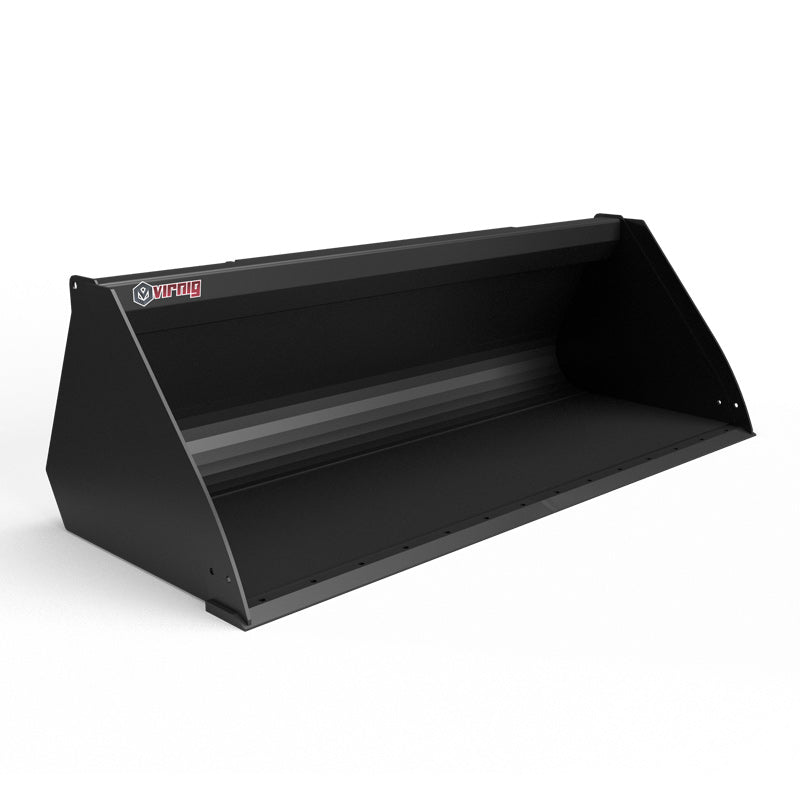

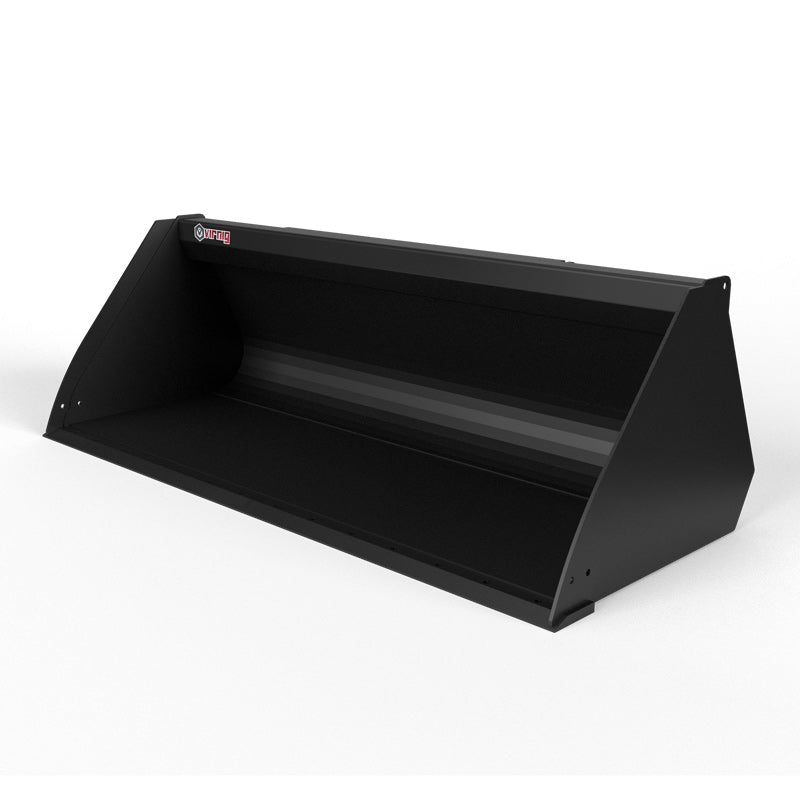

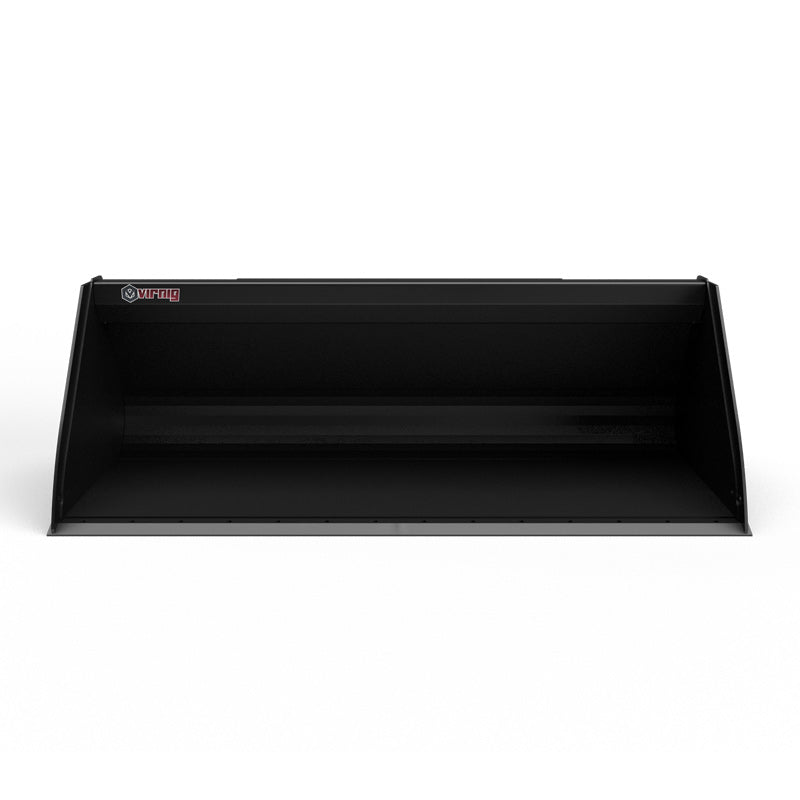

The Virnig V70 CWL General Purpose Bucket handles digging, grading, and bulk loading on compact wheel loaders. Its general-purpose shape provides a solid carrying bucket for everyday material movement, with a flat top that gives the operator a reference for judging when the bucket is level.

A curved interior helps material release during unloading and cleanout. Quarter-inch shell and side plates form the bucket body, while a 1″ × 6″ weld-on edge provides the leading working surface. Half-inch × 4″ wear bars protect the underside at repeated ground contact points during loading and grading.

Select the bucket width and volume around the compact wheel loader and material density, checking the machine's capacity at full turn as well as straight ahead. This WGP family is the general-purpose configuration. Compare the separate high-capacity model if carrying volume is the main priority, and confirm the loader mounting arrangement before choosing the final setup.

KEY BENEFITS

  • Flat top helps operators gauge when bucket is level.
  • Curved inside for easier material cleanout.
  • 1/4” thick shell and side plates.
  • 1″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.

TECHNICAL SPECIFICATIONS

  • Models: WGP72 WGP78 WGP84 WGP90 WGP96
  • Width: Overall / Inside (in.): WGP72: 73.5 / 71.3; WGP78: 79.5 / 77.3; WGP84: 85.5 / 83.3; WGP90: 91.5 / 89.3; WGP96: 97.5 / 95.3
  • Overall Height (in.): 28.3
  • Depth: Overall / Inside (in.): 38.8 / 34.3
  • Struck Capacity (cu. ft. / cu. yd.): WGP72: 23.6 / 0.87; WGP78: 25.5 / 0.95; WGP84: 27.5 / 1.02; WGP90: 29.5 / 1.09; WGP96: 31.5 / 1.17
  • Heaped Capacity (cu. ft. / cu. yd.): WGP72: 28.3 / 1.04; WGP78: 30.6 / 1.14; WGP84: 33.0 / 1.22; WGP90: 35.4 / 1.31; WGP96: 37.8 / 1.40
  • Bucket Back Angle (degrees): 65
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″ x 4″): 5
  • Approximate Weight (lbs): WGP72: 835; WGP78: 880; WGP84: 925; WGP90: 975; WGP96: 1020
  • Recommended Loader Capacity at Full Turn: Greater than 1800 lbs

APPLICATIONS

  • Digging
  • Finish grading
  • Bulk material loading

VIRNIG V70 CWL GENERAL PURPOSE BUCKET

WORKING DESIGN

  • Flat top helps operators gauge when bucket is level.
  • Curved inside for easier material cleanout.
  • 1/4” thick shell and side plates.
  • 1″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.

CONFIGURATION AND SPECIFICATIONS

  • Models: WGP72 WGP78 WGP84 WGP90 WGP96
  • Width: Overall / Inside (in.): WGP72: 73.5 / 71.3; WGP78: 79.5 / 77.3; WGP84: 85.5 / 83.3; WGP90: 91.5 / 89.3; WGP96: 97.5 / 95.3
  • Overall Height (in.): 28.3
  • Depth: Overall / Inside (in.): 38.8 / 34.3
  • Struck Capacity (cu. ft. / cu. yd.): WGP72: 23.6 / 0.87; WGP78: 25.5 / 0.95; WGP84: 27.5 / 1.02; WGP90: 29.5 / 1.09; WGP96: 31.5 / 1.17
  • Heaped Capacity (cu. ft. / cu. yd.): WGP72: 28.3 / 1.04; WGP78: 30.6 / 1.14; WGP84: 33.0 / 1.22; WGP90: 35.4 / 1.31; WGP96: 37.8 / 1.40
  • Bucket Back Angle (degrees): 65
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25

READY FOR THE FIELD

  • Flat top helps operators gauge when bucket is level.
  • Curved inside for easier material cleanout.
  • 1/4” thick shell and side plates.
  • 1″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.
