VIRNIG

V70 CWL High Capacity General Purpose Bucket

For Compact Wheel Loaders

72-101″ Widths

Request QuoteAdd To Cart

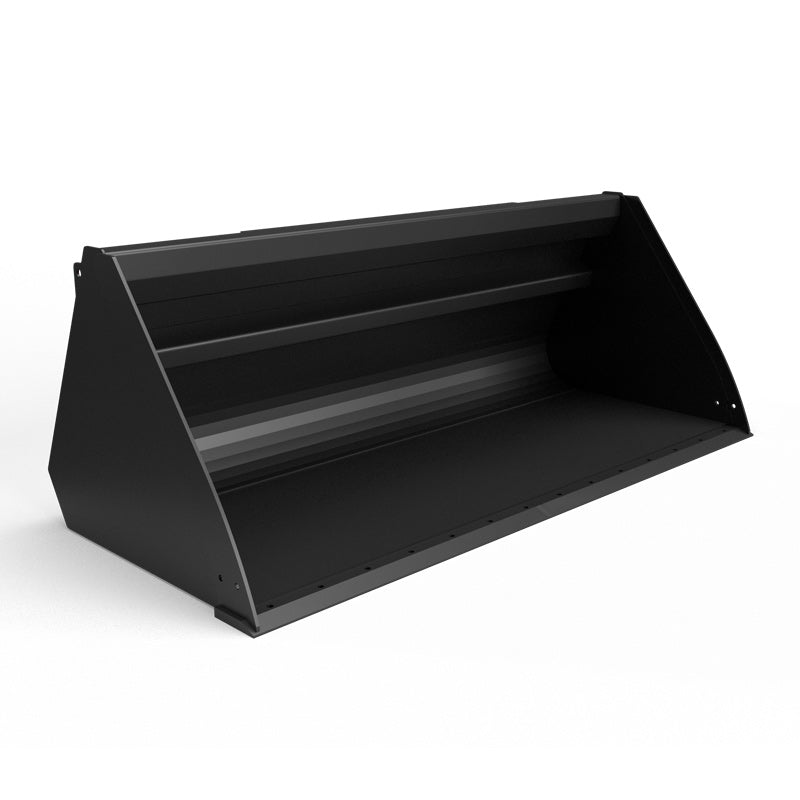

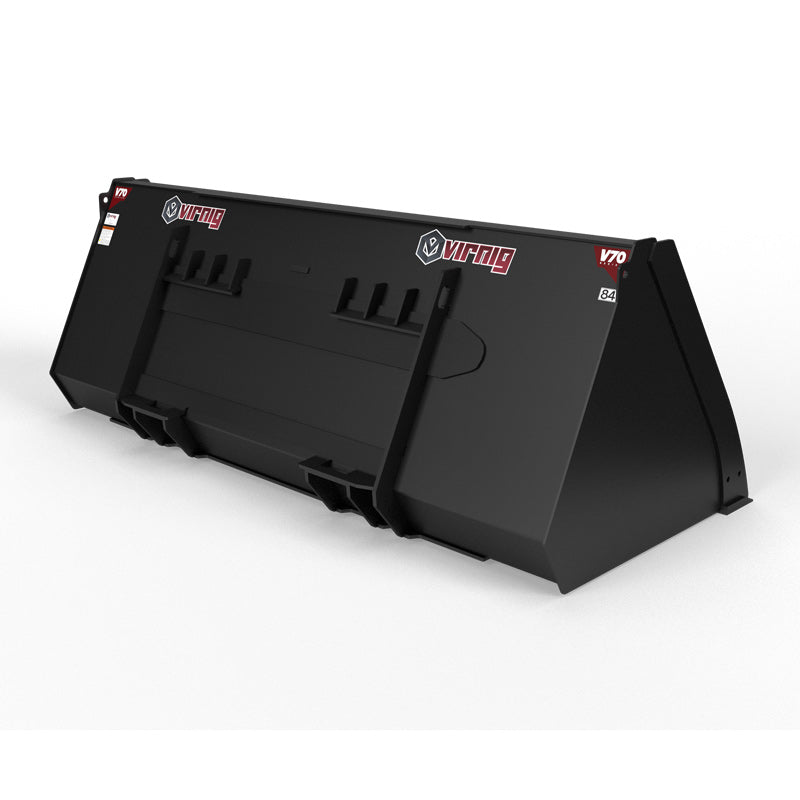

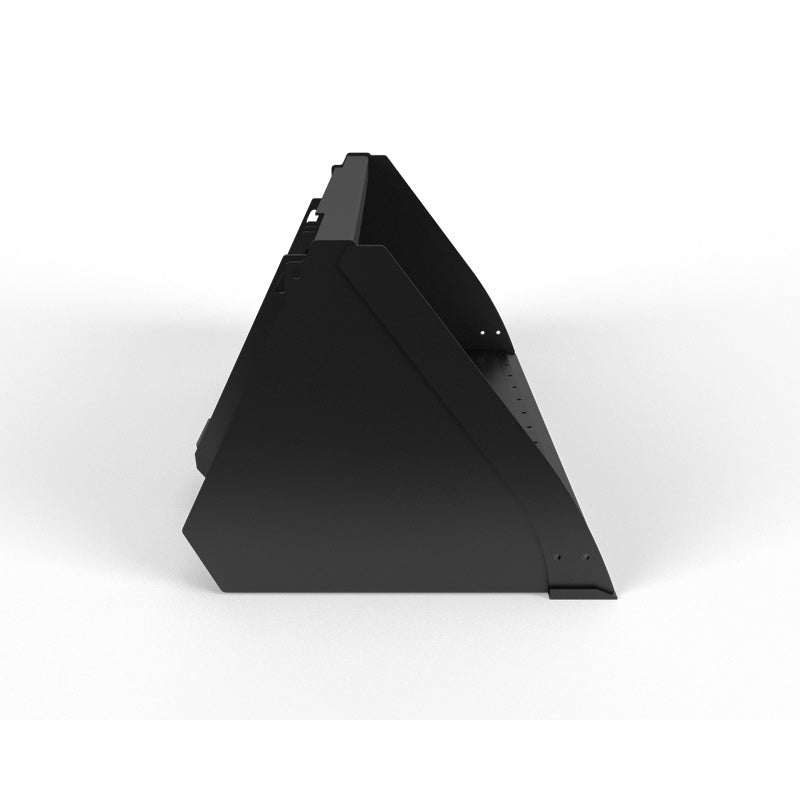

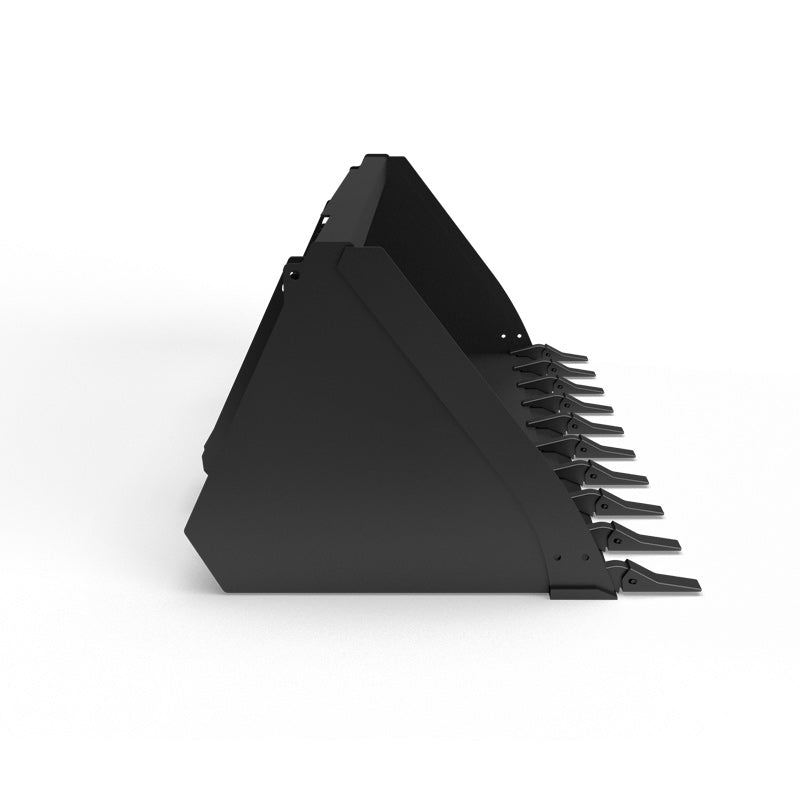

Virnig V70 CWL High Capacity General Purpose Bucket

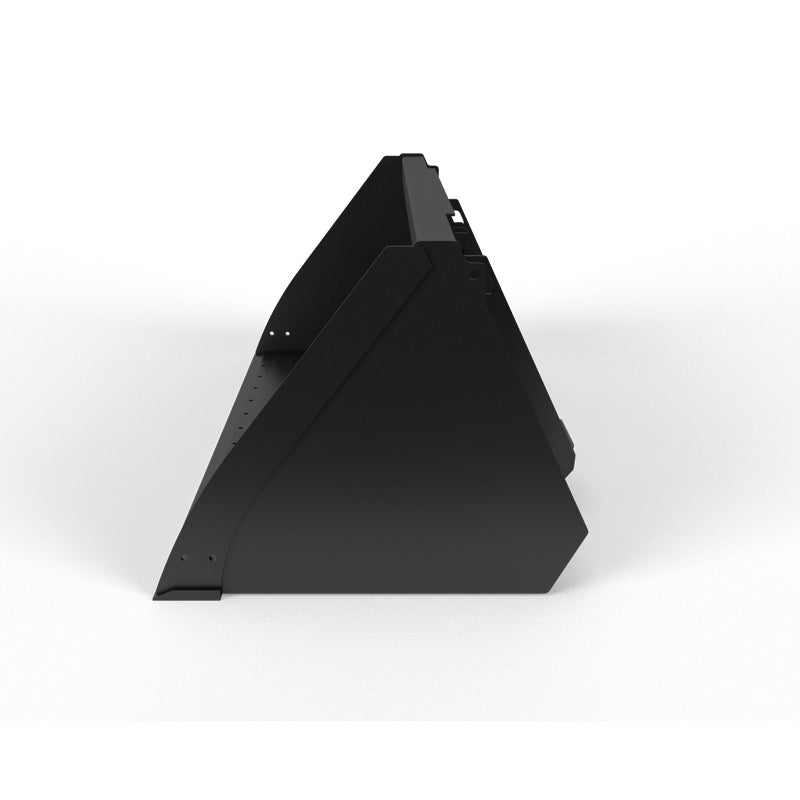

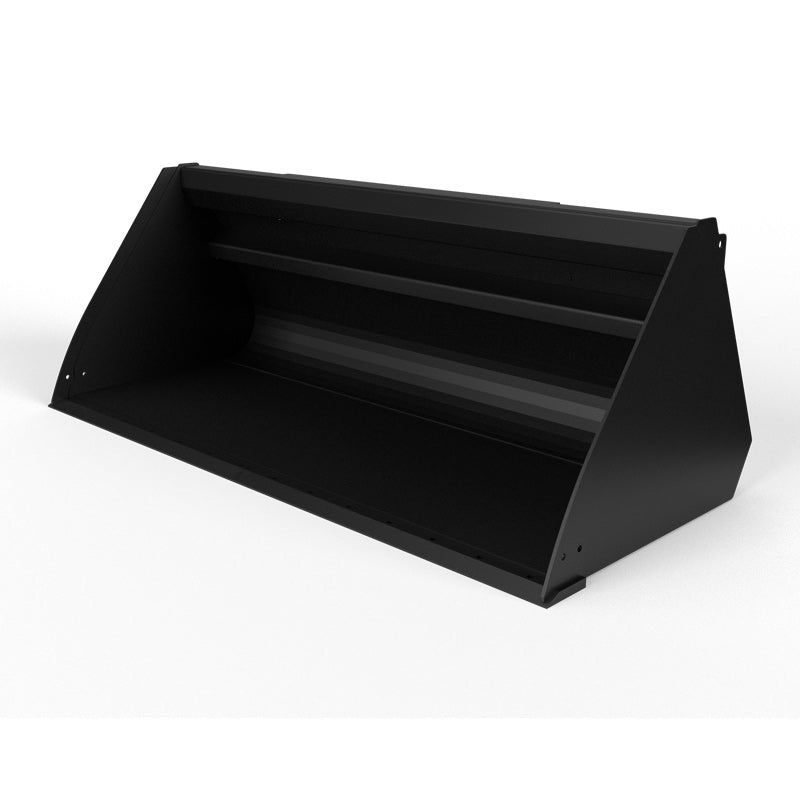

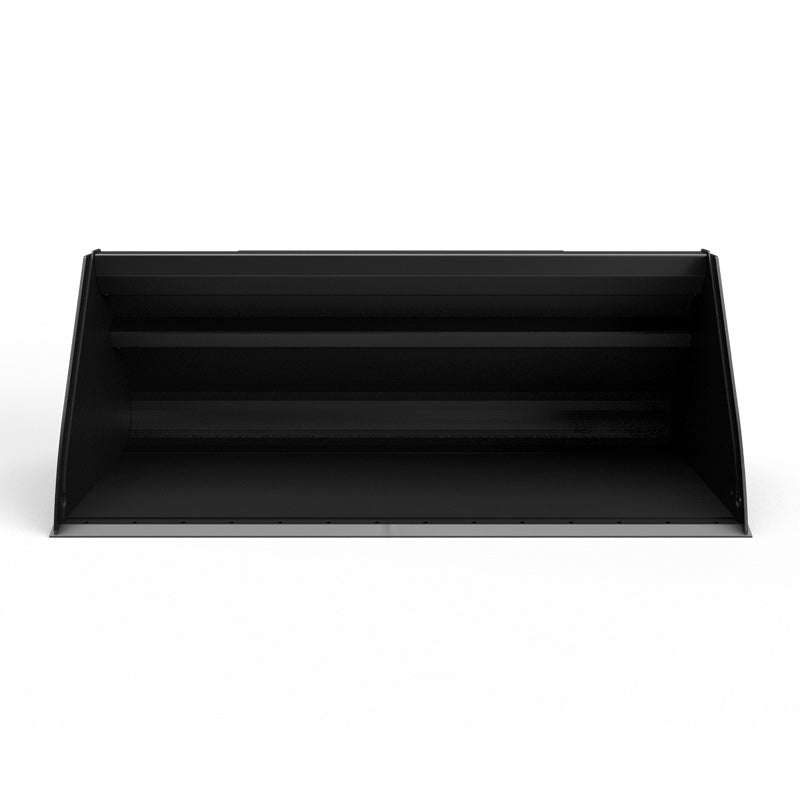

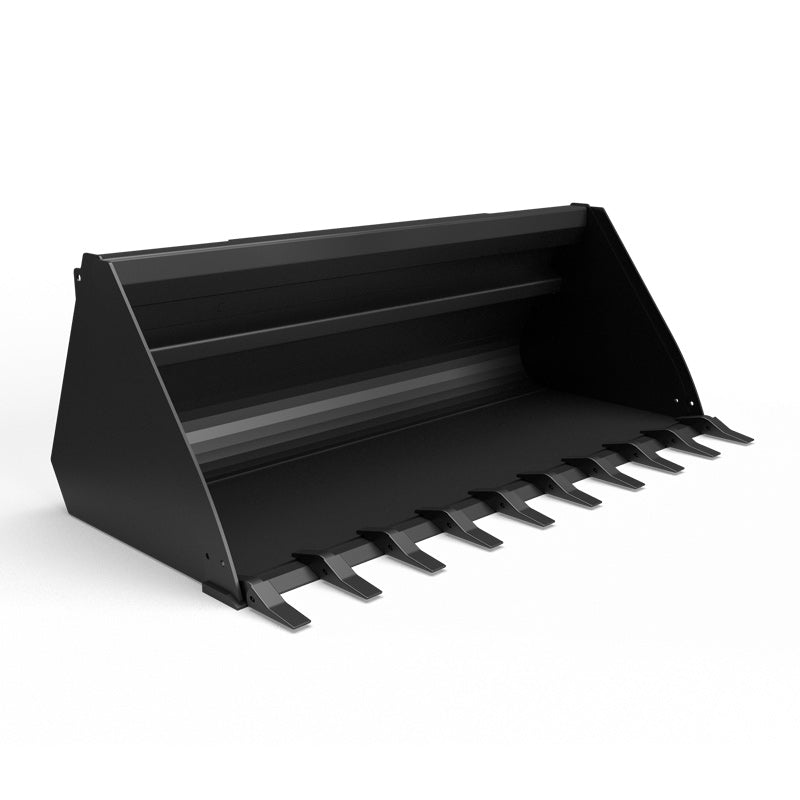

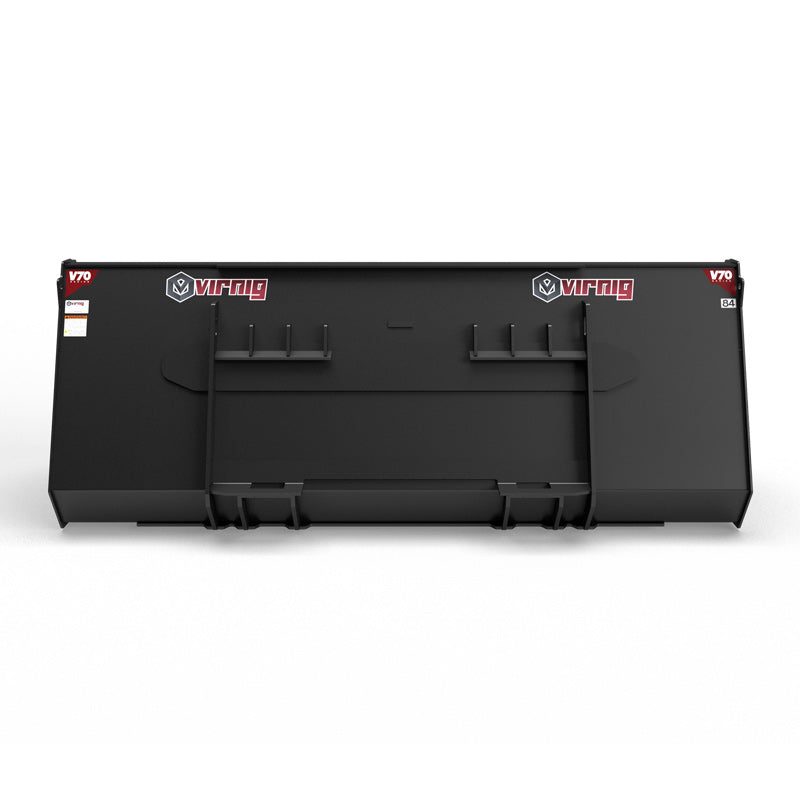

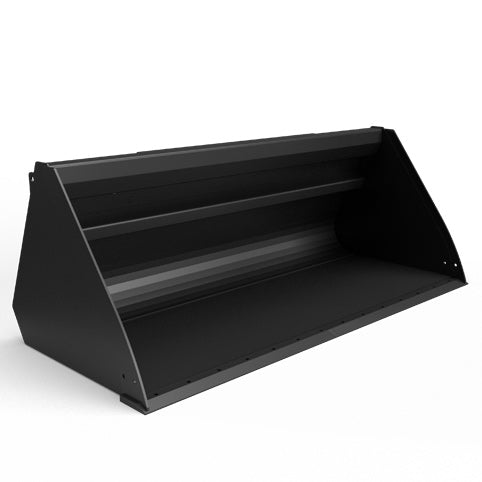

Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differVirnig V70 CWL High Capacity General Purpose Bucket; manufacturer family image, configuration may differ
Virnig

Virnig V70 CWL High Capacity General Purpose Bucket

SKU: WHC72 Currently In Stock

$2,900.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

LEVEL REFERENCE

THE FLAT BUCKET TOP GIVES THE OPERATOR A VISUAL REFERENCE FOR LEVEL POSITIONING.

EASIER MATERIAL CLEANOUT

THE CURVED INTERIOR HELPS MATERIAL RELEASE WHEN THE BUCKET IS DUMPED.

MATERIAL CONTAINMENT

A ¼″ STEEL SHELL AND SIDE PLATES FORM THE BUCKET FOR REPEATED MATERIAL HANDLING.

WELD-ON CUTTING EDGE

A 1″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S GROUND-CONTACT SURFACE.

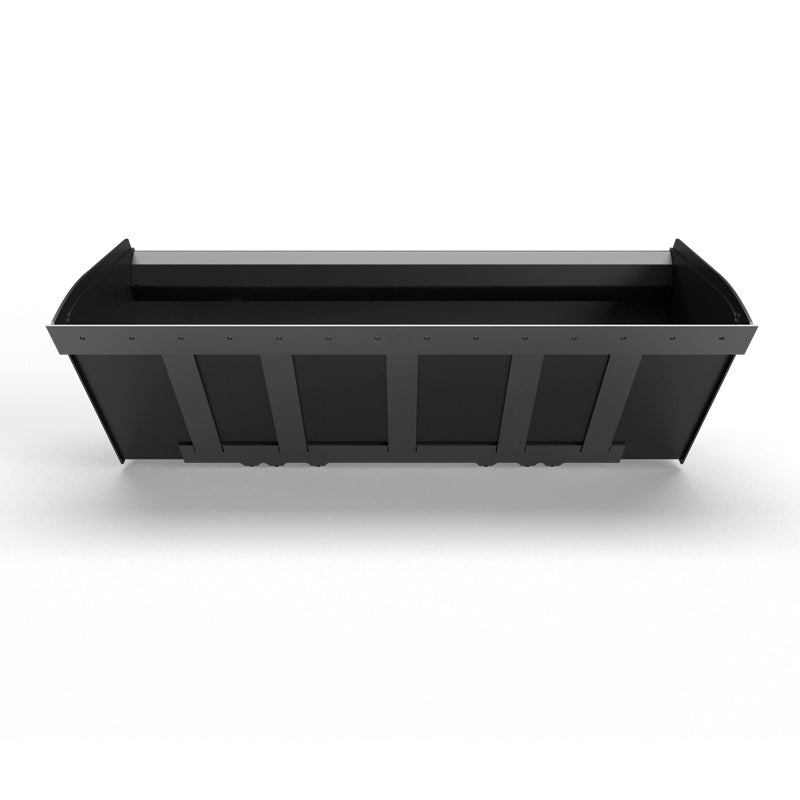

BOTTOM WEAR PROTECTION

½″ X 4″ WEAR BARS SHIELD THE BUCKET BOTTOM FROM REPEATED GROUND CONTACT.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V70 CWL High Capacity General Purpose Bucket adds carrying volume for compact wheel loader loading and material movement. Its taller, deeper WHC bucket shape provides another option when the job calls for more volume than the standard general-purpose bucket, while retaining the same focus on everyday loader work.

The flat top helps the operator judge the level position, and the curved interior helps release material during unloading. Quarter-inch shell and side plates are paired with a 1″ × 6″ weld-on edge. Half-inch × 4″ wear bars protect the bucket bottom where it repeatedly contacts the ground or loading surface.

Choose the width and volume around the loader's capacity at full turn and the material being carried. Extra bucket volume does not permit exceeding the carrier's load rating, particularly with dense material. Confirm the compact wheel loader mount and compare the high-capacity dimensions with the available loading, transport, and dumping space.

KEY BENEFITS

  • Flat top helps operators gauge when bucket is level.
  • Curved inside for easier material cleanout.
  • 1/4” thick shell and side plates.
  • 1″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.

TECHNICAL SPECIFICATIONS

  • Models: WHC72 WHC78 WHC84 WHC90 WHC96 WHC101
  • Width: Overall / Inside (in.): WHC72: 73.5 / 71.3; WHC78: 79.5 / 77.3; WHC84: 85.5 / 83.3; WHC90: 91.5 / 89.3; WHC96: 97.5 / 95.3; WHC101: 101.5 / 99.3
  • Overall Height (in.): 32.1
  • Depth: Overall / Inside (in.): 40.8 / 36.5
  • Struck Capacity (cu. ft. / cu. yd.): WHC72: 27.0 / 1.0; WHC78: 29.30 / 1.08; WHC84: 31.60 / 1.17; WHC90: 33.80 / 1.25; WHC96: 36.10 / 1.34; WHC101: 37.60 / 1.40
  • Heaped Capacity (cu. ft. / cu. yd.): WHC72: 32.4 / 1.20; WHC78: 35.20 / 1.30; WHC84: 37.90 / 1.40; WHC90: 40.60 / 1.50; WHC96: 43.30 / 1.60; WHC101: 45.10 / 1.68
  • Bucket Back Angle (degrees): 65
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25
  • Structural Wear Bars Under Bucket (1/2″ x 4″): 5
  • (1/2″ x 4″) Approximate Weight (lbs): WHC72: 940; WHC78: 990; WHC84: 1040; WHC90: 1100; WHC96: 1150; WHC101: 1185
  • Recommended Loader Capacity at Full Turn: Greater than 1800 lbs

APPLICATIONS

  • Digging
  • Finish grading
  • Bulk material loading

VIRNIG V70 CWL HIGH CAPACITY GENERAL PURPOSE BUCKET

WORKING DESIGN

  • Flat top helps operators gauge when bucket is level.
  • Curved inside for easier material cleanout.
  • 1/4” thick shell and side plates.
  • 1″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.

CONFIGURATION AND SPECIFICATIONS

  • Models: WHC72 WHC78 WHC84 WHC90 WHC96 WHC101
  • Width: Overall / Inside (in.): WHC72: 73.5 / 71.3; WHC78: 79.5 / 77.3; WHC84: 85.5 / 83.3; WHC90: 91.5 / 89.3; WHC96: 97.5 / 95.3; WHC101: 101.5 / 99.3
  • Overall Height (in.): 32.1
  • Depth: Overall / Inside (in.): 40.8 / 36.5
  • Struck Capacity (cu. ft. / cu. yd.): WHC72: 27.0 / 1.0; WHC78: 29.30 / 1.08; WHC84: 31.60 / 1.17; WHC90: 33.80 / 1.25; WHC96: 36.10 / 1.34; WHC101: 37.60 / 1.40
  • Heaped Capacity (cu. ft. / cu. yd.): WHC72: 32.4 / 1.20; WHC78: 35.20 / 1.30; WHC84: 37.90 / 1.40; WHC90: 40.60 / 1.50; WHC96: 43.30 / 1.60; WHC101: 45.10 / 1.68
  • Bucket Back Angle (degrees): 65
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25

READY FOR THE FIELD

  • Flat top helps operators gauge when bucket is level.
  • Curved inside for easier material cleanout.
  • 1/4” thick shell and side plates.
  • 1″ x 6″ weld-on edge.
  • 1/2″ x 4″ wear bars protect the bucket bottom.
