VIRNIG

V70 CWL Snow / Light Material Bucket

For Compact Wheel Loaders

72-101″ Widths

Virnig

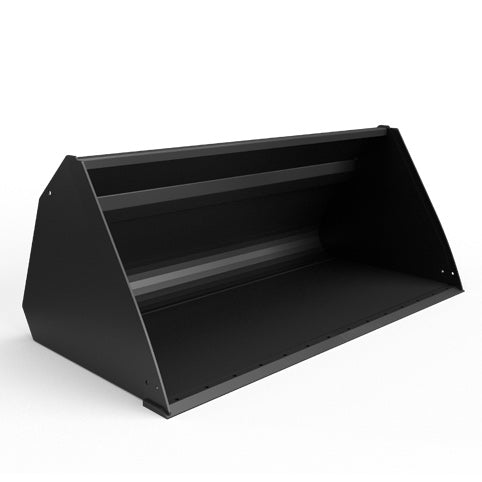

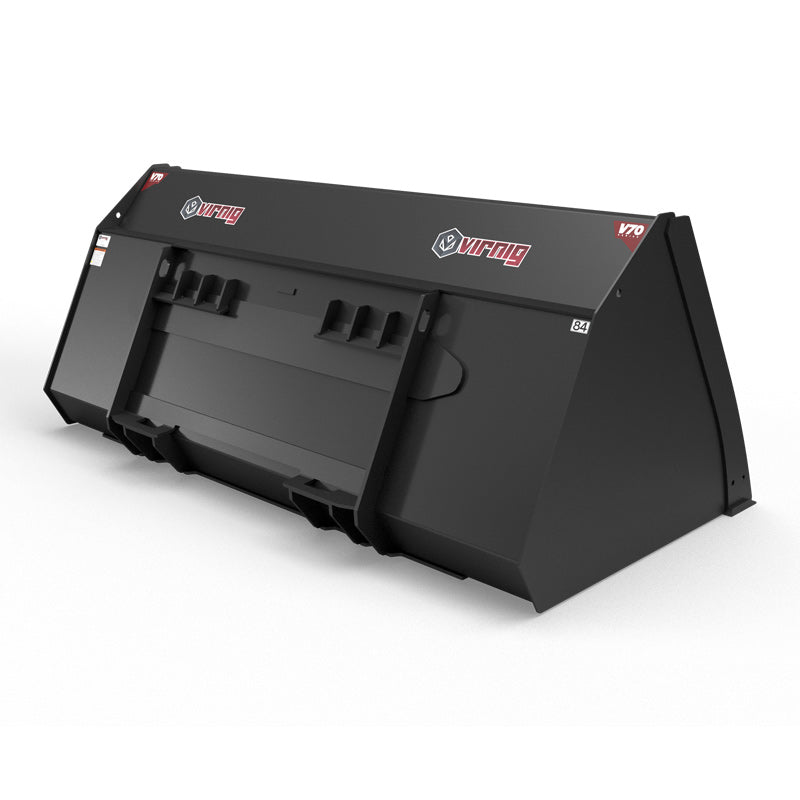

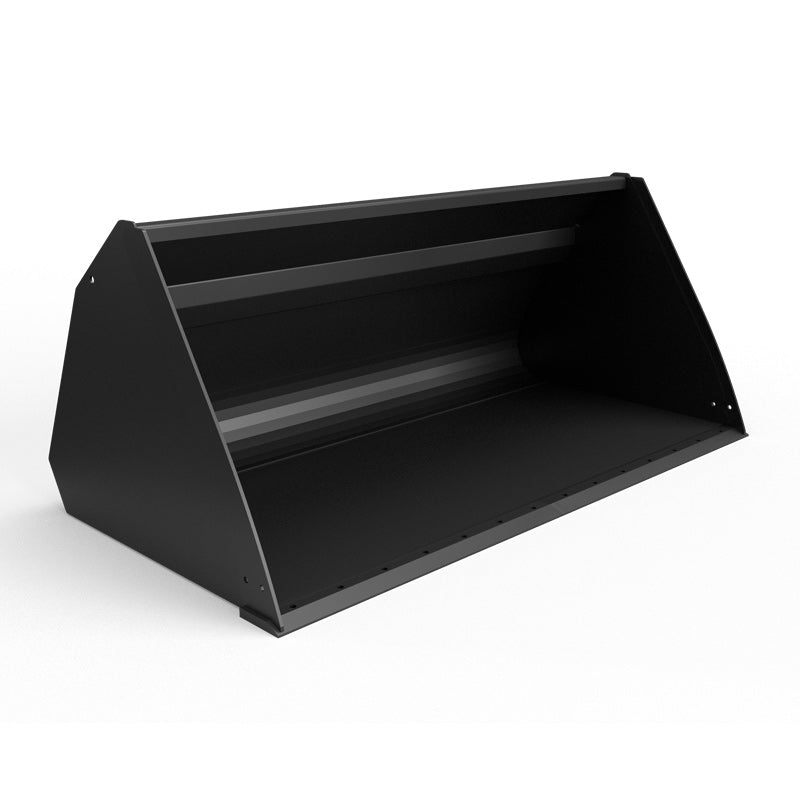

Virnig V70 CWL Snow / Light Material Bucket

SKU: WLM72 Currently In Stock

Sale price$3,440.00 USD

MOST IMPORTANT FEATURES

LOADER LINKAGE CLEARANCE

THE BUCKET PROFILE ALLOWS FULL ROLLBACK WHILE CLEARING THE LOADER'S Z-BAR LINKAGE.

LEVEL REFERENCE

THE FLAT BUCKET TOP GIVES THE OPERATOR A VISUAL REFERENCE FOR LEVEL POSITIONING.

EASIER MATERIAL CLEANOUT

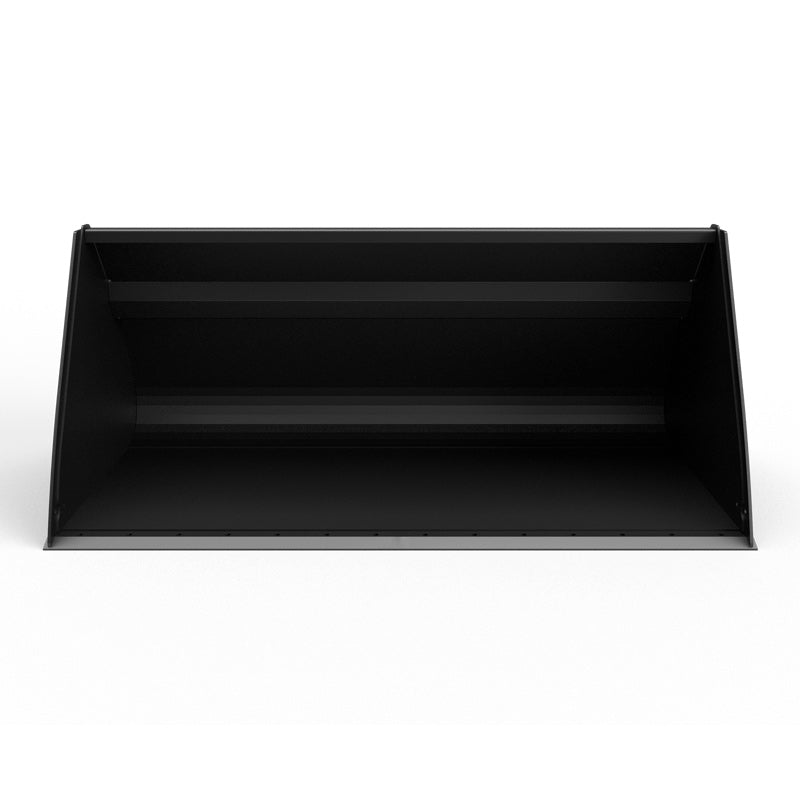

THE CURVED INTERIOR HELPS MATERIAL RELEASE WHEN THE BUCKET IS DUMPED.

MATERIAL CONTAINMENT

A ¼″ STEEL SHELL AND SIDE PLATES FORM THE BUCKET FOR REPEATED MATERIAL HANDLING.

WELD-ON CUTTING EDGE

A 1″ X 6″ WELD-ON EDGE REINFORCES THE BUCKET'S GROUND-CONTACT SURFACE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig V70 CWL Snow / Light Material Bucket gives compact wheel loaders a high-volume bucket for snow, mulch, and other low-density loads. Its shape provides full rollback without interference with Z-bar linkages, helping the bucket work with the loader's linkage arrangement during gathering and transport.

A flat top offers a visual reference for the level position, while the curved interior helps material leave the bucket during unloading. Quarter-inch shell and side plates form the body, with a 1″ × 6″ weld-on edge and ½″ × 4″ bottom wear bars at the main contact areas.

Select the model around the loader mount, clearance, and capacity at full turn. This WLM bucket prioritizes volume for lighter materials rather than dense-load digging capacity. Wet snow or heavier contents can reach the machine's limit before the bucket is full, so account for attachment weight and actual material density when choosing the fill level.

KEY BENEFITS

  • Provides full rollback without interfering with z-bar linkages.
  • Flat top helps operators gauge when bucket is level.
  • Curved inside for easier material cleanout.
  • 1/4” thick shell and side plates.
  • 1″ x 6″ weld-on edge.

TECHNICAL SPECIFICATIONS

  • Models: WLM72 WLM78 WLM84 WLM96 WLM101
  • Width: Overall / Inside (in.): WLM72: 73.5 / 71.3; WLM78: 79.5 / 77.3; WLM84: 85.5 / 83.3; WLM96: 97.5 / 95.3; WLM101: 101.5 / 99.3
  • Overall Height (in.): 36.3
  • Depth: Overall / Inside (in.): 47.3 / 43.0
  • Struck Capacity (cu. ft. / cu. yd.): WLM72: 38.20 / 1.42; WLM78: 41.40 / 1.53; WLM84: 44.60 / 1.65; WLM96: 51.10 / 1.89; WLM101: 53.20 / 1.97
  • Heaped Capacity (cu. ft. / cu. yd.): WLM72: 45.80 / 1.70; WLM78: 49.70 / 1.84; WLM84: 53.50 / 1.98; WLM96: 61.30 / 2.27; WLM101: 63.80 / 2.36
  • Bucket Back Angle (degrees): 65
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25

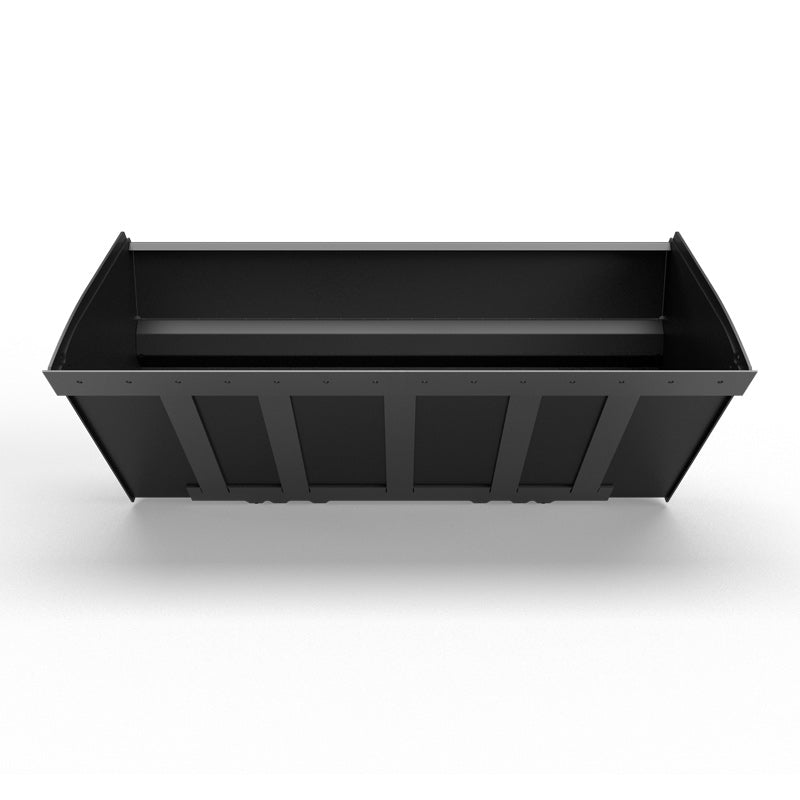

  • Structural Wear Bars Under Bucket (1/2″ x 4″): 5
  • Approximate Weight (lbs): WLM72: 1020; WLM78: 1070; WLM84: 1120; WLM96: 1235; WLM101: 1270
  • Recommended Loader Capacity at Full Turn: Greater than 2400 lbs

APPLICATIONS

  • Snow loading
  • Mulch handling
  • Light material transport

VIRNIG V70 CWL SNOW / LIGHT MATERIAL BUCKET

WORKING DESIGN

  • Provides full rollback without interfering with z-bar linkages.
  • Flat top helps operators gauge when bucket is level.
  • Curved inside for easier material cleanout.
  • 1/4” thick shell and side plates.
  • 1″ x 6″ weld-on edge.

CONFIGURATION AND SPECIFICATIONS

  • Models: WLM72 WLM78 WLM84 WLM96 WLM101
  • Width: Overall / Inside (in.): WLM72: 73.5 / 71.3; WLM78: 79.5 / 77.3; WLM84: 85.5 / 83.3; WLM96: 97.5 / 95.3; WLM101: 101.5 / 99.3
  • Overall Height (in.): 36.3
  • Depth: Overall / Inside (in.): 47.3 / 43.0
  • Struck Capacity (cu. ft. / cu. yd.): WLM72: 38.20 / 1.42; WLM78: 41.40 / 1.53; WLM84: 44.60 / 1.65; WLM96: 51.10 / 1.89; WLM101: 53.20 / 1.97
  • Heaped Capacity (cu. ft. / cu. yd.): WLM72: 45.80 / 1.70; WLM78: 49.70 / 1.84; WLM84: 53.50 / 1.98; WLM96: 61.30 / 2.27; WLM101: 63.80 / 2.36
  • Bucket Back Angle (degrees): 65
  • Shell Thickness (in.): 0.25
  • Side Plate Thickness (in.): 0.25

READY FOR THE FIELD

  • Provides full rollback without interfering with z-bar linkages.
  • Flat top helps operators gauge when bucket is level.
  • Curved inside for easier material cleanout.
  • 1/4” thick shell and side plates.
  • 1″ x 6″ weld-on edge.
