VIRNIG

Wide Rail Pallet Fork Hex-Guard

For Skid Steers & Track Loaders

4,000-6,200 lb Fork Capacity

Request QuoteAdd To Cart

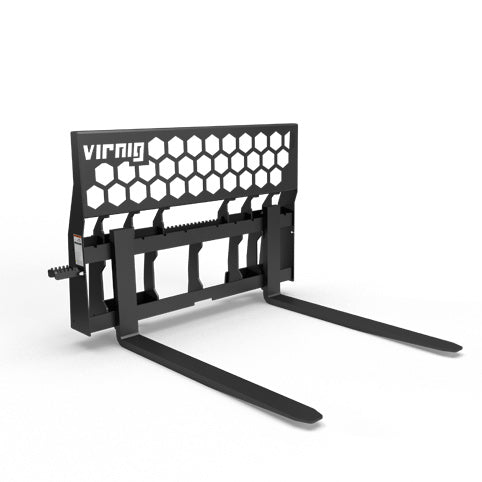

Virnig Wide Rail Pallet Fork Hex-Guard

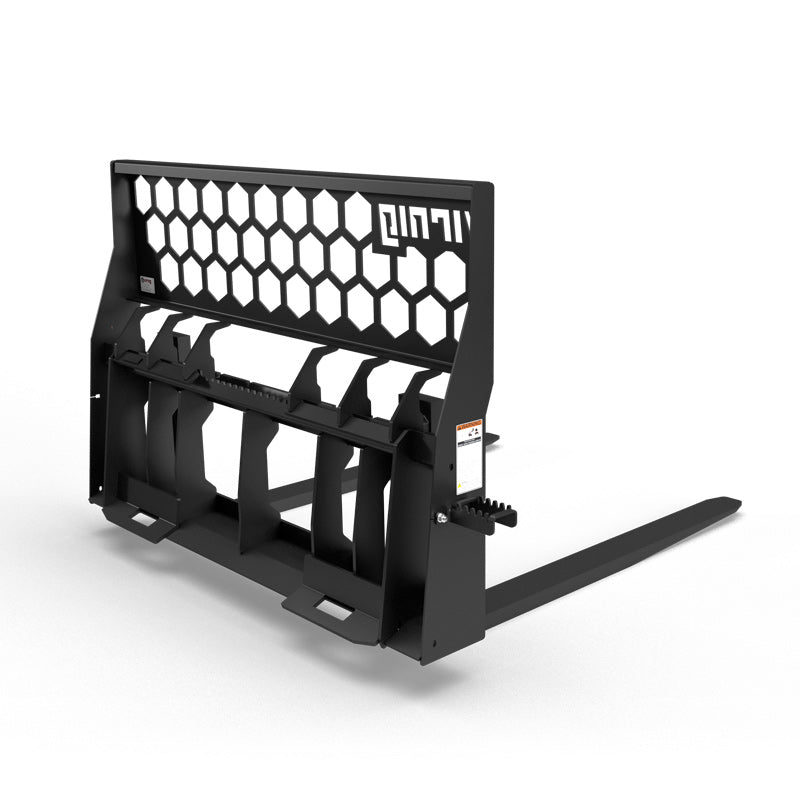

Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ

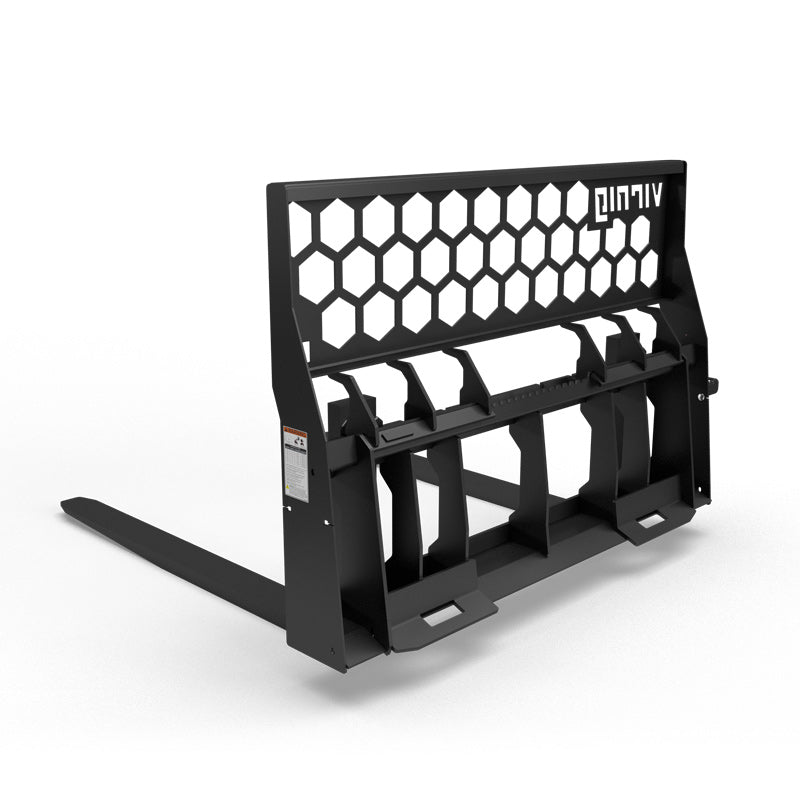

Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ

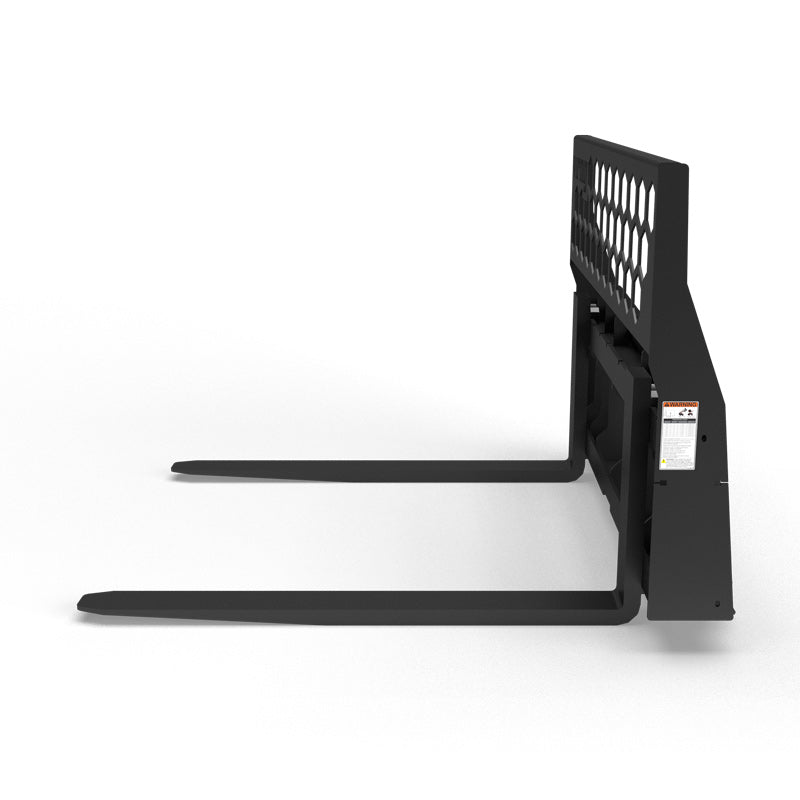

Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ

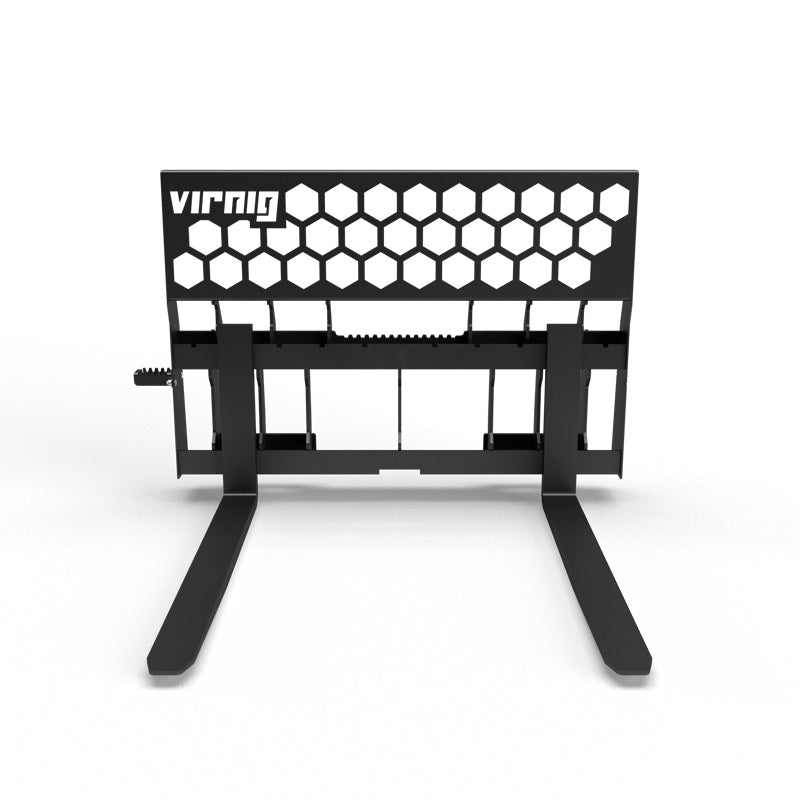

Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ

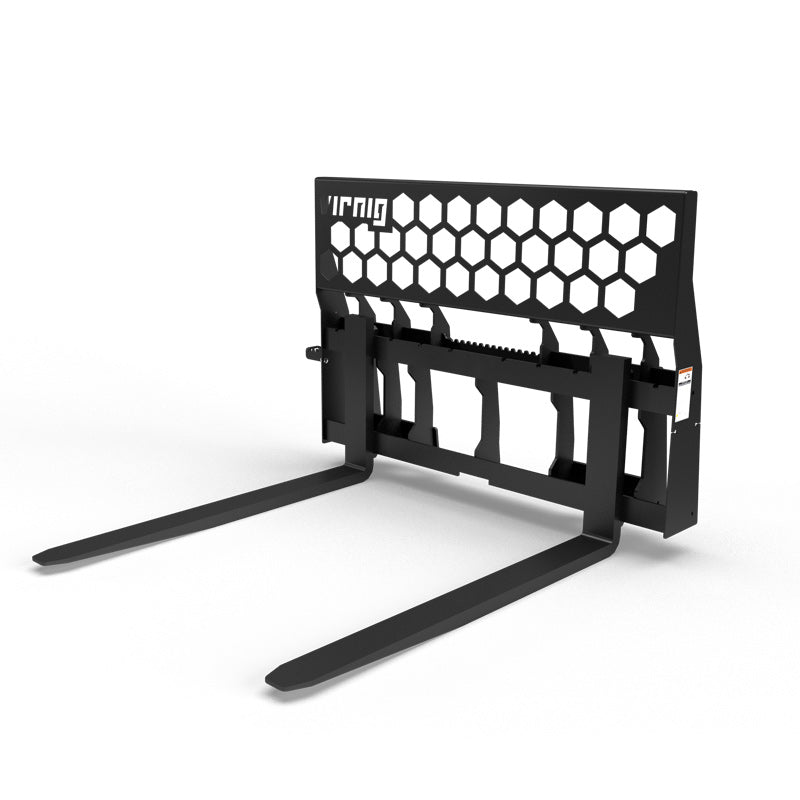

Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Hex-Guard; manufacturer family image, configuration may differ
Virnig

Virnig Wide Rail Pallet Fork Hex-Guard

SKU: WPFHG4240 Currently In Stock

$1,645.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

LOAD BACKREST

A 3/16″ CLASSIC VIRNIG BRICKGUARD PROVIDES A BACKREST FOR PALLETIZED LOADS.

BEVELED FORK RAIL

A ¾″ BEVELED RAIL SUPPORTS THE FORK TINES ACROSS THE CARRIAGE.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE MATERIAL AGAINST THE FRAME.

CENTERED MOUNT BRACING

CENTERED QUICK-ATTACH BRACING KEEPS THE HOOKUP AREA ACCESSIBLE WHEN MOUNTING THE FORK.

ACCESS STEP

FIT THE BOLT-ON STEP ON EITHER SIDE TO SUIT THE OPERATOR'S ACCESS ROUTE.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Wide Rail Pallet Fork Hex-Guard pairs a wider rail frame with adjustable forged tines and the classic Virnig backrest. It provides another frame layout for pallet handling where the wider tine positioning range is useful, while keeping the familiar Hex-Guard arrangement behind the load.

The 3⁄16″ brickguard sits flush with the tines to help stabilize material held against the frame. A ¾″ beveled rail carries the forks, and bracing centered on the quick-attach area assists with loader hookup. The bolt-on step can be installed on either side to suit the machine's access arrangement.

Choose the fork length and rating around pallet depth, load position, and the loader's actual lifting limits. A wider frame does not increase the carrier's rated capacity. This configuration is the wide rail alternative to the standard Hex-Guard model, allowing the frame layout and backrest style to be selected together for the handling task.

KEY BENEFITS

  • 3/16″ classic Virnig brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
  • Bolt-on step installs on either side.

TECHNICAL SPECIFICATIONS

  • Overall width with step / frame width: 59.5 / 54.5 inches.
  • Overall height: 37 inches.
  • Tine spacing, minimum / maximum: 8.9 / 49.1 inches.
  • WPFHG4240: tine length / width / thickness 42 / 4 / 1.375 inches; approximate attachment weight 390 lb; fork capacity 4,000 lb.
  • WPFHG4840: tine length / width / thickness 48 / 4 / 1.375 inches; approximate attachment weight 410 lb; fork capacity 4,000 lb.
  • WPFHG4255: tine length / width / thickness 42 / 4 / 1.5 inches; approximate attachment weight 410 lb; fork capacity 5,500 lb.
  • WPFHG4855: tine length / width / thickness 48 / 4 / 1.5 inches; approximate attachment weight 425 lb; fork capacity 5,500 lb.
  • WPFHG6055: tine length / width / thickness 60 / 4 / 1.5 inches; approximate attachment weight 460 lb; fork capacity 5,500 lb.
  • WPFHG4862: tine length / width / thickness 48 / 4 / 1.75 inches; approximate attachment weight 440 lb; fork capacity 6,200 lb.
  • WPFHG7255: 72-inch tines; fork capacity 5,500 lb. Assembled weight and tine cross-section are not published in the available specification table; contact us to confirm those dimensions.
  • Stay within the carrier rated capacity, which may be lower than the fork rating.

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG WIDE RAIL PALLET FORK: HEX-GUARD

WORKING DESIGN

  • 3/16″ classic Virnig brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
  • Bolt-on step installs on either side.

CONFIGURATION AND SPECIFICATIONS

  • Overall width with step / frame width: 59.5 / 54.5 inches.
  • Overall height: 37 inches.
  • Tine spacing, minimum / maximum: 8.9 / 49.1 inches.
  • WPFHG4240: tine length / width / thickness 42 / 4 / 1.375 inches; approximate attachment weight 390 lb; fork capacity 4,000 lb.
  • WPFHG4840: tine length / width / thickness 48 / 4 / 1.375 inches; approximate attachment weight 410 lb; fork capacity 4,000 lb.
  • WPFHG4255: tine length / width / thickness 42 / 4 / 1.5 inches; approximate attachment weight 410 lb; fork capacity 5,500 lb.
  • WPFHG4855: tine length / width / thickness 48 / 4 / 1.5 inches; approximate attachment weight 425 lb; fork capacity 5,500 lb.
  • WPFHG6055: tine length / width / thickness 60 / 4 / 1.5 inches; approximate attachment weight 460 lb; fork capacity 5,500 lb.
  • WPFHG4862: tine length / width / thickness 48 / 4 / 1.75 inches; approximate attachment weight 440 lb; fork capacity 6,200 lb.

READY FOR THE FIELD

  • 3/16″ classic Virnig brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
  • Bolt-on step installs on either side.
