Wide Rail Pallet Fork Walk-Through

For Skid Steers & Track Loaders

4,000-6,200 lb Fork Capacity

Request QuoteAdd To Cart

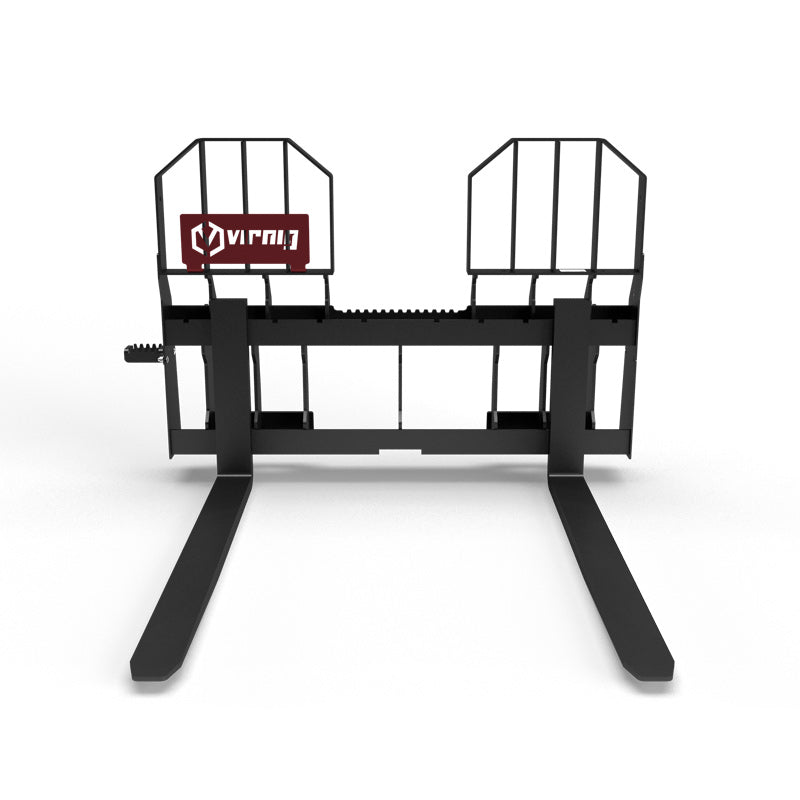

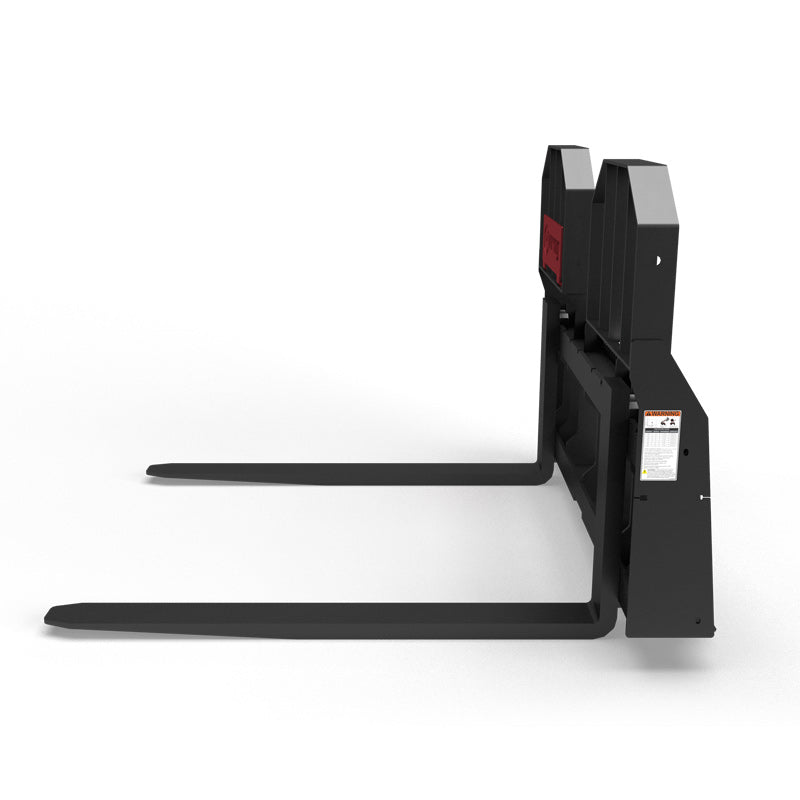

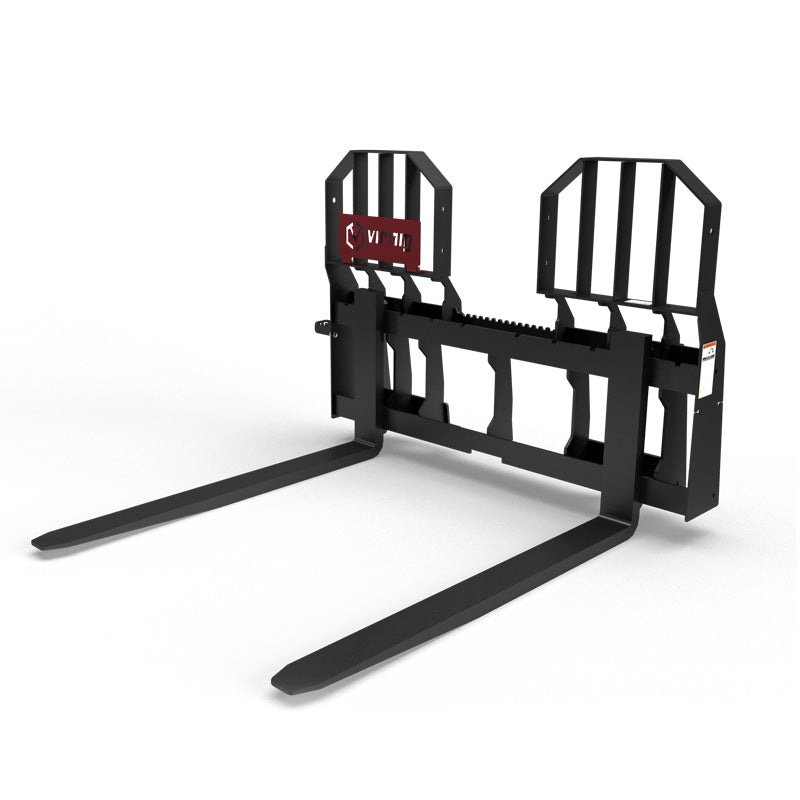

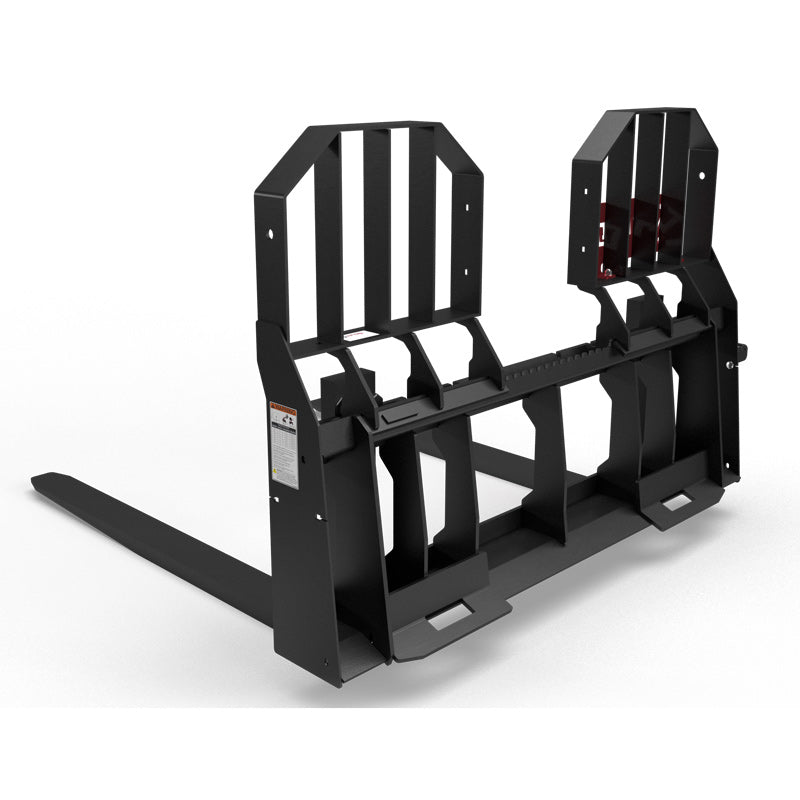

Virnig Wide Rail Pallet Fork Walk-Through

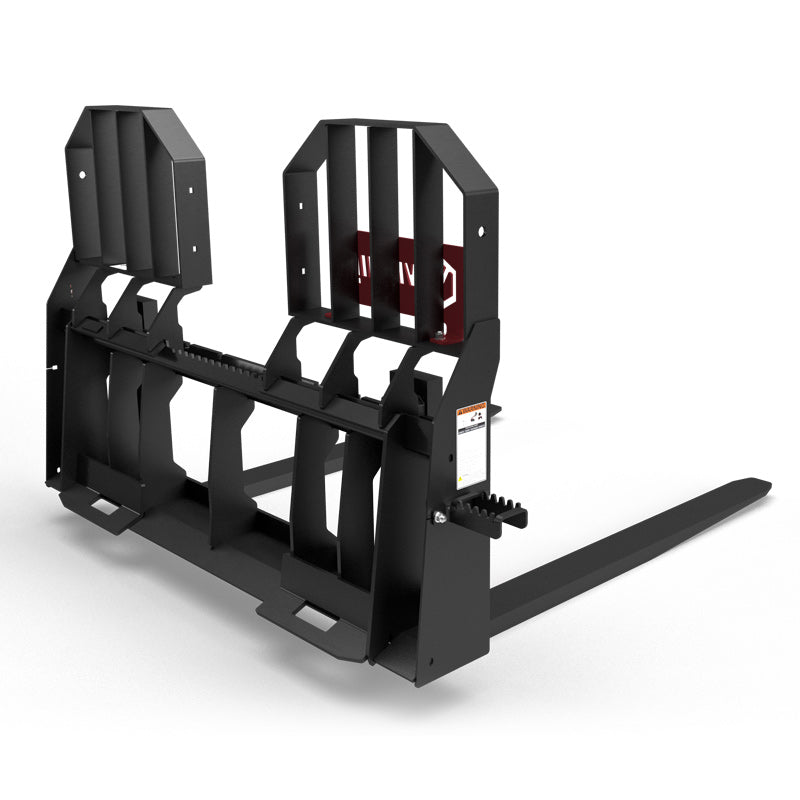

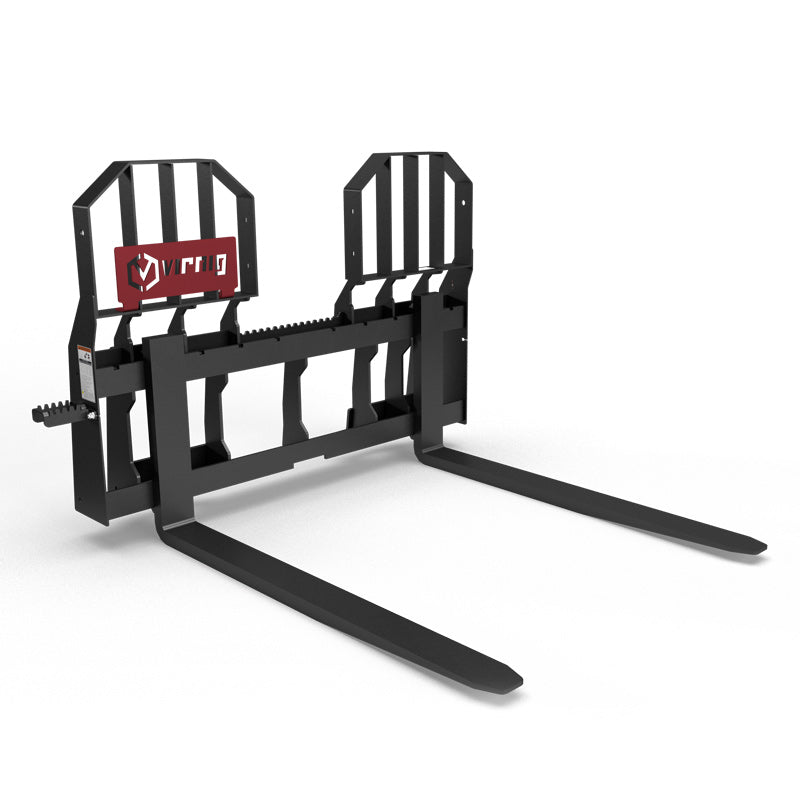

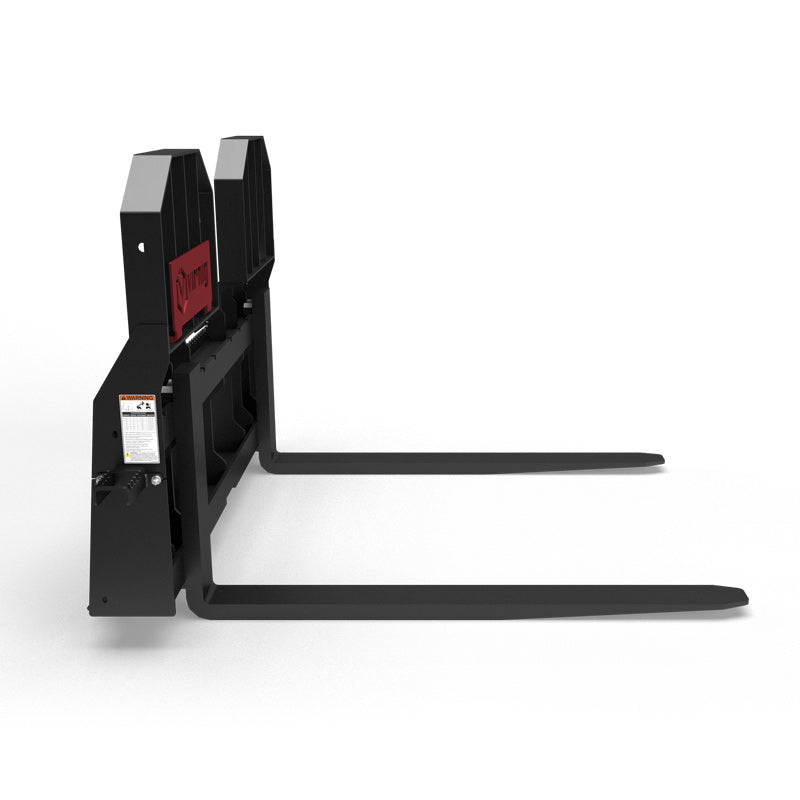

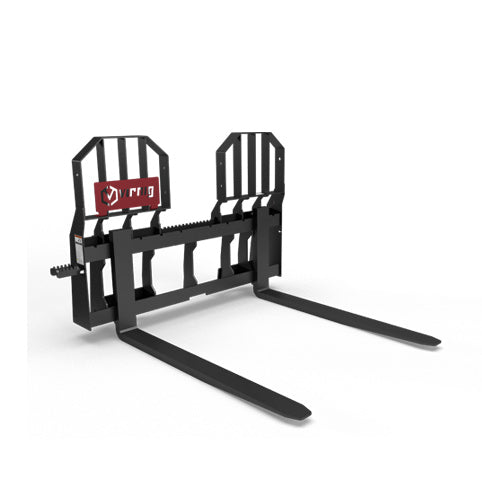

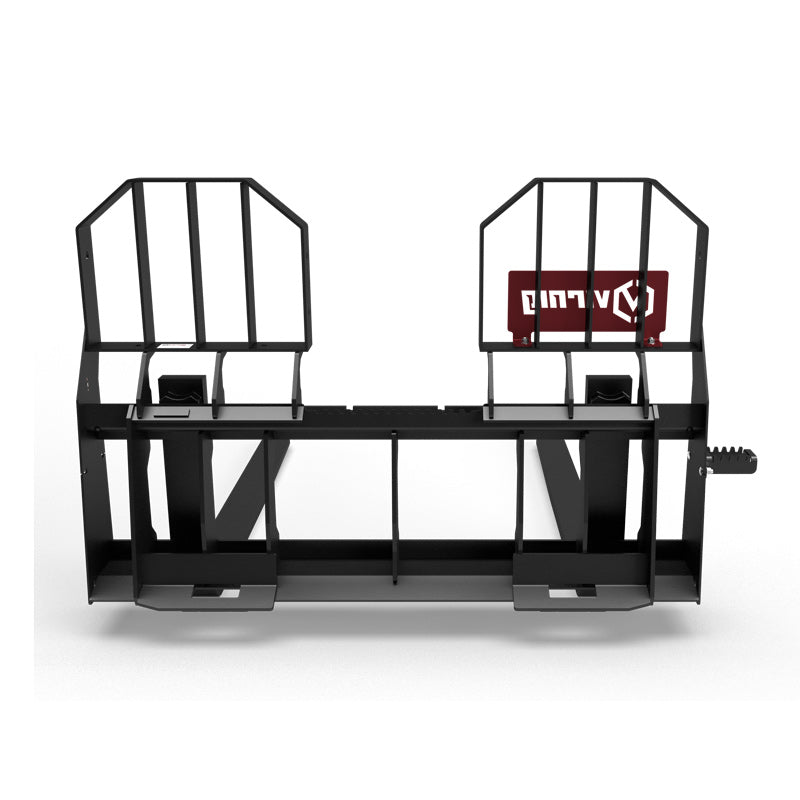

Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Roll over image to zoom in Click on image to zoom
Virnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differVirnig Wide Rail Pallet Fork: Walk-Through; manufacturer family image, configuration may differ
Virnig

Virnig Wide Rail Pallet Fork Walk-Through

SKU: WPFWT4240 Currently In Stock

$1,600.00 USD

Freight shipping calculated at checkout

Contact us for current availability and delivery timing.

✔ Have Questions? Call a Currenhaus Team Member: (805)-334-5208
✔ Hassle-Free Jobsite Freight Delivery
✔ Authorized U.S. Dealer
✔ Lowest Price Match Guaranteed
Ask a Question or Request a Quote
(805)-334-5208 operations@currenhaus.com
Product Specifications Parts & Support

MOST IMPORTANT FEATURES

WALK-THROUGH ACCESS

THE WALK-THROUGH FRAME PROVIDES A CLEARER ROUTE BETWEEN THE FORKS AND THE CAB.

HIGH-VISIBILITY BACKREST

THE ¼″ HIGH-VISIBILITY BACKREST SUPPORTS LOADS WHILE PRESERVING FORWARD SIGHTLINES.

BEVELED FORK RAIL

A ¾″ BEVELED RAIL SUPPORTS THE FORK TINES ACROSS THE CARRIAGE.

FLUSH LOAD BACKREST

THE BACKREST SITS FLUSH WITH THE TINES TO HELP STABILIZE MATERIAL AGAINST THE FRAME.

CENTERED MOUNT BRACING

CENTERED QUICK-ATTACH BRACING KEEPS THE HOOKUP AREA ACCESSIBLE WHEN MOUNTING THE FORK.

Description

Key Benefits

Technical Specs

Applications

DESCRIPTION

The Virnig Wide Rail Pallet Fork Walk-Through provides pallet handling with a wider rail frame and a dedicated opening for cab access. The configuration combines adjustable forged tines with a ¼″ high-visibility brickguard, giving operators an open view around the load while retaining a walk-through layout.

A ¾″ beveled rail supports the adjustable forks, with the wider frame providing a different spacing range from the standard rail version. The guard sits flush with the tines to help keep material supported against the backrest. Centered quick-attach bracing assists with hookup alignment, and the bolt-on step can mount on either side.

Select the tine length and fork rating around the material and pallet dimensions you use most often. Check the carrier's lifting capacity for the load center and the complete attachment weight. This model combines the wide rail arrangement with walk-through access; it is a separate frame choice from the standard rail walk-through fork.

KEY BENEFITS

  • Walk-through design allows quick cab access.
  • 1/4″ high visibility brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.

TECHNICAL SPECIFICATIONS

  • Overall width with step / frame width: 59.5 / 54.5 inches.
  • Overall height: 37 inches.
  • Tine spacing, minimum / maximum: 8.9 / 49.1 inches.
  • WPFWT4240: tine length / width / thickness 42 / 4 / 1.375 inches; approximate attachment weight 400 lb; fork capacity 4,000 lb.
  • WPFWT4840: tine length / width / thickness 48 / 4 / 1.375 inches; approximate attachment weight 420 lb; fork capacity 4,000 lb.
  • WPFWT4255: tine length / width / thickness 42 / 4 / 1.5 inches; approximate attachment weight 420 lb; fork capacity 5,500 lb.
  • WPFWT4855: tine length / width / thickness 48 / 4 / 1.5 inches; approximate attachment weight 435 lb; fork capacity 5,500 lb.
  • WPFWT6055: tine length / width / thickness 60 / 4 / 1.5 inches; approximate attachment weight 470 lb; fork capacity 5,500 lb.
  • WPFWT4862: tine length / width / thickness 48 / 4 / 1.75 inches; approximate attachment weight 450 lb; fork capacity 6,200 lb.
  • WPFWT7255: 72-inch tines; fork capacity 5,500 lb. Assembled weight and tine cross-section are not published in the available specification table; contact us to confirm those dimensions.
  • Stay within the carrier rated capacity, which may be lower than the fork rating.

APPLICATIONS

  • Pallet loading
  • Material staging
  • Jobsite unloading

VIRNIG WIDE RAIL PALLET FORK: WALK-THROUGH

WORKING DESIGN

  • Walk-through design allows quick cab access.
  • 1/4″ high visibility brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.

CONFIGURATION AND SPECIFICATIONS

  • Overall width with step / frame width: 59.5 / 54.5 inches.
  • Overall height: 37 inches.
  • Tine spacing, minimum / maximum: 8.9 / 49.1 inches.
  • WPFWT4240: tine length / width / thickness 42 / 4 / 1.375 inches; approximate attachment weight 400 lb; fork capacity 4,000 lb.
  • WPFWT4840: tine length / width / thickness 48 / 4 / 1.375 inches; approximate attachment weight 420 lb; fork capacity 4,000 lb.
  • WPFWT4255: tine length / width / thickness 42 / 4 / 1.5 inches; approximate attachment weight 420 lb; fork capacity 5,500 lb.
  • WPFWT4855: tine length / width / thickness 48 / 4 / 1.5 inches; approximate attachment weight 435 lb; fork capacity 5,500 lb.
  • WPFWT6055: tine length / width / thickness 60 / 4 / 1.5 inches; approximate attachment weight 470 lb; fork capacity 5,500 lb.
  • WPFWT4862: tine length / width / thickness 48 / 4 / 1.75 inches; approximate attachment weight 450 lb; fork capacity 6,200 lb.

READY FOR THE FIELD

  • Walk-through design allows quick cab access.
  • 1/4″ high visibility brickguard.
  • 3/4″ beveled rail.
  • Brickguard flush with tines to help stabilize loads.
  • Bracing centered on quick tach for easy hookup.
